Aicsys CYCLOPS-G151 – LCD & Keyboard Drawers

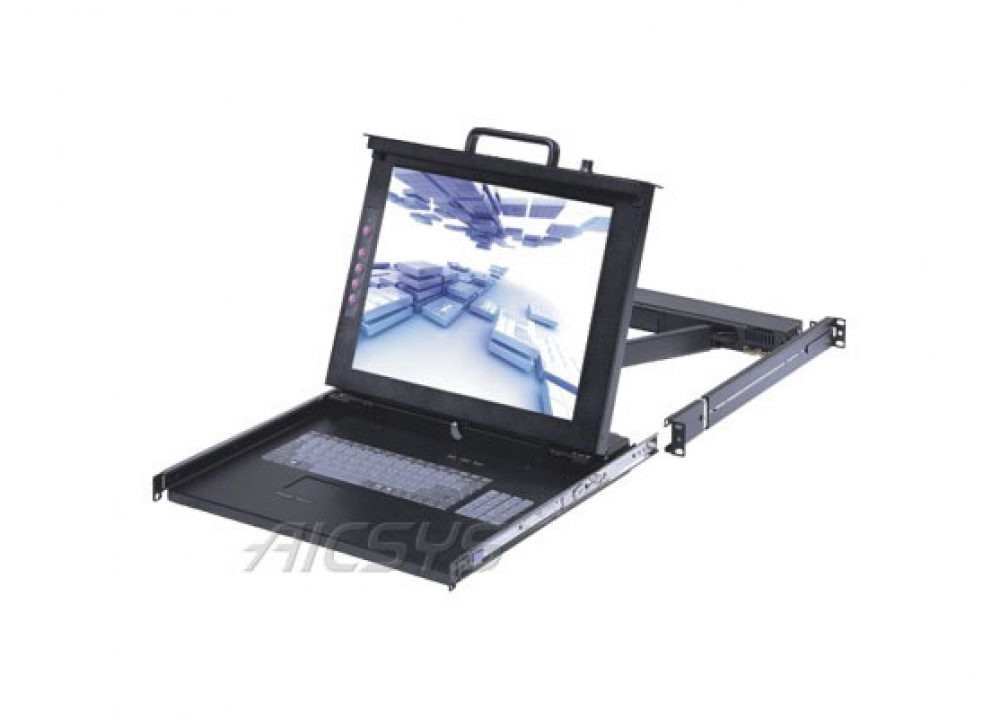

1U 15"/17"/19" LCD Monitor Keyboard Drawer, industrial slim keyboard and touchpad. Optional USB, Cherry or SUN keyboard- Standard 19″ Rackmount LCD Keyboard Drawer
- 15″/17″/19″/20.1″ TFT LCD Display
- Industrial Grade 106-key keyboard and touchpad
- Optional USB Touchscreen
- Optional USB port, Cherry Keyboard with Integrated Trackball and SUN system
- Rail-Lock Switch for maximum safety
- OSD menu for optimum display quality control
- New rail design to enable single person to install the console into the rack
- Built-In low power consumption power supply
Industria / Display
-
AC
-
DC
-

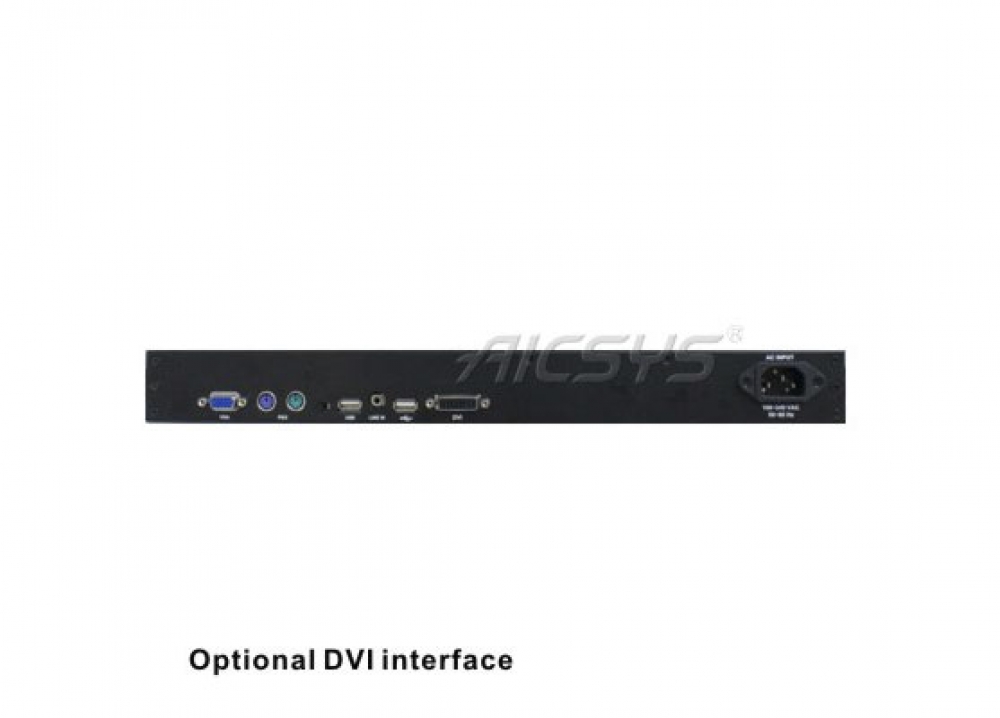

DVI
-
Interfaz
-
USB
-
VGA
Specifications
| CYCLOPS-G151 | CYCLOPS-G171 | CYCLOPS-G191 | |
|---|---|---|---|
| Display Size | 15″ | 17″ | 19″ |
| Resolution | 1024×768 | 1280×1024 | 1280×1024 |
| Connector | 15pin DB type VGA or Optional DVI Interface PS/2 keyboard and PS/2 mouse connectors Optional one USB interface for keyboard & mouse |
||
| Keyboard and Mouse | PS/2 106 keys keyboard with touch pad (Optional Cherry keyboard and integral industrial trackball and SUN systems) |
||
| Power Supply | Industrial level Auto-switching power supply for 85V~264V AC Input Optional DC power input for 12VDC, 24VDC and 48 VDC. |
||
|---|---|---|---|
| On-Screen Control | Auto adjustment, brightness, contrast, phase, H-V position, frequency, size, and display mode. Automatic and Manual Scan mode. |
||
| Drawer Design | Full extension high load rating slide rail with rail-lock safety switch. Rail design enables single person do the installation. | ||
| Dimensions | 447.5 (W) x 482 (D) x 43.8 (H) mm | 447.5 (W) x 532.44 (D) x 43.8 (H) mm | |
| Weight | 15.8kgs/34.8lbs |
17kgs/37.4lbs | |
