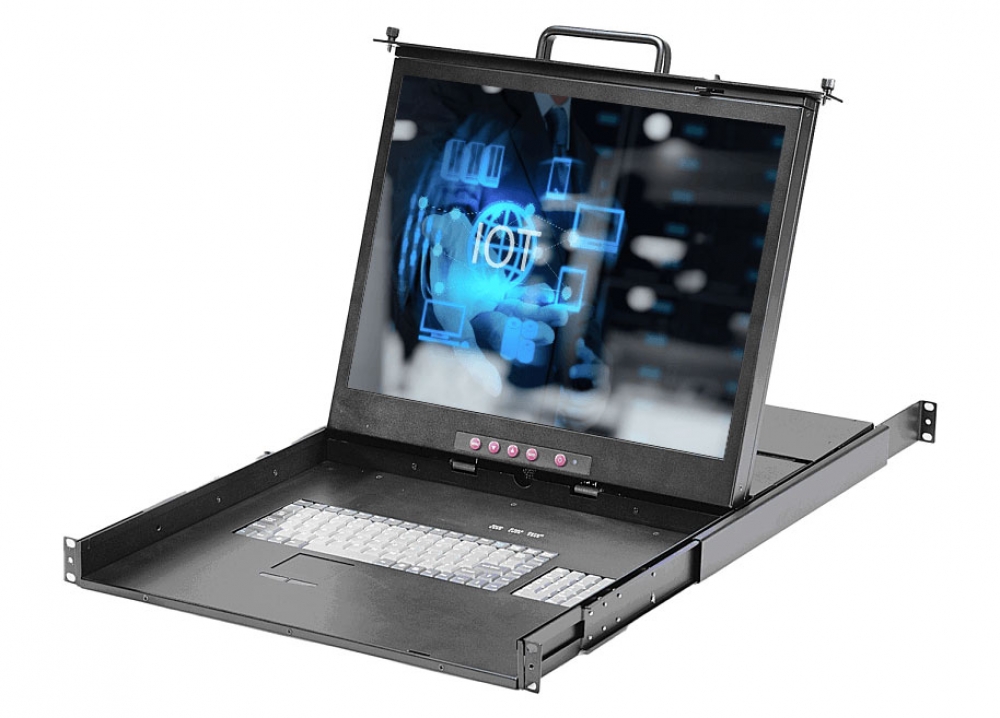

Aicsys CYCLOPS-G HD series – LCD & KVM Switches
1U LCD KVM console with 19” Full HD monitor, Slim Keyboard and Touchpad, and optional Cherry Keyboard and Trackball- 1U 8/16-port KVM unit with Full-HD 19″ LCD Drawer
- Industrial grade 106-key keyboard and touchpad
- Optional Cherry keyboard and trackball
- On Screen Display (OSD) enable easy adjustment
- Front access lock for system security
- New rail design to enable single person to install the console into the rack
Industria / Display
-
AC
Specifications
| LCD Display Size | 19″ |
|---|---|
| Resolution | Up to 1920 x 1080 |
| Connector | 15pin D type female connectors for 8 platform connection |
| KVM Switch | Port selection through Hot Keys, or On Screen Display |
| Keyboard and Mouse | PS/2 106 keys keyboard with touchpad or 84-key Cherry keyboard with trackball |
| Power Supply | Industrial level Auto-switching power supply for 85V~264V AC Input |
| On-Screen Control | Auto adjustment, brightness, contrast, phase, H-V position, frequency, size, and display mode |
|---|---|
| Drawer Design | Full extension high load rating slide rail with rail-lock safety switch Rail design enables single person do the installation |
| Temperature | Operate 0° ~ 50°C / 32° ~ 122°F |
| Storage -20° ~ 60°C / -4° ~ 140°F | |
| Dimensions | 19″: 476.1 (W) x 482 (D) x 43.8 (H) mm |
| Gross Weight | 19″: 19.5 kgs |
