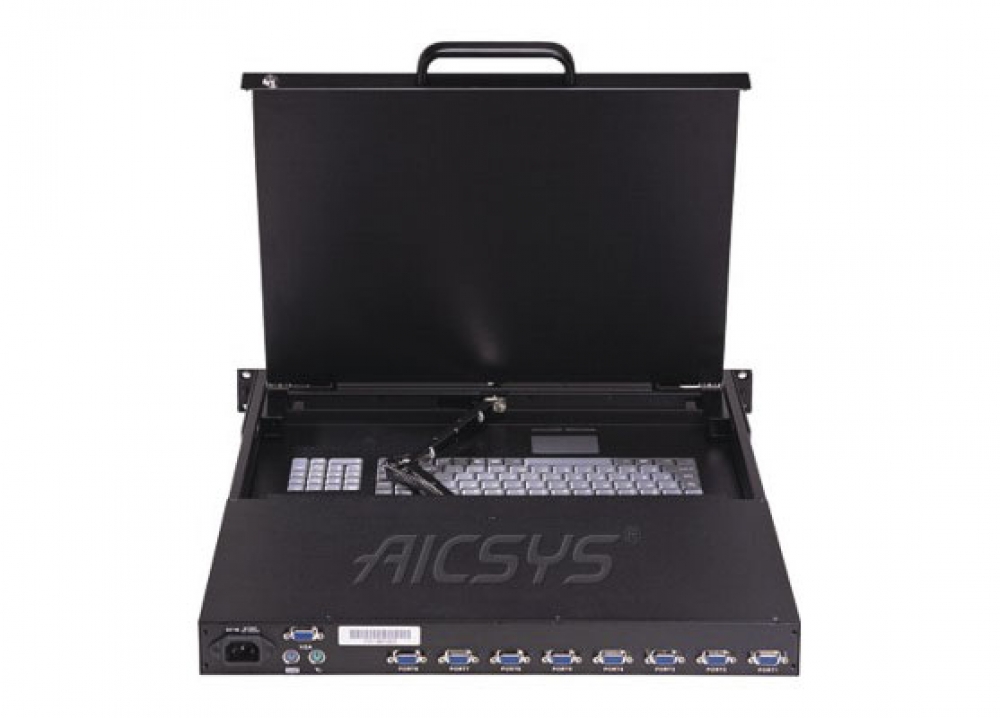

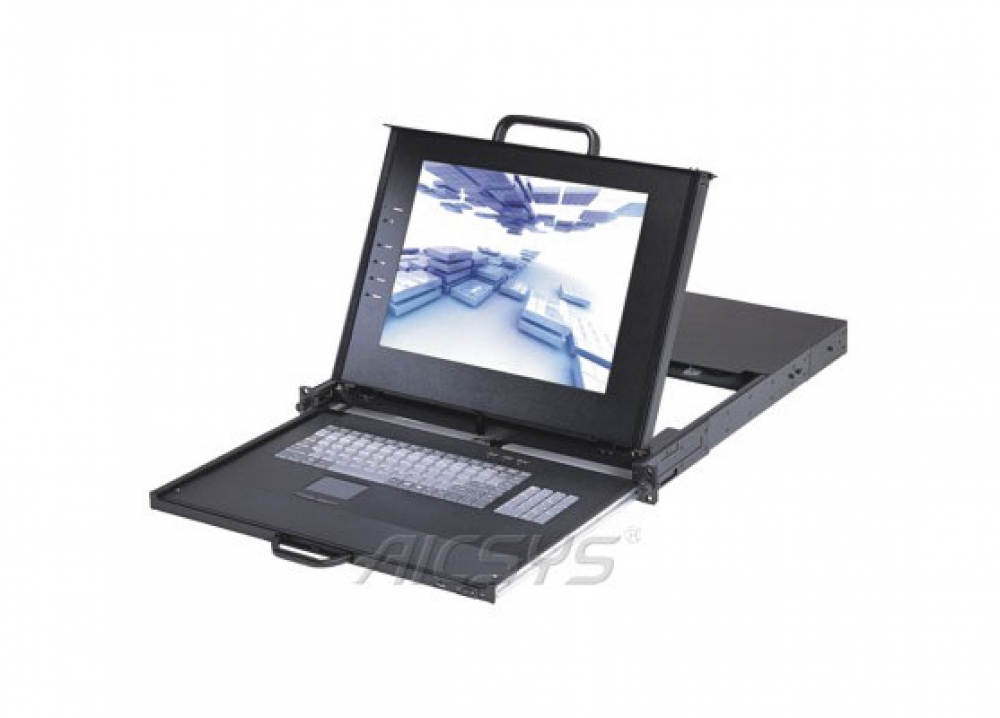

Aicsys CYCLOPS-B Series – LCD & KVM Switches
1U KVM LCD / Keyboard 8/16-Port KVM Switch; High Bright 15''/17'' LCD, Slim Keyboard with Touch Pad or Cherry Keyboard with Track ball . Control up to 128 systems by cascading- 1U 8/16-port KVM unit with 15″/17″/19″ LCD Drawer
- Industrial grade 106-key keyboard and touchpad
- Optional Cherry keyboard and trackball
- Expandable to control up to 128 computers
- On Screen Display (OSD) enable easy adjustment
- Password function for extra security
- Separate tracks for LCD panel and keyboard to allow for the most comfortable visual distance
Industria / Display
-
AC
-
Alto brillo
Specifications
| LCD Display Size | 15″/17″ |
|---|---|
| Resolution | 1024×768/1280×1024 |
| Connector | 15pin D type female connectors for 8 and 16 platform connection |
| KVM Switch | Port selection through Hot Keys, or On Screen Display. Cascading up to 128 systems, Password function for extra security |
| Keyboard and Mouse | PS/2 106 keys keyboard with touch pad or 84-key Cherry keyboard with trackball |
| Power Supply | Industrial level Auto-switching power supply for 85V~264V AC Input |
|---|---|
| On-Screen Control | Auto adjustment, brightness, contrast, phase, H-V position, frequency, size, and display mode |
| Drawer Design | Full extension high load rating slide rail, total drawer travel distance: 385mm. Two separate tracks for panel and keyboard enables independent extraction of either panel or keyboard alone. |
| Dimensions | 443.4 (W) x 569.8 (D) x 44 (H) mm 17.5 (W) x 22.4 (D) x 1.7 (H) inches |
| Gross Weight | 16.5kg/36.3 lbs |
