Aicsys CYCLOPS-D Series – LCD & KVM Switches

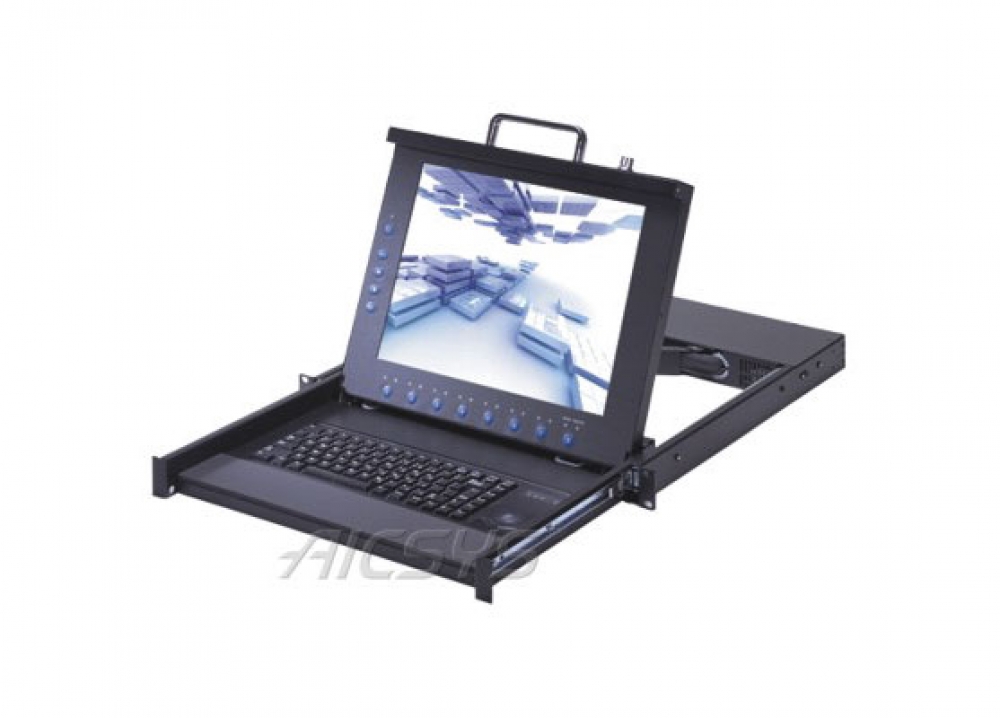

1U KVM LCD / Keyboard Drawer, 8-Port KVM Switch; High Bright 15'' & 17" LCD, US Cherry Keyboard with Track ball. Control up to 512 systems by cascading- 1U 8-port KVM unit with 15″/17″ LCD Drawer
- US Cherry keyboard and trackball
- Control up to 512 systems by 3 levels cascading
- On Screen Display (OSD) enable easy adjustment
- Front access lock for system security
- Separate tracks for LCD panel and keyboard to allow for the most comfortable visual distance
Industria / Display
-
AC
-
Interfaz
-
VGA
Specifications
| LCD Display Size | 15″/17″ |
|---|---|
| Resolution | 15″: 1024×768 (250 cd/m2)
17″: 1280×1024 (350cd/m2) |

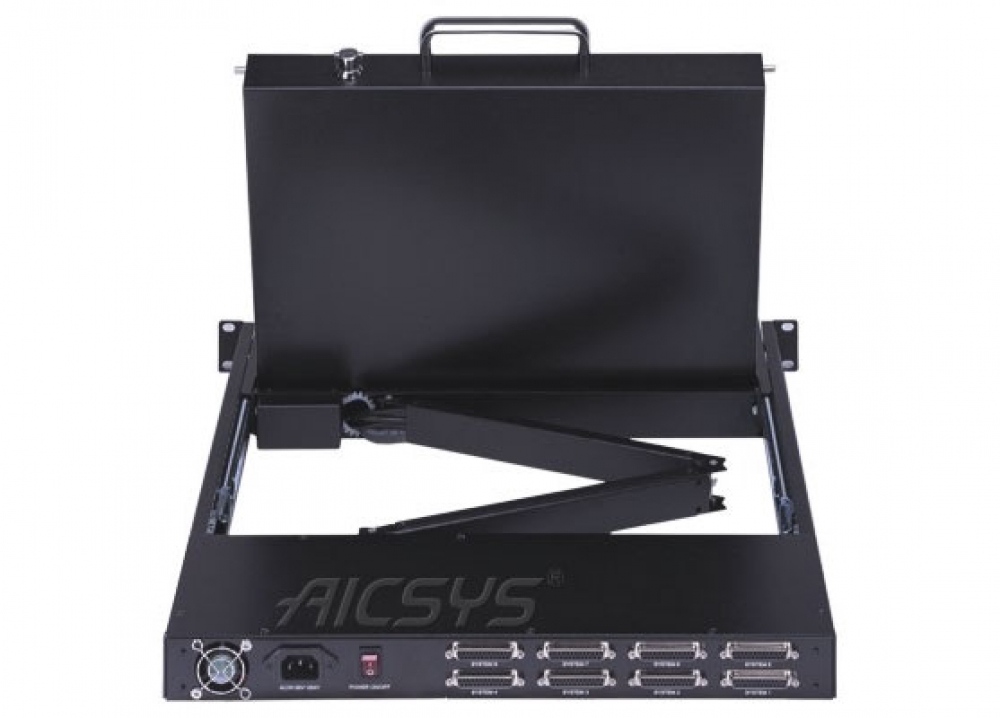

| Connector | DB25 pin type female connectors for 8 platform connection (VGA, PS/2 keyboard and PS/2 mouse male connectors at the platform side) |
| KVM Switch | Port selection through Hot Keys, or On Screen Display. Cascading up to 512 systems |
| Keyboard and Mouse | US Cherry keyboard with integrated 16mm trackball |
| Power Supply | Built in, 90~264VAC auto-switching input, 47~53Hz Power Consumption 26.25W |
|---|---|
| On-Screen Control | Menu, Auto adjustment, brightness, contrast, phase, H-V position, pitch, zoom, color, language and OSD position |
| Drawer Design | Special slider for smooth extraction |
| Dimensions | 15″: 443 (W) x 492 (D) x 43 (H) mm; 17.5 (W) x 19.4 (D) x 1.7 (H) inches
17″: 443 (W) x 548 x (D) x 43 (H) mm; 17.5 (W) x 21.6 (D) x 1.7 (H) inches |
| Gross Weight | 15″: 17.5kg / 38.675 lbs
17″: 18.6kg / 42 lbs |
