Aicsys EBS-3J04 – Embedded Systems
Industrial 3.5” Embedded system with Rockchip® ARM Cortex A72+A53 RK3399, HDMI, USB 3.0, Bluetooth and WIFI- Rockchip® Cortex A72+A53 RK3399
- Two Ethernet and WIFI supported
- Watchdog & Hardware Monitor function
- HDMI output
- Supports Android 7.1 & Linux Debian 9.0
Industria / Sistemas
-
5G
-
Android
-
ARM
-
Bluetooth
-
DC
-
HDMI
-
Interfaz
-
Linux
-
USB
-
Wifi
Specifications
| CPU | Rockchip® ARM Cortex A72 (Dual core) + Cortex A53 (Quad core) RK3399 SoC Processor |
|---|---|
| System Memory | Onboard 1333MHz 2GB DDR3L DRAM |
| Storage | Onboard 16GB eMMC |
| Network | (1) Realtek RTL8211E GbE (1) Realtek RTL8152B-VB 10/100Mbps Support WiFi & Bluetooth (802.11 a/b/g/n/ac 2.4/5G WIFI and BT-V5.0) |
| Audio | (2) Audio Jack (Line-out +MIC) |
| Power | DC in 12V |

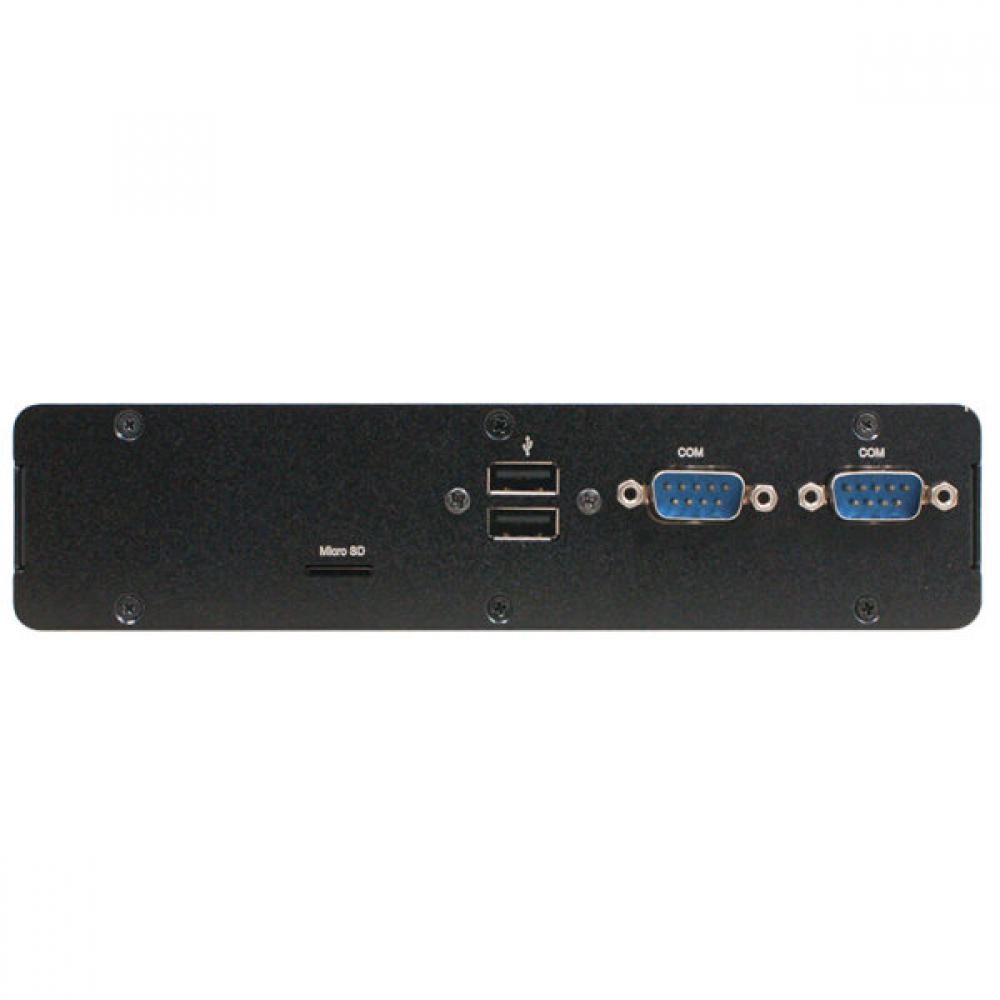

| Front Panal | (2) USB 2.0 (2) RS232 (2) Micro SD (2) Antenna |
|---|---|

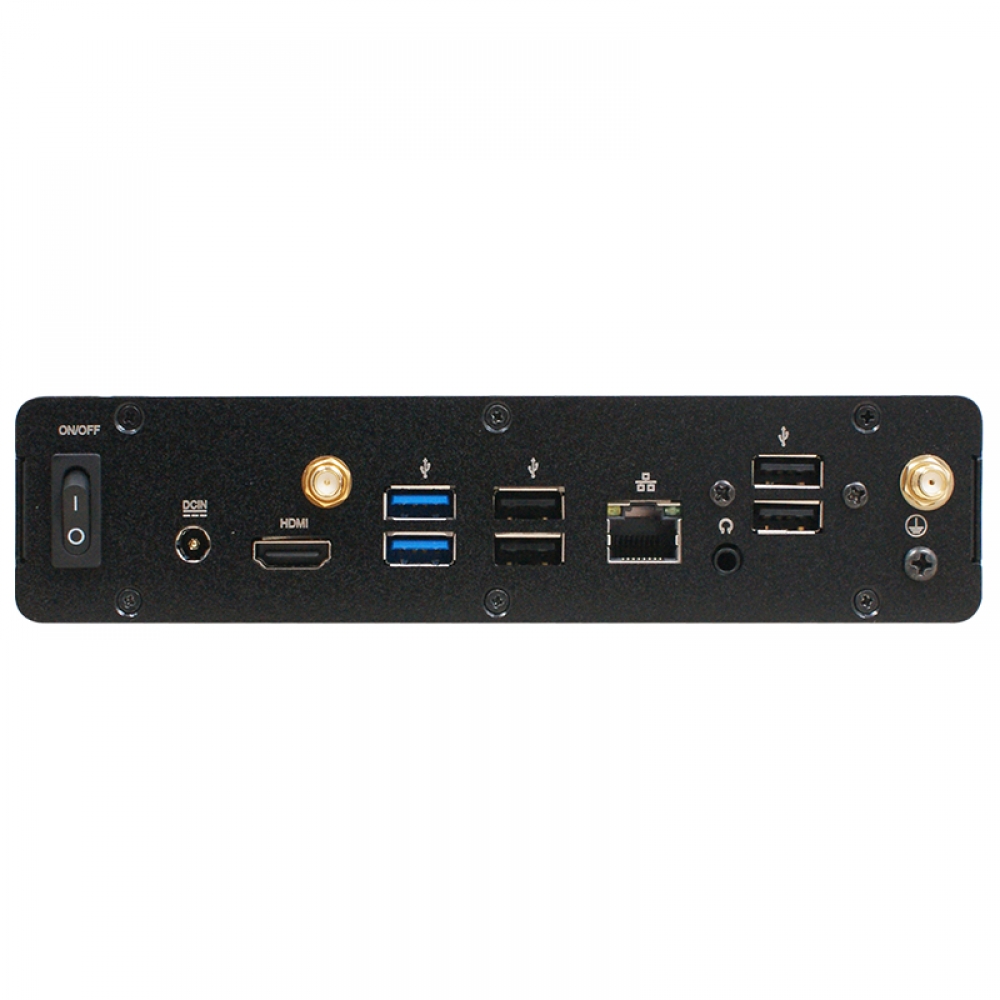

| Rear Panel | (2) USB 3.0 (1* OTG-Option) (2) USB 2.0 (1) HDMI (Max. Resolution: 3840 x 2160@60Hz) (2) RJ45 (1) Audio Jack (Line-out +MIC) (2) Antenna |
| Dimensions | 184 (W) x 106 (D) x 44 (H) mm |
| Temperature | Operating Temperature: -10 ~ 60° C Storage Temperature: -20 ~ 70° C |
