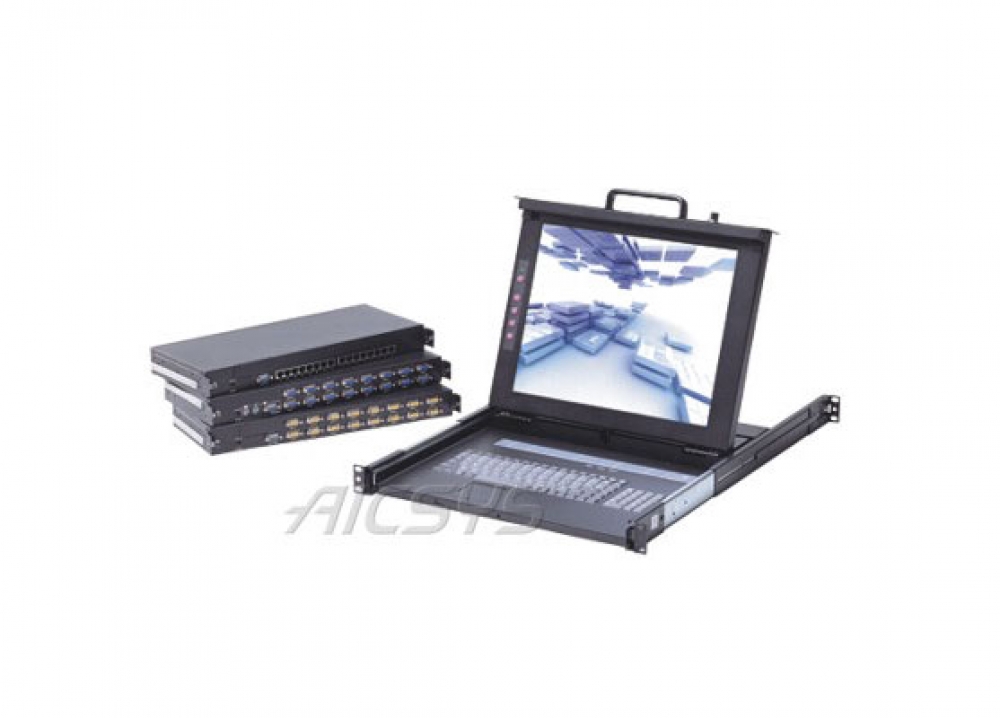

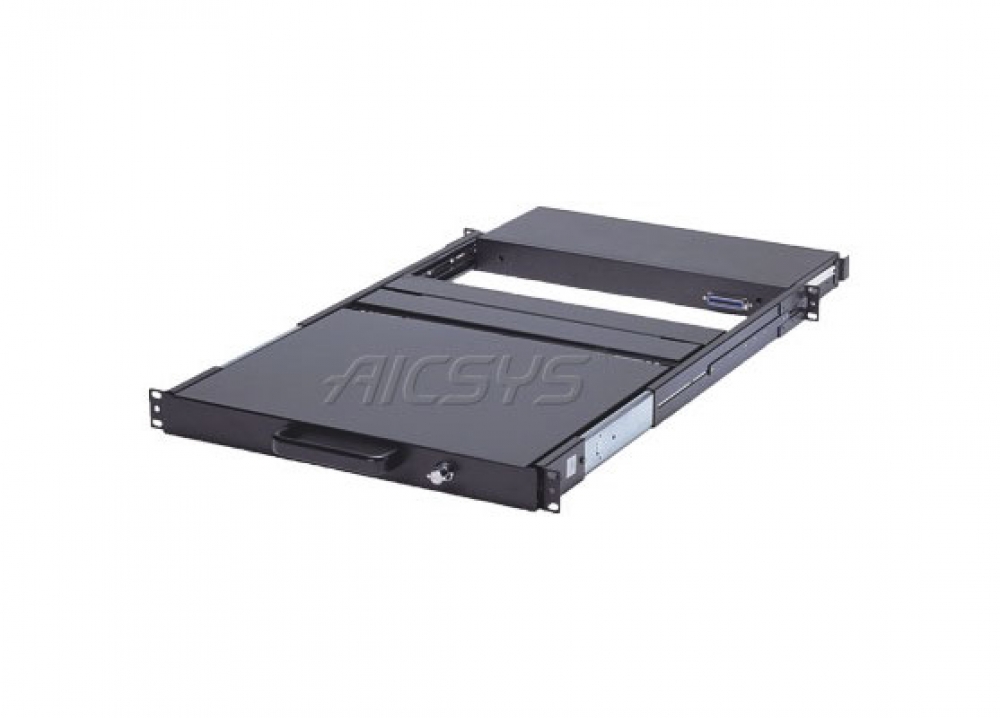

Aicsys HERCULES-G Series – LCD & KVM Switches
1U Modular KVM LCD / Keyboard Drawer, 16-Port KVM Switch, High Bright 15"/17"/19" LCD, Slim Keyboard with Touch Pad, or Cherry Keyboard with Track ball. SUN system version is also available- 1U 8/16-port KVM unit with 15″/17″/19″ LCD Drawer
- Supports PS/2 and USB Keyboard/Mouse
- Push button OSD and Hotkey Port Selection
- One multi-port for additional KVM switch module
- On Screen Display (OSD) enable easy adjustment
- Rail-Lock Switch for maximum safety
- New rail design to enable single person to install the console into the rack
Industria / Display
-
AC
-
Interfaz
-
VGA
Specifications
| LCD Display Size | 15″/17″/19″ |
|---|---|
| Resolution | Up to 1600 x 1200 |
| Connector | DB-15 VGA, PS/2 keyboard& PS/2 mouse connectors USB port for keyboard & mouse One multi-port for additional KVM switch module with IP module or CAT5 Module & R-Box |
| KVM Switch | Optional Replacable KVM Switch Module |
| Keyboard and Mouse | PS/2 106 keys keyboard with touch pad (Optional Cherry keyboard and trackball) |
| Power Supply | Industrial level Auto-switching power supply for 85V~264V AC Input |
|---|---|
| On-Screen Control | Auto adjustment, brightness, contrast, phase, H-V position, frequency, size, and display mode |
| Drawer Design | Full extension high load rating slide rail with rail-lock safety switch Rail design enables single person do the installation |
| Dimensions | 15″/17″: 470 (W) x 447 (D) x 43.2 (H) mm ; 18.5 (W) x 17.6 (D) x 1.7 (H) inches 19″: 520 (W) x 447 (D) x 43.2 (H) mm ; 24.5 (W) x 17.6 (D) x 1.7 (H) inches |
| Gross Weight | 15″: 19.5KG / 43.0lbs 17″: 20.5KG / 45.2lbs 19″: 21.5KG / 47.4 lbs |
