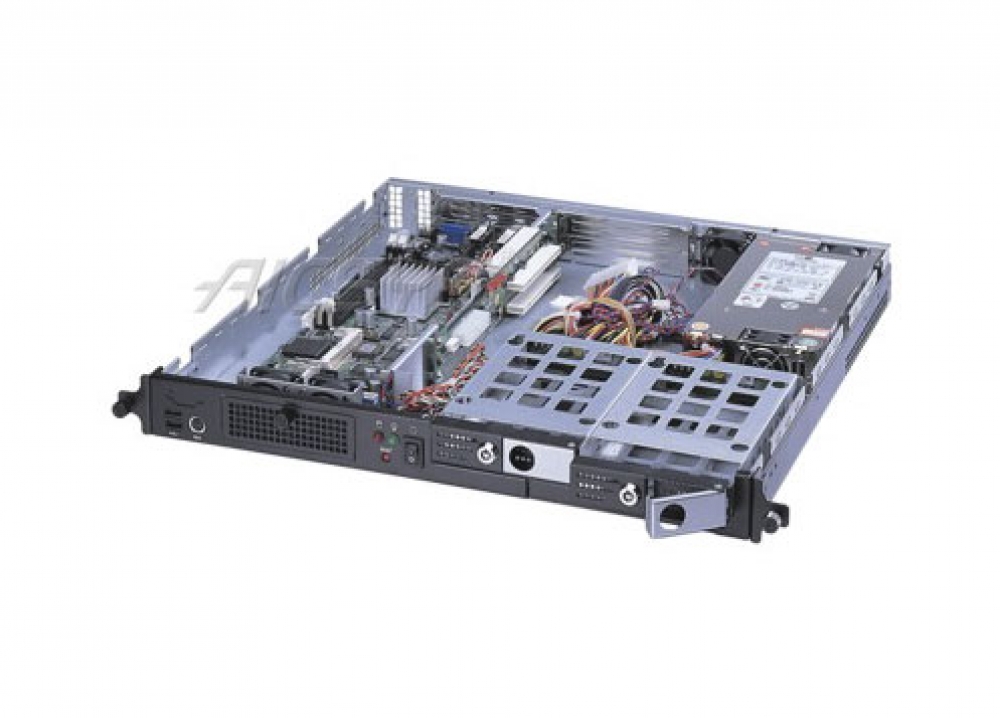

Aicsys RCK-103BR – 1U Rackmount Chassis
1U Rackmount chassis for Single Board Computer with 3 drive bays, PICMG 1.0/ 1.3 backplane and optional 250W/300W/460W/520W ATX power supply- 1U 19″ Rackmount Heavy duty steel construction
- Only 422mm (16.6″) depth
- Supports Full Size SBC through PICMG 1.0 butterfly backplane: BP-403PA0-1U

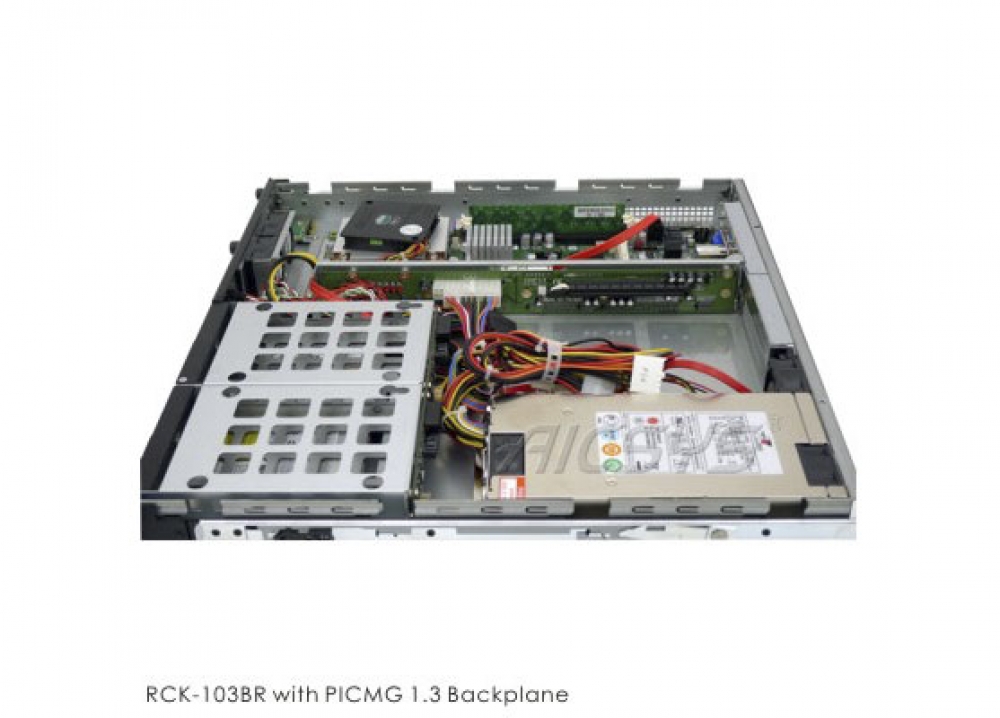

- Supports Full Size SBC through PICMG 1.3 butterfly backplane: BPE-201E
- Drive Bays: (1) Slim CD-ROM, (2) 3.5″ SATA HDD mobile racks , (1) 2.5″ space for SSD or HDD
- USB and PS/2 ports on the front panel

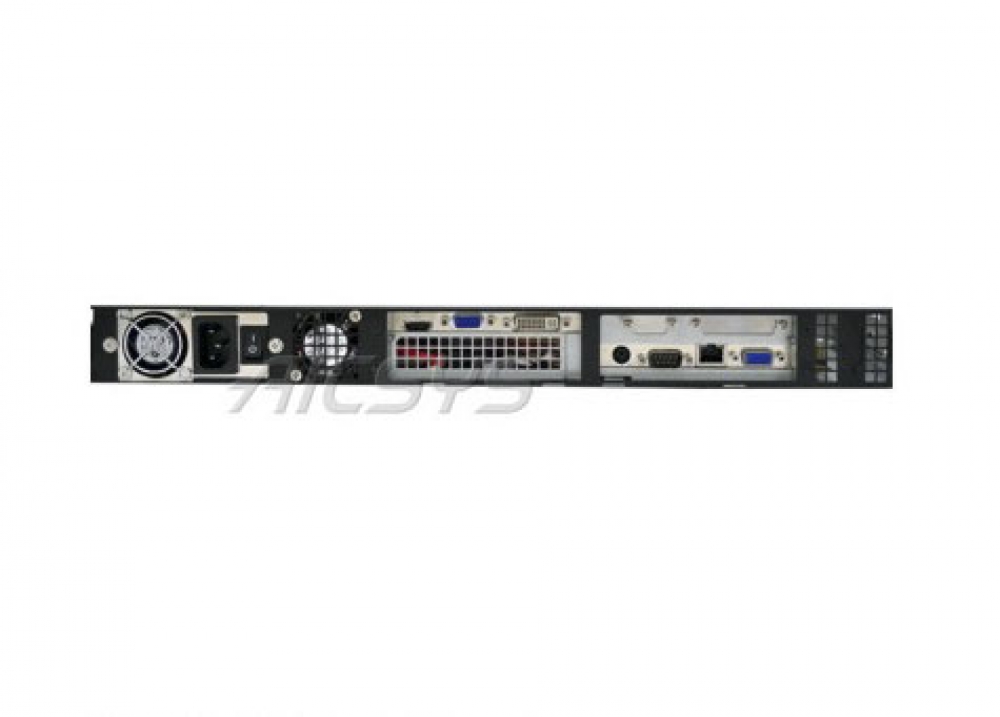

- RS-232 on front and rear panel

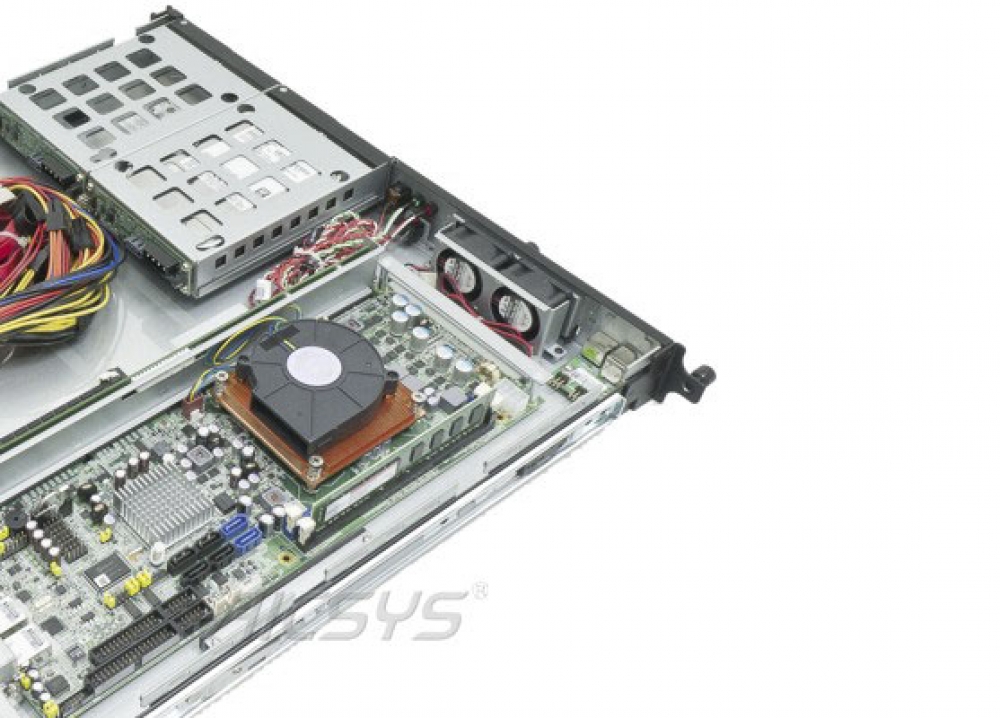

- (3) 40mm ball bearing fans to ensure excellent heat dissipation
- Supports up to 520W power supply
- Full extension slide rail
Industria / Placas
-
HDD
-
Interfaz
-
SSD
-
USB
Specifications
| Board Support | Full size Single Board Computer | ||||
|---|---|---|---|---|---|
| Expansion Slots | PICMG 1.0 backplane with 3 PCI slots or PICMG 1.3 backplane with 1 PCIe x16 slot | ||||
| Drive Bays | (1) Slim CD-ROM, (2) 3.5″ SATA HDD mobile racks, (1) 2.5″ space for SSD or HDD | ||||
| Front Panel | On/Off Switch and Reset Switch, Power On/Off LED and HDD LED | ||||
| Power Supply | Up to 520W Auto-Switching ATX Power Supply | ||||
|---|---|---|---|---|---|
| Cooling | Three 4cm ball bearing fans | ||||
| Dimensions | 430.5(W) x 422(D) x 44.2(H) mm; 16.9 (W) x 16.6 (D) x 1.7 (H) inches | ||||
| Net/Gross Weight | 5.2kg/10.6kg | ||||
