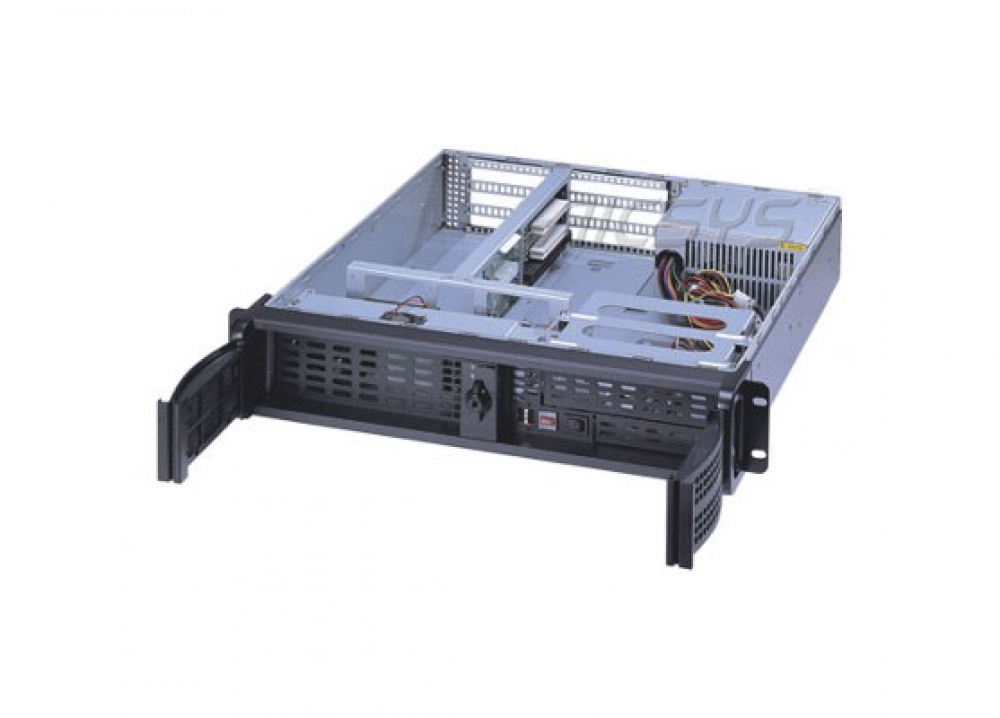

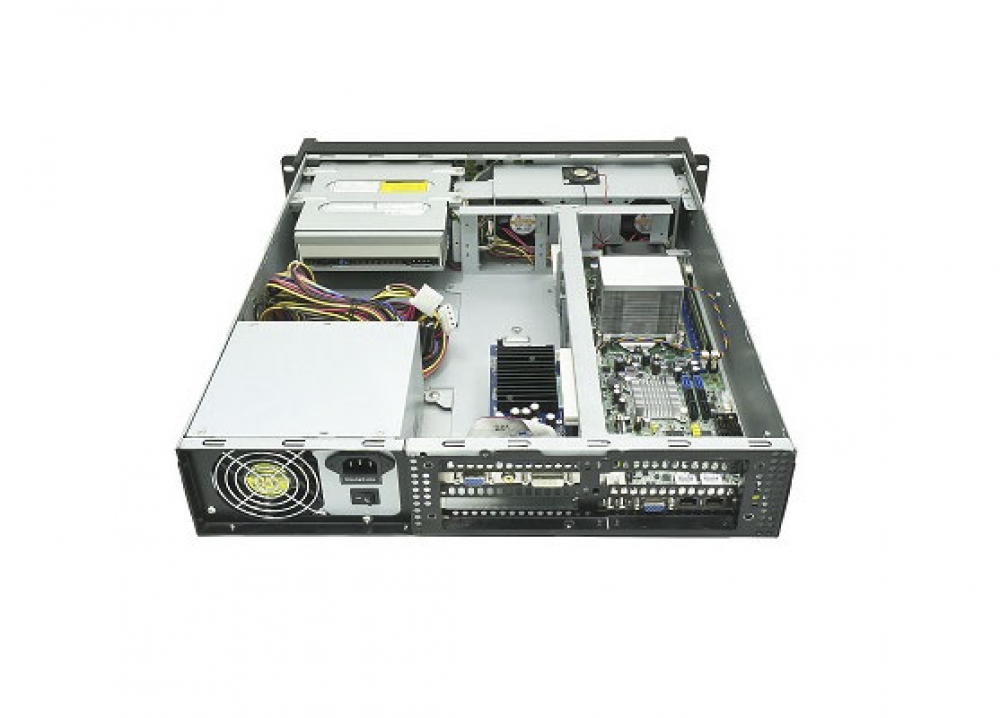

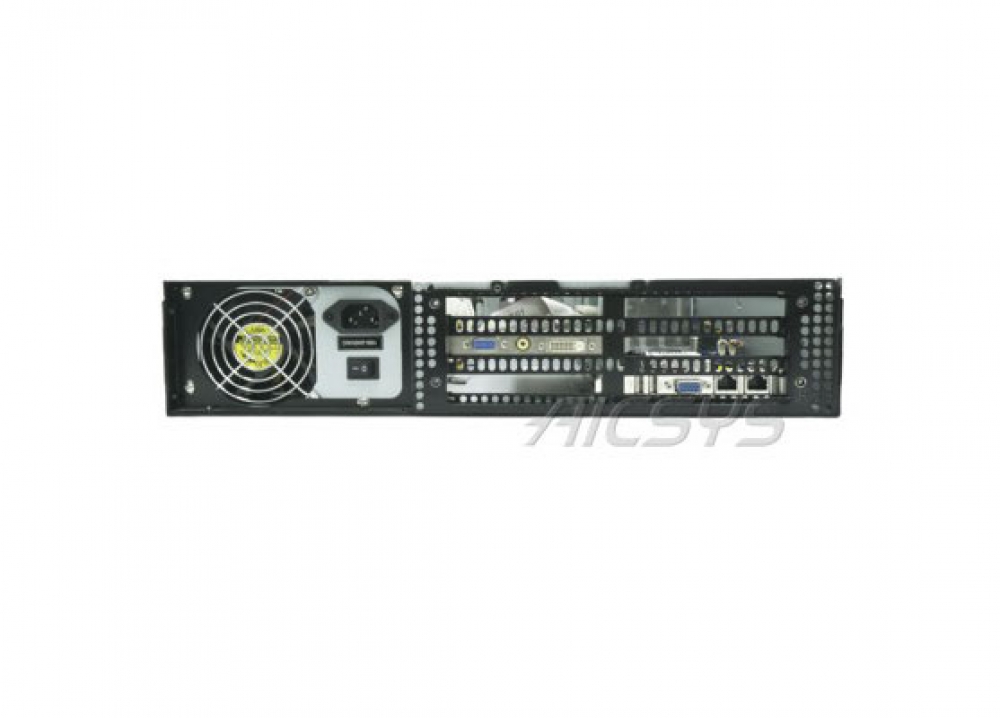

Aicsys RCK-203BA-0501P-SYS – Rackmount Systems
2U Rackmount System with Intel Core i3/i5/i7 processor SBC board, GbE LAN, 3 Drive bays, PICMG 1.3 backplane and up to 600W Power Supply- Standard 2U 19” Rackmount Server
- Intel Core i7/i5/i3 SBC boards
- Heavy duty steel Chassis with only 480mm in depth
- PICMG 1.3 2U Butterfly Backplane
- (1) 5.25 & (1) 3.5″ external drive bays and (1) 3.5″ internal drive bay
- (2) 6cm ball-bearing fans
- Up to 600W ATX PSU
- Optional Slide rail
Industria / Sistemas
-
Intel
-
Interfaz
-
LAN
Specifications
| SBC & CPU Support | 1.SBC-6505: Intel® Core™ i7-2600 / i5-2400 / i3-2120 2.SBC-6508: Intel® Core™ i7-3770 / i5-3550s / i3-3220 3.SBC-6510: Intel® Core™ i7-6700 / i5-6500 / i3-6100 (see Optional Ordering Information for more SBC selection) |
|---|---|
| Drive Bays | (1) 5.25 and (1) 3.5″ External and (1) 3.5″ Internal Drive Bays |
| Cooling | (2) 6cm ball-bearing fan and one extra space for additional fan |
| Construction | Heavy Duty Steel |
|---|---|
| Backplane Expansion | BPE-501P-2U: 5 slot PICMG 1.3 backplane (1) PCIe x 16, (2) PCIe x 1 and (1) PCI 32bit 5V slots |
| Power Supply | PNA-400AXP: 400W ATX Power Supply or PNA-600AXP: 600W ATX Power Supply |
| Dimension | 427 (W) x 480 (D) x 88.2(H) mm; 16.8 (W) x 18.9 (D) x 3.5 (H) inches |
