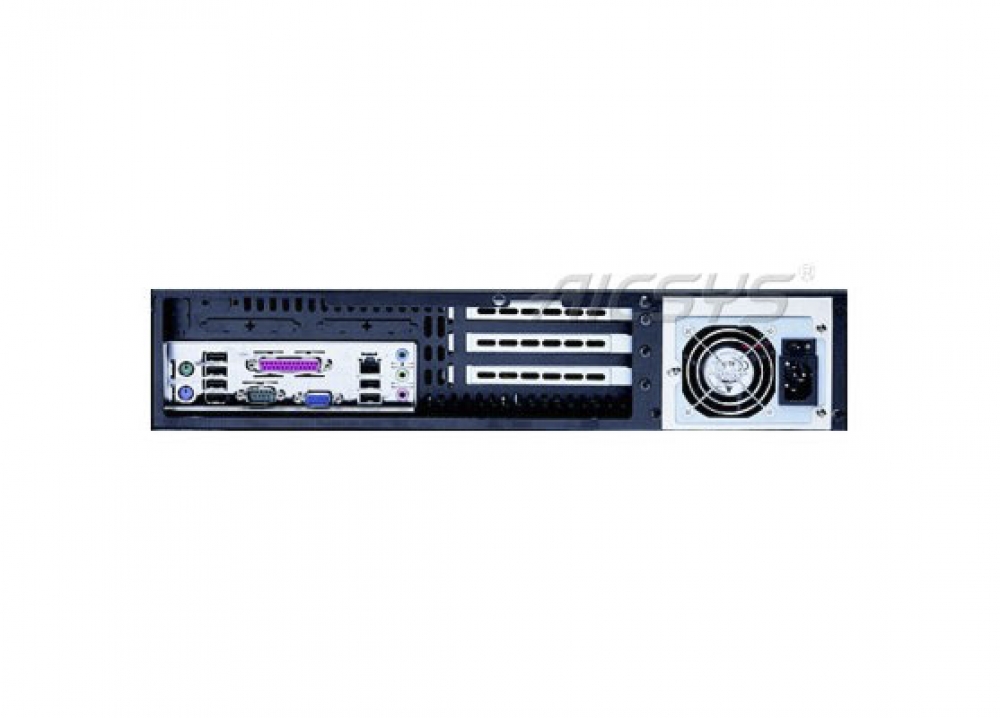

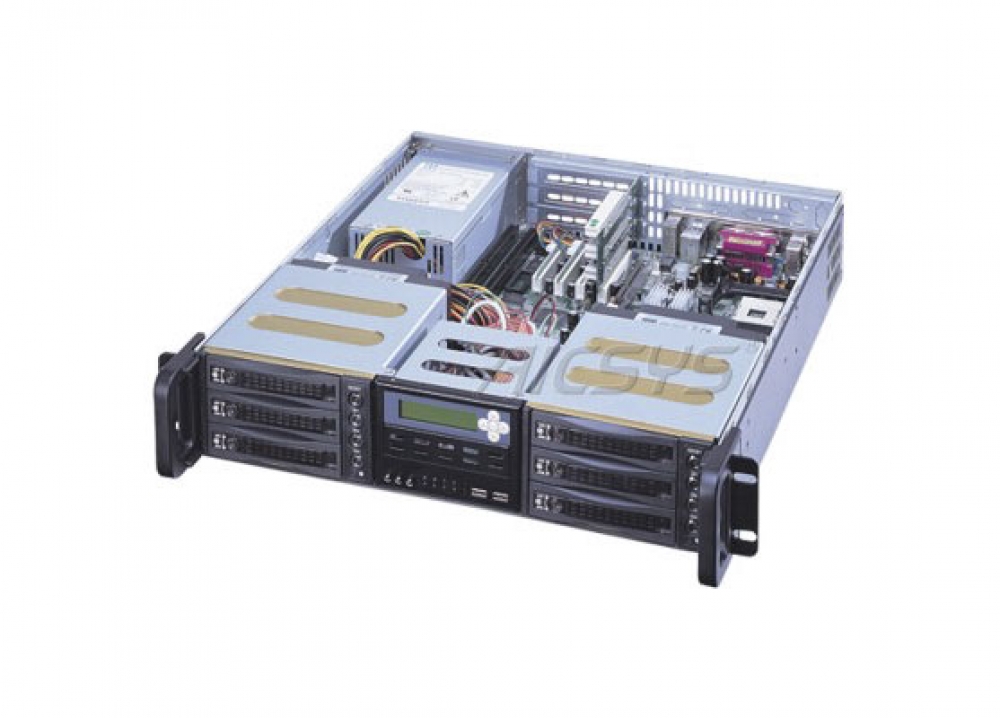

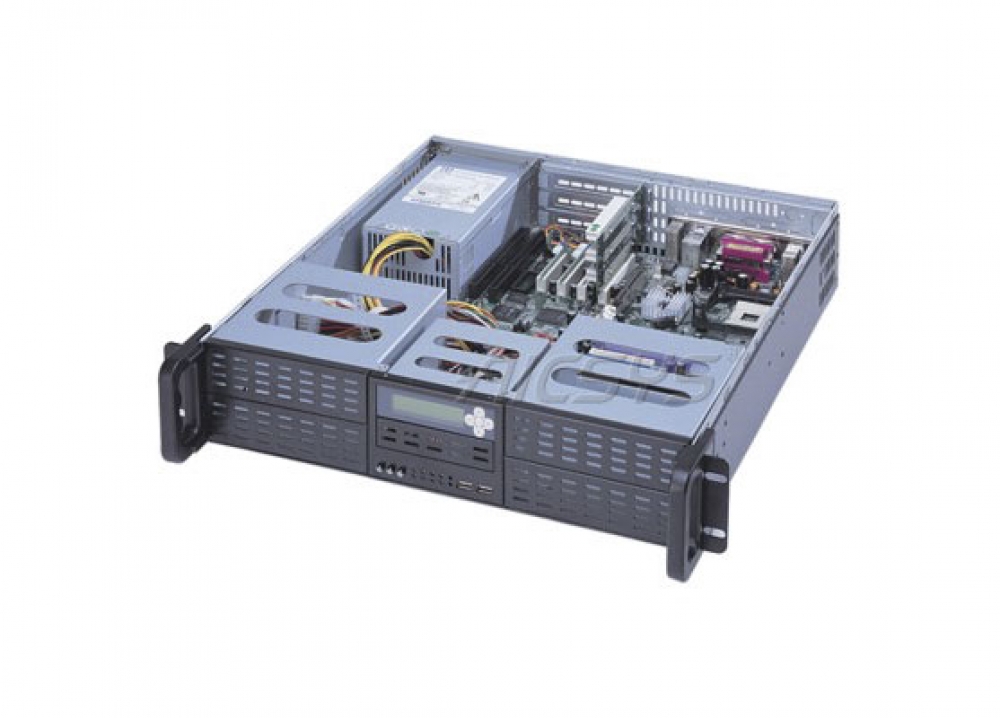

Aicsys RCK-206M – 2U Rackmount Chassis
2U Rackmount chassis for ATX motherboard, (4) 5.25", (2) 3.5" Drive Bays, PCIe & PCI riser card, 2U ATX power supply- 2U 19″ Rackmount Standard Chassis
- (10) Front LEDs for monitoring power supply, HDD activity and fans status
- Supports standard ATX motherboard
- (2) 3.5″ and (4) 5.25″ External Drive Bays
- Built-in System environmental monitor board
Industria / Placas
-
HDD
-
Interfaz
-
USB
Specifications
| Board Support | ATX Motherboard | ||||
|---|---|---|---|---|---|
| Expansion Slots | (3) 32-bit PCI slot through riser card Or (2) 32-bit PCI slot + (1) PCIe x16 slot |
||||
| Drive Bays | (2) 3.5″ and (4) 5.25 external drive bays | ||||
| Front Panel | (2) USB 2.0 Ports on front panel On/Off Switch and Reset Switch, Power ON/OFF LED, (6) HDD Active LED, (1) Fan Failure LED, (2)Temperature Sensor LED |
||||
| Power Supply | 300W ATX power supply or 400W Hot Swap Redundant power supply | ||||
|---|---|---|---|---|---|
| Cooling | Built-in (2)Temperature and (8)Fan Detect Board for system environmental monitoring Optional 60mm Ball-bearing Fans |
||||
| Dimensions | 427 (W) x 480 (D) x 88.2 (H) mm; 16.8 (W) x 18.9 (D) x 3.5 (H) inches | ||||
| Gross Weight | 10.9kg | ||||
