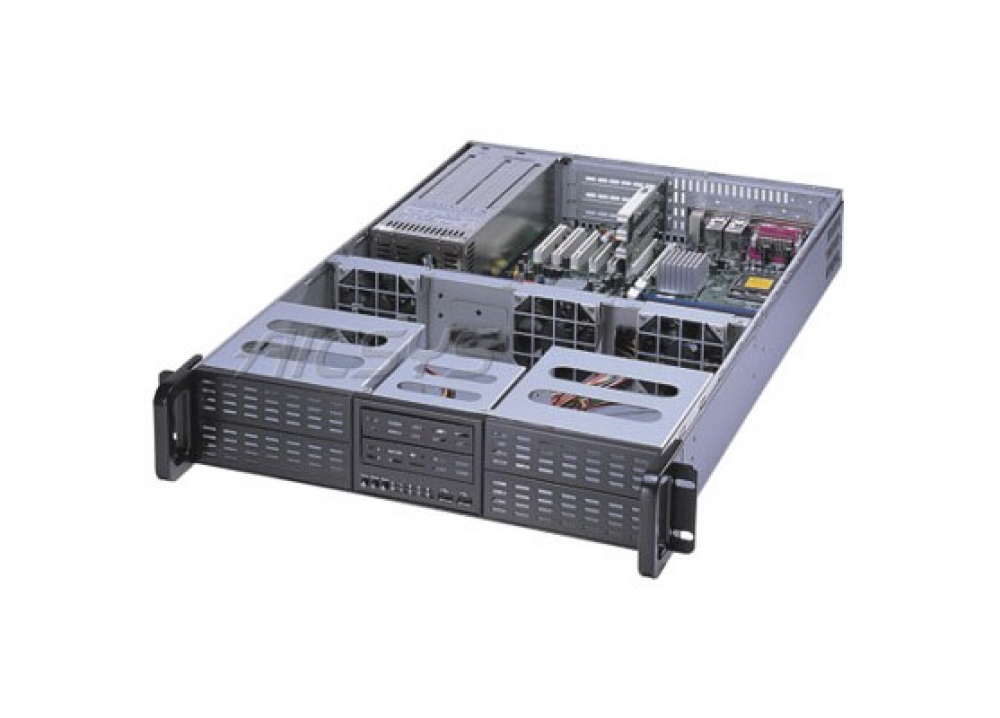

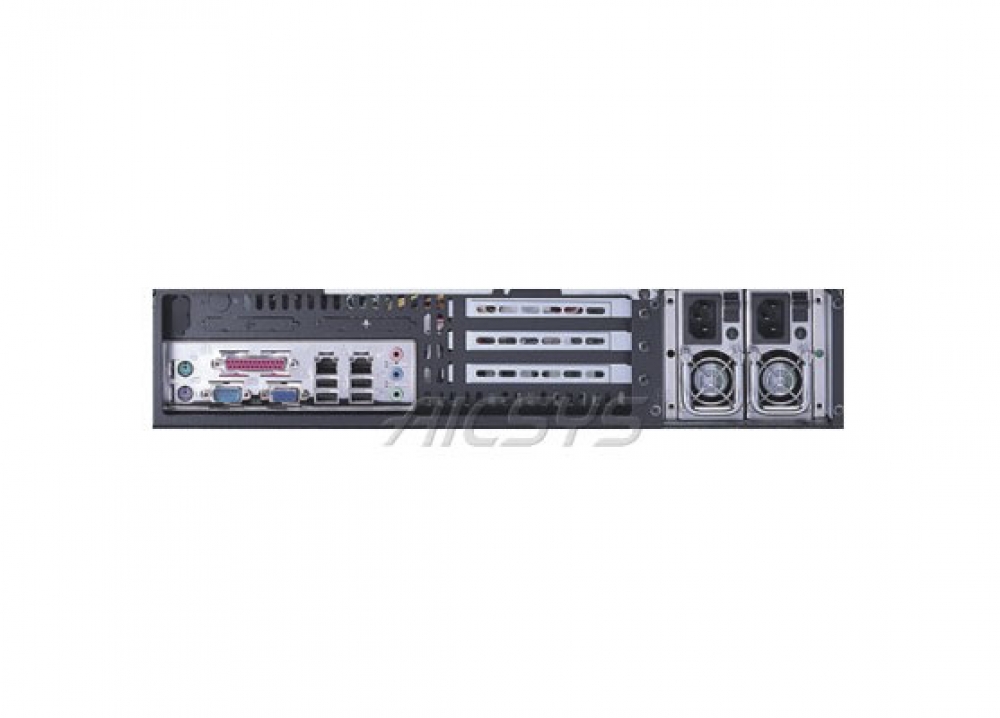

Aicsys RCK-206ME – 2U Rackmount Chassis
2U Rackmount chassis for extended ATX motherboard with 6 drive bays, 2U redundant power supply, 10 Front LED indicators and built-in System environmental monitor board- 2U 19″ Rackmount Standard Chassis
- (10) Front LEDs for monitoring power supply, HDD activity and fans status
- Supports E-ATX (12″ x13″) & ATX motherboard
- (2) 3.5″ and (4) 5.25″ External Drive Bays
- Built-in System environmental monitor board & (3) 80mm Ball-bearing Fans
Industria / Placas
-
HDD
-
Interfaz
-
USB
Specifications
| Board Support | E-ATX, ATX and micro-ATX Motherboard |
|---|---|
| Expansion Slots | (3) 32-bit PCI slot through riser card Or (2) 32-bit PCI slot + (1) PCIe x16 slot |
| Drive Bays | (2) 3.5″ and (4) 5.25 external drive bays |
| Front Panel | (2) USB 2.0 Ports on front panel On/Off Switch and Reset Switch, Power ON/OFF LED, (6) HDD Active LED, (1) Fan Failure LED, (2)Temperature Sensor LED |
| Power Supply | 300W ATX power supply or 400W Hot Swap Redundant power supply |
|---|---|
| Cooling | Built-in (2) Temperature and (8) Fan Detect Board for system environmental monitoring Optional 60mm Ball-bearing Fans |
| Dimensions | 427 (W) x 660 (D) x 88.2 (H) mm; 16.8 (W) x 26.0 (D) x 3.5 (H) inches |
| Gross Weight | 14kg |
