Aicsys RCK-316M – 3U Rackmount Chassis
3U Military/Industrial Ruggedized Rackmount Chassis with 4 Drive bays, supports ATX Motherboard , and 1U ATX Power supply- 3U 19″ Rackmount Standard Chassis
- 1.6mm Heavy-duty Steel
- Supports ATX motherboard

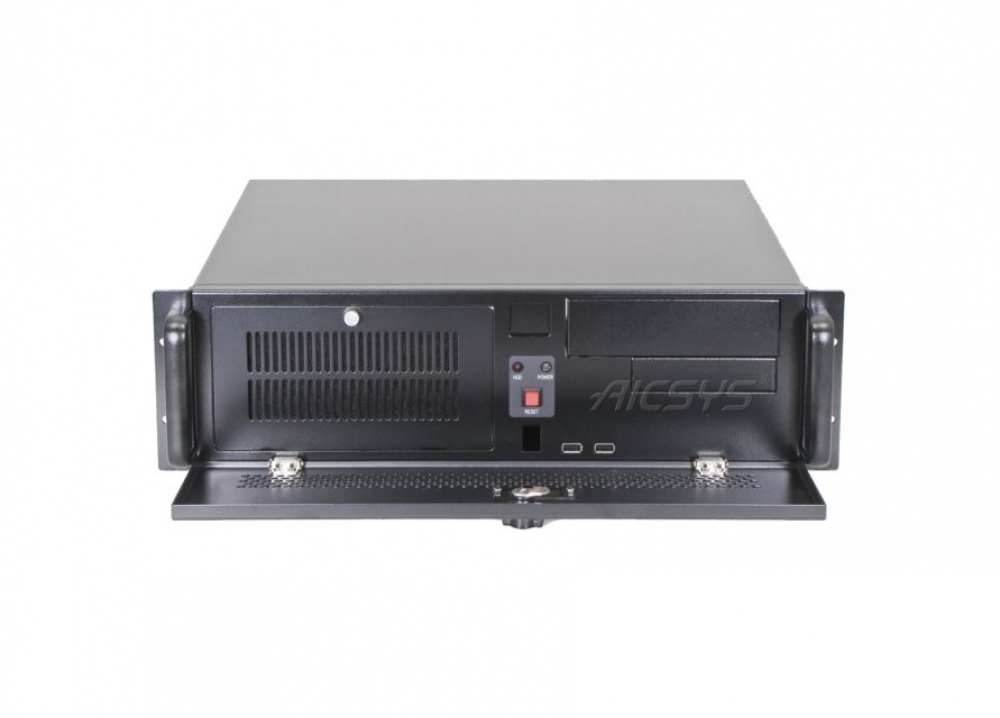

- Lockable Front door
- (1) 5.25″ external Drive bay
- (1) 3.5″ external Drive bay
- (2) 3.5″ internal Drive bays
- (1) 80mm Ball-bearing fan with replaceable air filter

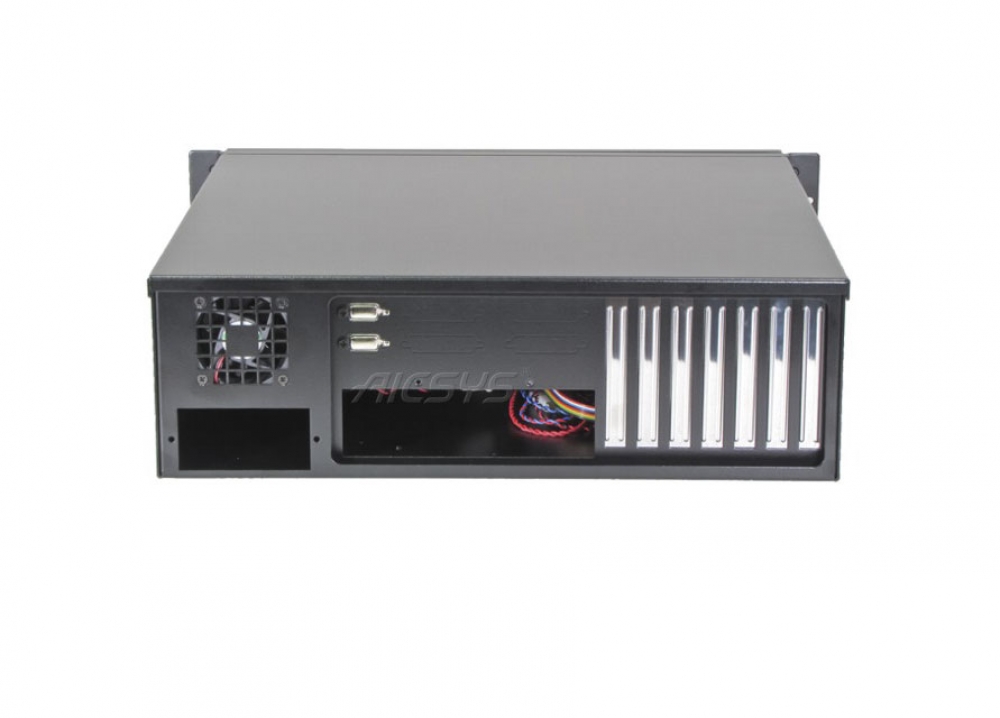

- (1) 40mm fan on the rear
- Supports 1U ATX power supply
Industria / Placas
-
HDD
-
Interfaz
-
USB
Specifications
| Board Support | ATX Motherboard |
|---|---|
| Expansion Slots | 7-Slots |
| Drive Bays | (1) 5.25″ and (1) 3.5″ external drives and (2) 3.5″ internal drives |
| Front Panel | (2) USB 2.0 Ports on front panel On/Off Switch, LED for Power ON/OFF, HDD activity |
| Power Supply | Supports 1U ATX power supply |
|---|---|
| Cooling | (1) 80mm fan with air filter (1) 40mm fan on the rear |
| Dimensions | 430.1 (W) x 381.6 (D) x 131.8 (H)mm; 16.9 (W) x 15.0 (D) x 5.19 (H) inches |
| Net/Gross Weight | 10.5kg/12.5kg |
