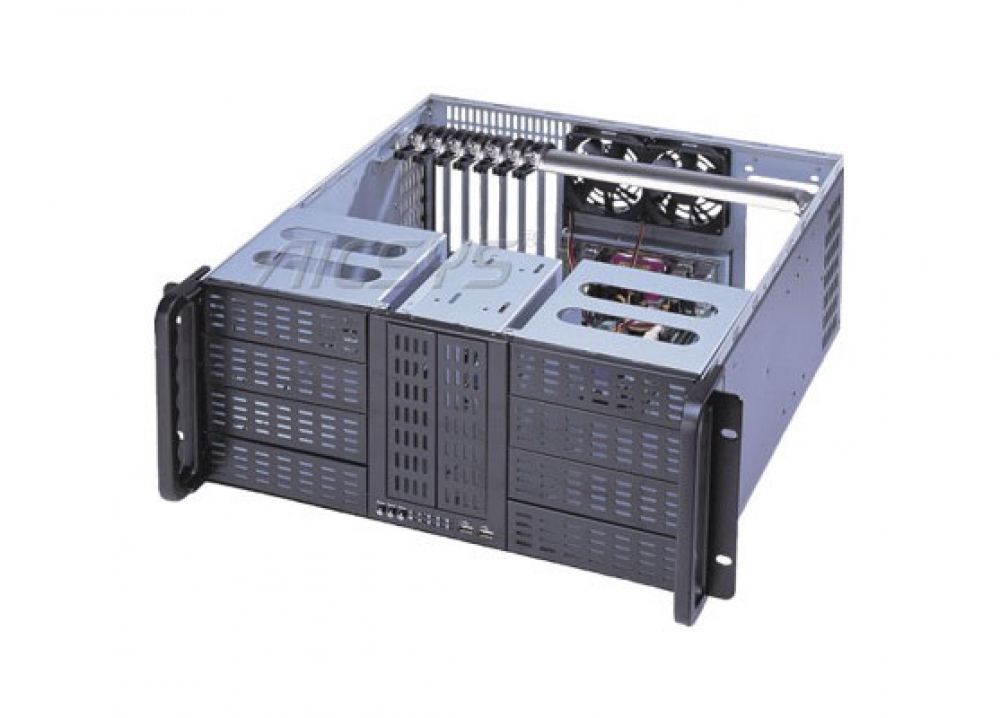

Aicsys RCK-410M – 4U Rackmount Chassis
4U Rackmount Chassis for RAID storage with 10 5.25” Drive bays, supports ATX Motherboard and Redundant Power supply- 4U 19″ Rackmount Standard Chassis
- Heavy Duty Steel with Ni plating
- Supports ATX Motherboard
- (2) 2.0 USB ports on Front Panel

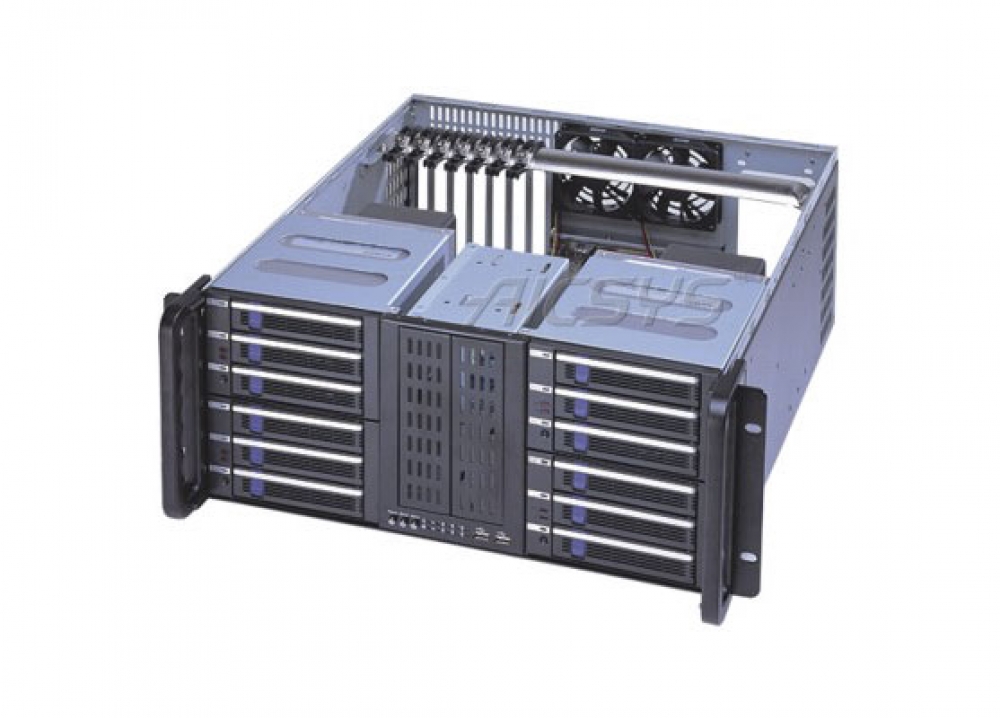

- Supports (10) 5.25″ Drive Bays
- (2) 80mm high speed ball-bearing fans

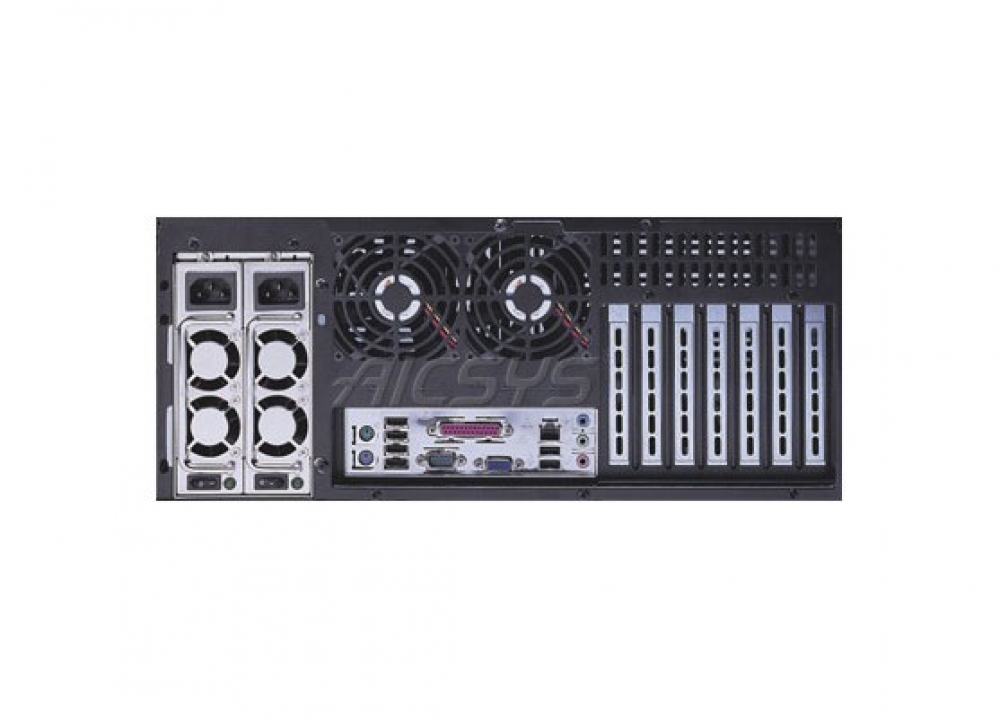

- Supports mini-redundant or PS/2 power supply
Industria / Placas
-
HDD
-
Interfaz
-
USB
Specifications
| Board Support | ATX motherboard |
|---|---|
| Expansion Slots | Up to (7) expansion slots |
| Drive Bays | (10) 5.25″ Drive Bays, Optional Mobile Rack with up to (10) 3.5” HDD |
| Front Panel | (2) USB2.0 ports on front panel On/Off Switch and Reset Switch, Power ON/OFF LED, (6) HDD Active LED, (1) Fan Failure LED, (2) Thermal Status LED |
| Power Supply | Mini-redundant or PS/2 power supply |
|---|---|
| Cooling | (2) 8cm fan with replaceable air filter and environmental monitor board |
| Dimensions | 427 (W) x 480 (D) x 176.8 (H) mm; 16.8 (W) x 18.9 (D) x 7 (H) inches |
| Gross Weight | 13.4kgs/29.5lbs |
