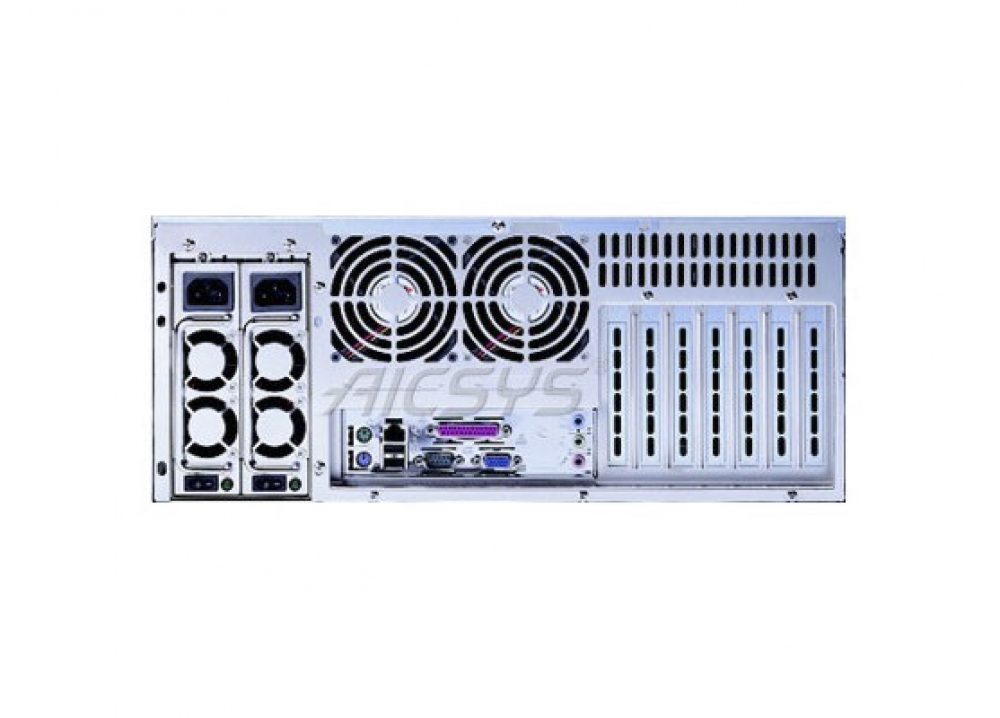

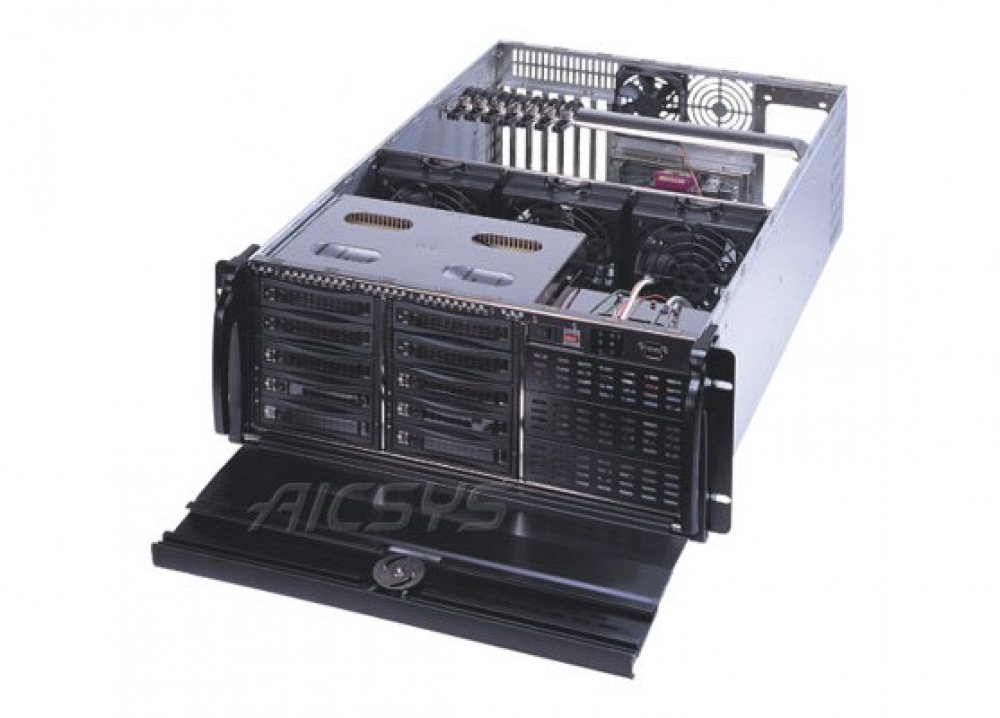

Aicsys RCK-413M – 4U Rackmount Chassis

4U Rackmount chassis for RAID storage with (3) 5.25" and (10) 3.5" Drive Bays, (1) 80mm and (3) 120mm high speed ball- bearing fans and optional mini-redundant PSU
  • 4U 19″ Rackmount Standard Chassis
  • Heavy Duty Steel with Ni plating
  • Supports ATX Motherboard
  • (2) 2.0 USB ports on Front Panel
  • Supports (10) 3.5″ HDD and (3) 5.25″ Drive Bays
  • (1) 80mm and (3) 120mm high speed ball-bearing fans
  • Supports mini-redundant or PS/2 power supply
Industria / Placas
  • HDD
    HDD
  • Interfaz
    Interfaz
  • USB
    USB

Specifications

Board Support ATX/EATX motherboard
Expansion Slots Up to (7) expansion slots
Drive Bays (10) 3.5″ hot-swap mobile rack and (3) 5.25 external drive bays (Mobile rack applicable)
Front Panel (2) USB2.0 ports on front panel
On/Off Switch and Reset Switch, Power ON/OFF LED, (2) Temperature Sensor LED, (Fan condition LED



Power Supply Mini-redundant or PS/2 power supply
Cooling 80mm and (3) 120mm high speed ball-bearing fans
Dimensions 427 (W) x 660 (D) x 176.8 (H) mm; 16.8 (W) x 26 (D) x 7 (H) inches
Gross Weight 22.3kg/49lbs
