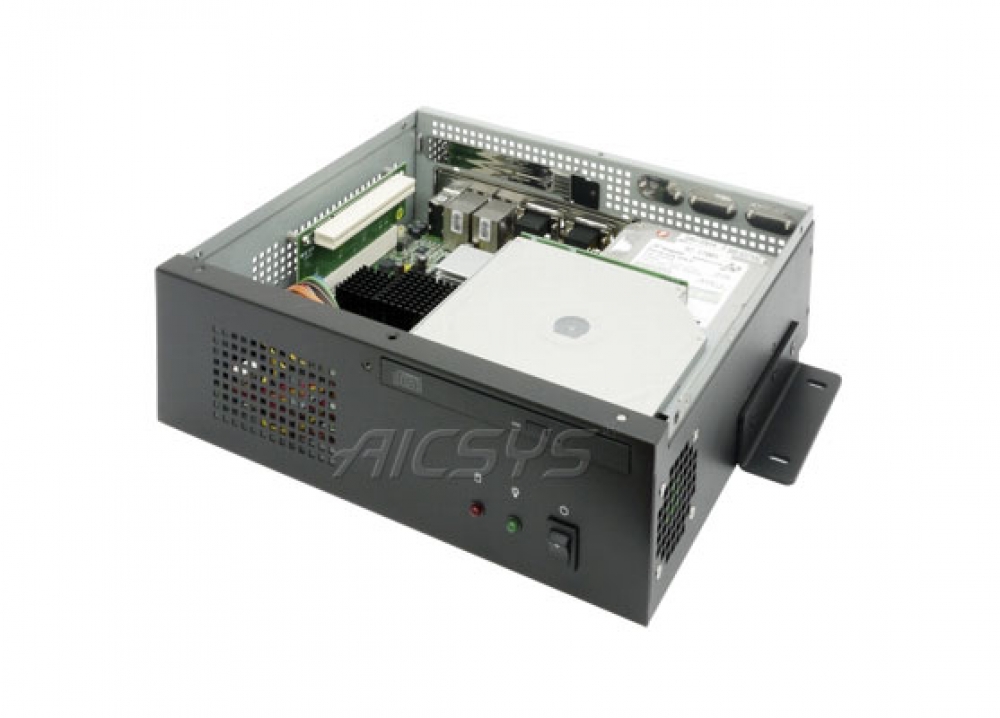

Aicsys WMS-103S2 – Wallmount Systems
Industrial mini-ITX wallmount system build with Intel Atom N270 processor, Compact Flash, 6 COM ports and Dual LANs- Compact wallmount chassis with heavy duty steel construction
- Low power consumption system
- Chipset integrated 2D/3D graphics, built-in Audio and dual Gigabit LANs
- Low cost solution for an unlimited variety of applications to include Kiosk, POS and Car Park Management Systems
- Six COM & eight USB ports support more peripherals
Industria / Sistemas
-
HDD
-
Intel
-
Interfaz
-
LAN
-
VGA
Specifications
| Motherboard Support | Mini-ITX Motherboard |
|---|---|
| CPU Support | Onboard Intel Atom N270 @ 1.6GHz |
| Chipset | Intel 945GSE+ICH7 chipset |
| System Memory | (1) 240-pin DDR2 533 DIMM up to 2GB |
| Video Interface | Built-in GMA950 2D/3D graphics supports VGA & LVDS |
| Ethernet | Dual Gigabit LAN ports with Realtek RTL8111B Controllers |
| Audio | Realtek ALC203 with AC’97 Codec |
| Expansion Slots | (1) PCI slot through riser card |
|---|---|
| Drive Bays | (1) Slim DVD-ROM, (1) 3.5” HDD and (1) 2.5” HDD |
| Front Panal | On/Off switch, One power LED and one HDD LED indicators |

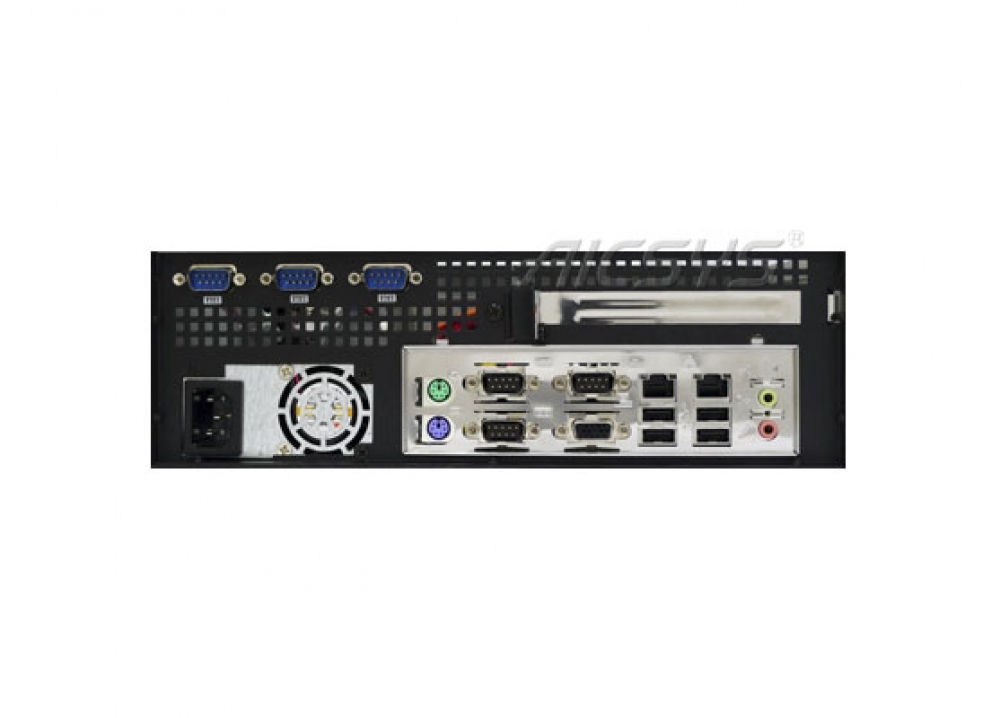

| Rear Panel | (2) Audio Jacks, (4) USB ports, (3) RS232, (1) Keyboard /Mouse Connectors, (1) VGA port & (2) RJ45 LAN ports |
| Cooling | One 5cm Low-Noise System Cooling Fan |
| Dimensions | 280 (W) x 245 (D) x 89 (H) mm; 11 (W) x 9.6 (D) x 3.5 (H) inches |
| Gross Weight | 4.23 kg (approx) |
