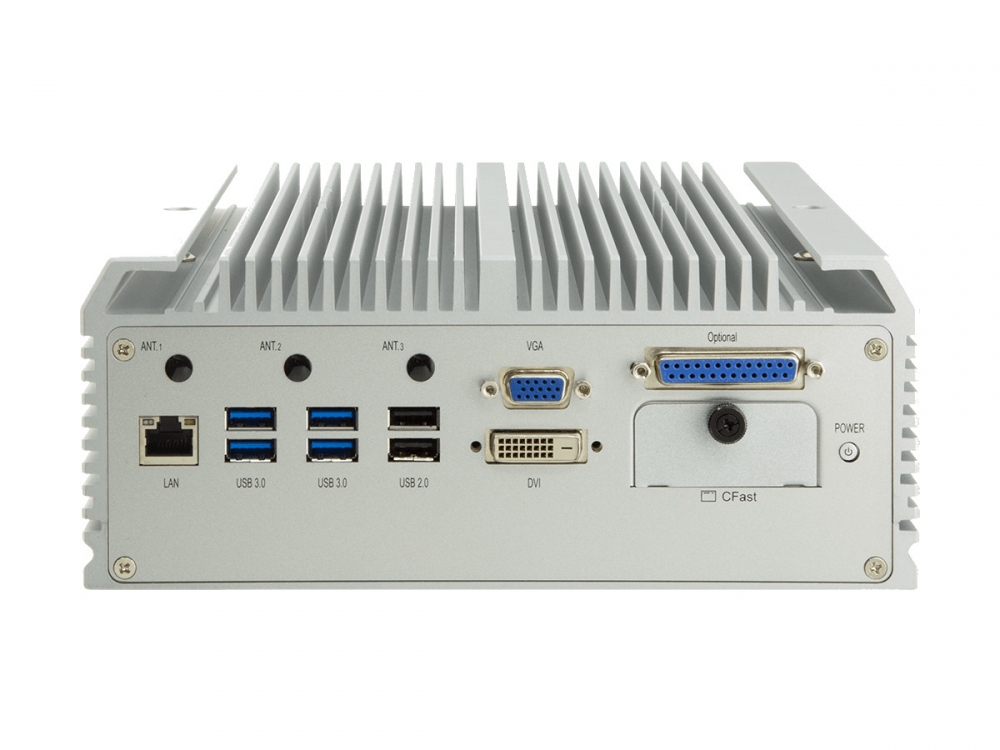

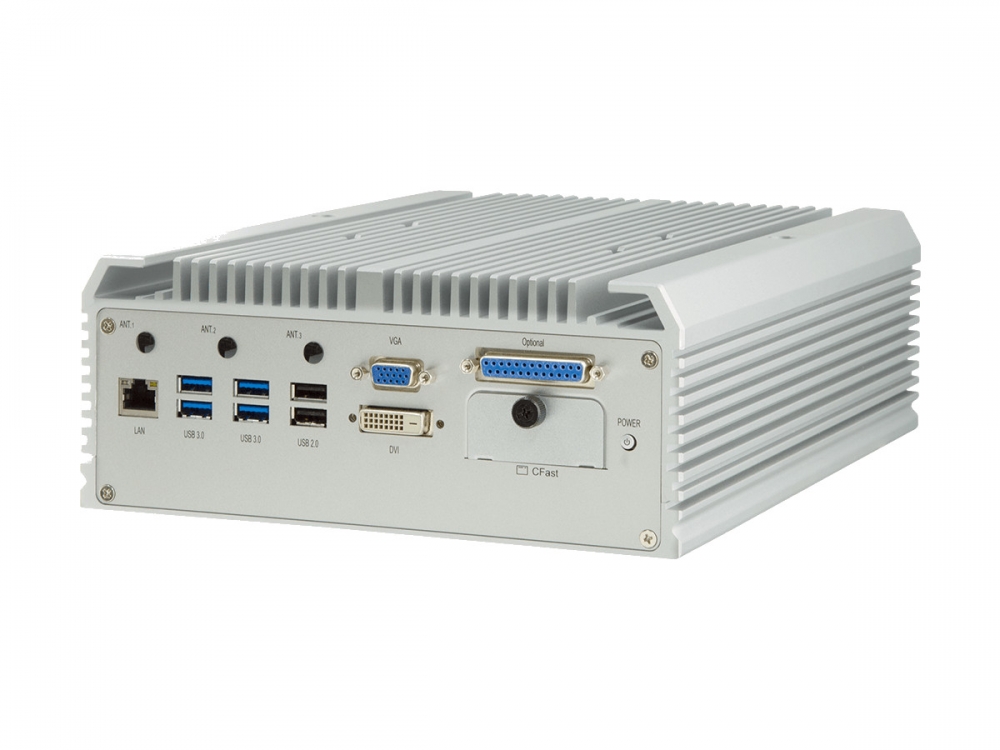

Arbor FPC-8100
Robust Box PC with Intel® 10th Generation Core™ i9/i7/i5/i3 Processor
- Fanless design
- Wide range DC power input (9~36V)
- Two independent displays support (HDMI x 1 + VGA x 1 and DVI-D x 1)
- Power on/ off delay control/ configurable ignition power control
- TPM 2.0 support
- 1 x mPCIe for optional Wi-Fi/ 3G/ 4G/ GPS or I/O expansion supported
- 1 x M.2 E Key (2230) for Wi-Fi/ Bluetooth
- Front-accessible I/O support
- Intel Wireless-AC 9260 support
- RAID 0,1 support (W480E optional)
Industria / Sistemas
-
3G
-
4G
-
DC
-
DVI
-
Sin ventilación
-
GPS
-
HDD
-
HDMI
-
Intel
-
Interfaz
-
LAN
-
Linux
-
Serie
-
SSD
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
System
| CPU | Intel® 10th generation Core™ i9/ i7/ i5/ i3 processor in LGA1200 socket |
|---|---|
| Memory | 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 MHz SDRAM up to 64GB |
| Chipset | Intel® H420E/ W480E (Optional) |
| Graphics | Integrated Intel® HD Graphics |
| ATA | 2 x Serial ATA ports with 600MB/s HDD transfer rate |
| LAN Chipset | 1 x Intel® WGI225LM 2.5GbE LAN 1 x Intel® WGI211AT GbE controller 1 x Intel® WGI219LM GbE controller (w/o iAMT, H420E) (w/ iAMT, W480E) |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| Serial Port | 2 x RS-232 / 422 / 485 configurable via DB-9 connectors 4 x RS-232 ports via DB-9 connectors |
|---|---|
| USB Port | 6 x USB 3.2 Gen1 / 2.0 ports 2 x USB 2.0 ports Internal USB dongle (Optional) |
| LAN | 3 x RJ-45 ports for GbE |
| Video Port | 1 x HDMI 1 x DB-15 female connector for analog RGB 1 x DVI-D female connector for digital video output * Support 2 independent displays * Support 3 independent displays (W480E, only) |
| Expansion Bus | 1 full-size Mini-card interconnected with SIM card for optional Wi-Fi / 3G / 4G / GPS or I/O Expansion (PCIe x1 + USB2.0) 1 x M.2 E key (2230) with PCIe x1 + USB2.0, for Wireless |
| Selectable Port | 1 x DB25 connector for DIO (8 in / 8 out) port or LPT port (either one, default is DIO) |
| Audio | Mic-in / Line-out |
Environmental
| Operating Temp. | -20 ~ 70°C (-4 ~ 158°F), ambient w/ air flow, (w/ 35W TDP CPU, fanless) -20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow, (w/ 65W TDP CPU, fanless) |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) |
| Vibration | 3 Grms / 5~500Hz / random operation w/ SSD |
| Shock | Operating 40G (11ms), Non-operating 60G with SSD |
OS Support
| System | Windows 10 IOT Enterprise 64-bit Linux (Kernel: 4.9) |
|---|
Storage
| Type | 2 x 2.5” drive bays 1 x CFast socket, can be outside accessible |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power Requirement
| Power Input | DC 9 ~ 36V input (w/ 4-pin DC input terminal block,combining remote power on/off switch) |
|---|---|
| Ignition Switch | 2-pin terminal block: IGN & GND |
| Power Consumption | MAX. 65W (w/35W TDP CPU, w/o I/O card) MAX. 95W (w/65W TDP CPU, w/o I/O card) |
Mechanical
| Construction | Aluminum Alloy |
|---|---|
| Mounting | Wall-mount |
| Weight | 6.4kg (14.11Ib) |
| Dimensions (W x D x H) | 225 x 292 x 90 mm (8.86" x 11.50" x 3.54") |
Ordering Information
| FPC-8100 | Fanless system, H420E, w/o expansion |
|---|
