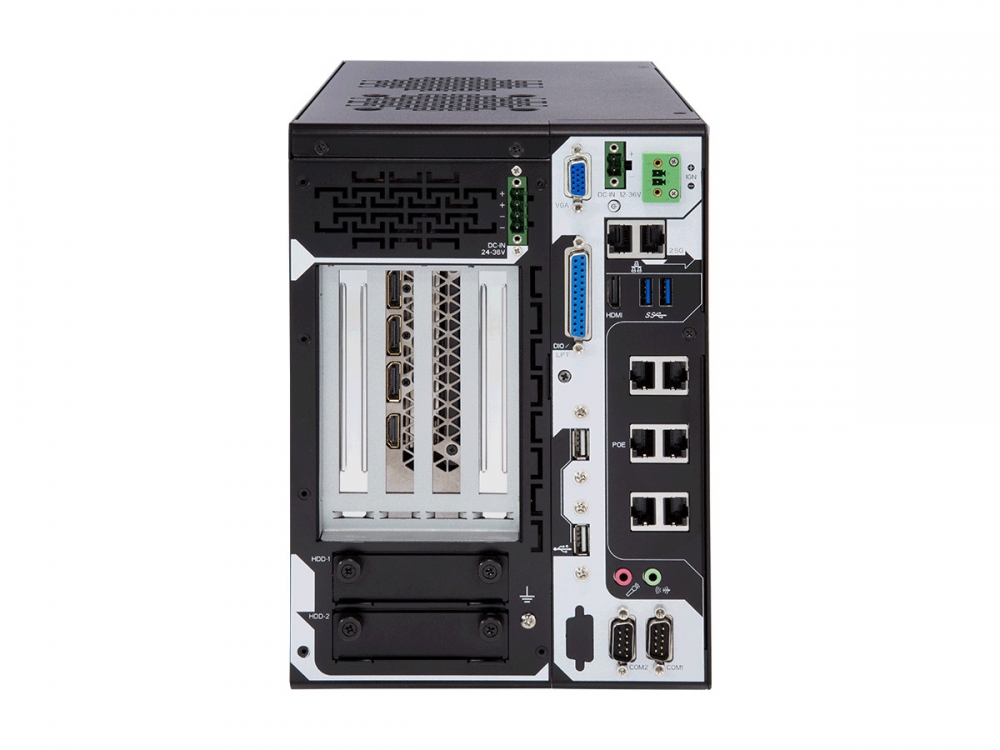

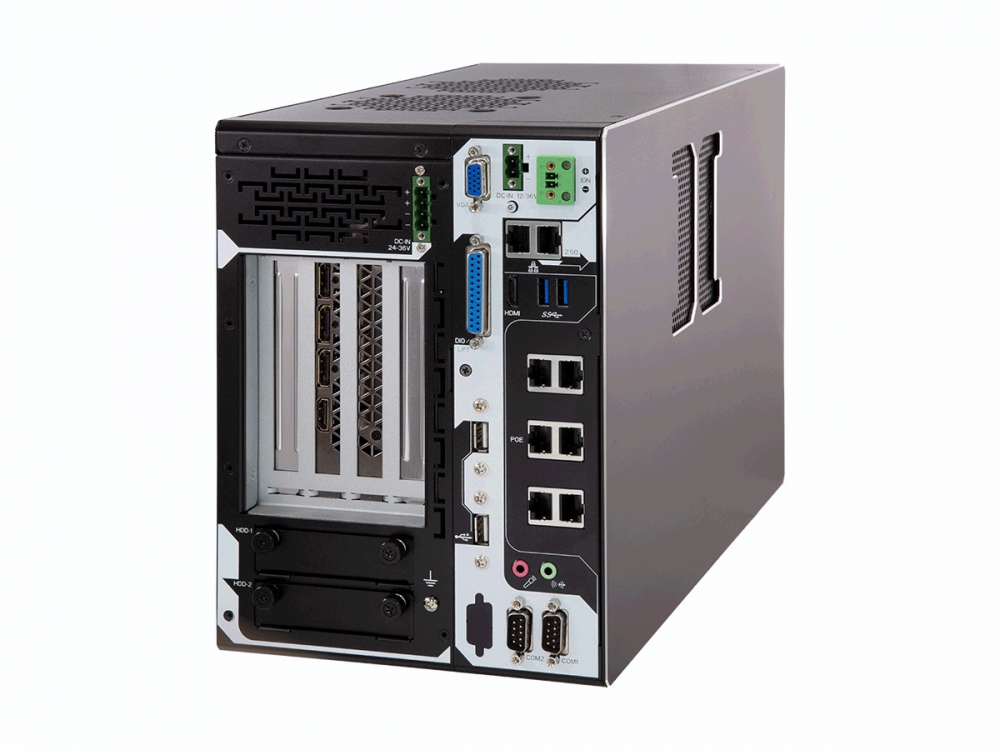

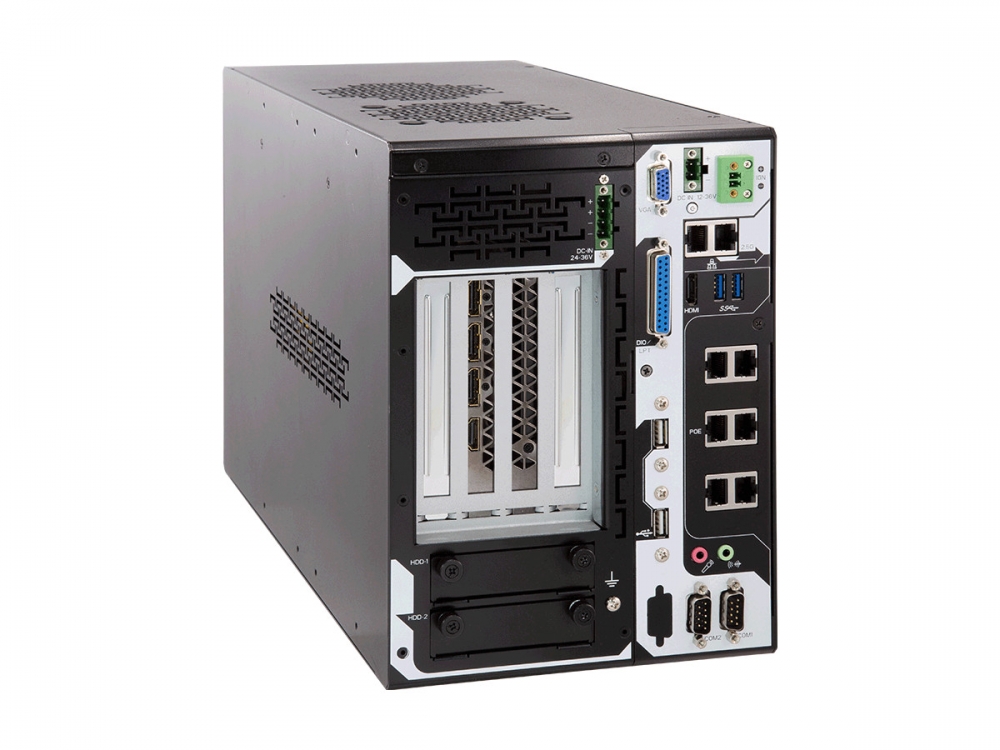

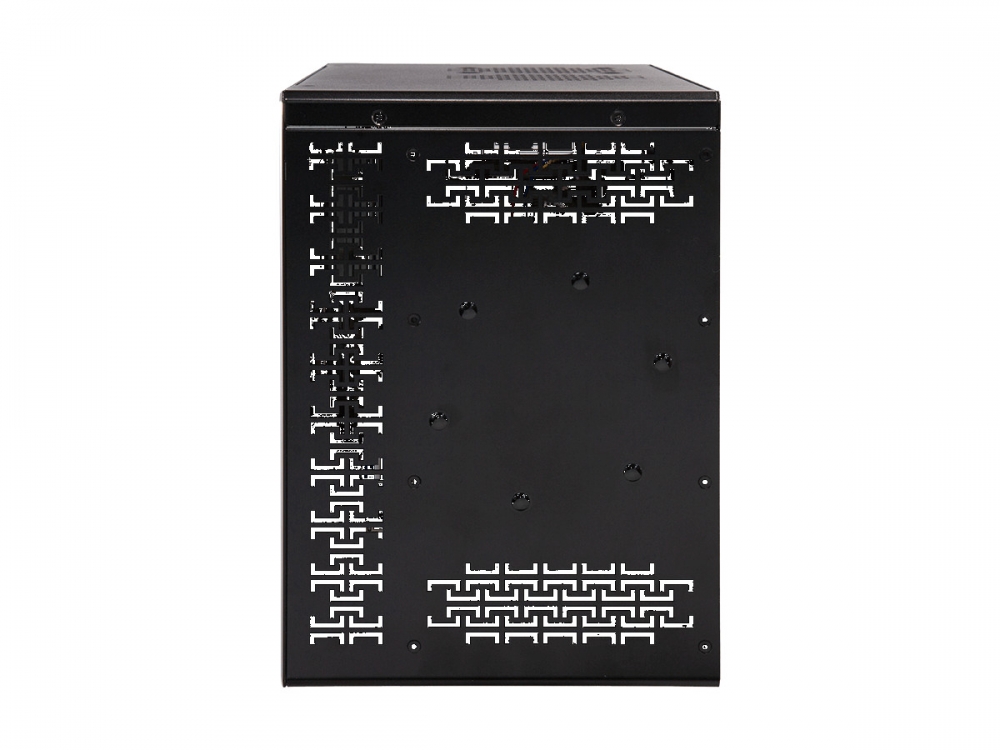

Arbor FPC-9108-P6-G3

Ruggedized Edge AI Computing Platform Supporting NVIDIA RTX-3090 GPU Card, Intel ®10th Gen Xeon® Core™ Processor with 6 GbE PoE
  • Intel® 10th Gen (Comet Lake-S) with W480E chipset
  • Supports NVIDIA RTX-30 series up to 350W GPU (up to 334.6mm length)
  • Wide range DC power input (12~36V)
  • HDMI x 1 + VGA x1 (2 independent displays)
  • Power on/off delay control/ Configurable ignition power control
  • TPM 2.0 support
  • 2 x outside accessible SATA SSD, supporting RAID 0,1
  • 2 x USB3.2 supports up to 10Gbps data transfer rate
  • Front-accessible I/O support
  • PWM FAN control support
  • 6 x 802.3af Gigabit PoE ports
  • 1 x M.2 (NGFF) B-Key(2242/3052/2280) socket for storge or 5G / LTE
  • 1 x M.2 (NGFF) E-Key(2230) socket for Wi-Fi / BT
Industria / Sistemas
  • 3G
    3G
  • 5G
    5G
  • Bluetooth
    Bluetooth
  • DC
    DC
  • GPS
    GPS
  • HDD
    HDD
  • HDMI
    HDMI
  • Intel
    Intel
  • LAN
    LAN
  • Linux
    Linux
  • Lte
    Lte
  • POE
    POE
  • Serie
    Serie
  • SSD
    SSD
  • USB
    USB
  • VGA
    VGA
  • Wifi
    Wifi
  • Windows
    Windows

Specifications

System

CPU 10th generation Intel® Xeon® Core™ i9 / i7 / i5 / i3 processor in LGA1200 socket
Memory 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 (i9/ i7 CPU)/2666( i5/ i3 CPU)/ 2400 MHz (Pentium/ Celeron CPU) SDRAM up to 64GB (ECC / Non-ECC)
Chipset Intel® W480E
Graphics Integrated Intel® HD Graphics
ATA 2 x Serial ATA ports with 600MB/s HDD transfer rate
LAN Chipset 1 x Intel® WGI225LM 2.5GbE LAN
1 x Intel® WGI219LM PCIe controller w/ iAMT 14.0
Watchdog Timer 1~255 levels reset

I/O Interface

Serial Port 2 x RS-232 / 422 / 485 configurable (default RS-232)
USB Port 2 x USB 3.2 Gen 2 (10Gbps) / 2.0 ports
2 x USB 2.0 ports
LAN 2 x RJ-45 ports for GbE / 2.5GbE
6 x RJ-45 ports for PoE (Power budget 60W)
Video Port 1 x HDMI
1 x DB-15 female connector for analog RGB
Expansion Bus 1 x mini-PCI Express slots interconnected with SIM card sockets for optional Wi-Fi / BT / 3G / LTE / GPS (PCIe x1 + USB 2.0, full size)
1 x M.2 E key (2230) with PCIe x1 + USB2.0, for wireless
1 x M.2 B key (2242 / 3052 / 2280) w/ (PCIe x2 + USB 3.0 + SATA) interconnected with SIM for 5G / LTE expansion or for storage (either one)
1 x PCIe x16 slot for 350W GPU card
3 x PCI slots
Digital I/O Port 1 x DB25 connector for DIO (8 in / 8 out) port
Audio Mic-in / Line-out



Environmental

Operating Temp. 80W TDP CPU : -20 ~ 50°C (-4 ~ 122°F), 65W TDP CPU : -20 ~ 55°C (-4 ~ 131°F), 35W TDP CPU : -20 ~ 70°C (-4 ~ 158°F), w/ NVIDIA® RTX-3090 : -20 ~ 45°C (-4 ~112°F)
Storage Temp. -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity 10 ~ 95% @ 50°C (non-condensing)
Vibration Comply with MIL-STD-810G, Method 514.6, Category 4 w/ SSD
Shock Comply with MIL-STD-810G, Method 516.6,Procedure I,Table 516.6-II, 20G

OS Support

System Windows 10 IOT Enterprise 2019
Linux (Kernel: 4.9)

Storage

Type 2 x 2.5” drive bays (outside accessible)
1 x M.2 B key (2242 / 3052 / 2280) w/ (PCIe x 2 + USB3.0 + SATA ) interconnected with SIM for 5G / LTE expansion or storage (either one)

Qualification

Certification CE, FCC Class A

Power Requirement

Main Power Input DC 12~36V input (w/ 2-pin DC input terminal block)
Secondary Power Input DC 24-36V input (w/ 4-pin DC input terminal block for graphic cards power support)
Ignition Switch 2-pin terminal block: IGN, GND

Mechanical

Construction Metal
Mounting Wall-mount
Weight 7.4kg (16.31Ib)
Dimensions (W x D x H) 181 x 380 x 250 mm

Ordering Information

FPC-9108-P6-G3 Ruggedized Edge AI Computing Platform supporting NVIDIA® RTX-3090 GPU Card, Intel® 10th Gen. Xeon® Core™ Processor with 6 x GbE PoE (Up to 80W TDP CPU)
