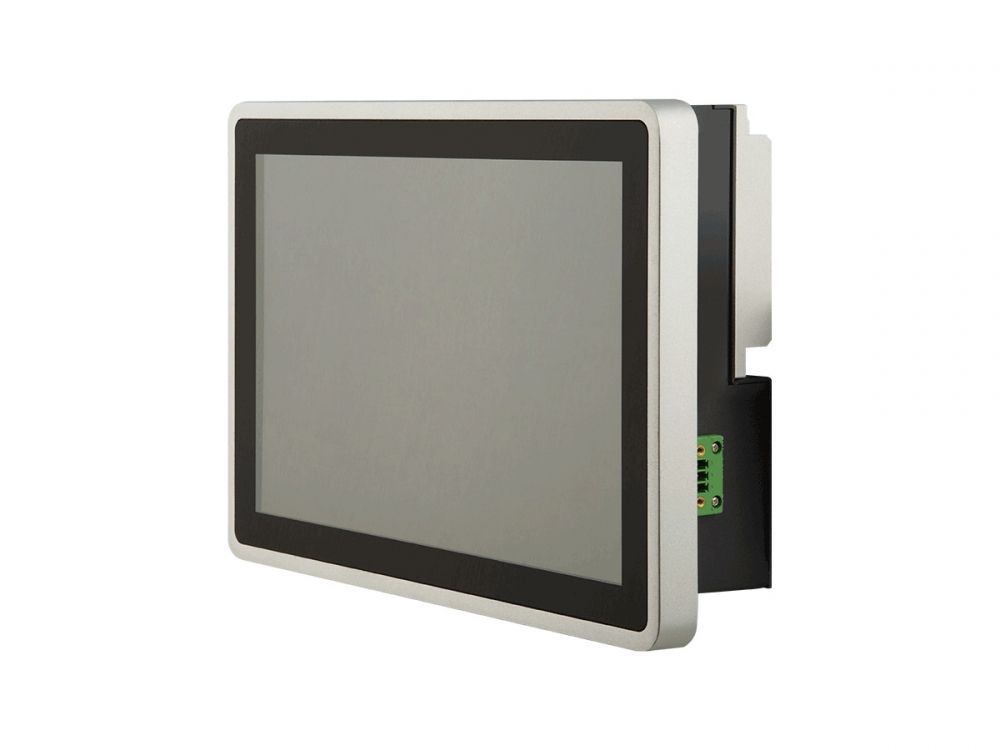

Arbor iTC-1101C
Fanless Industrial Panel PC w/ Intel® Elkhart Lake Processor
- Intel® Celeron® Processor J6413 (1.5M Cache, up to 3.00 GHz)
- 10.1" 1280 x 800 WXGA LCD display
- Fanless design w/ aluminum front bezel
- Flush front panel w/ IP65 waterproof compliant
- Support 2.5GbE LAN and USB 3.2 Gen1 (5Gbps)
- Rich I/O: 2 x COM/ 2 x LAN/ 4 x USB3.2 (5Gbps) / 8-bit DI/O & dual video output: DisplayPort and DVI-D
- Easy-accessible expansion for storage and wireless module
- 9~36V wide-range DC input with reverse protection
Industria / Sistemas
-
DC
-
Display Port
-
DVI
-
Sin ventilación
-
HDD
-
Intel
-
Interfaz
-
LAN
-
Linux
-
Serie
-
SSD
-
USB
-
Windows
Specifications
System
| CPU | Intel® Celeron® J6413 Quad-Core™ Processor 1.80GHz |
|---|---|
| Memory | 1 x 260 pin DDR4 SO-DIMM socket, supporting 3200MHz SDRAM up to 32GB (4GB DDR4 SO-DIMM pre-installed) |
| LAN Chipset | 1 x Intel® 225LM controller 1 x Intel® i210 / i211AT controller |
| Watchdog Timer | 1~255 levels reset |

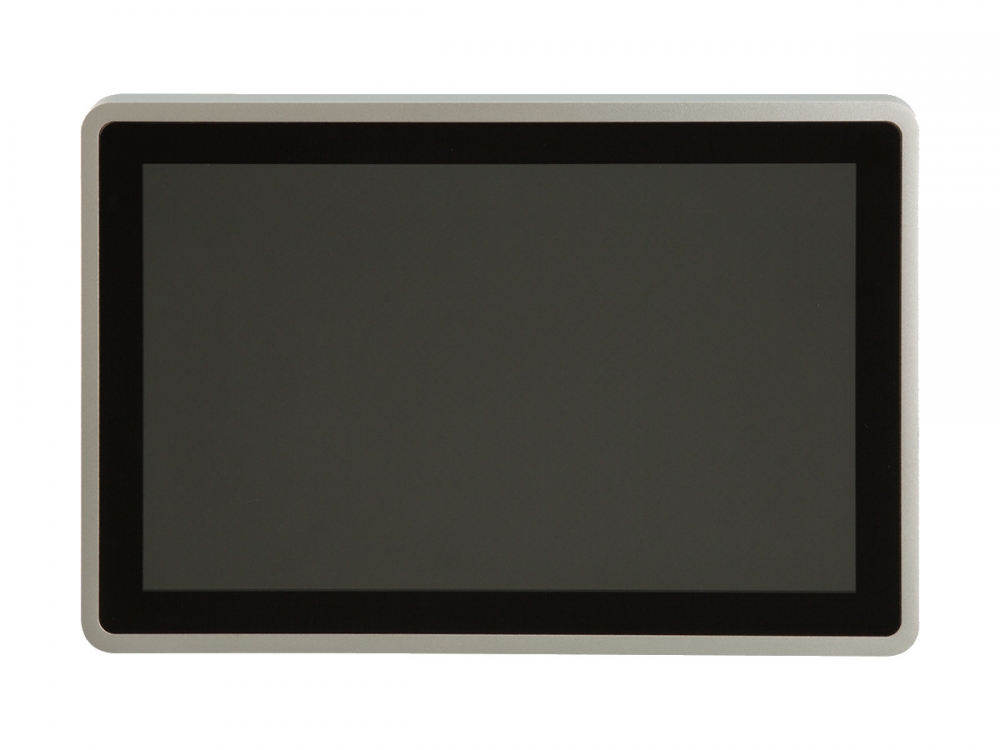

LCD Display
| Size / Type | 10.1" TFT LCD Panel |
|---|---|
| Max. Resolution | 1280 x 800 WXGA |
| Max. Colors | 16.7M |
| Luminance | 350 cd/m² |
| Touch Screen | Projected Capacitive Touch |
| View Angle (U/D/R/L) | 85° / 85° / 85° / 85° |

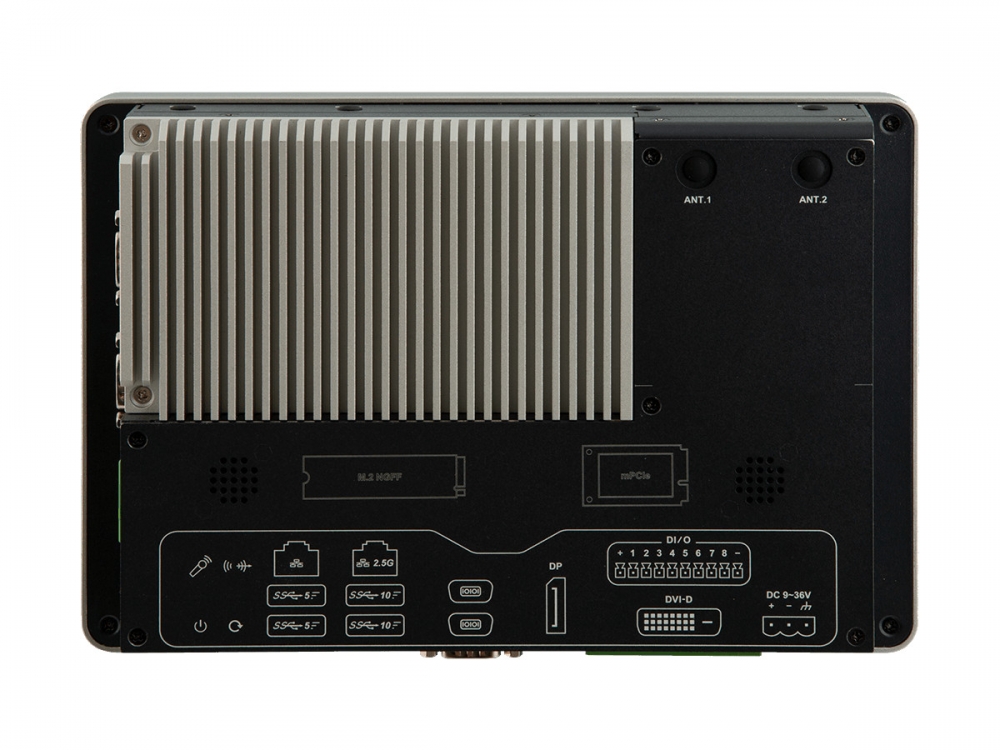

External I/O
| Serial Ports | Default: 2 x DB-9 connectors for RS232 / 422 / 485 (Optional: 2 x DB-9 connectors for RS232 via cables) |
|---|---|
| USB Ports | 4 x Type-A USB 3.2 Gen 1 (5Gbps) |
| LAN | 1 x RJ-45 port for GbE LAN 1 x RJ-45 port for 2.5 GbE LAN |
| Video Ports | 1 x DVI-D connector, supporting Full HD resolution 1 x DisplayPort 1.4 connector, supporting 4K2K resolution |
| Digital I/O | 8 bit Digital I/O |
Storage
| 1st Device | 1 x M.2 M-key 2242 / 2280 (SATA III only) |
|---|
Audio
| Type | 1 x Mic-in / 1 x Line out |
|---|---|
| Speaker | 2 x 1.5W speakers (optional) |
Button & Indicator
| Button | Power on & Reset |
|---|---|
| LED | Power-on status / HDD status / RTC battery status |
Power System
| Power Input | DC 9 ~ 36V |
|---|---|
| Power Consumption | Typical 19W (w/o I/O cards) |
| Remote Control | 1 x 3-pin terminal block for remote control and PWR LED output |
Mechanical
| Mounting Type | Panel mount (clamps & brackets are provided) VESA-75 / 100 mount (optional) |
|---|---|
| Chassis | Aluminum front bezel and steel-metal chassis |
| Weight (Net) | 2.35 kg |
| Dimensions (W x H x D) | 255 x 175 x 62.8 mm |
Environmental
| Operating Temp. | -10 ~ 55ºC (14 ~ 131ºF) |
|---|---|
| Storage Temp. | -20 ~ 70ºC (-4 ~ 158ºF) |
| Operating Humidity | 10 ~ 95% @ 55°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 1Grms X,Y,Z axis (with SSD) |
| Shock | Operating 10G, 11ms X,Y,Z axis (with SSD) |
Qualification
| Certification | CE, FCC Class A |
|---|
Expansion
| Expansion Bus (for Wireless connection) |
1 x Mini PCIe slot (PCIe x1+ USB2.0, Full size) w/ 1 x SIM card slot |
|---|
OS Support
| System | Windows®10 (64bit), Windows®11 (64bit), Linux: Ubuntu 22.04 |
|---|
