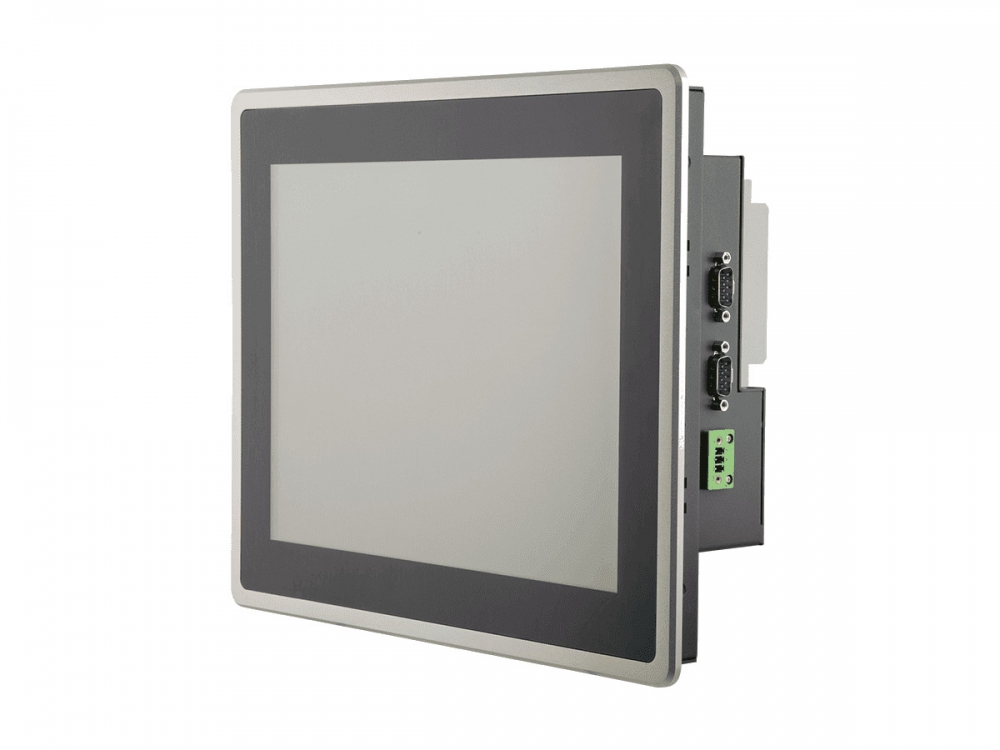

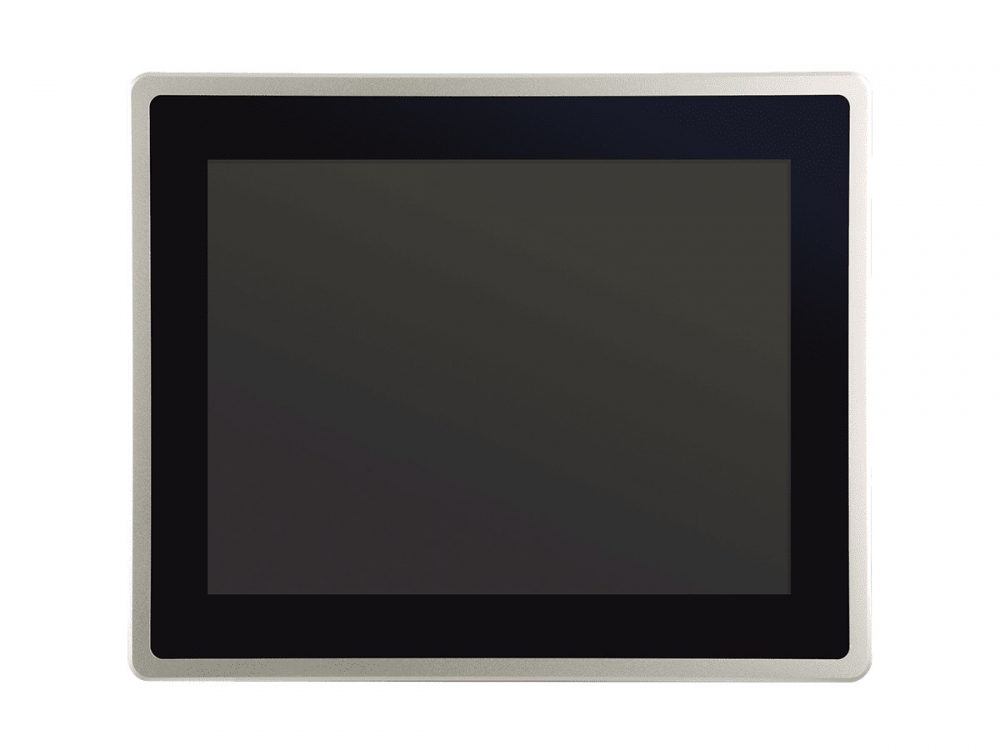

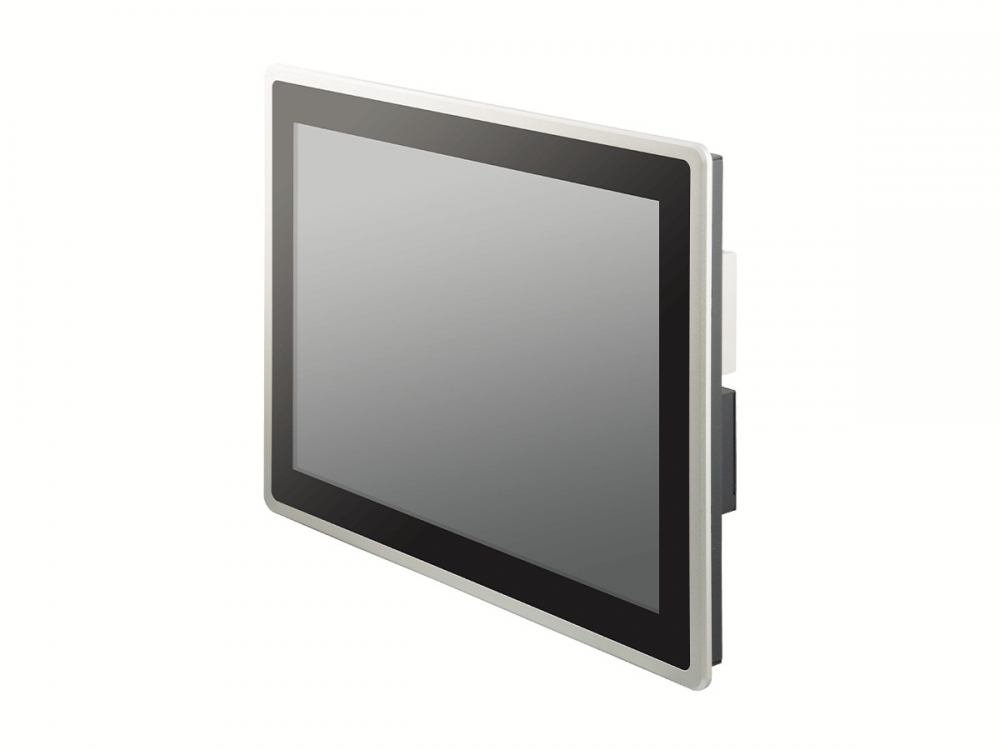

Arbor iTC-1121R/1150R/1170R

Fanless Industrial Panel PC w/ Intel^® Elkhart Lake Processor

Intel^® Celeron^® Processor J6413 (1.5M Cache, up to 3.00 GHz)
12.1" & 15" 1024 x 768 XGA LCD display
17" 1280 x 1024 SXGA LCD display
Fanless design w/ aluminum front bezel
Flush front panel w/ IP65 waterproof compliant
Support 2.5GbE LAN and USB 3.2 Gen1 (5Gbps)
Rich I/O: 4 x COM/ 2 x LAN/ 4 x USB3.2 (5Gbps) / 8-bit DI/O & dual video output: DisplayPort and DVI-D
Easy-accessible expansion for storage and wireless module
9~36V wide-range DC input with reverse protection

Industria / Sistemas

Specifications

CPU	Intel^® Celeron^® J6413 Quad-Core™ Processor 1.80GHz
Memory	1 x 260 pin DDR4 SO-DIMM socket, supporting 3200MHz SDRAM up to 32GB (4GB DDR4 SO-DIMM pre-installed)
LAN Chipset	1 x Intel^® 225LM controller 1 x Intel^® i210 / i211AT controller
Watchdog Timer	1~255 levels reset

Size / Type	12.1” / 15" / 17" TFT LCD Panel
Max. Resolution	12"/15" 1024 x 768, XGA display 17" 1280 x 1024 SXGA LCD display
Max. Colors	12" / 15" 16.2M 17" 16.7M
Luminance	12.1" - 500 cd/m² ; 15"/17" - 350 cd/m²
Touch Screen	Flat 5-wire Analog Resistive
View Angle (U/D/R/L)	89°/89°/89°/89°(iTC-1121R) 88°/88°/88°/88°(iTC-1150R) 60°/80°/80°/80°(iTC-1170R)

Serial Ports	2 x DB-9 connectors for RS232 / 422 / 485 2 x DB-9 connectors for RS232
USB Ports	4 x Type-A USB 3.2 Gen 1 (5Gbps)
LAN	1 x RJ-45 port for GbE LAN 1 x RJ-45 port for 2.5 GbE LAN
Video Ports	1 x DVI-D connector, supporting Full HD resolution 1 x DisplayPort 1.4 connector, supporting 4K2K resolution
Digital I/O	8 bit Digital I/O

1st Device	1 x M.2 M-key 2240 / 2280 (SATA III only)
2nd Device	1 x 2.5” SSD / HDD tray

Type	1 x Mic-in / 1 x Line out
Speaker	2 x 1.5W speakers (optional)

Button	Power on & Reset
LED	Power-on status / HDD status / RTC battery status

Power Input	DC 9 ~ 36V
Power Consumption	Typical 25W (w/o I/O cards)
Remote Control	1 x 3-pin terminal block for remote control and PWR LED output

Mounting Type	Panel mount, (clamps are provided) VESA-75 / 100 mount (optional)
Chassis	Panel-mounting chassis, aluminum front bezel and steel-metal chassis
Weight (Net)	12.1” - 3.6 kg; 15” - 4.5 kg; 17" - 5.6 kg
Dimensions (W x H x D)	12.1” - 315 x 260 x 70 mm 15” - 367 x 299 x 70 mm 17" - 415 x 347 x 70 mm

Operating Temp.	-10 ~ 55ºC (14 ~ 131ºF)
Storage Temp.	-20 ~ 70ºC (-4 ~ 158ºF)
Operating Humidity	10 ~ 95% @ 55°C (non-condensing)
Vibration	5 ~ 500Hz, 1Grms X,Y,Z axis (with SSD)
Shock	Operating 10G, 11ms X,Y,Z axis (with SSD)

Certification	CE, FCC

Expansion Bus (for Wireless connection)	1 x Mini PCIe slot (PCIe x1+ USB2.0, Full size) w/ 1 x SIM card slot

System	Windows^®10 (64bit)
