Asrock 4X4 BOX-4500U
Fanned BOX- AMD Ryzen™ 4000U-Series 4500U
- 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
- 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6), 1 x SATA3
- 1 x Realtek 1 Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN (Support DASH)
- Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C)
- TPM 2.0 onboard IC
- 19V/90W Power Adapter
- 110.0 x 117.5 x 47.85mm, Fanned Barebone
Digital Signage / Ordenadores industriales (IPC)Industria
-
AMD
-
Bluetooth
-
DC
-
Display Port
-
HDMI
-
Interfaz
-
LAN
-
Linux
-
SSD
-
USB
-
Wifi
-
Windows
Specifications
Processor System
| CPU | AMD Ryzen™ 5 4500U, 6 Cores (4500U, 6C, 2.3GHz, 15-25W) |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | 110.0 x 117.5 x 47.85 mm |
|---|
Memory
| Technology | Dual Channel DDR4 3200MHz |
|---|---|
| Capacity | 64 GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | AMD Radeon™ Graphics |
|---|---|
| HDMI | HDMI 2.0a Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.2a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type C) |
Expansion Slot
| M.2/WLAN | 1 x Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.2 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless) |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek R8111EPV with 10/100/1000 Mbps, support DASH function |
|---|---|
| Connector | 2 x RJ-45 |

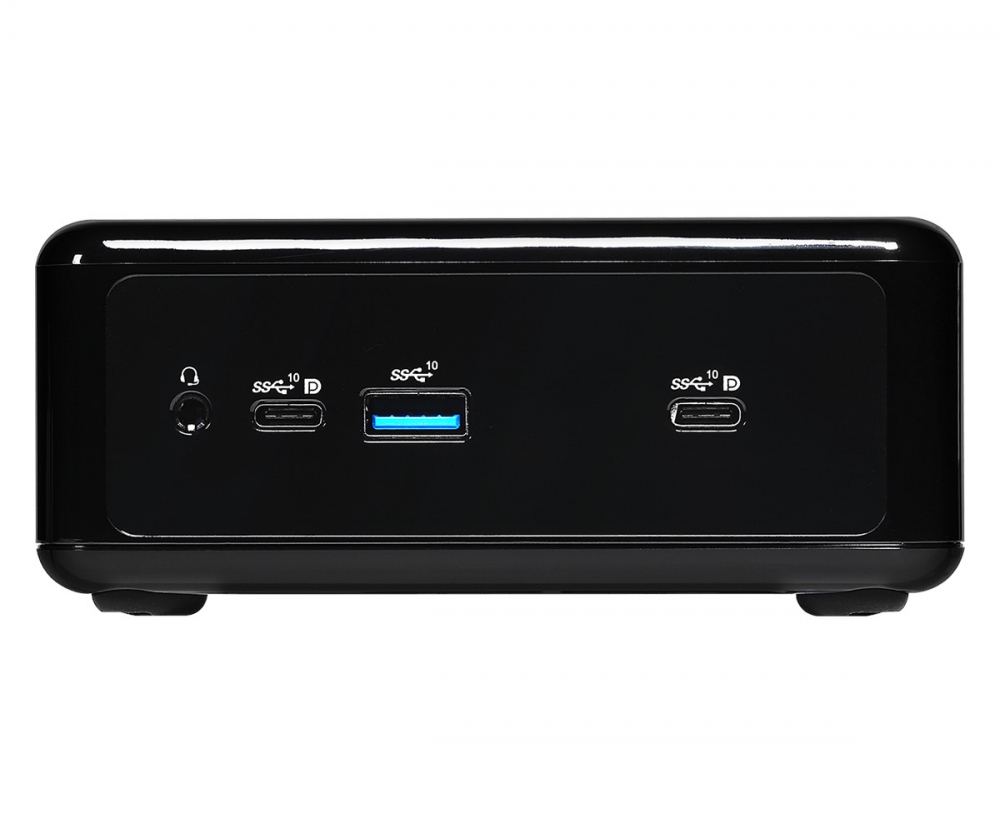

Front I/O
| USB | 1 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type C, 5V/3A, Supports DP 1.2a display output) |
|---|---|
| Audio | 1 (headphone & microphone jack) |
Rear I/O
| HDMI | 1 x HDMI 2.0a |
|---|---|
| DisplayPort | 1 x DP 1.2a |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 |
| DC Jack | 1 |
Storage
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x4 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2....255sec |
Power Requirements
| Input PWR | 19V/90W Power Adapter |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 40ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Mechanical
| Construction | Plastic |
|---|---|
| Mounting | VESA mounting |
| Dimensions (L x W x H) | 110.0 x 117.5 x 47.85 mm |
| Weight | Net Weight: 1kg |
Others
| OS Support | Windows 10 |
|---|---|
| Certifications | CE, FCC Class A |
| Packing List | 1 x 19V/90W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket 1 x Bracket for M.2 2280 support |
| Longivity Support | No |
| TPM | TPM 2.0 onboard IC |
Accessories
| Gift Package | 2 x SCREW M2*2,D=5 (13G020302034AK) 1 x NUT M2 H=3.35mm (13G020271010AK) 1 x AC PWR CORD (14G110000212AK) 1 x 4X4 BOX-4000 SERIES QIG (15G06M098000AI) 1 x DVD (15G09M021000AI) 1 x 19V/90W Power Adapter(04G266001100AI) |
|---|
