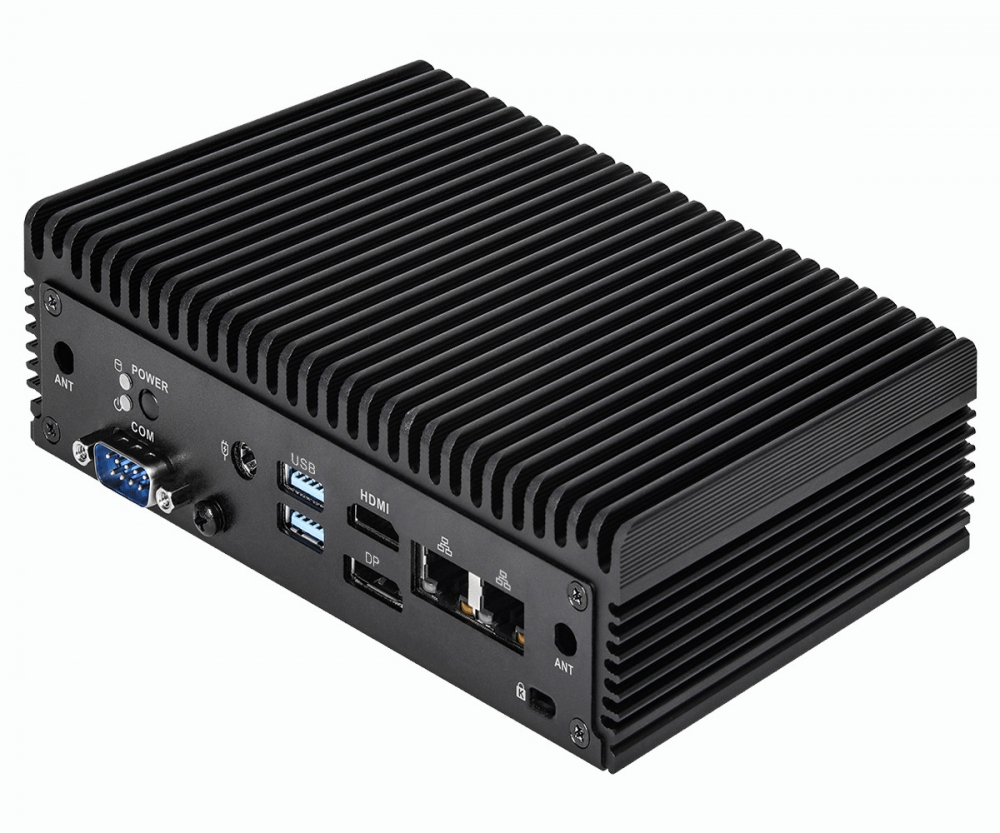

Asrock iBOX-1315UE-D4

Fanless Embedded BOX PC
  • Intel® 13th Gen (Raptor Lake-P) Core™ Processors i3-1315UE
  • 2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
  • 1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a (2 from Type-C)
  • TPM 2.0 onboard IC
  • 19V/90W Power Adapter
  • 171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97"), Fanless Embedded BOX PC
Industria / Ordenadores industriales (IPC)
  • DC
    DC
  • Display Port
    Display Port
  • Sin ventilación
    Sin ventilación
  • HDMI
    HDMI
  • Intel
    Intel
  • Interfaz
    Interfaz
  • LAN
    LAN
  • SSD
    SSD
  • USB
    USB
  • Windows
    Windows

Specifications

Processor System

CPU Intel® 13th Gen (Raptor Lake-P) Core™ Processors
iBOX-1315UE/D4 (i3-1315UE, 2P+4E)
Chipset MCP
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Quad-Display (Included 2 outputs from Type-C)

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface Realtek ALC233/ALC256, High Definition Audio.

Ethernet

Controller/ Speed LAN1: Intel® I226LM with 10/100/1000/2500 Mbps
LAN2: Intel® I226LM/I226V with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

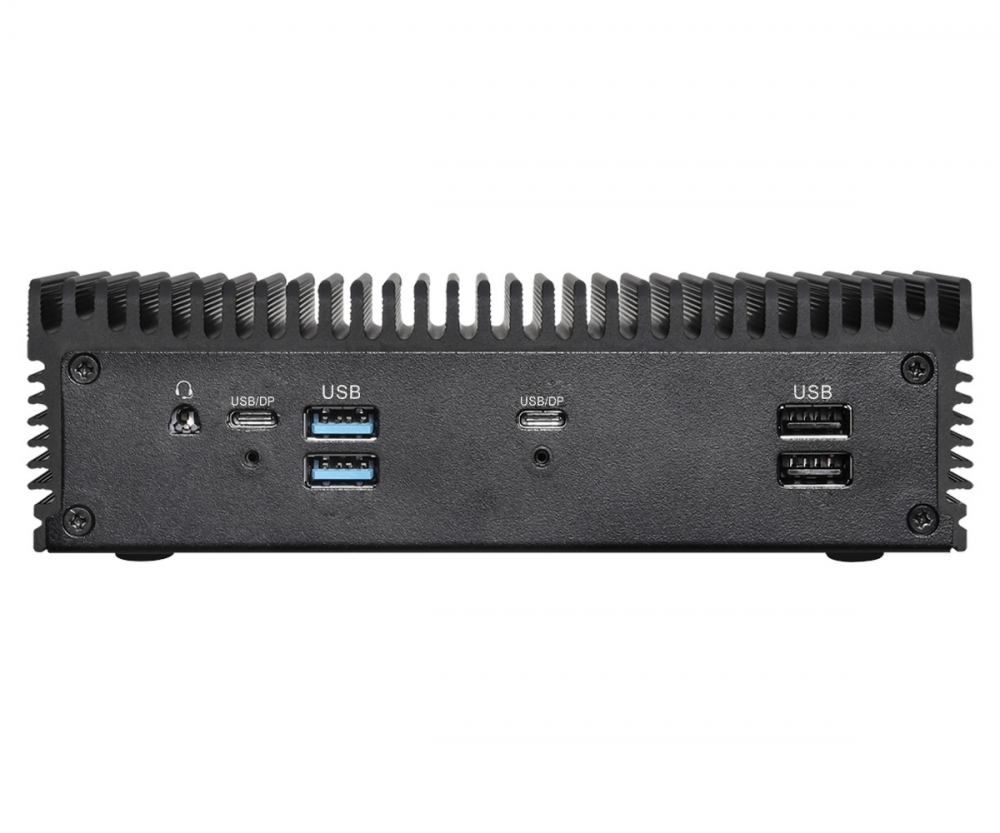

Front I/O

USB 2 x USB 3.2 Gen2 (Type-A)
1 x USB4/Thunderbolt™ 4 (Supports DP1.4a display output)
1 x USB 3.2 Gen2 (Type-C, Supports DP1.4a display output)
2 x USB 2.0
*For Thunderbolt support, please refer to support list.
Audio 1 (headphone & microphone jack)

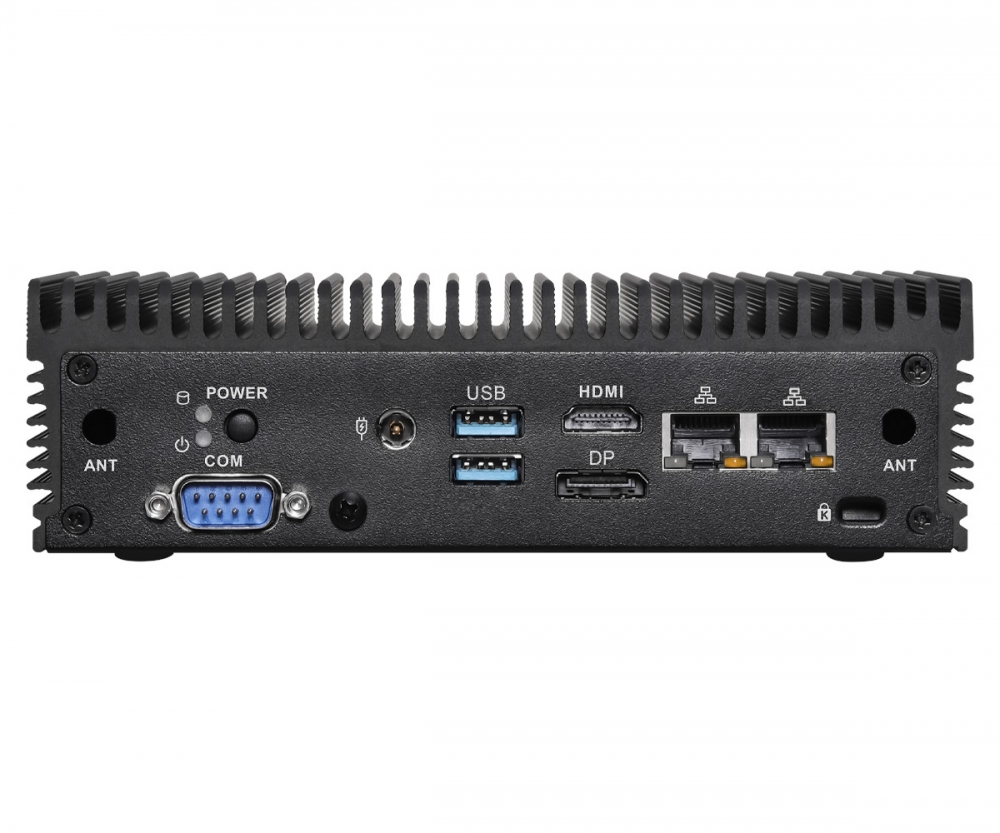

Rear I/O

HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.4a
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
DC Jack 1
COM 1 x COM(RS-232)

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~19V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp -20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals)
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Mechanical

Construction Aluminum housing
Mounting VESA mount/Wall mount/Din-rail
Dimensions (L x W x H) 171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97")
Weight Net Weight:1.6Kg

Others

OS Support Windows 10/11
Certifications CE, FCC
Packing List 1 x 19V/90W Power Adapter
1 x Wall mount kit
TPM TPM 2.0 onboard IC
