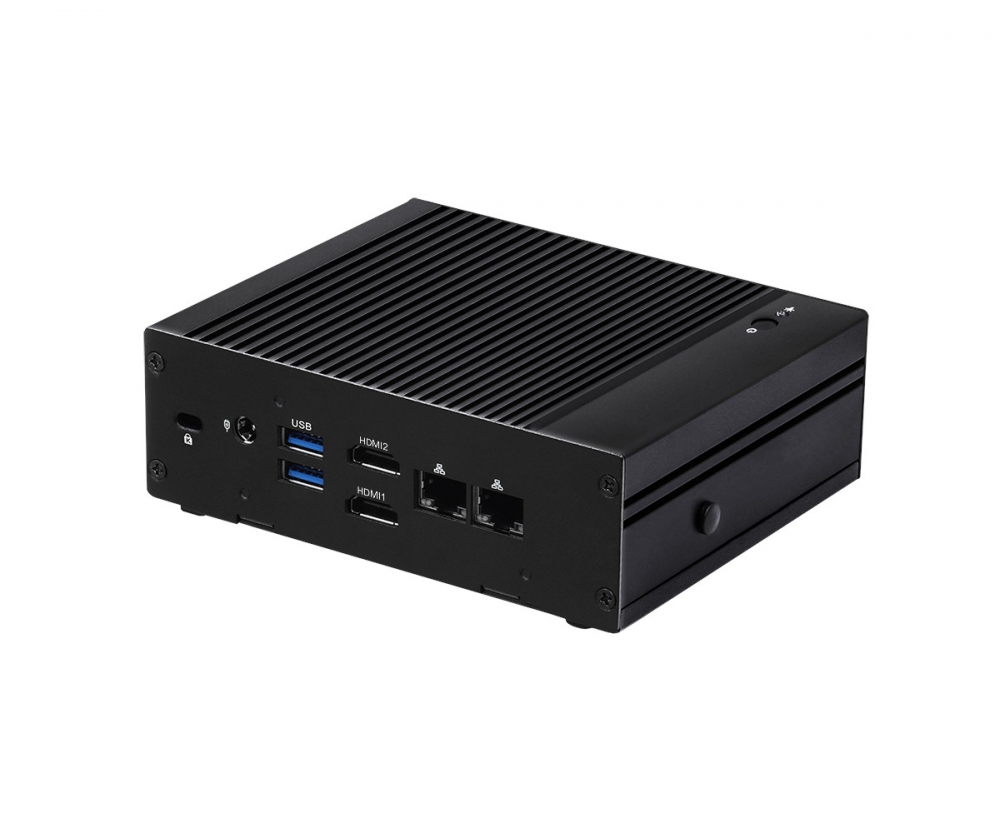

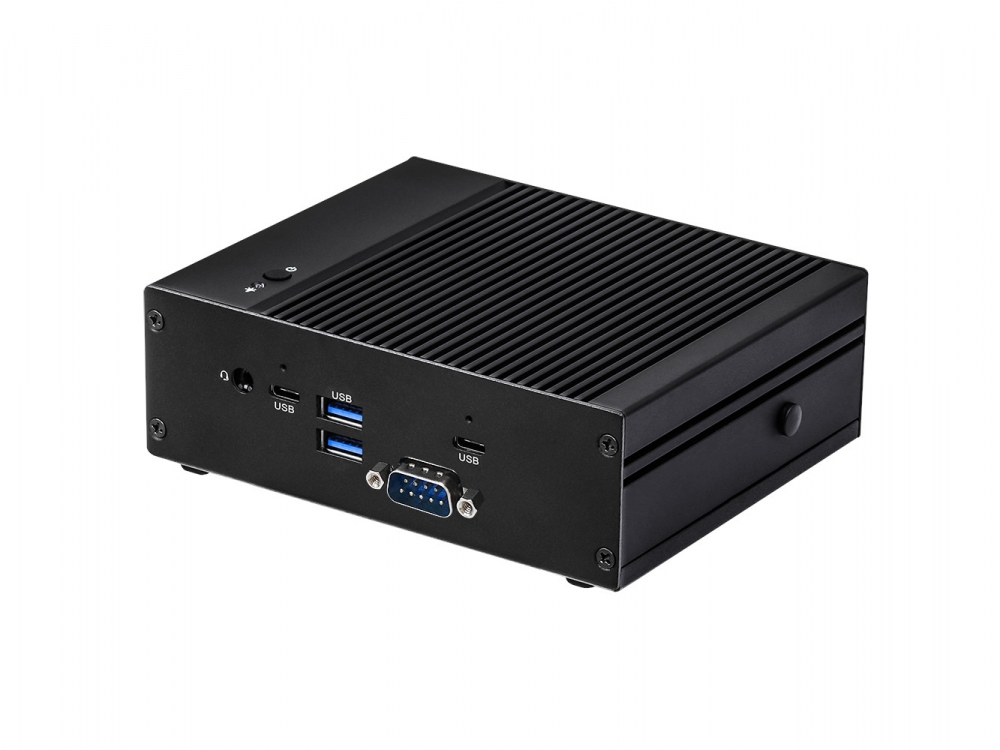

Asrock iBOX-N97 R2

Fanless Embedded BOX PC
  • Intel® Alder Lake-N SoC Processor N97
  • 1 x 260-pin SO-DIMM DDR4 3200 MHz , up to 32GB
  • 6 x USB 3.2 Gen2, 1 x M.2 Key E, 1 x M.2 Key M, 1 x COM, 1 x SATA3
  • 2 x Realtek 2.5 Gigabit LAN
  • Supports Triple display, 2 x HDMI 2.0b, 2 x DP 1.4a (From Type-C)
  • TPM 2.0 onboard IC
  • 19V/65W Power Adapter
  • 135 x 110 x 44.5mm (5.31" x 4.33" x 1.75"), Fanless Embedded BOX PC
Industria / Ordenadores industriales (IPC)
  • DC
    DC
  • Display Port
    Display Port
  • Sin ventilación
    Sin ventilación
  • HDMI
    HDMI
  • Intel
    Intel
  • Interfaz
    Interfaz
  • LAN
    LAN
  • SSD
    SSD
  • USB
    USB
  • Windows
    Windows

Specifications

Processor System

CPU Intel® Alder Lake-N SoC Processors
iBOX-N97 R2 (N97, QC, Max Speed Up to 3.6GHz, 12W)
Chipset SoC
BIOS AMI SPI 256 Mbit

Memory

Technology Single Channel DDR4 3200 MHz
Capacity 32GB
Socket 1 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Triple-Display (Included 2 outputs from Type-C)

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface Realtek ALC256, High Definition Audio

Ethernet

Controller/ Speed LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

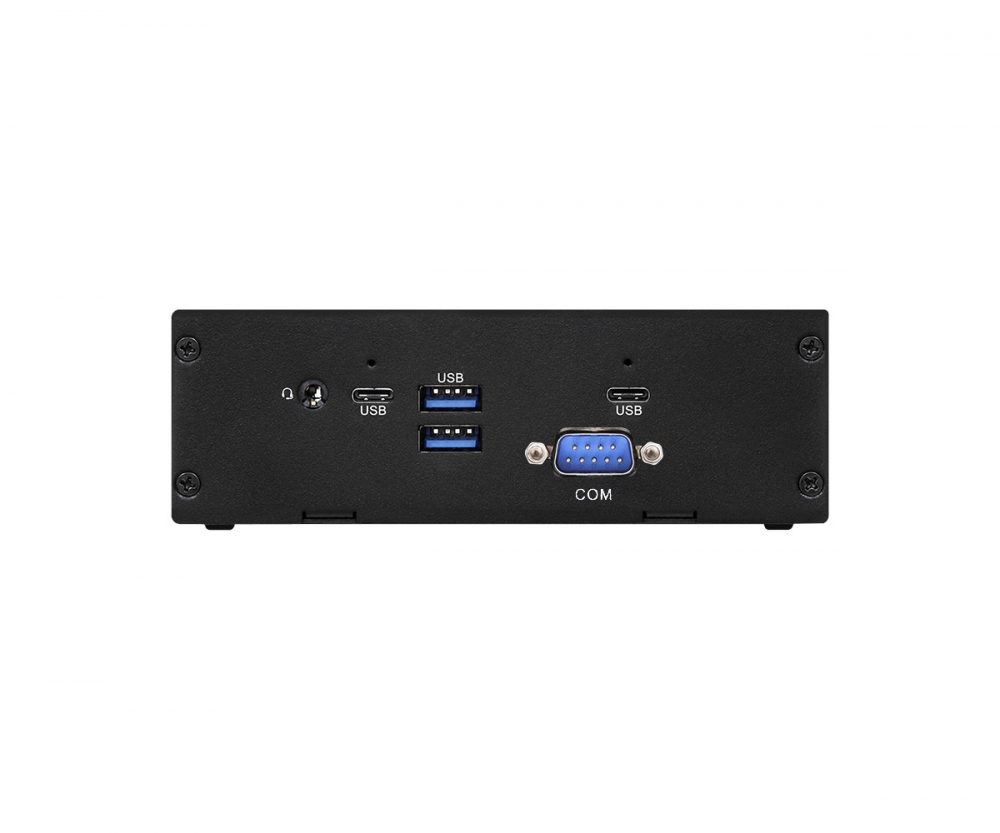

Front I/O

USB 2 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)
COM 1 x COM (RS-232)
Audio 1 (headphone & microphone jack)

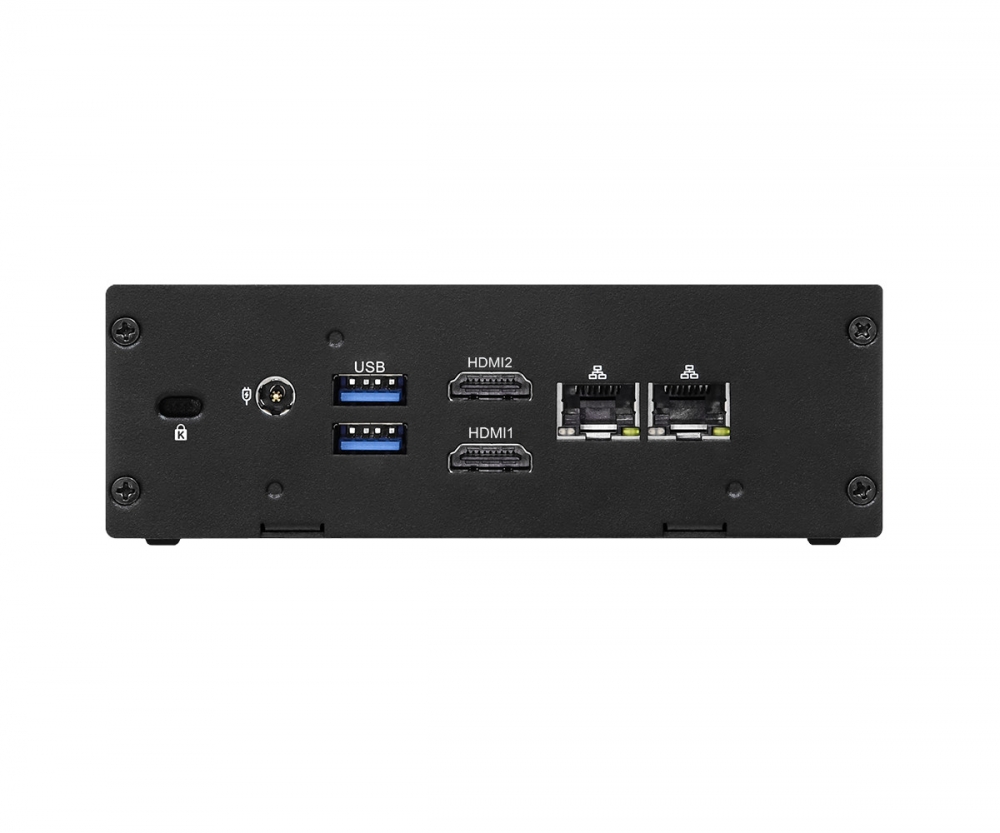

Rear I/O

HDMI 2 x HDMI 2.0b
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
DC Jack 1

Storage

M.2 1 x M.2(KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280 (Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 1 x 19V/65W Power Adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp -20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp.
peripherals)
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Mechanical

Construction Aluminum housing
Mounting VESA mount/Wall mount/Din-rail
Dimensions (L x W x H) 135 x 110 x 44.5mm (5.31" x 4.33" x 1.75")
Weight Net Weight: 0.7kg

Others

OS Support Windows 10/11
TPM TPM 2.0 onboard IC
Certifications CE, FCC
Packing List 1 x 19V/65W Power Adapter
1 x Wall mount kit
