Asrock iEP-5010G Series
Industrial IoT Controller- Latest and Powerful Intel® Atom® x6000E Processor (Elkhart Lake-PU)
- Fan-less and Rugged Design, Wide Temperature Operation (-40 °C to 70 °C)
- 6-36VDC Wide Range Power Inputs
- Most Flexible IOs and Expansion for Industrial Applications
- Intel® TCC and TSN Support for Real-Time Computing

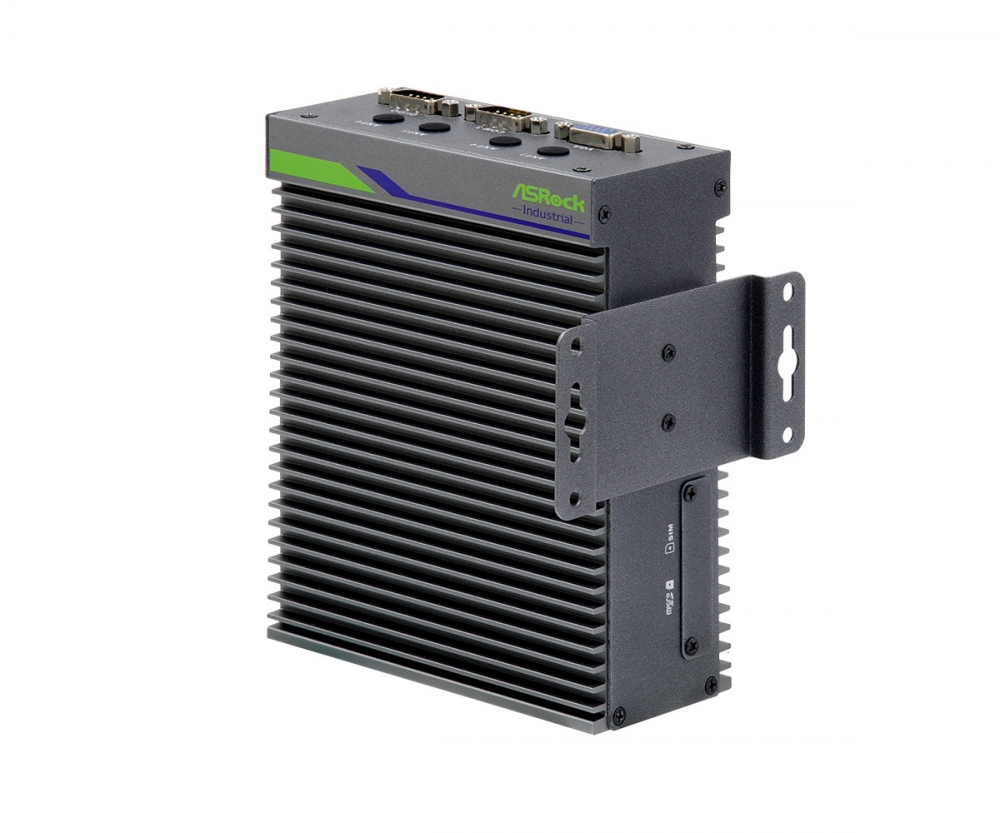

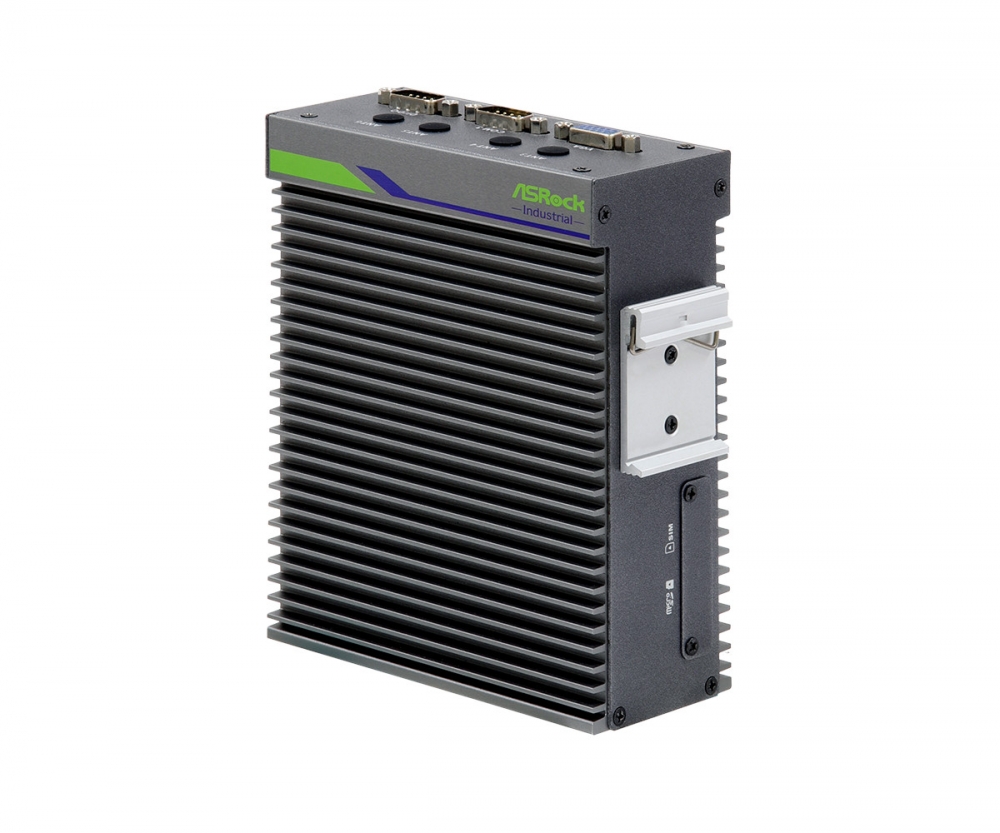

- DIN Rail or Wall Mount Options
- 4 x Intel 1G LAN (2 Support IEEE 802.3AF PoE Ports)
- 1 x Intel 2.5G LAN
- Support Intel® IN-Band ECC
Industria / IoT
-
AC
-
Bluetooth
-
DC
-
HDMI
-
Intel
-
Interfaz
-
LAN
-
Linux
-
Lte
-
POE
-
Serie
-
SSD
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
System Core
| Processor | Intel® Atom® x6000E Processor - Intel Atom® x6416RE, 4C, 1.7GHz, 9W - Intel Atom® x6214RE, 2C, 1.4GHz, 6W |
|---|---|
| Video | 1 x HDMI 2.0b 1 x VGA |
| Memory | 2 x DDR4 3200MHz SO-DIMM, up to 32GB (In-Band ECC) |
Expansion Slot
| SIM Socket | 1 x Nano SIM Card slot |
|---|---|
| RF& Antenna (Option) | M.2 Wi-Fi 6E module supports IEEE 802.11 a/b/g/n/ac/ax + BT 5.2 - 3 x 4G LTE antenna + 2 x Wi-Fi antenna - 4 x 5G antenna + 2 x Wi-Fi antenna |
| M.2 | 1 x M.2 3042/3052 Key B (PCIe Gen3 / USB3.2 mode) - Support 4G LTE/5G module 1 x M.2 2230 Key E (PCIe Gen3 / USB2.0 mode) -Support Wifi/BT module |
I/O
| Ethernet | 1 x Intel I226-IT 2 x Intel I210-IT 2 x Intel I210-AT (Optional) |
|---|---|
| PoE (Option) | Intel I210-AT ports, each port supports IEEE 802.3AF PoE (Optional) |
| Serial Port | 3 x RS-232/422/485 |
| USB | 2 x USB 3.2 Gen1x1 2 x USB 2.0 |
| Digital I/O | 4DIs/4DOs |
| Audio | 1 x Mic in 1 x Line out |
Storage
| SD Slot | 1 x Micro SD card slot (SD Card specification version 3.01) |
|---|---|
| SATA | 1 x 2.5" 9.5mm SATA3 SSD |
| M.2 | 1 x M.2 2280 Key M (PCIe Gen3 / SATA3 mode) |
Power Requirements
| DC Input | 1 x 3-pin pluggable terminal block (Phoenix type) for 6 to 36V DC input (For iEP-5010G-010/012) 1 x 3-pin pluggable terminal block (Phoenix type) for 19 to 36V DC input (For iEP-5010G-011 only) - OVP, UVP, OCP, plus 80V surge protection |
|---|---|
| AC to DC Adaptor (Option) | AC input 100-240Vac, 1.5A 50-60Hz, DC output 19V, 3.42A, 65W Adaptor for Basic SKU & 5LAN SKU |
Mechanical
| Dimensions | 58mm (W) x 125mm (D) x 157mm (H) |
|---|---|
| Indicator | 1 x SATA / NVMe Storage LED, 1 x Wi-Fi / BT LED |
| Function | 1 x Power on Button with LED 1 x Clear CMOS Button |
| Weight | NW : 1.19 kg |
| Mounting (Option) | DIN-Rail , Wall Mounting |
Manageability / Security
| Manageability | WDT, Intel® In-Band Manageability |
|---|---|
| Security | TPM2.0 |
Add-on Feature / OS Support
| Real-Time Enablement | TSN, TCC support under Ubuntu 22.04 LTS |
|---|---|
| OS Support | Windows 10, Ubuntu 22.04 LTS |
