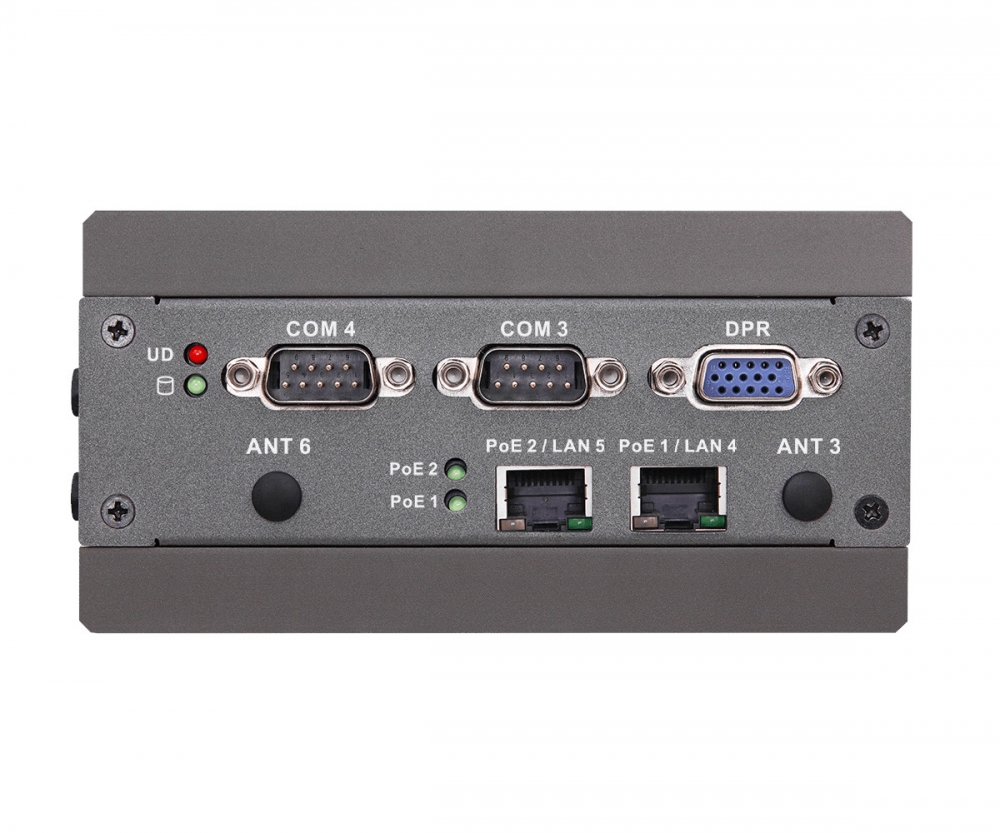

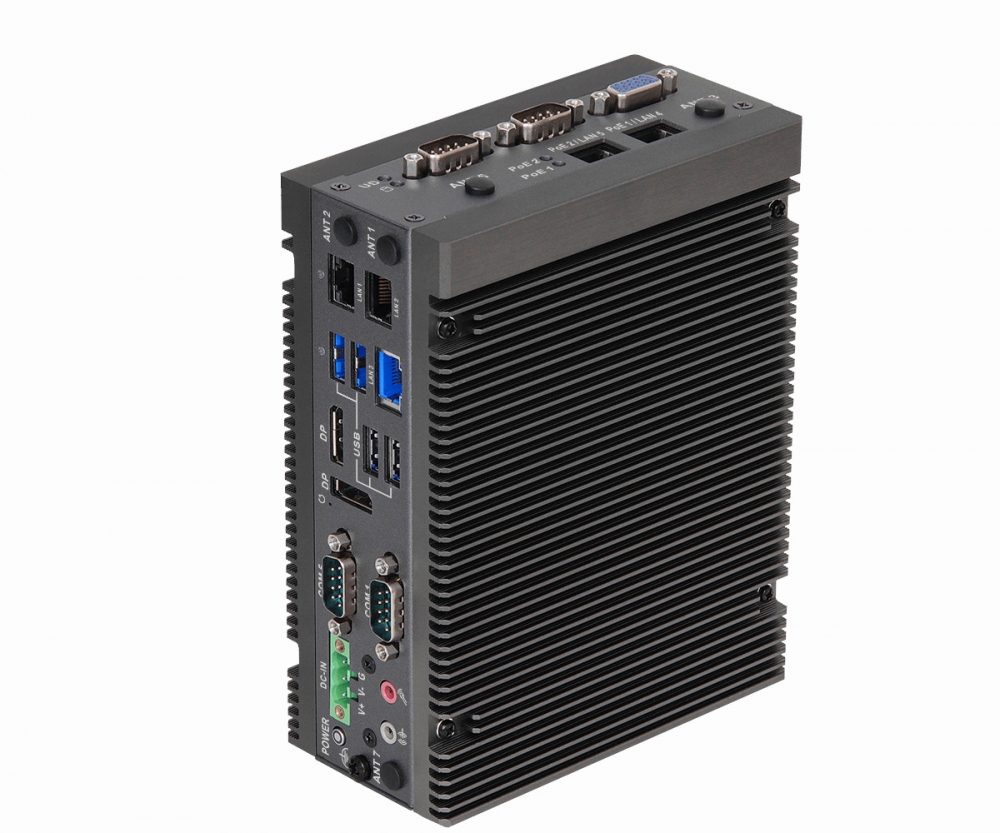

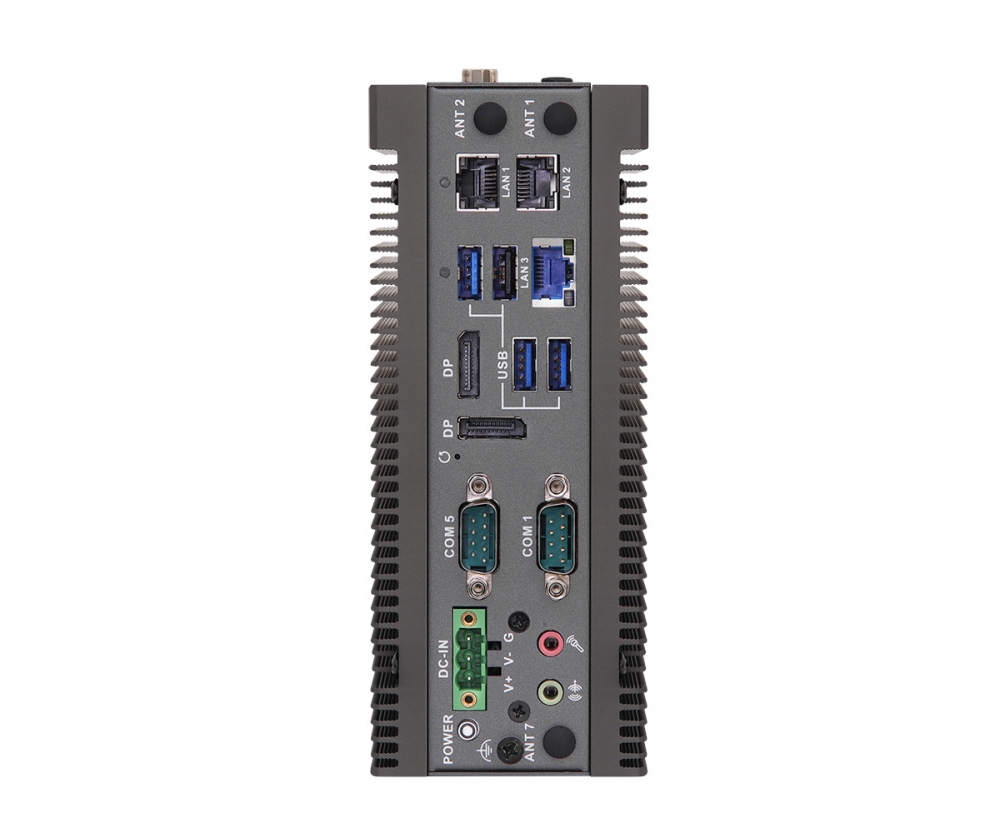

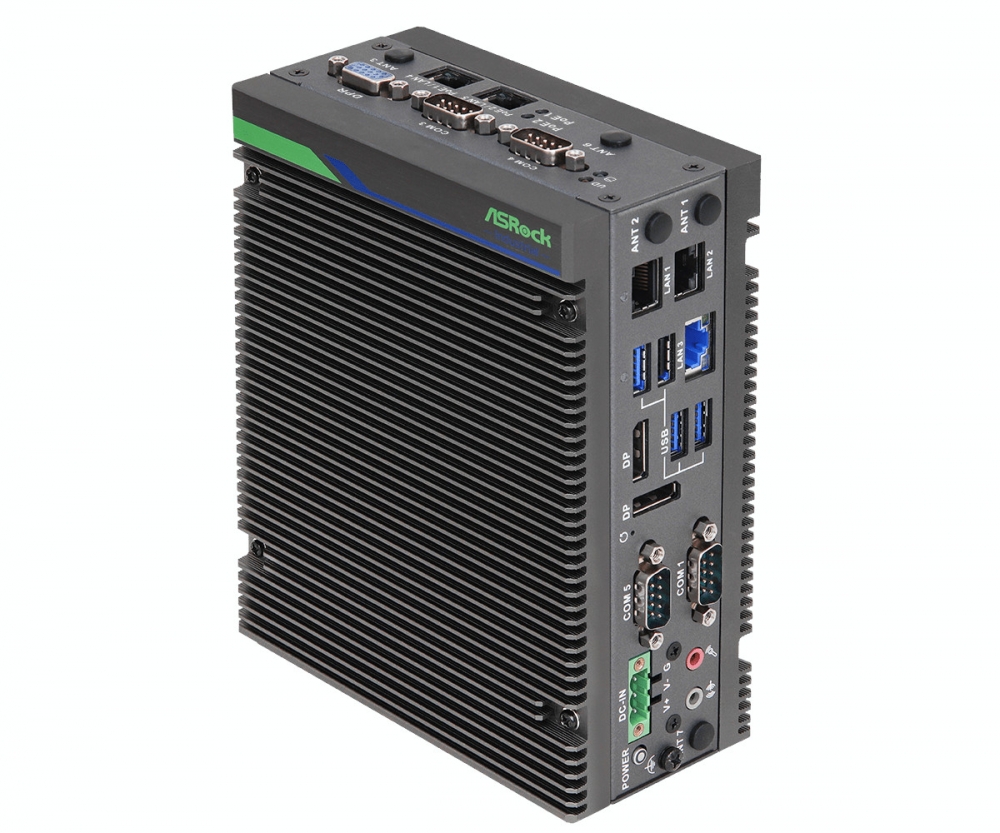

Asrock iEP-7020E Series

Industrial IoT Controller
  • Intel® 13th Gen Core™ Embedded & Industrial Processors
  • Scalable power and performance in BGA for edge controller
  • High performance Intel® Iris Xe Graphics architecture
  • Fan-less and Rugged Design
  • Wide Temperature Operating (-40 °C to 70 °C)
  • 9V ~ 36VDC Wide Range Power Inputs
  • Intel® TCC and TSN Support for Real-Time Computing
  • 3 x Intel i226-IT LAN (Support vPro)
  • 2 x Intel i210-AT LAN (Support IEEE 802.3AF PoE)
  • Support Intel® IN-Band ECC
Industria / Sistemas
Seguridad
Smart City
  • 4G
    4G
  • 5G
    5G
  • Bluetooth
    Bluetooth
  • DC
    DC
  • Display Port
    Display Port
  • Intel
    Intel
  • Interfaz
    Interfaz
  • Linux
    Linux
  • Lte
    Lte
  • POE
    POE
  • SSD
    SSD
  • USB
    USB
  • Wifi
    Wifi
  • Windows
    Windows

Specifications

System Core

Processor Intel®13th Gen Core™ i7/i5 Embedded & Industrial Processor
- Intel® Core™ i7-1365URE, 10C, 1.70GHz, 15W
- Intel® Core™ i5-1345URE, 10C, 1.40GHJz, 15W
- Intel® Core™ i7-1370PRE, 14C, 1.90GHz, 28W
- Intel® Core™ i5-1350PRE, 12C, 1.80GHz, 28W
Video 2 x DP++ 1.4a
Memory 2 x DDR4 3200MHz SO-DIMM, up to 64GB (Support In-Band ECC)

Expansion Slot

SIM Socket 1 x Nano SIM Card slot
RF& Antenna (Option) M.2 Wi-Fi 6E module supports IEEE 802.11 a/b/g/n/ac/ax + BT 5.2
- 3 x 4G LTE antenna and 2 x Wi-Fi antenna
- 4 x 5G antenna and 2 x Wi-Fi antenna
M.2 1 x M.2 3042/3052/2280 Key B (PCIe Gen3/USB3.2)
- Support 4G LTE/5G module
- Support SATA3 SSD storage for iEP-7020E-000 only
1 x M.2 2230 Key E (CNVi / PCIe Gen3 / USB2.0)
- Support Wifi/BT module

I/O

Ethernet 3 x Intel® i226-IT (vPro Support)
2 x Intel® i210-AT (1GbE) for PoE SKU & 5LAN SKU (Optional)
PoE (Option) 2 x Intel® i210-AT, each port supports IEEE 802.3AF PoE, for PoE SKU only (Optional)
Serial Port 4 x RS-232/422/485
USB 3 x USB 3.2 Gen2x1
1 x USB 2.0
Digital I/O 1 x 4DIs/4DOs, Power on and Reset (15-pin D-sub connector)
Audio 1 x Line Out, 1 x Mic In

Storage

SD Slot 1 x Micro SD card slot(SD Card specification version 3.01)
SATA 1 x 2.5" 9.5mm SA TA3 SSD for Basic SKU only
M.2 1 x M.2 Key M Socket (2280) with PCIe Gen3



Power Requirements

DC Input For Basic & 5LAN SKU
- 3-pin terminal block (Phornix type) for 9 to 36V DC input
For PoE SKU
- 3-pin terminal block (Phornix type) for 19 to 36V DC input
(Support OVP, UVP, OCP power protection design)
AC to DC Adaptor (Option) Adapter 120W for Basic SKU & 5LAN SKU
- AC input 100-240Vac, 1.8A 50-60Hz, DC output 19V, 6.32A
Adapter 330W for PoE SKU
- AC input 100-240Vac, 4.2A 50-60Hz, DC output 24V, 13.75A

Mechanical

Dimensions (W x H x D) For Basic SKU & 5LAN SKU : 55 x 170 x 134 mm
For PoE SKU : 68 x 170 x 134 mm
Indicator 1 x Storage LED
1 x UD LED (USER Define)
Function 1 x Power Button with LED
2 x Debug LED
Weight TBD
Mounting For Basic SKU & 5LAN SKU : Wall mount, VESA mount, DIN-Rail (Optional)
For PoE SKU : Wall mount, Din Rail (Optional)

Manageability / Security

Manageability WDT, Intel® In-Band Manageability
Security TPM2.0

Add-on Feature / OS Support

Real-Time Enablement TSN, TCC support under Ubuntu
OS Support Windows 10 & Ubuntu 22.04 LTS
