Utilizamos cookies propias y de terceros para ofrecer nuestros servicios y recoger datos estadísticos. Continuar navegando implica su aceptación. Más información Aceptar
Industria / IoT
«Volver

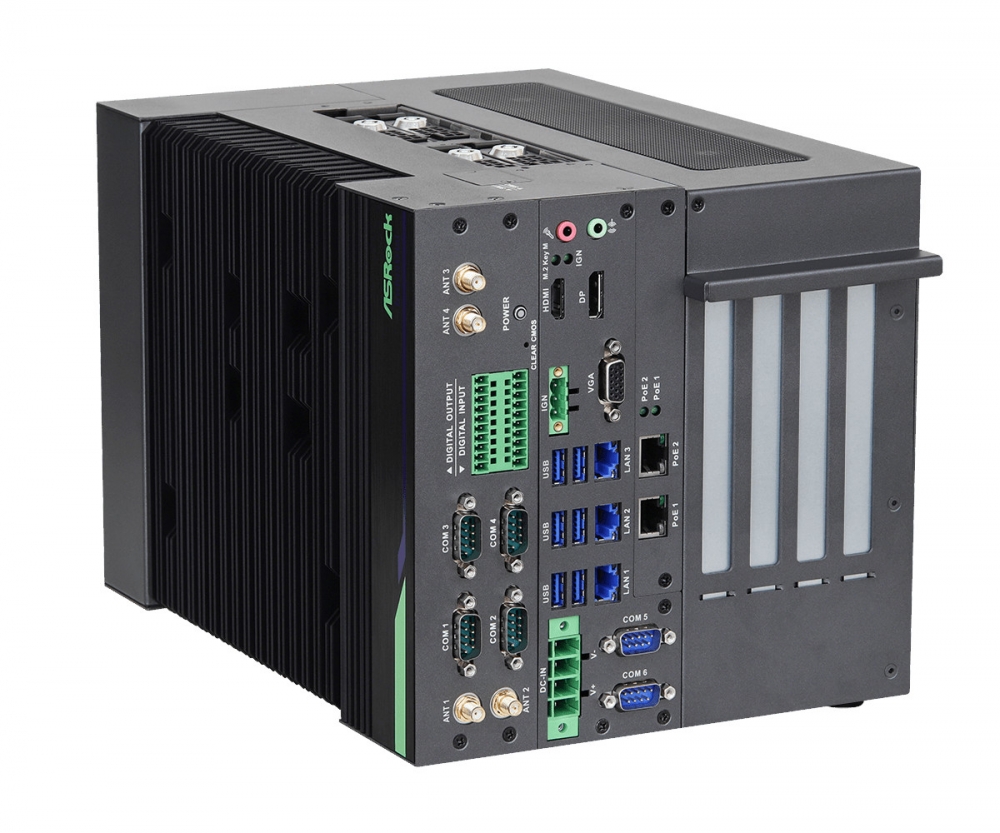

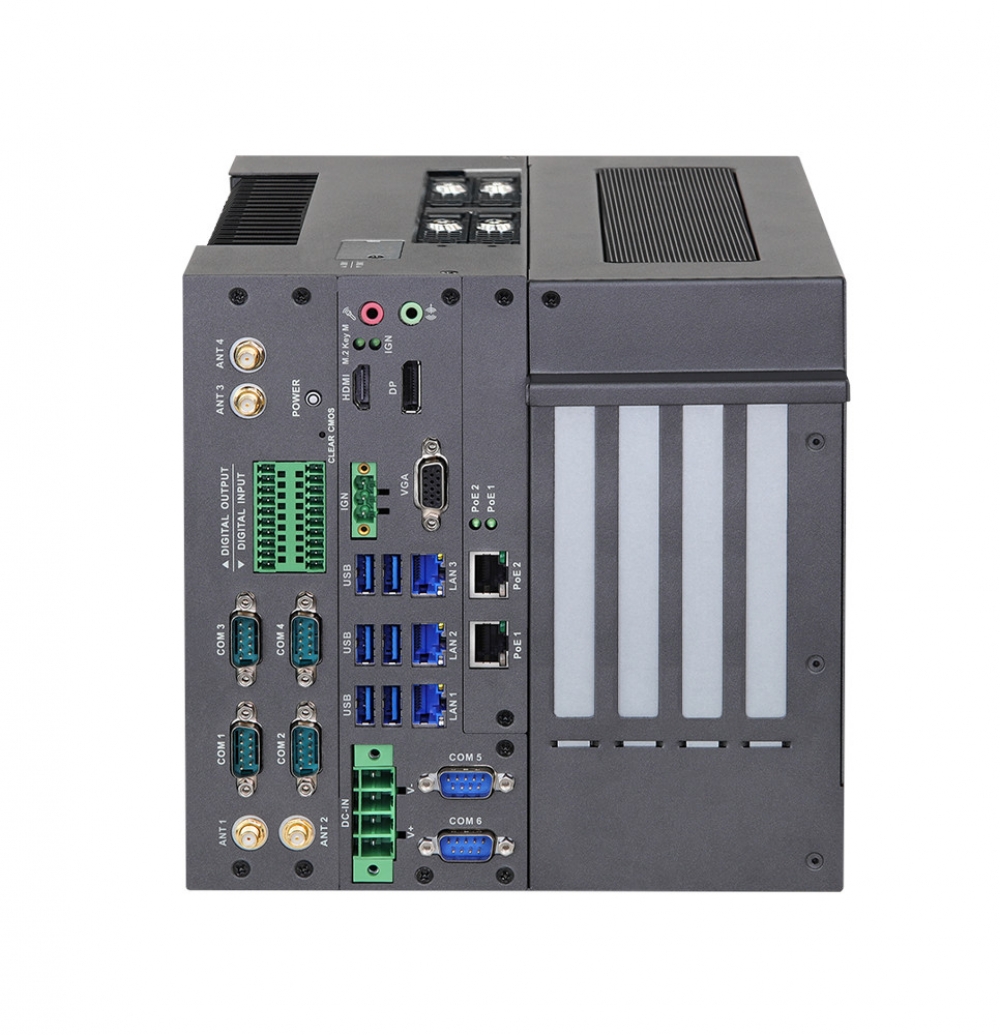

Asrock iEPF-9030S-EW4

Expandable Edge AIoT Platform
  • Intel® 14th Gen Core™ Processors with R680E Chipset
  • 2 x 262-pin DDR5 SO-DIMM up to 96GB (48GB per DIMM)
  • 1 x PCIe x16 (Up to PCIe Gen5) or 2 x PCIe x8 (Up to PCIe Gen5),
  • 2 x PCIe x 4 (PCIe Gen4)
  • 2 x M.2 Key M, 2 x M.2 Key B, 1 x M.2 Key E
  • 6 x USB 3.2 Gen2x1, 6 x COM, 4 x SATA3, 8 x DI, 8 x DO
  • 5 x Intel 2.5G LAN (2 support PoE, 1 supports vPro)
  • 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
  • Powerful Edge AI acceleration enabled by the most flexible mechanical, thermal, and power design, with support for 275 mm x 138 mm x 60 mm (L x H x D) max. and up to 600W graphic card
Industria / IoT
  • 4G
    4G
  • 5G
    5G
  • DC
    DC
  • Display Port
    Display Port
  • HDD
    HDD
  • HDMI
    HDMI
  • Intel
    Intel
  • Interfaz
    Interfaz
  • LAN
    LAN
  • Linux
    Linux
  • POE
    POE
  • SSD
    SSD
  • USB
    USB
  • VGA
    VGA
  • Windows
    Windows

Specifications

Processor System

CPU Intel® 14th Gen Core™ Processors
Chipset Intel® R680E
Socket LGA 1700

Memory

Technology Dual Channel DDR5 5600MHz
(ECC memory supported by R680E + Selected CPU)
Capacity 96 GB (48GB per DIMM)
Socket 2 x 262-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
DisplayPort DisplayPort 1.4a , DP++
Max resolution up to 4096x2160@60Hz
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
VGA Max resolution up to 1920x1200@60Hz

Expansion Slot

PCIe 1 x PCIe Gen5 x16 (single x16 or dual x8), PCIe x16 slot with default power cable can support up to 180W graphic card (275 mm x 113 mm x 60 mm (L x H x D), if remove the card holder, it can be limited on 275 mm x 138 mm x 60 mm)
Graphic card can be up to 600W with optional VGA module
1 x PCIe Gen5 x8 (shared with dual x8)
2 x PCIe Gen4 x4
RF& Antenna 8 x SMA connector hole reserved
M.2 1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1
and USB2.0 for Wi-Fi/BT module
1 x M.2 (Key B1, 2280/3042/3052)
with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB2.0 for 4G / 5G
1 x M.2 (Key B2, 3042/3052)
with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB2.0 for 4G / 5G
SIM Socket 2 x Nano SIM Card slot
(2 connected to M.2 Key B)

Audio

Interface Realtek ALC897, High Definition Audio.

Ethernet

Controller/ Speed 3 x Intel® i226IT (1 vPro Support )
2 x Intel® i226IT (PoE Support, each port supports IEEE 802.3AT PoE,
PoE output max. 30W/single port or 30W/two ports shared)
Connector 5 x RJ45



Front I/O

DisplayPort 1
HDMI 1
VGA 1
Ethernet 5 x Intel 2.5G LAN
USB 6 x USB 3.2 Gen2x1, 1 x USB2.0 internal connector w/ lock function
Audio 1 x Mic-in, 1 x Line-out
COM 4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation
Protection, COM5- Isolation Protection , COM6)
2 x RS232 (COM3, COM4)
DIO 8DIs/8DOs

Storage

M.2 1 x M.2 (Key M1, 2242/2260/2280)
with Gen4 x4 for NVMe SSD
1 x M.2 (Key M2, 2242/2280/22110/25110)
with Gen3 x4 for NVMe SSD
SATA 4 x SATA3 (6Gb/s), support RAID 0/1/5/10
4 x 2.5" HDD/SSD Tray (Default 1 piece)
CFast 1 x Type II socket (Shared with SATA3)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 9V~36V VDC with Ignition control and remote power on/off switch.
80V Surge Protection, OVP, UVP, OCP and reverse protection
Ignition Power Input w/ 13-mode condition

Environment

Operating Temp 35W CPU: -40°C~75°C ( -40°F~167°F)
46W~65W CPU: -40°C~55°C ( -40°F~131°F)
(with FAN inside, without Add-on Card) (w/ air flow 0.5~0.8 m/s)
Storage Temp -40°C~85°C ( -40°F~185°F)
Humidity ~95% @ 40°C (non-condensing)
Shock Operating: 50 G, half sine 11ms duration with SSD
Vibration Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
ESD Contact +/-4kV, Air +/-8kV
EMC EN61000-6-4/-2, CE & FCC Class A
Safety LVD

Mechanical

Construction Aluminum heatsink + Metal chassis
Mounting Desk Mount
Dimensions 201.7mm (W) x 290.8mm (D) x 209.8mm (H) (7.94" x 11.45" x 8.26")
Net Weight 10kg

Others

OS Support Windows 10 & Linux
TPM TPM 2.0
Real-Time Enablement TSN, TCC support under YOCTO
