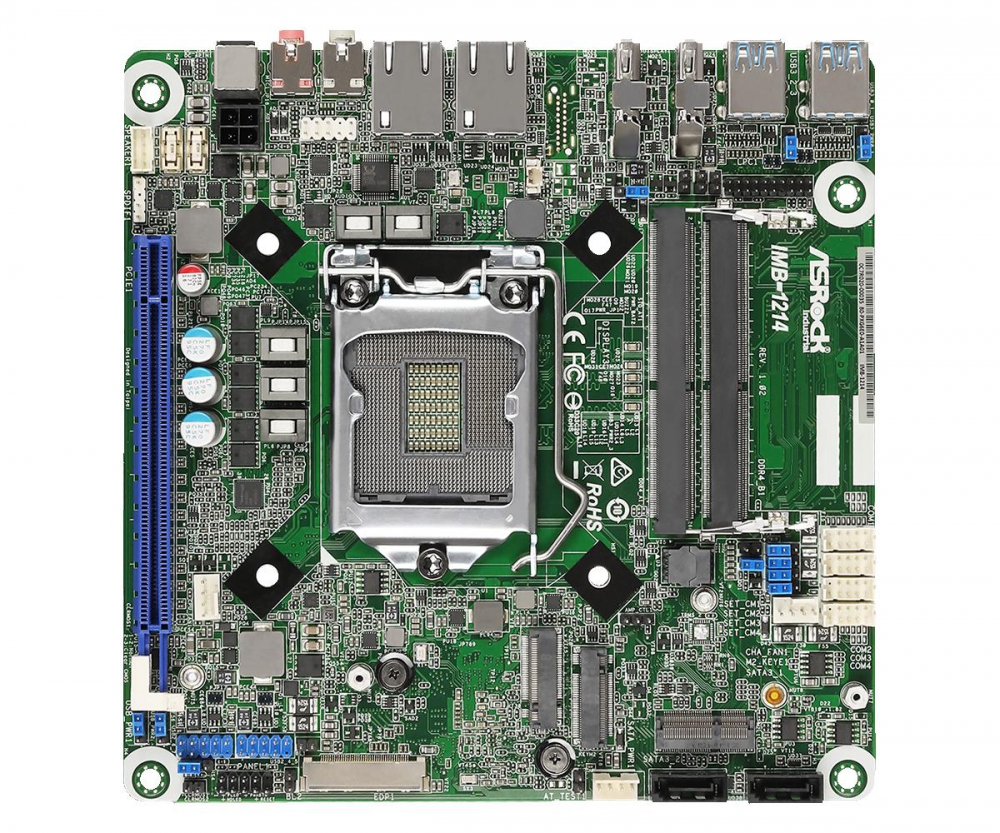

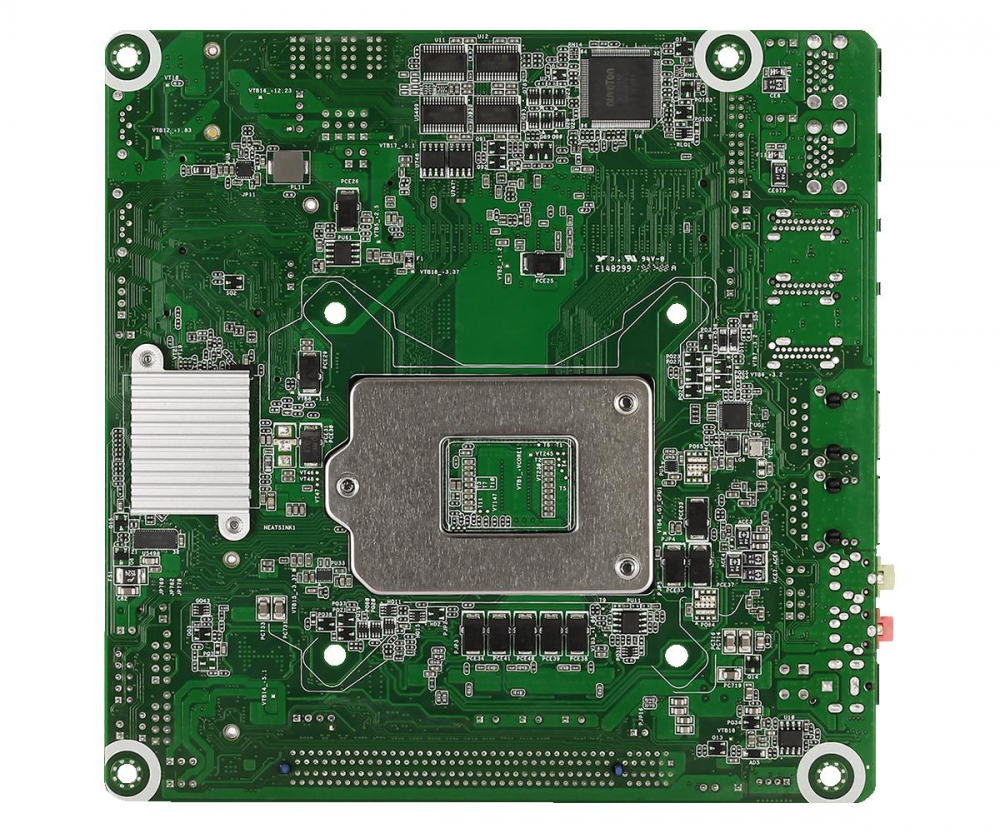

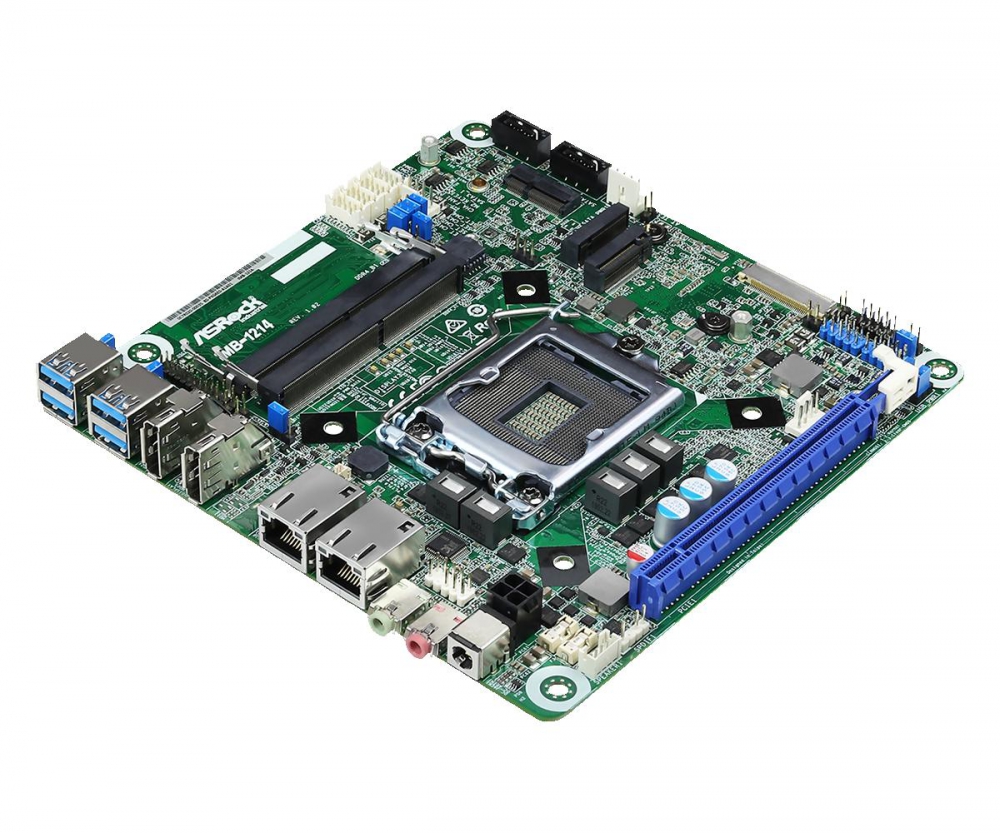

Asrock IMB-1214
Mini-ITX Motherboard- Intel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors with H310 chipset
- 2 x 260-pin SO-DIMM up to 64GB* DDR4 2666MHz
- 1 x PCIe x16 (Gen3), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 4 x COM, 2 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
- Supports dual display, 2 x DP 1.2, 1 x eDP
- TPM header
- 19V DC-In
Industria / Placas
-
DC
-
Display Port
-
Intel
-
Interfaz
-
LAN
-
SSD
-
USB
Specifications
Processor System
| CPU | Intel® 9th/ 8th Gen (Coffee Lake-S) Core™ Processors, up to 65W *The Performance of CPUs over 65W will be limited due to power design. |
|---|---|
| Chipset | Intel® H310 |
| Socket | LGA1151 |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 2666 MHz |
|---|---|
| Capacity | 64GB* * Intel Core i9/i7/i5 CPUs support up to 64GB (32GB per DIMM) Intel Core i3/Pentium/Celeron CPUs support up to 32GB (16GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Coffee Lake integrated graphics |
|---|---|
| DisplayPort | DisplayPort 1.2, DP++ Max resolution up to 4096x2304@60Hz |
| eDP | eDP 1.4 Max resolution up to 4096x2304@60Hz |
| MultiDisplay | Dual Display |
Expansion Slot
| PCIe | 1 x PCIe x16 (Gen3) |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
Audio
| Interface | Realtek ALC887/897, High Definition Audio. Line-out,Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I219V with10/100/1000 Mbps LAN2: Realtek Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Rear I/O
| DisplayPort | 2 x DP 1.2 |
|---|---|
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.1 (Gen1) |
| Audio | 2 (Mic-in, Line-out) |
| DC Jack | 1 |
Internal Connector
| USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | COM3(RS232/422/485) COM1, 2, 4(RS232) |
| TPM | TPM Header |
| eDP | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242/2260) with PCIe x1 for SSD 1 x M.2 (Key M, 2242/2280) with SATA3 for SSD |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 19V DC-In with 4-pin plug PWR cable or DC Jack |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 3 x SCREW M2,D=5 (13G020302031AK) 1 x I/O Shield (13G020516020AK) 1 x I/O Shield THIN (13G020516030AK) 2 x COM Cable (14G000000310AK) 2 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
|---|---|
| Bulk Package | 3 x SCREW M2,D=5 (13G020302031AK) 1 x I/O Shield (13G020516020AK) 1 x I/O Shield THIN (13G020516030AK) |
