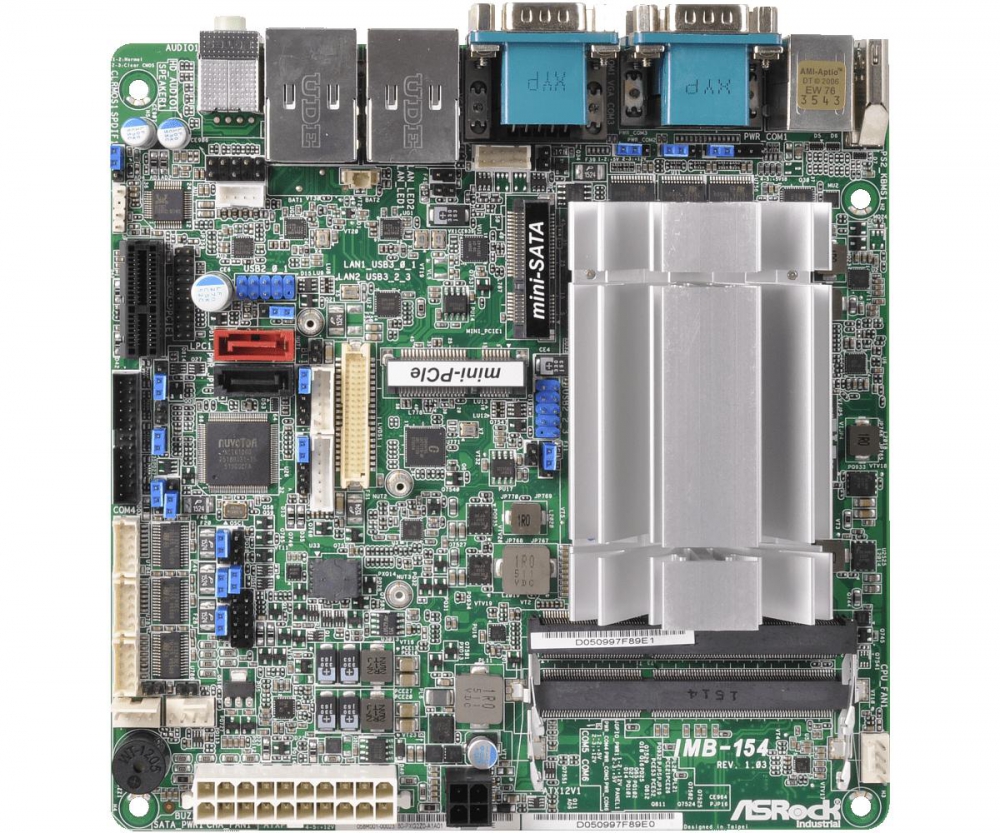

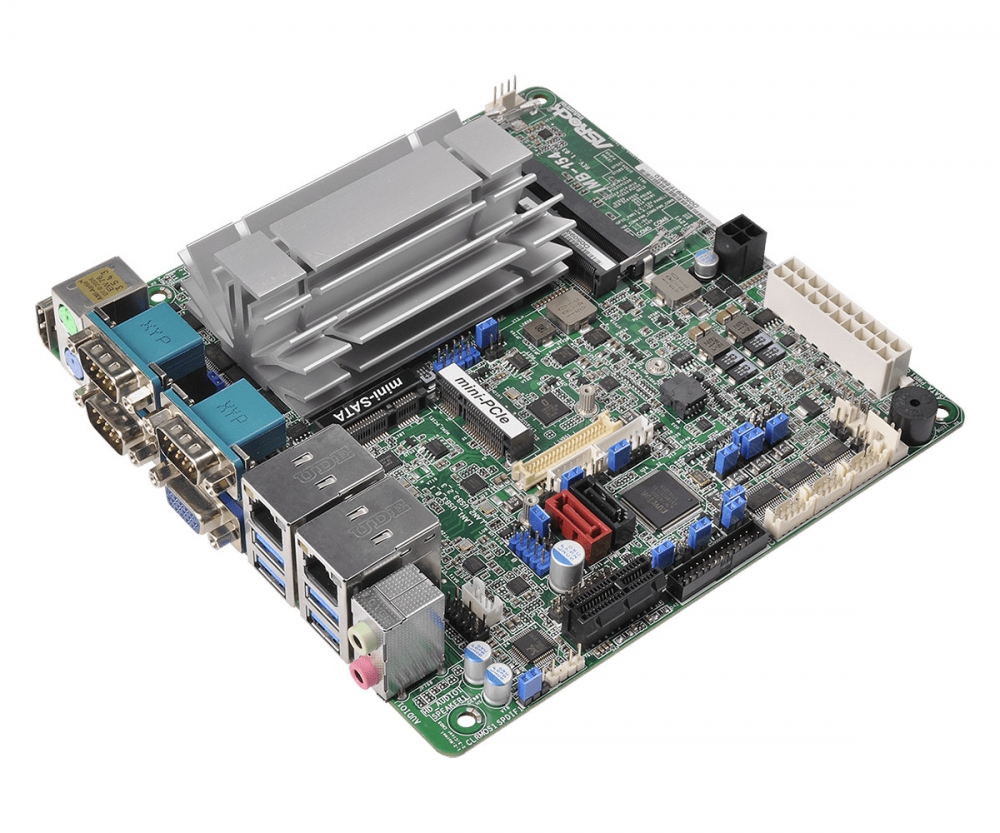

Asrock IMB-154A
Mini-ITX Motherboard- Intel® Braswell SoC Processor N3710
- Supports Dual Channel DDR3L SO-DIMM 1333 / 1600, up to 8GB
- 1 x HDMI, 1 x D-Sub, 1 x Dual Channel 24-bit LVDS
- 4 x USB 3.0, 4 x USB 2.0, 2 x SATA3, 6 x COM
- 1 x Mini-PCIe, 1 x PCIe x 1, 1 x mSATA (shared)
- 2 x Realtek LAN
- 1 x TPM Header
- +12V or +19V~+24V DC-In (4-pin ATX PWR Con / ATX)
Industria / Placas
-
DC
-
HDMI
-
Intel
-
Interfaz
-
LAN
-
USB
-
VGA
-
Wifi
Specifications
Processor System
| CPU | Intel® Braswell SoC Processor N3710, QC, 1.60 GHz, 6 W |
|---|---|
| Chipset | SoC |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm) |
|---|
Memory
| Technology | Dual Channel DDR3L 1333 / 1600MHz |
|---|---|
| Capacity | 8GB |
| Socket | 2 x SO-DIMM |
Graphics
| Controller | Intel® Gen8 Intel Graphics DX 11*, OGL3.2 |
|---|---|
| HDMI | Supports max resolution up to 1920 x 1200 |
| VGA | Supports max resolution up to 1920 x 1200 |
| LVDS | Supports max resolution up to 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 1 x PCIe x1 |
|---|---|
| mini-PCIe | 1 x Full / Half size with PCIe x1 and USB 2.0 |
Ethernet
| Controller/ Speed | 2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps |
|---|

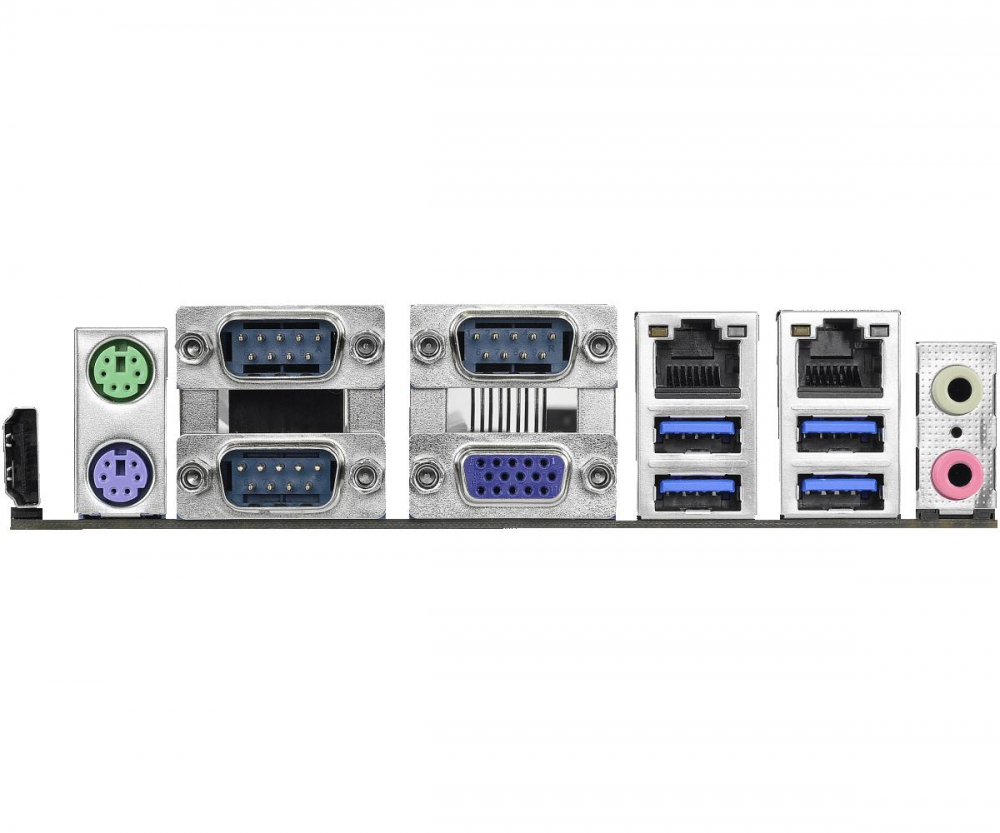

Rear I/O
| HDMI | 1 |
|---|---|
| VGA | 1 |
| Ethernet | 2 |
| USB | 4 x USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| COM | 3 x COM (RS-232/422/485) |
| PS2 | 2 (1 x keyboard, 1 x mouse) |
Internal Connector
| USB | 4 x USB 2.0 |
|---|---|
| COM | 3 x COM (RS-232) |
| Parallel | 1 (Co-lay with 8in / 8out DIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT header) |
| TPM | 1 x Header |
| LVDS | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| SATA | 2 x SATA3 (6.0Gb/s) |
|---|---|
| mSATA | 1 x Full size with SATA3 and USB 2.0 |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V or 19~24V DC in (4-pin ATX PWR Con) / ATX |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020221000AK) 2 x SATA Data Cable (14G000107101AK) 1 x SATA Power Cable (14G000100410AK) |
|---|---|
| Bulk Package | 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020221000AK) |
