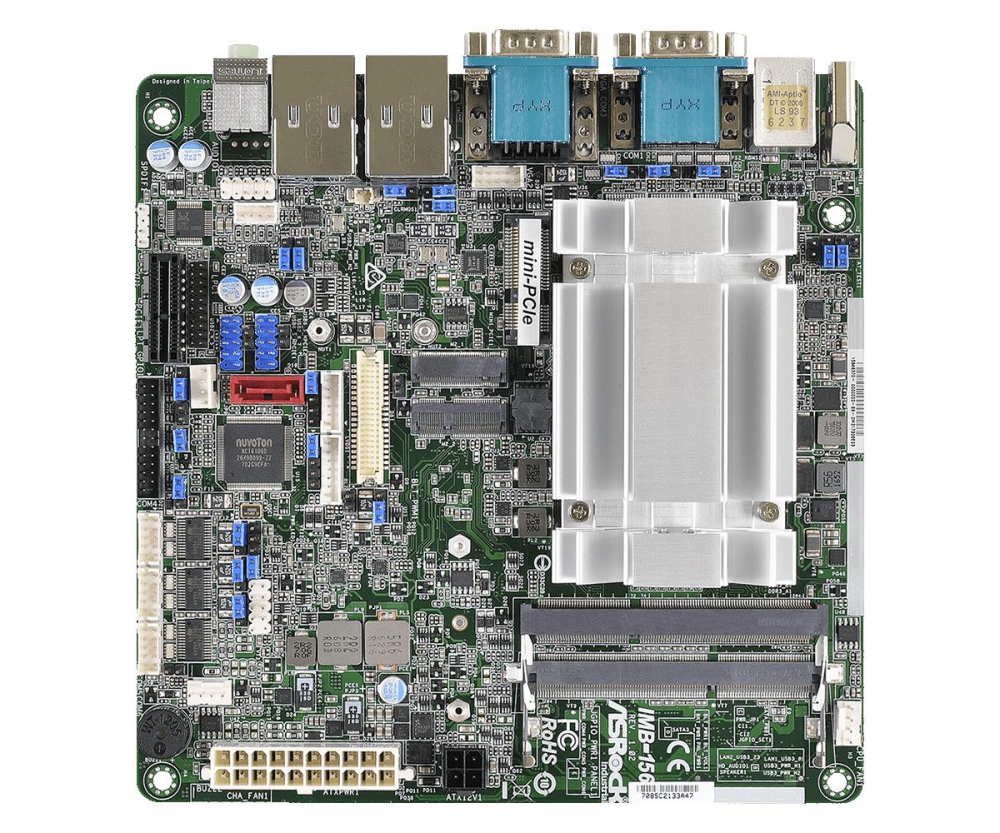

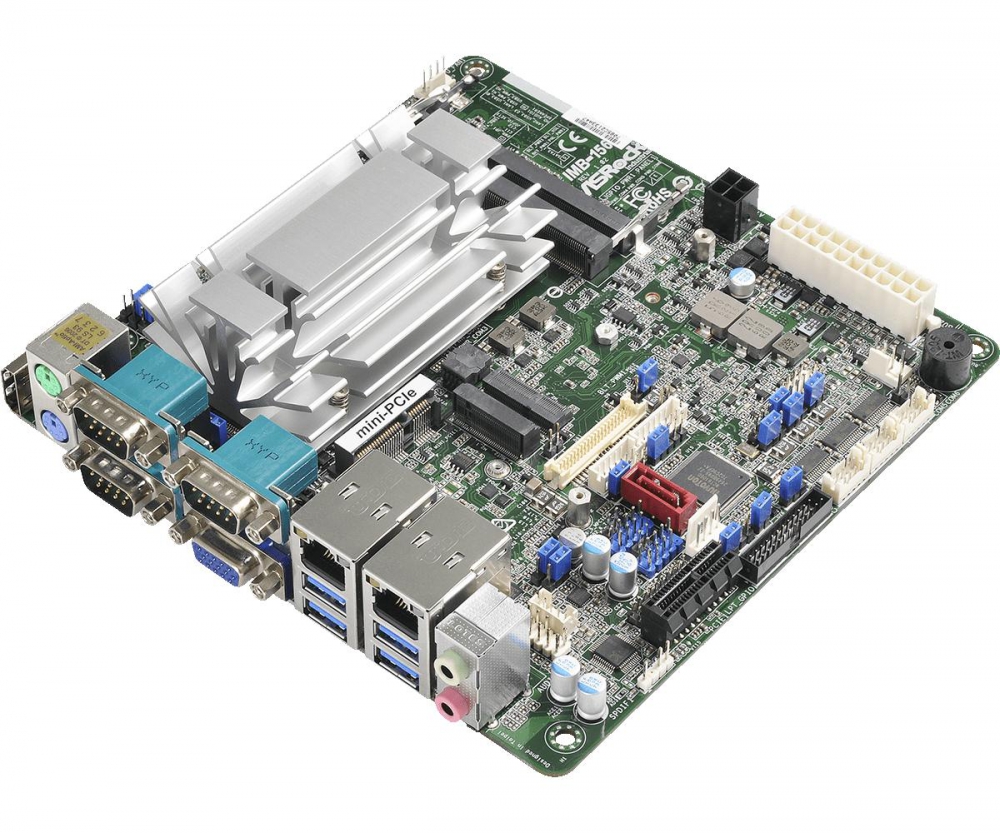

Asrock IMB-156J
Mini-ITX Motherboard- Intel® Apollo Lake SoC Processor J3455
- 2 x 204-pin SO-DIMM up to 16GB DDR3L 1866 MHz (8GB per DIMM)
- 1 x PCIe x1 (Gen2), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x M.2 Key M, 1 x M.2 Key E, 6 x COM, 1 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports triple display, 1 x HDMI 1.4b, 1 x VGA, 1 x LVDS
- TPM header
- 12V or +19V~+24V DC-In / ATX PWR
Industria / Placas
-
DC
-
HDMI
-
Intel
-
Interfaz
-
LAN
-
SSD
-
USB
-
VGA
-
Wifi
Specifications
Processor System
| CPU | Intel® Apollo Lake SoC Processor J3455, QC, 1.5 GHz, 10W |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm) |
|---|
Memory
| Technology | Dual Channel DDR3L 1866 MHz |
|---|---|
| Capacity | 16 GB (8GB per DIMM) |
| Socket | 2 x 204-pin SO-DIMM |
Graphics
| Controller | Intel® Gen9 Graphics DX 12 |
|---|---|
| HDMI | HDMI 1.4b Max resolution up to 4096 x 2160@24Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz |
| MultiDisplay | Triple Display |
Expansion Slot
| PCIe | 1 x PCIe x1 (Gen2) |
|---|---|
| mini-PCIe | 1 x Full size with PCIe x1 and shared USB 2.0 |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless |
Audio
| Interface | Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in |
|---|
Ethernet
| Controller/ Speed | 2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

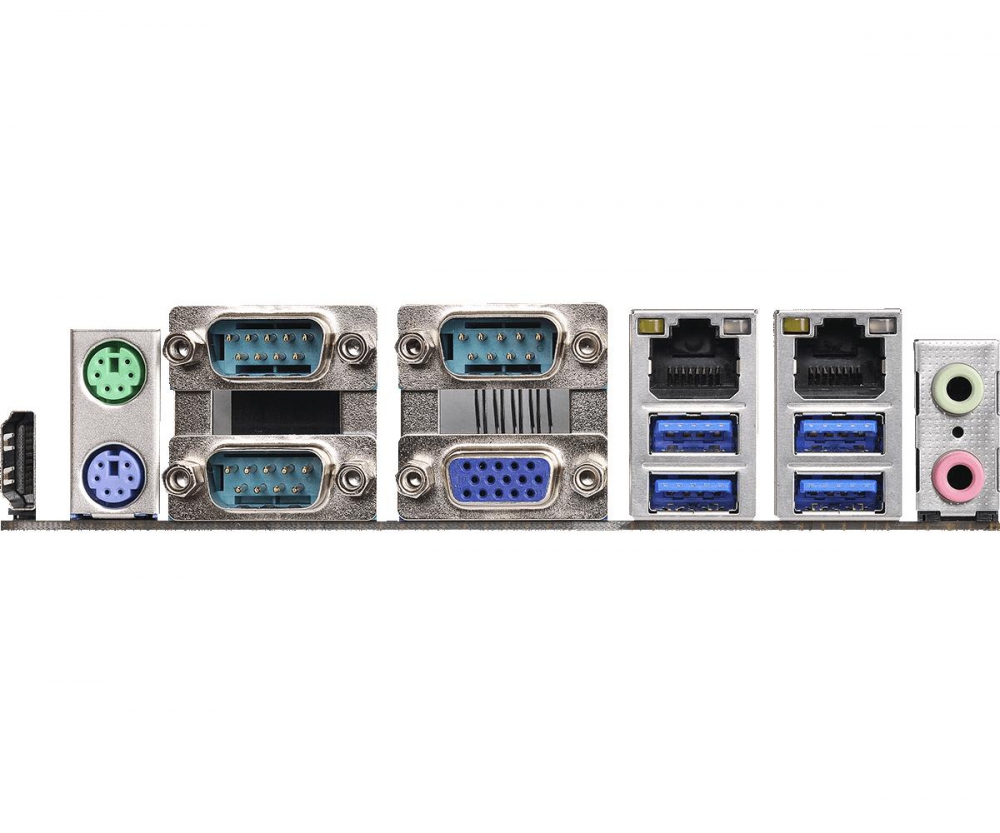

Rear I/O
| HDMI | 1 x HDMI 1.4b |
|---|---|
| VGA | 1 |
| Ethernet | 2 x Realtek 1 Gigabit LAN |
| USB | 4 x USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| COM | 3 x COM (RS-232/422/485) |
| PS2 | 1 x PS / 2 combo |
Internal Connector
| USB | 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | 3 x COM (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT header) |
| TPM | TPM Header |
| LVDS | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Storage
| M.2 | 1 x M.2 (Key M, 2242 / 2260) with SATA3 for SSD |
|---|---|
| SATA | 1 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12V or +19V~+24V DC-In / ATX PWR |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020221000AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
|---|---|
| Bulk Package | 2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020221000AK) |
