ASROCK IMB-185
Mini-ITX intel LGA1150 (0ºC – 60ºC)- Socket LGA1150 for Intel® Core i7 / i5 / i3 / Celeron® (Haswell)
- Intel® H81 Chipset
- Integrated Intel® HD Graphics Built-in Visuals
- Supports DDR3 1600MHz, 2 x SO-DIMM, up to 16GB system memory
- 3 x COM (RS-232/422/485), 3 x COM (RS-232)
- 1 x VGA, 1 x HDMI, 1 x 24 bit Dual Channel LVDS
- 2 x USB 3.0, 8 x USB 2.0,2 x SATA3,2 x SATA2
- 1x mSATA, 1 x PCIE (x16),
- Gigabit LAN: 1 x Intel® I210,LAN2: 1 x Intel® I217V
- 1 x TPM Header
Gaming en
Kiosk en
![ASROCK IMB-185](pics_fotosproductos/64/med_full_imb-185-i1.jpg)
![ASROCK IMB-185](pics_fotosproductos/64/med_full_imb-185-i2.jpg)
![ASROCK IMB-185](pics_fotosproductos/64/med_full_asrockfondo-blanco.jpg)
![ASROCK IMB-185](pics_fotosproductos/64/th_crop_imb-185-i1.jpg)
![ASROCK IMB-185](pics_fotosproductos/64/th_crop_imb-185-i2.jpg)
![ASROCK IMB-185](pics_fotosproductos/64/th_crop_asrockfondo-blanco.jpg)
Specifications
Processor system
CPU |
Socket LGA1150 for Intel Core i7/i5/i3/Celeron (Haswell) |
Chipset |
H81 |
BIOS/OS Support |
UEFI |
Watchdog |
0,1,2…255 Sec/Min |
Expansion slot
PCI |
- |
Mini-PCIe |
- |
mSATA |
1 |
PCIe |
1 (x16) |
Cfast |
- |
M.2 |
- |
Memory
Technology |
Dual Channel DDR3 1066/1333/1600 MHz SDRAM 2 x SO-DIMM |
Max. |
16GB |
Storage |
SATA2 (3.0Gb/s), SATA3 (6.0Gb/s) |
Graphics
Controller |
Intel HD Graphics (By CPU) |
Max. Resolution |
4096X2304 |
Ethernet

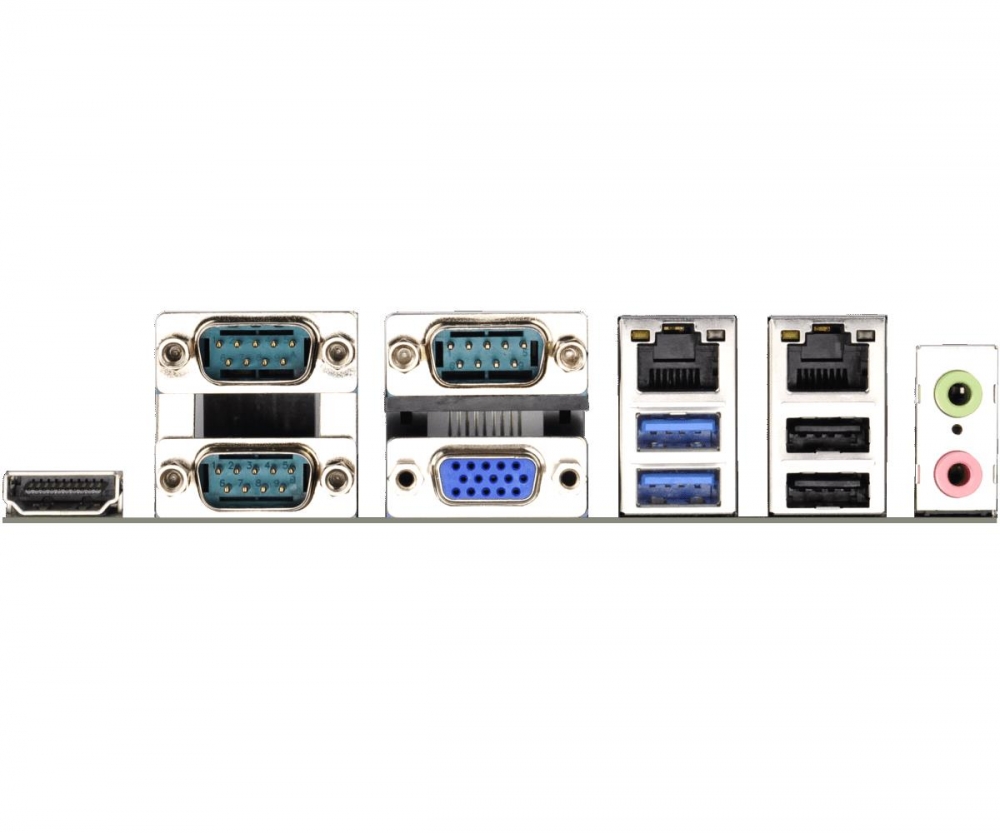

Rear I/O
VGA |
1 |
HDMI |
1 |
DVI-I/D |
- |
Display Port |
- |
Ethernet |
2 |
USB |
2 x USB 3.0 + 2 x USB2.0 compliant |
Audio |
Mic-in Line- out |
Serial |
3 (RS-232/422/485) |
Internal connector
USB |
6 (3 x USB Header 2.54mm pitch) |
LVDS/Inverter |
24 bit dual channel LVDS |
Serial |
3 (RS-232) |
SATA |
2 x SATA3 (6.0Gb/s), 2 x SATA ( 3.0Gbs) |
mSATA |
1 |
Mini-PCIe |
- |
GPIO |
4 x GPI + 4 x GPO |
SATA PWR |
- |
SIM |
- |
Power requirement
Power Input |
ATX PWR (4 + 24) |
Environment
Operating temp. |
0ºC – 60ºC |
Storage temp. |
- |
Humidity |
- |
Mechanical
Format factor |
Mini-ITX |
Dimensions |
6.7-in x 6.7-in |
Weight |
- |
Construction |
- |
