ASROCK IMB-186

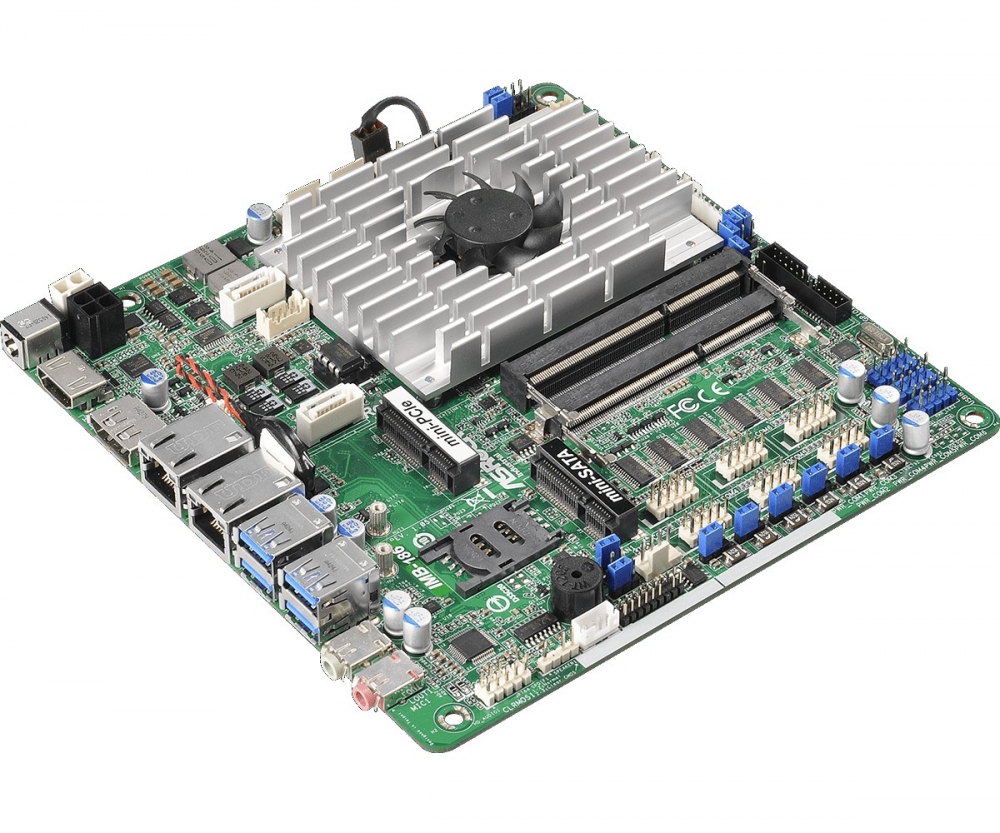

Mini-ITX intel BGA Haswell MCP (0ºC – 60ºC)- BGA Haswell MCP for Intel® Core i7/i5/i3 (Haswell ULT)
- Integrated Intel® HD Graphics Built-in Visuals
- Supports DDR3L 1333/1600MHz, 2 x SO-DIMM, up to 16GB system memory

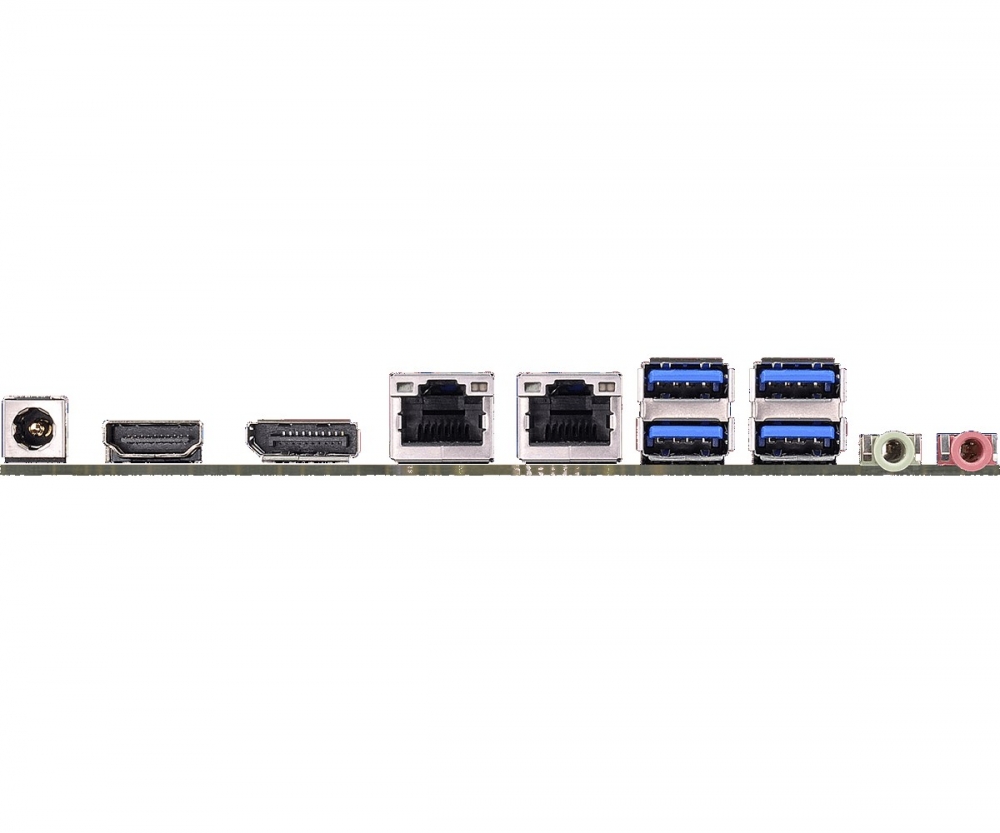

- 1 x DP++, 1 x HDMI, 1 x 24 bit Dual Channel LVDS
- 4 x USB 3.0, 6 x USB 2.0,2 x SATA3
- 1 x mini-PCIe, 1x mSATA,
- Gigabit LAN : 1 x RTL8111G x 1, 1 x Intel® I218LM (Intel® Core i7/i5)
- Gigabit LAN : 1 x RTL8111G x 1, 1 x Intel® I218V (Intel® Core i3)
- 1 x TPM Header
Gaming en
Kiosk en
![ASROCK IMB-186](pics_fotosproductos/65/med_full_imb-186-i1.jpg)
![ASROCK IMB-186](pics_fotosproductos/65/med_full_imb-186-i2.jpg)
![ASROCK IMB-186](pics_fotosproductos/65/med_full_imb-186-i3.jpg)
![ASROCK IMB-186](pics_fotosproductos/65/med_full_asrockfondo-blanco.jpg)
![ASROCK IMB-186](pics_fotosproductos/65/th_crop_imb-186-i1.jpg)
![ASROCK IMB-186](pics_fotosproductos/65/th_crop_imb-186-i2.jpg)
![ASROCK IMB-186](pics_fotosproductos/65/th_crop_imb-186-i3.jpg)
![ASROCK IMB-186](pics_fotosproductos/65/th_crop_asrockfondo-blanco.jpg)
Specifications
Processor system
CPU |
BGA type for Intel® Core i7/i5/i3 (Haswell ULT MCP ) |
Chipset |
(By CPU) |
BIOS/OS Support |
UEFI |
Watchdog |
0,1,2…255 Sec/Min |
Expansion slot
PCI |
- |
Mini-PCIe |
1 (Half Size + USB2.0) + 1 (Full Size ) shared with mSATA |
mSATA |
1 (Full Size ) shared with SATA2 |
PCIe |
- |
Cfast |
- |
M.2 |
- |
Memory
Technology |
Dual Channel DDR3L 1333/1600 MHz SDRAM 2 x SO-DIMM |
Max. |
16GB |
Storage |
SATA3 (6.0Gb/s) |
Graphics
Controller |
Intel HD Graphics (By CPU) |
Max. Resolution |
4096 x 2304 |
Ethernet
Rear I/O
VGA |
- |
HDMI |
1 |
DVI-I/D |
- |
Display Port |
1 |
Ethernet |
2 |
USB |
4 x USB 3.0 |
Audio |
Mic-in Line- out |
Serial |
- |
Internal connector
USB |
6 (2 x USB Header 2.00mm pitch) |
LVDS/Inverter |
24 bit dual channel LVDS |
Serial |
6 ( 2 RS-232/422/485, 4 RS-232) |
SATA |
2 x SATA3 (6.0Gb/s) |
mSATA |
1 (shared) |
Mini-PCIe |
1 |
GPIO |
8 x GPI + 8 x GPO (Co-lay with LPT) |
SATA PWR |
2 |
SIM |
- |
Power requirement
Power Input |
DC 9-19 input |
Environment
Operating temp. |
0ºC – 60ºC |
Storage temp. |
|
Humidity |
|
Mechanical
