ASROCK IMB-190
Mini-ITX intel LGA1151 (0ºC – 60ºC)- Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S)
- Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4
- Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
- 3 x HDMI, 1 x Dual Channel 24-bit LVDS/eDP
- 4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3
- 1 x Mini-PCIe, 1 x PCIe x4 Slot ,1 x mSATA
- Gigabit LAN : 2 x Intel® Lan
- 1 x TPM Header
- 12V / 19~24V DC-in
/ Kiosk en
-
DC
-
HDMI
-
Intel
-
Interface
-
LAN
-
Linux
-
USB
-
VGA
-
Windows
Specifications
Processor system
|
CPU |
Socket LGA1151 for Intel Core i7/i5/i3/Celeron (Skylake-S) |
|
Chipset |
Q170 |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255sec/min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
2 x Mini-PCIe (1 x full size colay with mSATA, 1 x half size, both with USB signal)) |
|
mSATA |
1(colay with full size Mini-PCIe) |
|
PCIe |
1 x PCIe x4 slot |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
Dual Channel DDR4 2133 MHz SDRAM 2 x SO-DIMM |
|
Max. |
16GB |
|
Storage |
SATA3 (6.0Gb/s), Supports RAID 0/1/5/10 |
Graphics
|
Controller |
Intel® Gen9 Intel Graphics DX 11/12, OGL4.3/4.4 |
|
Max. Resolution |
4096 x 2160@60Hz |
Ethernet
|
Controller |
1 x Intel i210 , 1 x Intel i219LM |
|
Connector |
2 x RJ 45 |

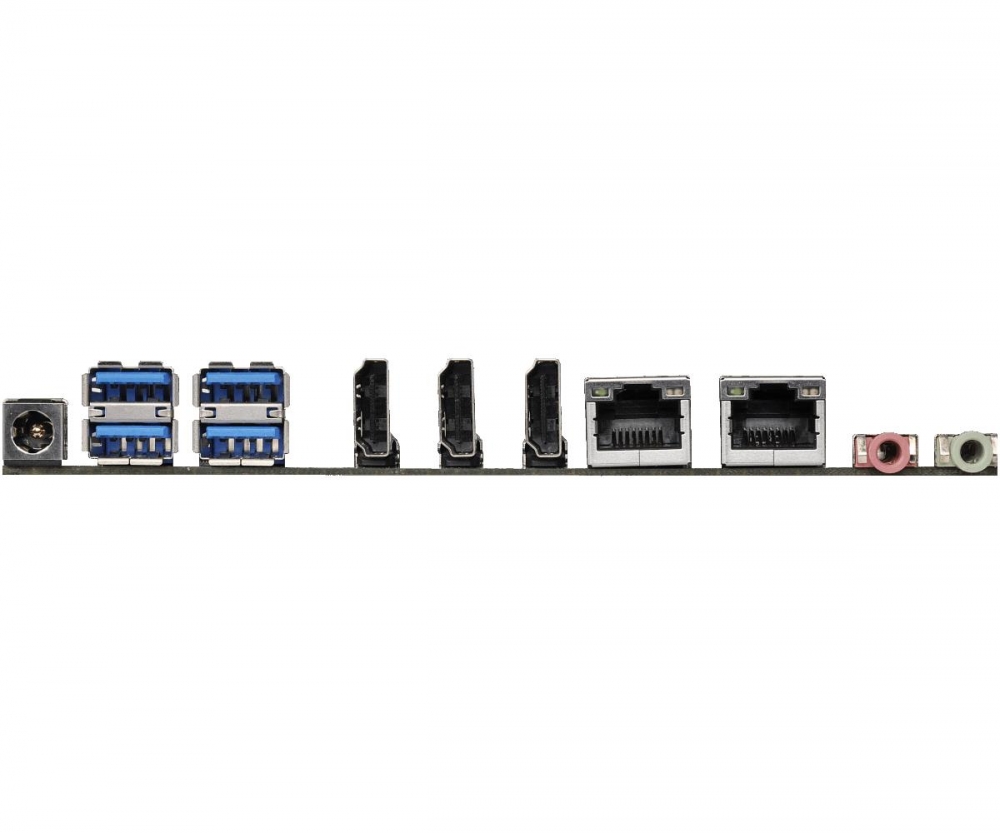

Rear I/O
|
VGA |
- |
|
HDMI |
3 |
|
DVI-I/D |
- |
|
Display Port |
- |
|
Ethernet |
2 |
|
USB |
4 x USB 3.0 |
|
Audio |
2 (Mic-in, Line-out) |
|
Serial |
- |
Internal connector
|
USB |
4 ( 2*2.54 pitch header USB 2.0 compliant) |
|
LVDS/Inverter |
1/1 |
|
Serial |
4 x RS-232 (COM1, 2 support RS-232/422/485) |
|
SATA |
2 x SATA3 (6.0Gb/s) |
|
mSATA |
1 |
|
Mini-PCIe |
2 |
|
GPIO |
4 x GPI + 4 x GPO |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
12V / 19~24V DC-in (DC Jack / 4-pin ATX PWR Con) |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
|
Format factor |
Mini-ITX |
|
Dimensions |
6.7-in x 6.7-in |
|
Weight |
- |
|
Construction |
- |
