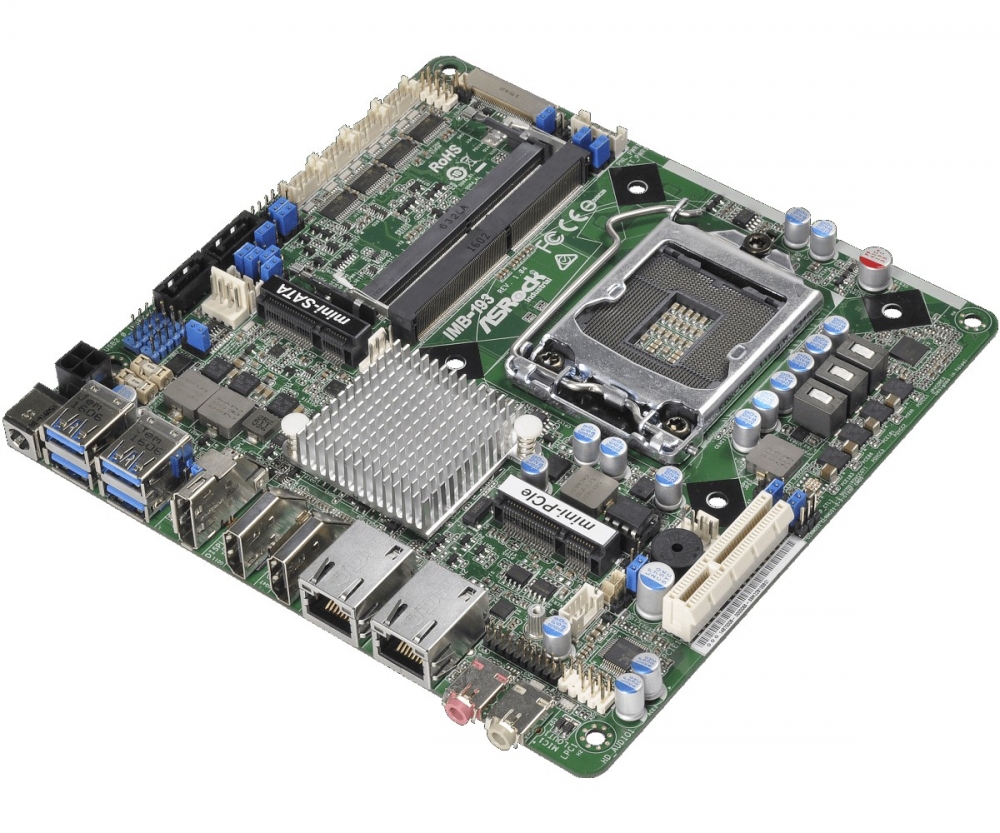

ASROCK IMB-193
Mini-ITX intel LGA1151 (0ºC – 60ºC)- Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S)
- Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4
- Supports Dual Channel DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
- 2 x HDMI, 1 x DisplayPort, 1 x eDP
- 4 xUSB 3.0, 4 x USB 2.0, 2 x SATA3 x Mini-PCIe, 1 x PCIe x4, 1 x mSATA
- Gigabit LAN : 1 x Intel® LAN, 1 x Realtek LAN
- 1 x TPM Header
- 19V DC-in
Gaming en
Kiosk en
![ASROCK IMB-193](pics_fotosproductos/70/med_full_imb-193-i1.jpg)
![ASROCK IMB-193](pics_fotosproductos/70/med_full_imb-193-i2.jpg)
![ASROCK IMB-193](pics_fotosproductos/70/med_full_imb-193-i3.jpg)
![ASROCK IMB-193](pics_fotosproductos/70/med_full_asrockfondo-blanco.jpg)
![ASROCK IMB-193](pics_fotosproductos/70/th_crop_imb-193-i1.jpg)
![ASROCK IMB-193](pics_fotosproductos/70/th_crop_imb-193-i2.jpg)
![ASROCK IMB-193](pics_fotosproductos/70/th_crop_imb-193-i3.jpg)
![ASROCK IMB-193](pics_fotosproductos/70/th_crop_asrockfondo-blanco.jpg)
Specifications
Processor system
CPU |
Socket LGA1151 for Intel® Core i7/i5/i3/Celeron(Skylake-S) |
Chipset |
Intel® H110 |
BIOS/OS Support |
UEFI |
Watchdog |
1,2…255 Sec |
Expansion slot
PCI |
- |
Mini-PCIe |
1 (half size, supports PCIe x1 and USB device) |
mSATA |
1 (full size, supports SATA and USB device) |
PCIe |
1 x PCIe x4 slot |
Cfast |
- |
M.2 |
- |
Memory
Technology |
Dual Channel DDR4 2133MHz SDRAM 2 x SO-DIMM |
Max. |
32GB |
Storage |
SATA3 (6.0Gb/s) |
Graphics
Controller |
Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4 |
Max. Resolution |
4096 x 2160@60Hz |
Ethernet
Controller |
1 x Intel® I219v , 1 x Realtek RTL8111G |
Connector |
2 x RJ45 |

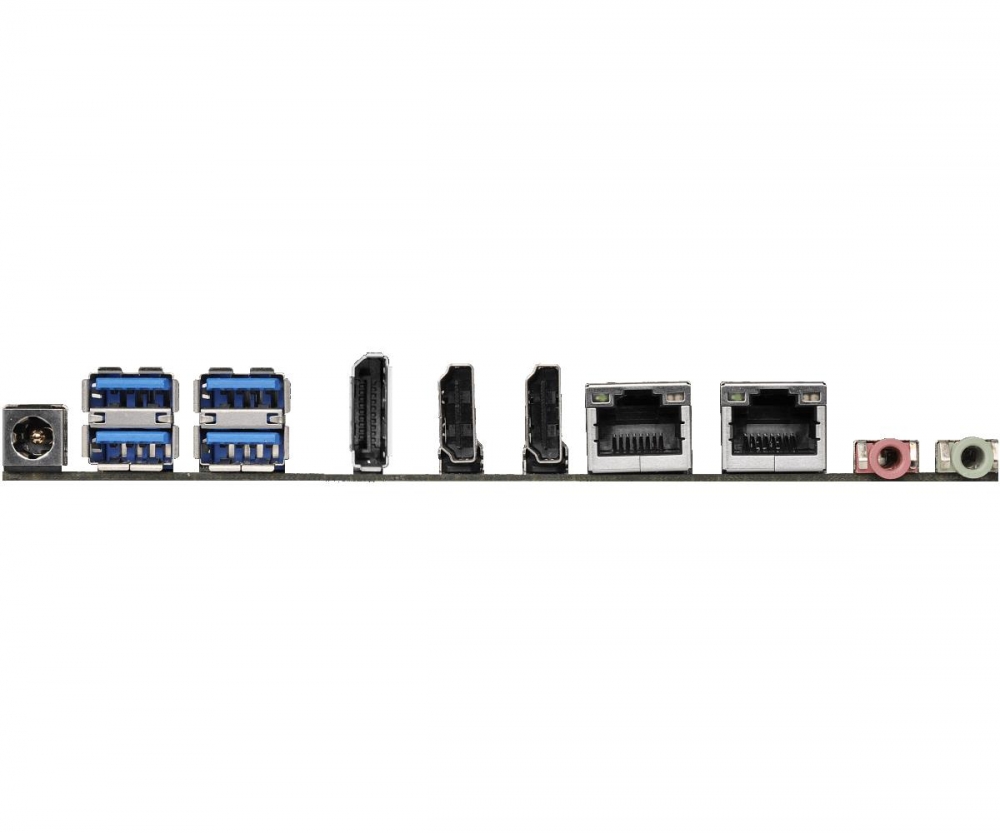

Rear I/O
VGA |
- |
HDMI |
2 |
DVI-I/D |
- |
Display Port |
1 |
Ethernet |
2 |
USB |
4 x USB 3.0 |
Audio |
2 (Mic-in. Line-out) |
Serial |
- |
Internal connector
USB |
4 x USB 2.0 (2 x 2.54 pitch header) |
LVDS/Inverter |
- |
Serial |
4 x RS-232 (COM1 supports RS-232/422/485) |
SATA |
2 |
mSATA |
1 |
Mini-PCIe |
1 |
GPIO |
4 x GPI, 4 x GPO |
SATA PWR |
1 |
SIM |
- |
Power requirement
Power Input |
19V DC-in (DC Jack / 4-pin ATX PWR Con) |
Environment
Operating temp. |
0ºC – 60ºC |
Storage temp. |
- |
Humidity |
- |
Mechanical
