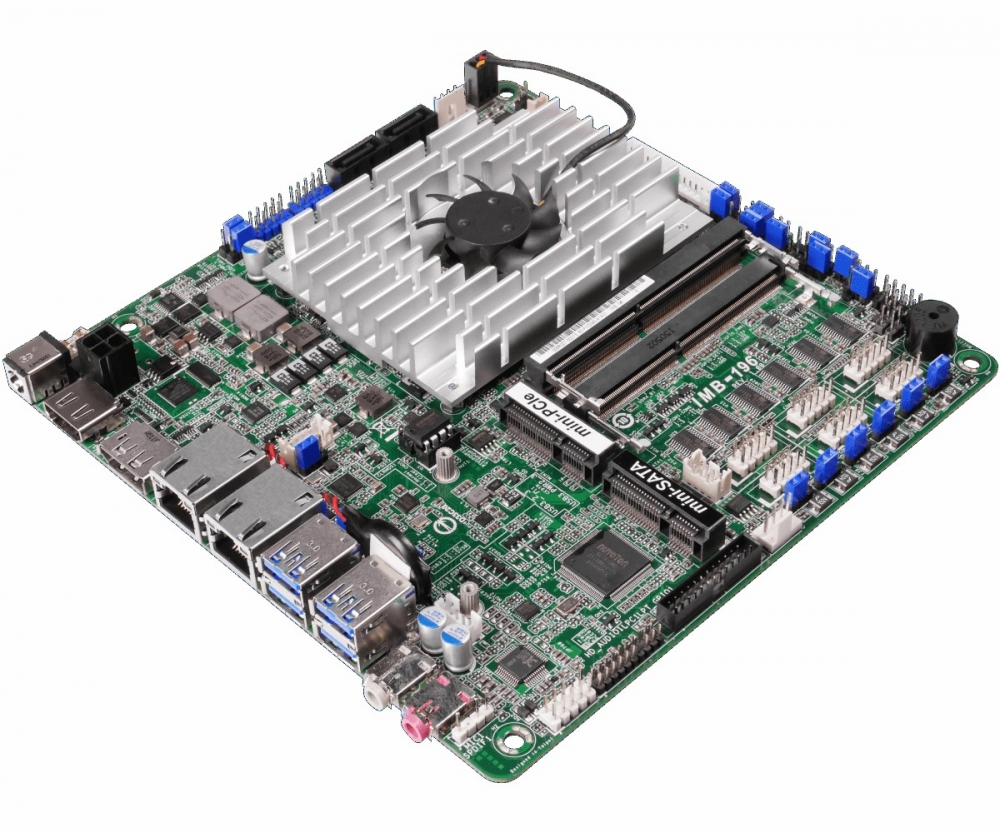

ASROCK IMB-196
Mini-ITX intel BGA1356 (0ºC ~ 60ºC)- BGA1356 for Intel® Core i7/i5 (Skylake-U)
- Integrated Intel® HD Graphics Built-in Visuals
- Supports DDR4 2133MHz, 2 x SO-DIMM, up to 32GB system memory
- 1 x Displayport, 1 x HDMI, 1 x 24 bit Dual Channel LVDS colay with eDP
- 4 x USB 3.0, 4 x USB 2.0, 2 x SATA3
- 1 x mini-PCIe, 1 x mSATA
- Gigabit LAN : 1 x Intel® LAN, 1 x Realtek LAN
- 1 x TPM Header
- 12V / 19~24V DC-in
/ Digital Signage ca
Gaming ca
Kiosk ca
-
DC
-
Display Port
-
HDMI
-
Intel
-
Interfície
-
LAN
-
Linux
-
Serie
-
USB
-
VGA
-
Wifi
-
Windows
Specifications
Processor system
|
CPU |
BGA1356 for Intel® Core i7/i5 (Skylake-U) |
|
Chipset |
N/A |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
0,1,2…255sec/min |
Expansion slot
|
PCI |
- |
|
Mini-PCIe |
1 (half/full size, supports PCIe x1 and USB device) |
|
mSATA |
1 (full size, shared SATA and USB device) |
|
PCIe |
- |
|
Cfast |
- |
|
M.2 |
- |
Memory
|
Technology |
Dual Channel DDR4 2133MHz 2 x SO-DIMM |
|
Max. |
32GB |
|
Storage |
SATA3 (6.0Gb/s) |
Graphics
|
Controller |
2 x SO-DIMM |
|
Max. Resolution |
4096 x 2160@60Hz |
Ethernet

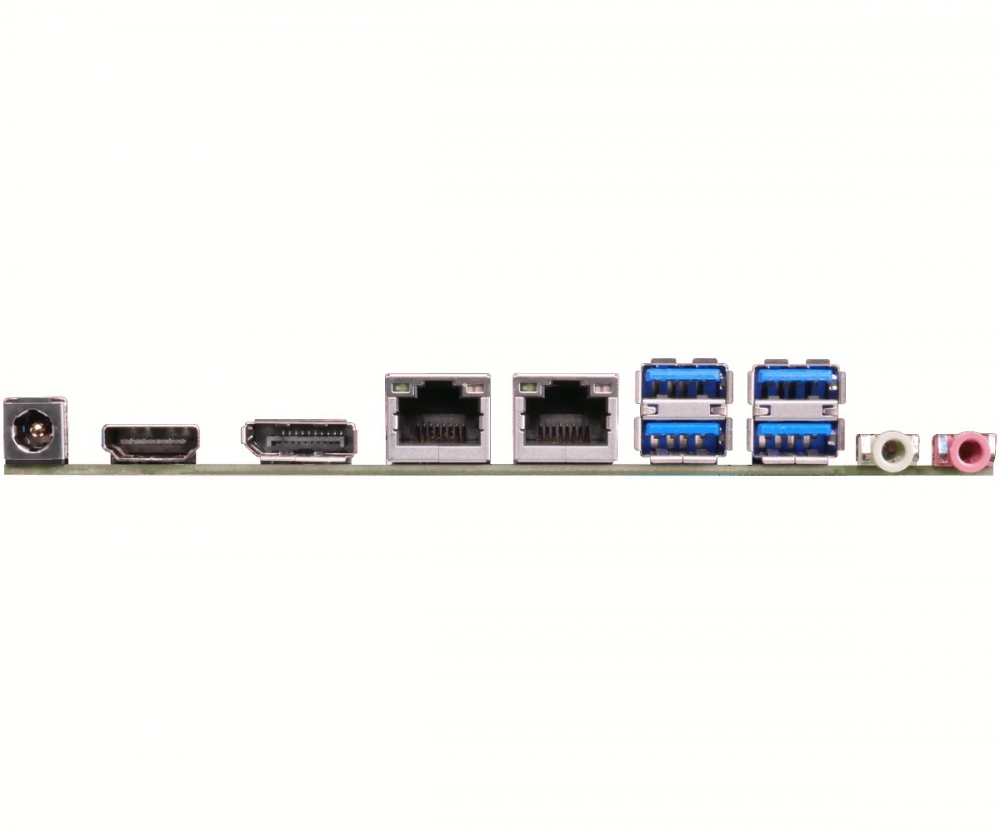

Rear I/O
|
VGA |
- |
|
HDMI |
1 |
|
DVI-I/D |
- |
|
Display Port |
1 |
|
Ethernet |
2 |
|
USB |
4 x USB 3.0 |
|
Audio |
2 (Mic-in, Line-out) |
|
Serial |
- |
Internal connector
|
USB |
4 x USB 2.0 (2 x 2.54 pitch header) |
|
LVDS/Inverter |
1/1 |
|
Serial |
6 x COM (COM1 and COM2 with RS-232/422/485) |
|
SATA |
2 |
|
mSATA |
1 |
|
Mini-PCIe |
1 |
|
GPIO |
8 x GPI + 8 x GPO |
|
SATA PWR |
1 |
|
SIM |
- |
Power requirement
|
Power Input |
+12V or +19V~+24V DC-In (DC Jack / 4-pin ATX PWR Con) |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
|
Format factor |
Mini-ITX |
|
Dimensions |
6.7-in x 6.7-in |
|
Weight |
- |
|
Construction |
- |
