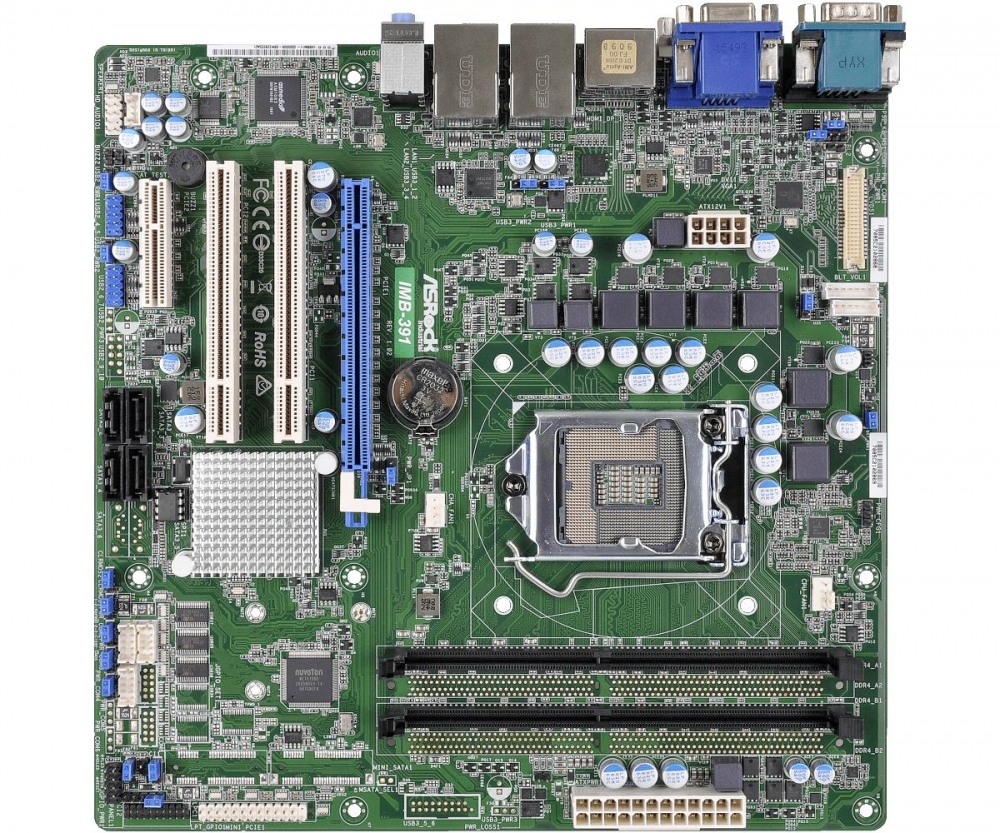

ASROCK IMB-391
Micro-ATX intel LGA1151(0ºC ~ 60ºC)- Socket LGA1151 for Intel® Core i7 / i5 / i3 / Celeron® (Skylake-S)
- Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4
- Supports Dual Channel DDR4 2133MHz, 2 x Long-DIMM, up to 16GB system memory
- 1 x VGA, 2 x HDMI, 1 x DisplayPort, 1 x DVI
- 4 xUSB 3.0, 4 x USB 2.0, 4 x SATA3
- 1 x PCIe x16, 2 x PCI, 1 x PCIe x4 Slot
- Gigabit LAN : 2 x Intel® LAN
- 1 x TPM Header
- ATX PWR Con (24+8-pin)
Kiosk en
![ASROCK IMB-391](pics_fotosproductos/33/med_full_imb-391-i1.jpg)
![ASROCK IMB-391](pics_fotosproductos/33/med_full_imb-391-i2.jpg)
![ASROCK IMB-391](pics_fotosproductos/33/med_full_asrockfondo-blanco.jpg)
![ASROCK IMB-391](pics_fotosproductos/33/th_crop_imb-391-i1.jpg)
![ASROCK IMB-391](pics_fotosproductos/33/th_crop_imb-391-i2.jpg)
![ASROCK IMB-391](pics_fotosproductos/33/th_crop_asrockfondo-blanco.jpg)
Specifications
Processor system
CPU |
Socket LGA1151 for Intel® Core i7/i5/i3/Celeron(Skylake-S) |
Chipset |
Intel® H110 |
BIOS/OS Support |
UEFI |
Watchdog |
0,1,2…255sec/min |
Expansion slot
PCI |
- |
Mini-PCIe |
- |
mSATA |
- |
PCIe |
1 x PCIe x16, 2 x PCI, 1 x PCIe x4 slot |
Cfast |
- |
M.2 |
- |
Memory
Technology |
Dual Channel DDR4 2133MHz 2 x Long-DIMM |
Max. |
16GB |
Storage |
SATA3 (6.0Gb/s) |
Graphics
Controller |
Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4 |
Max. Resolution |
4096 x 2160@60Hz |
Ethernet

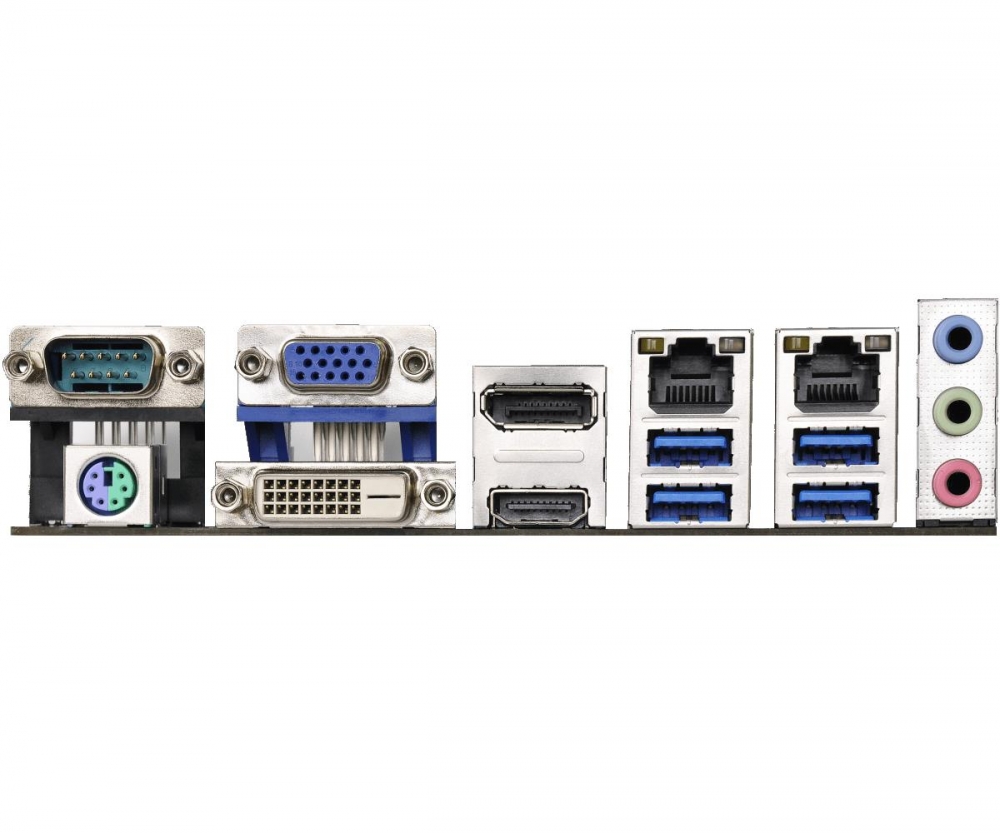

Rear I/O
VGA |
1 |
HDMI |
1 |
DVI-I/D |
1 |
Display Port |
1 |
Ethernet |
2 |
USB |
4 x USB 3.0 |
Audio |
3 (Mic-in, Line-in, Line-out) |
Serial |
1 x COM (RS-232/422/485) |
Internal connector
USB |
4 x USB 2.0 (2 x 2.54 pitch header) |
LVDS/Inverter |
1/1 |
Serial |
3 x COM (supports RS-232 only) |
SATA |
4 |
mSATA |
- |
Mini-PCIe |
- |
GPIO |
8 x GPI + 8 x GPO |
SATA PWR |
- |
SIM |
- |
Power requirement
Power Input |
ATX PWR Con (24+8-pin) |
Environment
Operating temp. |
0ºC – 60ºC |
Storage temp. |
- |
Humidity |
- |
Mechanical
