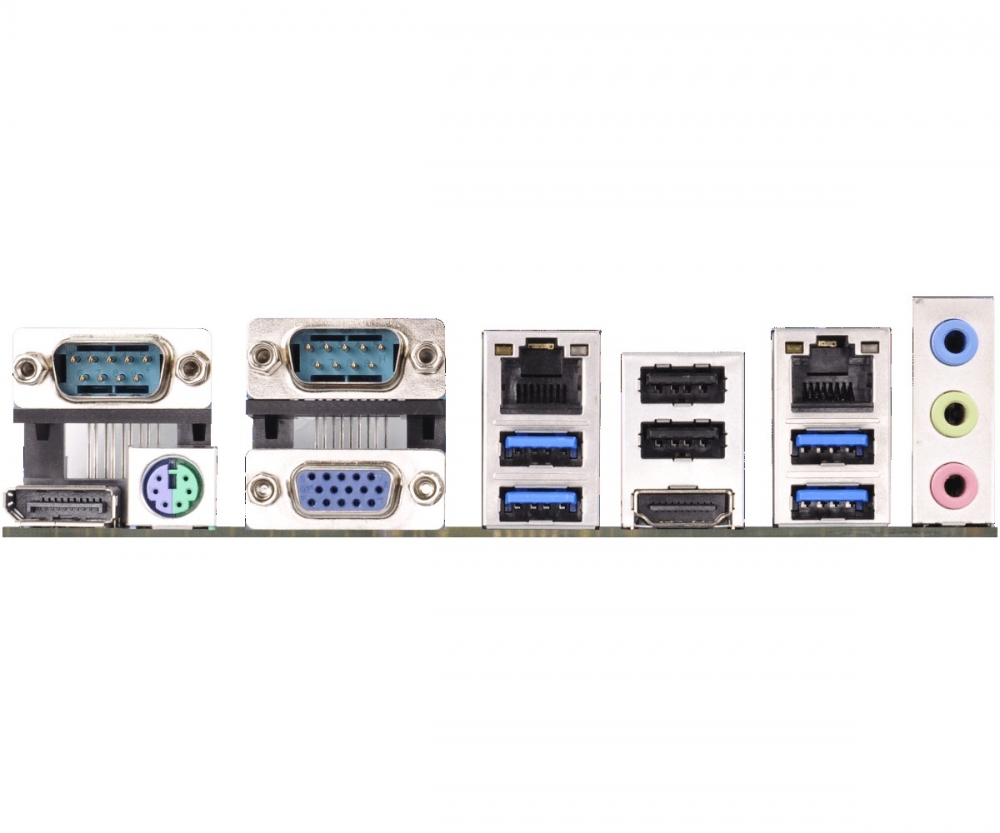

ASROCK IMB-781
ATX intel LGA1150 (0ºC ~ 60ºC)- Socket LGA1150 for Intel® Core i7 / i5 / i3 / Celeron® (Haswell)
- Intel® Q87 Chipset
- Integrated Intel® HD Graphics Built-in Visuals
- Supports DDR3 1600MHz, 4 x Long-DIMM, up to 32GB system memory
- 2 x COM (RS-232/422/485), 4 x COM (RS-232)
- 1 x D-Sub, 1 x HDMI, 1 x DisplayPort
- 4 x USB 3.0, 10 x USB 2.0, 5 x SATA3
- 4 x PCI, 1 x mSATA, 3 x PCIe (x16/x4/x1), 1 x CFast Card Socket (option)
- Gigabit LAN : 1 x Intel® I217LM (with v-Pro support), 1 x Intel® I210
- 1 x TPM Header
/ Digital Signage ca
Gaming ca
Kiosk ca
-
DC
-
Display Port
-
HDMI
-
LAN
-
Linux
-
Serie
-
USB
-
Windows
Processor system
|
CPU |
Socket LGA1150 for Intel Core i7/i5/i3/Celeron (Haswell) |
|
Chipset |
Q87 |
|
BIOS/OS Support |
UEFI |
|
Watchdog |
- |
Expansion slot
|
PCI |
4 |
|
Mini-PCIe |
- |
|
mSATA |
1 |
|
PCIe |
1 (x16)+1 (x4)+ 1 ( x1) |
|
Cfast |
1 ( optional) |
|
M.2 |
- |
Memory
|
Technology |
Dual Channel DDR3 1066/1333/1600 MHz SDRAM 4 x Long-DIMM |
|
Max. |
32GB |
|
Storage |
SATA2 (3.0Gb/s), SATA3 (6.0Gb/s), Supports RAID 0/1/5/10 |
Graphics
|
Controller |
Intel HD Graphics (By CPU) |
|
Max. Resolution |
2560 x1 600 |
Ethernet
Rear I/O
|
VGA |
1 |
|
HDMI |
1 |
|
DVI-I/D |
- |
|
Display Port |
1 |
|
Ethernet |
2 |
|
USB |
6 (4 x USB 3.0 compliant, 2 x USB 2.0 compliant) |
|
Audio |
3 (Mic-In, Line-Out, Line-In) |
|
Serial |
2 (RS-232/422/485) |
|
mSATA |
- |
|
Mini-PCIe |
- |
|
GPIO |
- |
|
SATA PWR |
- |
|
SIM |
- |
Internal connector
|
USB |
6 (3 x USB Header 2.54mm pitch, ) 2 Vertical Type A USB Connector |
|
LVDS/Inverter |
- |
|
Serial |
4 (RS-232) |
|
SATA |
5 x SATA3 (6.0Gb/s), Support RAID 0/1/5/10 |
|
mSATA |
1 |
|
Mini-PCIe |
- |
|
GPIO |
4 x GPI + 4 x GPO |
|
SATA PWR |
- |
|
SIM |
- |
Power requirement
|
Power Input |
ATX PWR (8 + 24) |
Environment
|
Operating temp. |
0ºC – 60ºC |
|
Storage temp. |
- |
|
Humidity |
- |
Mechanical
