ASROCK IMB-790

ATX intel LGA1151 (0ºC ~ 60ºC)

Socket LGA1151 for Intel^® Core i7 / i5 / i3 / Celeron^® (Skylake-S)
Intel^® Gen9 Intel^® Graphics DX 11/12, OGL4.3/4.4
Supports Dual Channel DDR4 2133MHz, 4 x Long-DIMM, up to 64GB system memory
1 x VGA, 3 x DisplayPort
6 x USB 3.0, 6 x USB 2.0, 6 x SATA3
1 x Mini-PCIe, 1 x PCIe x16, 1 x PCIe, 1 x PCIe x8, 3 x PCI, 1 x PCIe x4, 1 x mSATA, 1 x M.2 (Key M)
Gigabit LAN : 2 x Intel^® LAN
1 x TPM 2.0 IC onboard
ATX PWR Con (24+8-pin)
Supports RAID 0, 1, 5, 10

/

Gaming en

Kiosk en

Specifications

Processor system

CPU	Socket LGA1151 for Intel® Core i7/i5/i3/Celeron(Skylake-S)
Chipset	Intel® Q170
BIOS/OS Support	UEFI
Watchdog	-

Expansion slot

PCI	-
Mini-PCIe	1 (half/full size, supports PCIe x1 and USB device)
mSATA	1 (full size, shared SATA and USB device)
PCIe	1 x PCIe x16, 1 x PCIe x1, 1 x PCIe x8, 3 x PCI, 1 x PCIe x4 slot (PCIe x8 shared PCIe x16)
Cfast	-
M.2	1

Memory

Technology

Dual Channel DDR4 2133MHz

4x Long-DIMM

Max.

64GB

Storage

SATA3 (6.0Gb/s)

Graphics

Controller	Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4
Max. Resolution	up to 4096 x 2160@60Hz

Ethernet

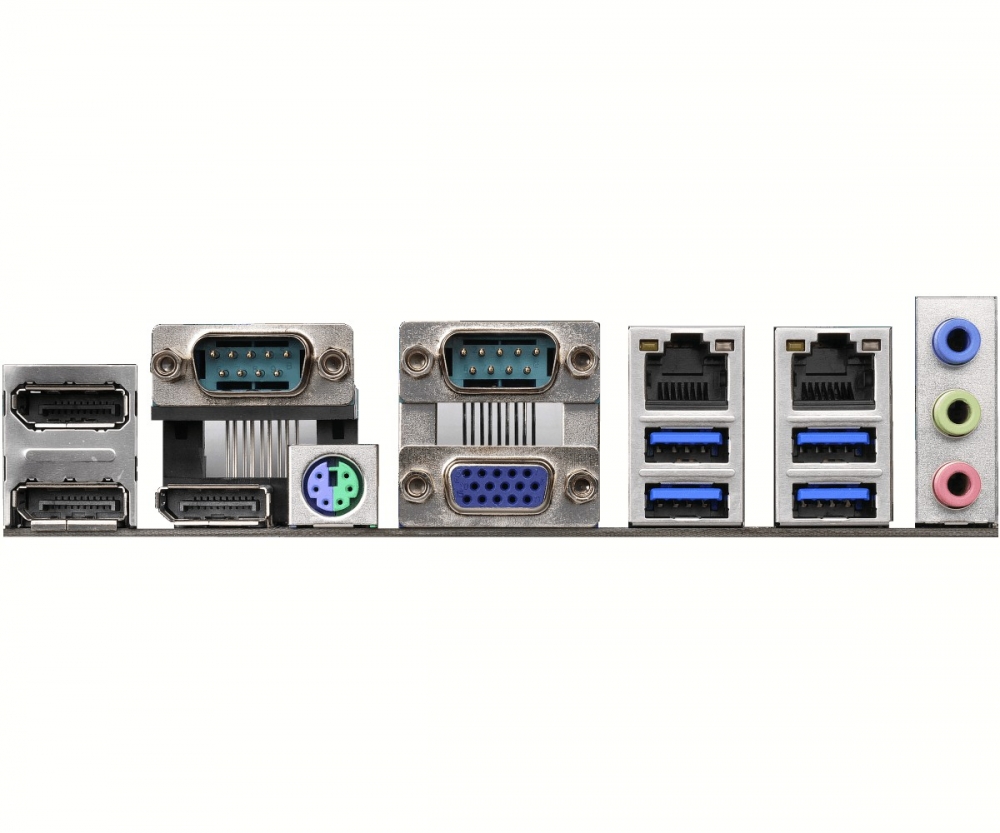

Rear I/O

Internal connector

USB	2 x USB 3.0 (1 x USB3.0 header) 6 x USB 2.0 (2 x 2.54 pitch header, 2 x USB2.0 Type-A vertical con)
LVDS/Inverter	-
Serial	4 x COM (supports RS-232 only)
SATA	6 (one shared with mSATA)
mSATA	1
Mini-PCIe	1
GPIO	8 x GPI + 8 x GPO
SATA PWR	-
SIM	-

Power requirement

Power Input

ATX PWR Con (24+8-pin)

Environment

Mechanical
