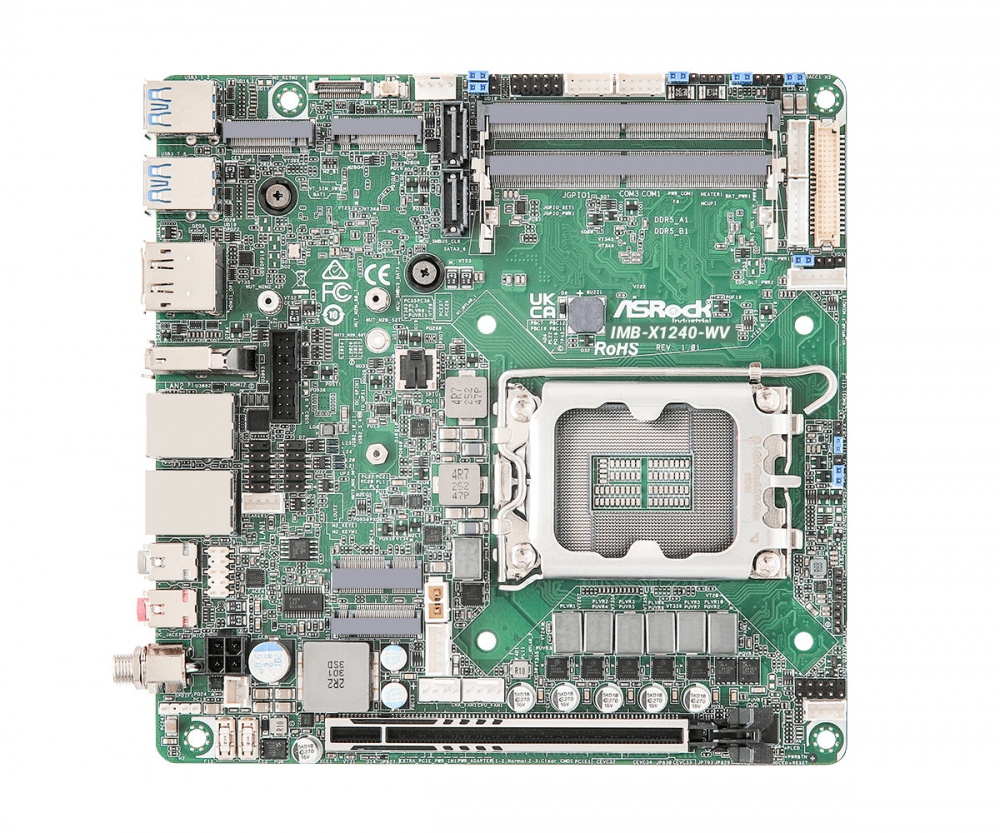

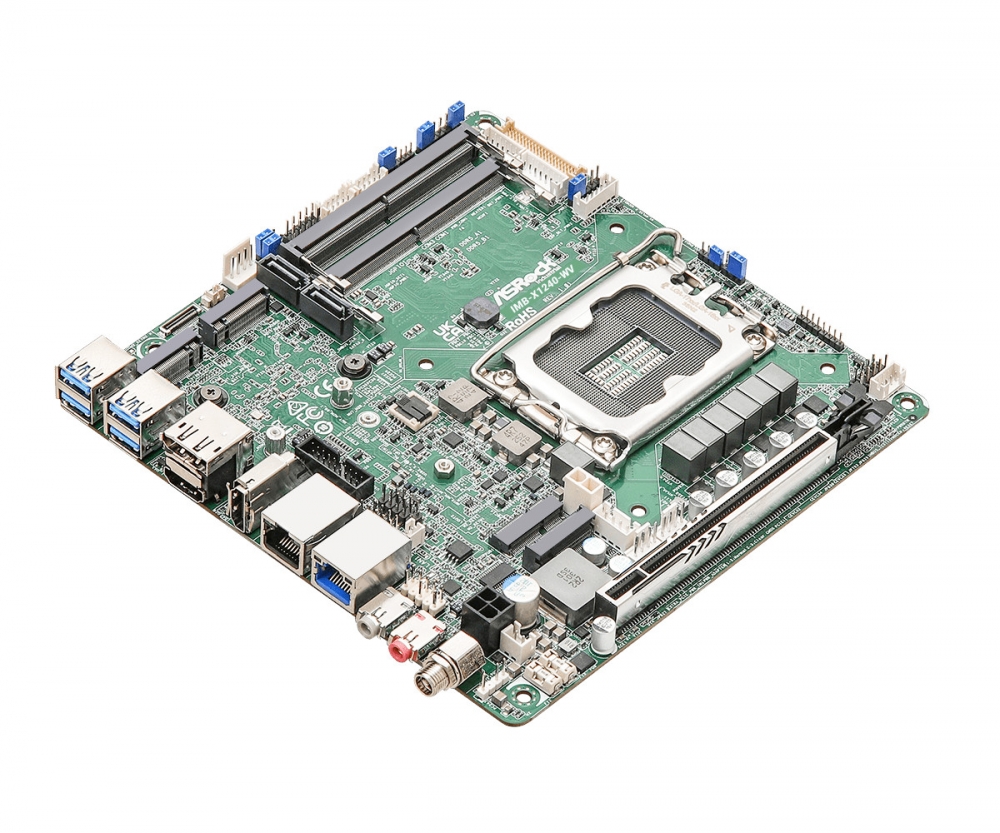

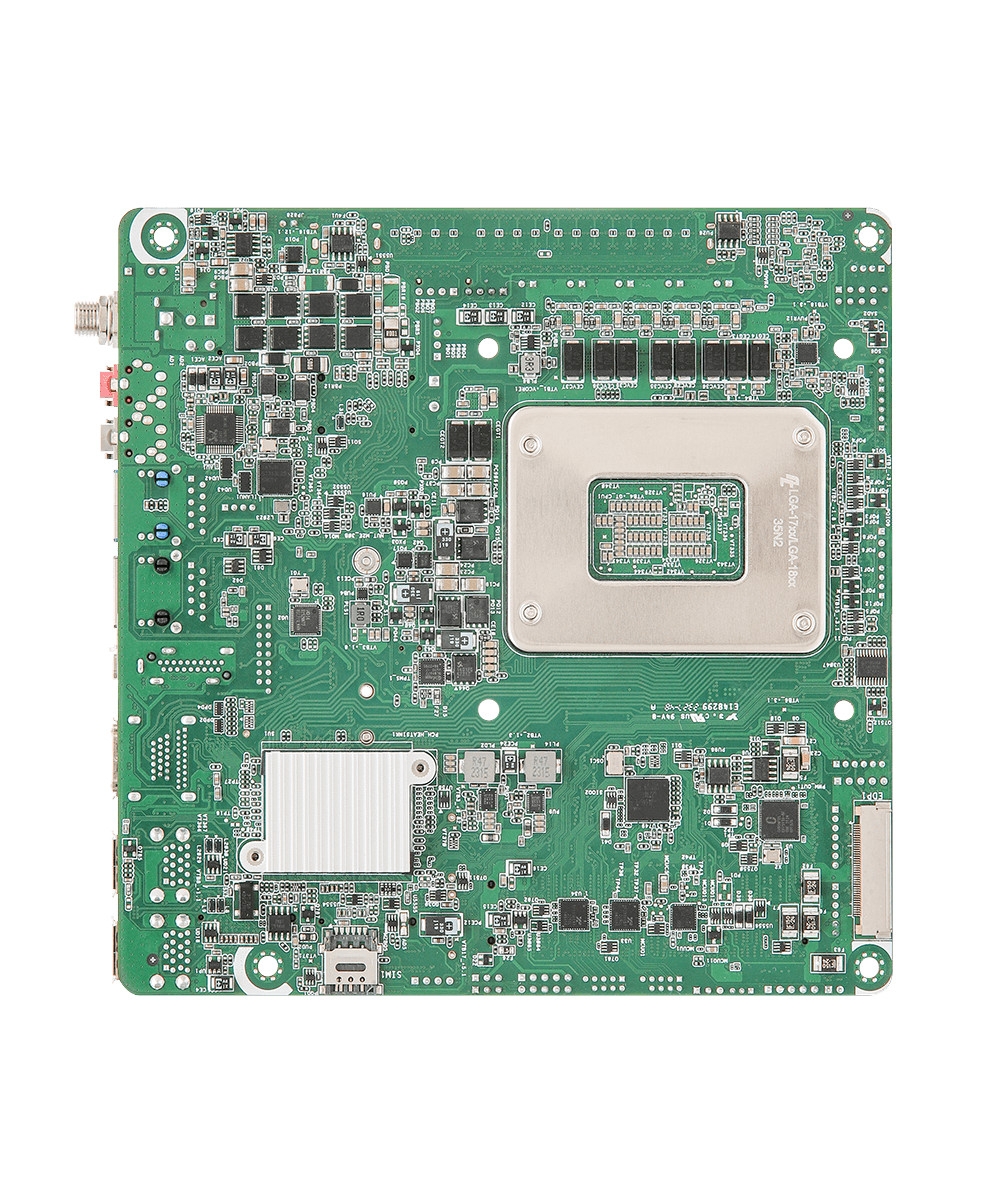

Asrock IMB-X1240-WV
Mini-ITX Motherboard- Intel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset
- 2 x 262-pin ECC/non-ECC SO-DIMM DDR5 4800 MHz , up to 64GB (32GB per DIMM)
- 1 x PCIe x16 (Gen5), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 2 x COM, 2 x SATA3
- 1 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.0b, 1 x DP 1.4a, 1 x LVDS, 1 x eDP 1.4b
- TPM 2.0 onboard IC
- Supports Intel® vPro, VMD RAID 0/1
- 12~28V DC-In (Lockable DC Jack)
Industria / Placas
-
DC
-
Display Port
-
HDMI
-
Intel
-
Interfaz
-
LAN
-
SSD
-
USB
Specifications
Processor System
| CPU | Intel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W |
|---|---|
| Chipset | Intel® W680 |
| Socket | LGA1700 |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 2.5 cm) |
|---|
Memory
| Technology | Dual Channel ECC/non-ECC DDR5 4800 MHz *If motherboard ambient temp. is over 55ºC, the memory thermal solution should be added to avoid thermal issue |
|---|---|
| Capacity | 64 GB (32 GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| LVDS | Dual channel 24 bit up to 1920x1200@60Hz |
| eDP | eDP 1.4b Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Quad Display |
Expansion Slot
| PCIe | 1 x PCIe x16 (Gen5, Support riser card x8/x8) |
|---|---|
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G |
| SIM Socket | 1 x Socket connected to M.2 Key B |
Audio
| Interface | Realtek ALC897, High Definition Audio. Line-out,Mic-in |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I226V with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, supports vPro |
|---|---|
| Connector | 2 x RJ-45 |

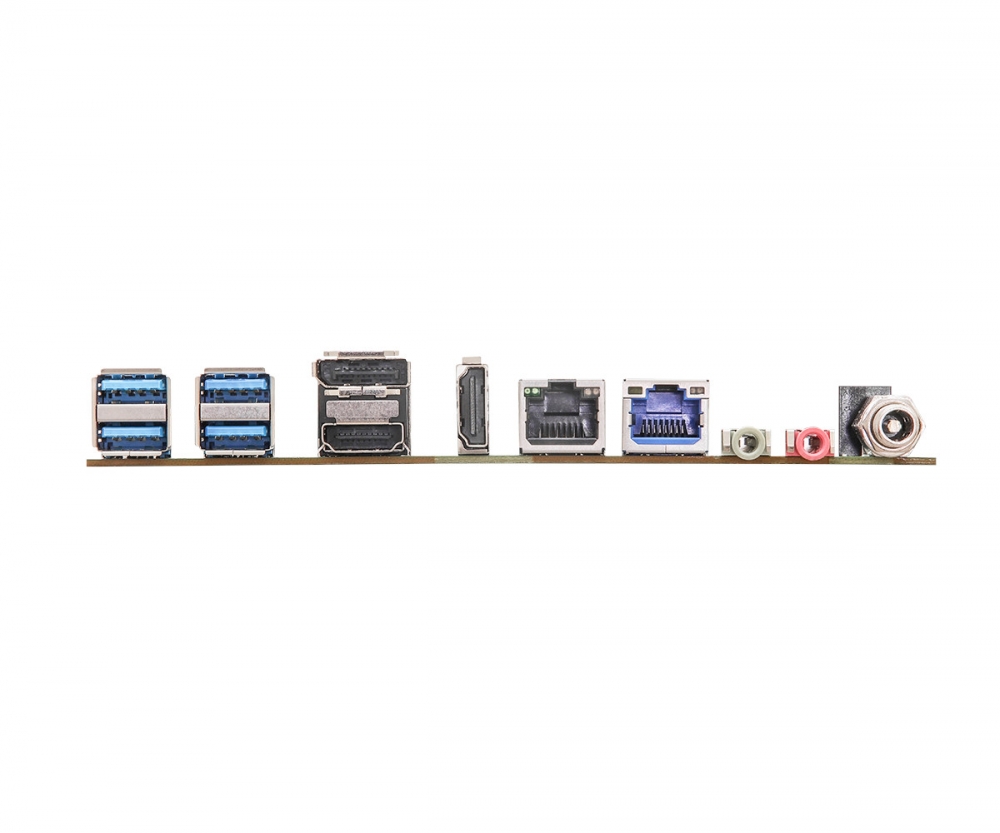

Rear I/O
| HDMI | 2 x HDMI 2.0b |
|---|---|
| DisplayPort | 1 x DP 1.4a++ |
| Ethernet | 1 x 2.5 Gigabit LAN 1 x 1 Gigabit LAN |
| USB | 4 x USB 3.2 (Gen2) |
| Audio | 2 (Mic-in, Line-out) |
Internal Connector
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 header) 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | COM1, COM3 (RS-232/422/485) |
| GPIO | 4 x GPI, 4 x GPO |
| LVDS | 1 |
| eDP | 1 |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
Security
| TPM | TPM 2.0 onboard IC |
|---|
Storage
| M.2 | 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD 1 x M.2 (Key M, 2242) with PCIe Gen4 x4 and SATA3 for SSD* *Recommend using M2X4-SATA-4P module to support extra 4 SATA ports (Support by special BIOS) |
|---|---|
| SATA | 2 x SATA3 (6Gb/s) |
| RAID | Intel® VMD RAID 0/1 **supported by identical interface (PCIe or SATA) PCIe interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M SATA interface: SATA port |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 12~28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw type) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 1 x I/O Shield (13G02P029000AK) 1 x I/O Shield THIN (13G02P029010AK) 4 x SCREW M2*2,D=5 (13G020302031AK) 1 x SATA Power Cable (14G000100410AK) 2 x COM Cable (14G000000310AK) 2 x SATA Cable (14G00010107DAK) |
|---|---|
| Bulk Package | 1 x I/O Shield (13G02P029000AK) 1 x I/O Shield THIN (13G02P029010AK) 4 x SCREW M2*2,D=5 (13G020302031AK) |
