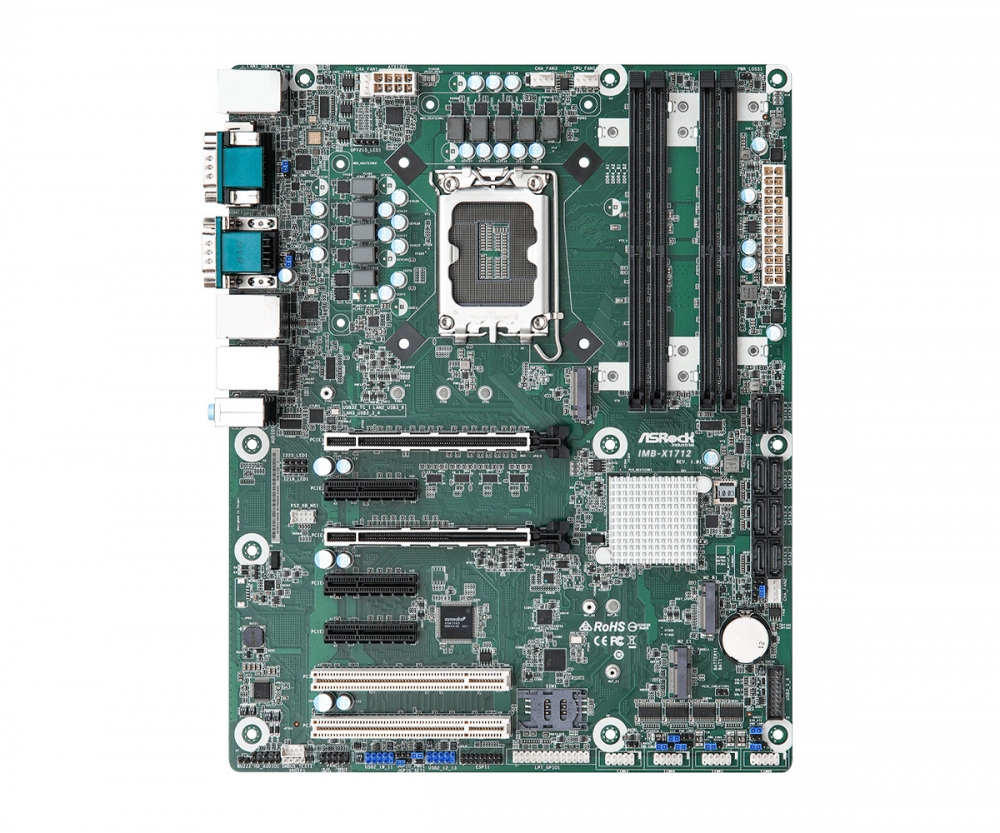

Asrock IMB-X1712

ATX Motherboard
  • Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with W680 chipset
  • 4 x 288-pin ECC/non-ECC Long-DIMM DDR4 3200 MHz , up to 128GB (32GB per DIMM)
  • 1 x PCIe x16 (Gen4), 1 x PCIe x8 (Gen4), 2 x PCIe x4 (Gen4), 1 x PCIe x4 (Gen3), 2 x PCI
  • 1 x USB 3.2 Gen2x2 Type C, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0
  • 1 x M.2 Key B, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 8 x SATA3
  • 3 x Intel 2.5 Gigabit LAN
  • Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA
  • TPM 2.0 onboard IC
  • Supports Intel® vPro, VMD RAID 0/1/5/10
  • ATX PWR (8+24 Pin)
Digital Signage / Placas
Gaming
Industria
Kiosk
Smart City
  • 4G
    4G
  • 5G
    5G
  • Bluetooth
    Bluetooth
  • Display Port
    Display Port
  • HDMI
    HDMI
  • Intel
    Intel
  • LAN
    LAN
  • Linux
    Linux
  • Serie
    Serie
  • USB
    USB
  • VGA
    VGA
  • Wifi
    Wifi
  • Windows
    Windows

Specifications

Processor System

CPU Intel® 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125W
Chipset Intel® W680
Socket LGA1700
BIOS AMI SPI 256 Mbit

Form Factor

Dimensions ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm)

Memory

Technology Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity 128 GB (32 GB per DIMM)
Socket 4 x 288-pin Long-DIMM

Graphics

Controller Intel® UHD Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
MultiDisplay Triple Display

Expansion Slot

PCIe 2 x PCIe Gen4 Slots (PCIE1/PCIE3:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE3)) (PCIE1: Support riser card x8/x8)
2 x PCIe x4 (Gen4)
1 x PCIe x4 (Gen3)
PCI 2 x PCI
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket 1 x SIM socket connected to M.2 Key B

Audio

Interface Realtek ALC897, High Definition Audio. Line-In / Line-Out / Mic-In

Ethernet

Controller/ Speed LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
LAN3: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
Connector 3 x RJ-45

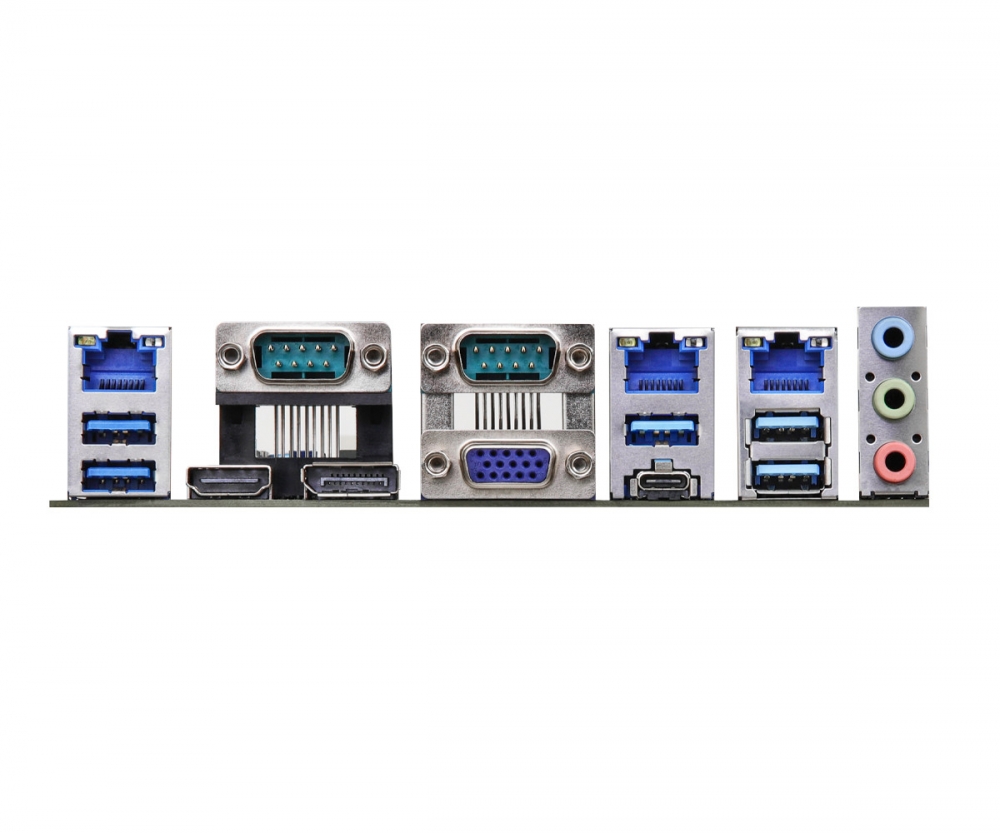

Rear I/O

HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.4a++
VGA 1
Ethernet 3 x 2.5 Gigabit LAN
USB 5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type C, 5V/3A)
Audio 3 ( Line-In, Line-Out, Mic-In )
COM COM1, COM2 (RS-232/422/485)

Internal Connector

USB 2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM COM3, COM4, COM5, COM6 (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
PS/2 1 x PS2 header
Thunderbolt header 1 (only support by PCIE4)

Security

TPM TPM 2.0 onboard IC

Storage

M.2 1 x M.2 (Key M, up to 25110) with PCIe Gen4 x4 for SSD
SATA 8 x SATA3 (6Gb/s)
RAID Intel® VMD RAID 0/1/5/10
**supported by identical interface (PCIe or SATA)
PCIe interface: M.2 Key B + M.2 Key M
SATA interface: SATA port

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec

Power Requirements

Input PWR ATX PWR (8+24 Pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp -20ºC ~ 70ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G020776000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package 1 x I/O Shield (13G020776000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
