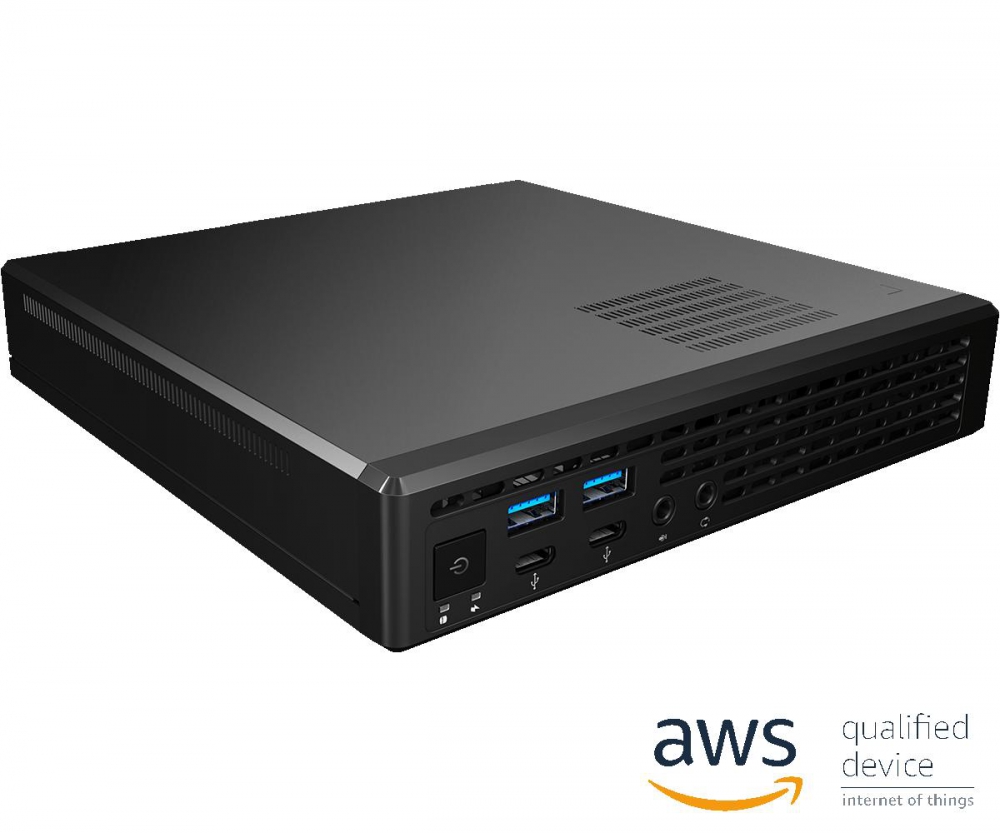

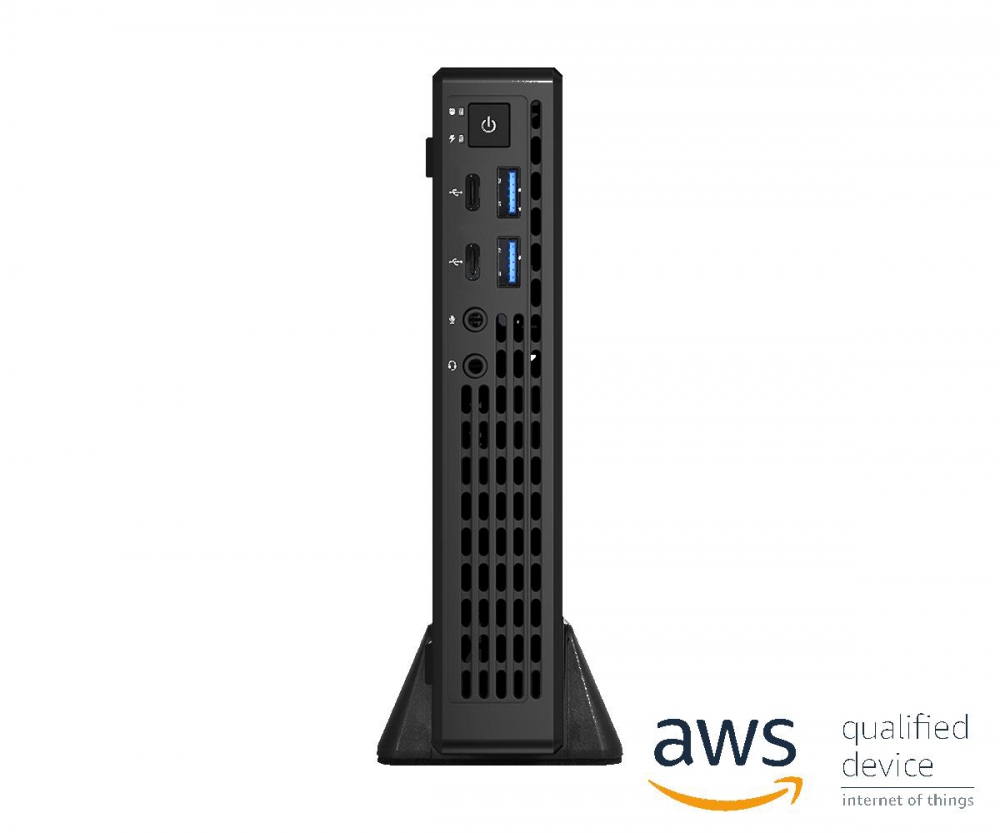

Asrock Jupiter-H310
Faned Embedded BOX PC- Intel® 8th Gen LGA1151 Processors, up to 65W
- 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
- 2 x USB 3.1 Gen1, 2 x USB 3.1 Gen1(Type C), 4 x USB 2.0,
- 1 x M.2 Key E, 1 x M.2 Key M, 1 x COM, 1 x SATA3‧1 x Realtek 1 Gigabit LAN
- Supports dual display, 1 x HDMI 2.0, 1 x DP 1.4a, 1 x VGA
- 1 x 19V/90W AC-DC power brick adapter
- 178 x 178 x 34mm
- Faned Barebone
Industria / Ordenadores industriales (IPC)
-
AC
-
DC
-
Display Port
-
HDMI
-
Intel
-
Interfaz
-
USB
-
VGA
-
Windows
Specifications
Processor System
| CPU | Intel® 8th Gen (Coffee Lake) Core™ Processors up to 65W |
|---|---|
| Chipset | Intel® H310 |
| Socket | LGA1151 |
| BIOS | AMI SPI 128 Mbit |
Form Factor
| Dimensions | 178 x 178 x 34mm |
|---|
Memory
| Technology | Dual Channel DDR4 2133 MHz |
|---|---|
| Capacity | 32 GB (16 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | Intel® HD Graphics |
|---|---|
| HDMI | HDMI 2.0 Max resolution up to 4096x2160@30Hz |
| DisplayPort | DisplayPort 1.2a Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
| MultiDisplay | Dual Display |
Expansion Slot
| M.2 | 1 x M.2 (KEY E, 2230) with PCIe x1 and USB 2.0 for Wireless |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio |
|---|
Ethernet
| Controller/ Speed | 1 x Realtek RTL8111GN with 10/100/1000 Mbps |
|---|---|
| Connector | 1 x RJ-45 |

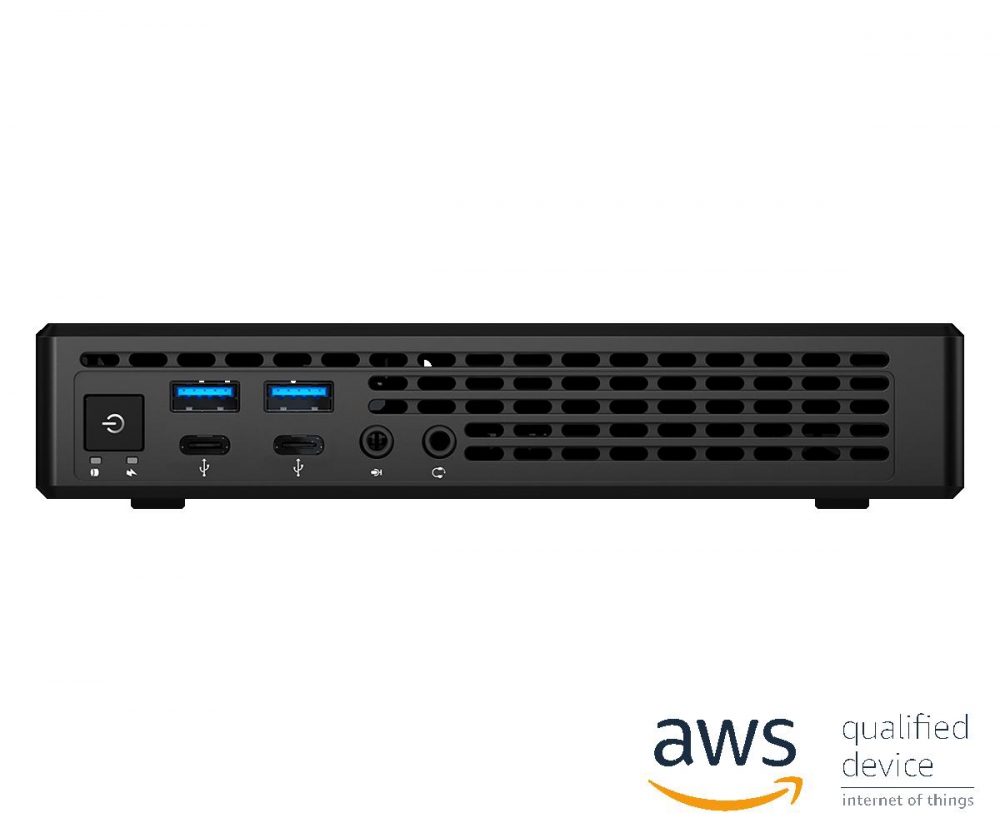

Front I/O
| USB | 2 x USB 3.1 (Gen1), 2 x USB 3.1 (Gen1, Type C) |
|---|

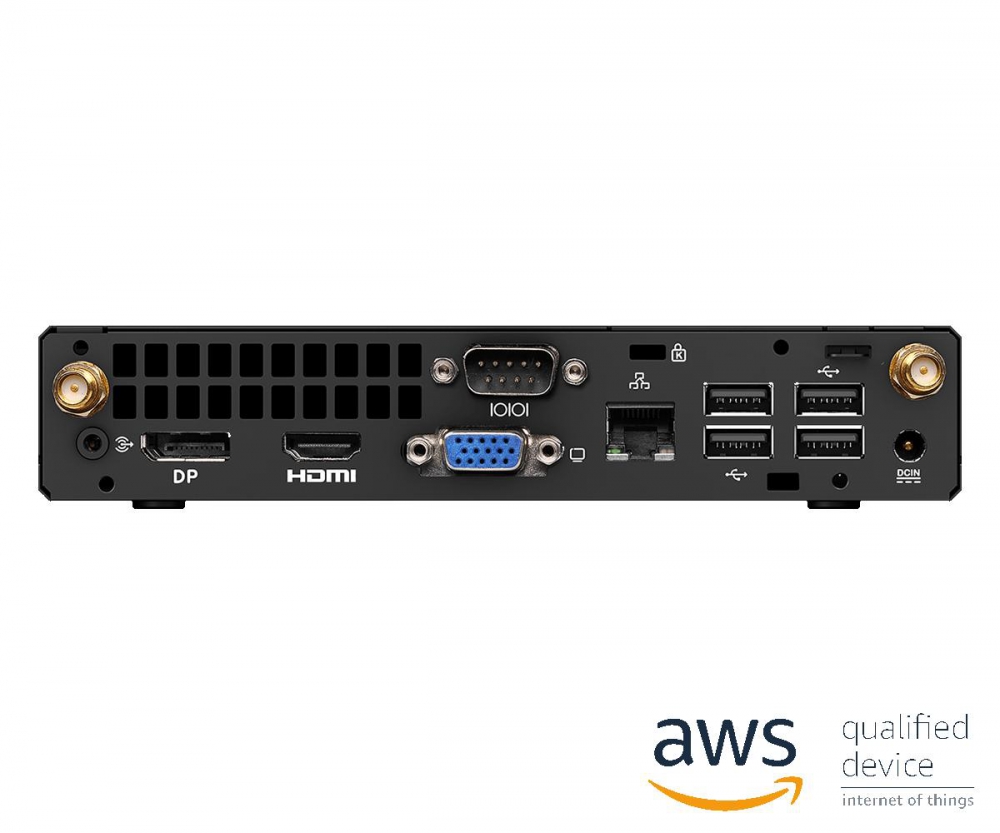

Rear I/O
| HDMI | 1 x HDMI 2.0 |
|---|---|
| DisplayPort | 1 x DP 1.2a |
| VGA | 1 |
| Ethernet | 1 x Realtek 1 Gigabit LAN |
| USB | 4 x USB 2.0 |
| COM | 1 x COM (RS-232) |
| DC Jack | 1 |
Storage
| M.2 | 1 x Key M (2280) with PCIe x4 and SATA3 for SSD |
|---|---|
| SATA | 1 x SATA3 (6.0Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | 1 x 19V/90W AC-DC power brick adapter |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 50ºC |
|---|---|
| Storage Temp | -40° C – 85° C |
| Operating Humidity | 10% ~ 90% |
| Storage Humidity | 10% ~ 90% |
Mechanical
| Construction | Front Panel - Plastic / Base - Metal |
|---|---|
| Mounting | VESA mounting bracket |
| Dimensions (L x W x H) | 178 x 178 x 34mm |
| Weight | Net Weight:1.0Kg |
Others
| OS Support | Windows 10 |
|---|---|
| Certifications | CE, FCC Class A |
| Packing List | 1 x 19/90W Power Adapter 1 x Screw Package 1 x Product DVD 1 x VESA mounting bracket |
