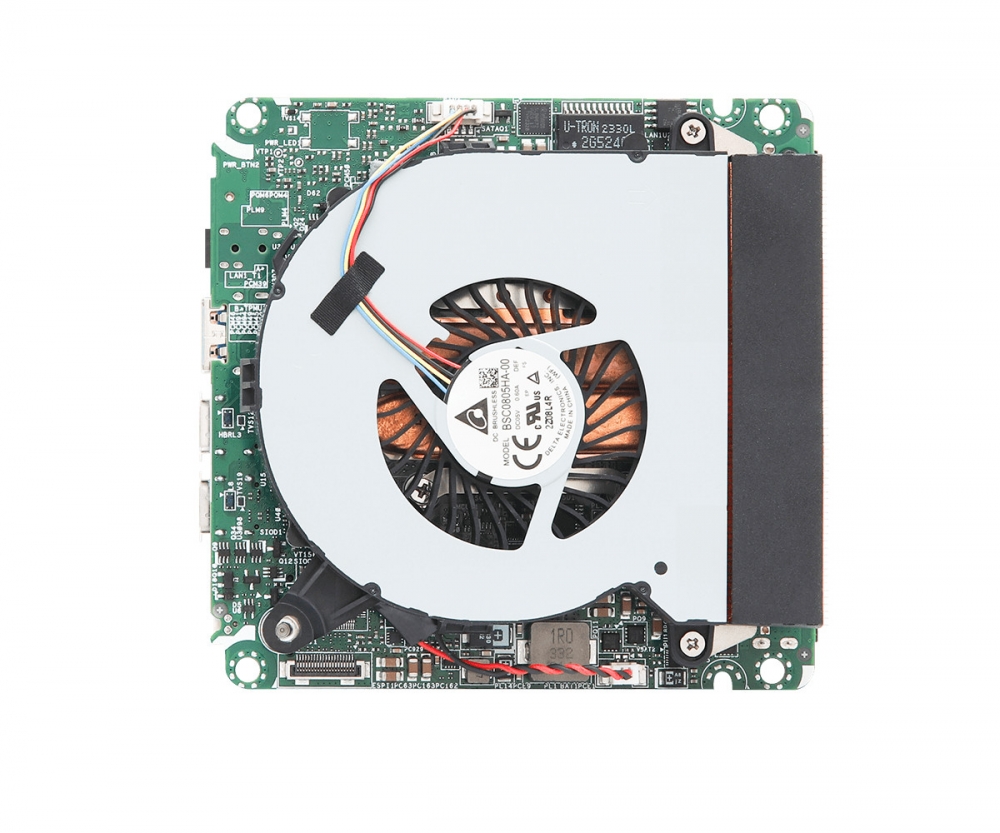

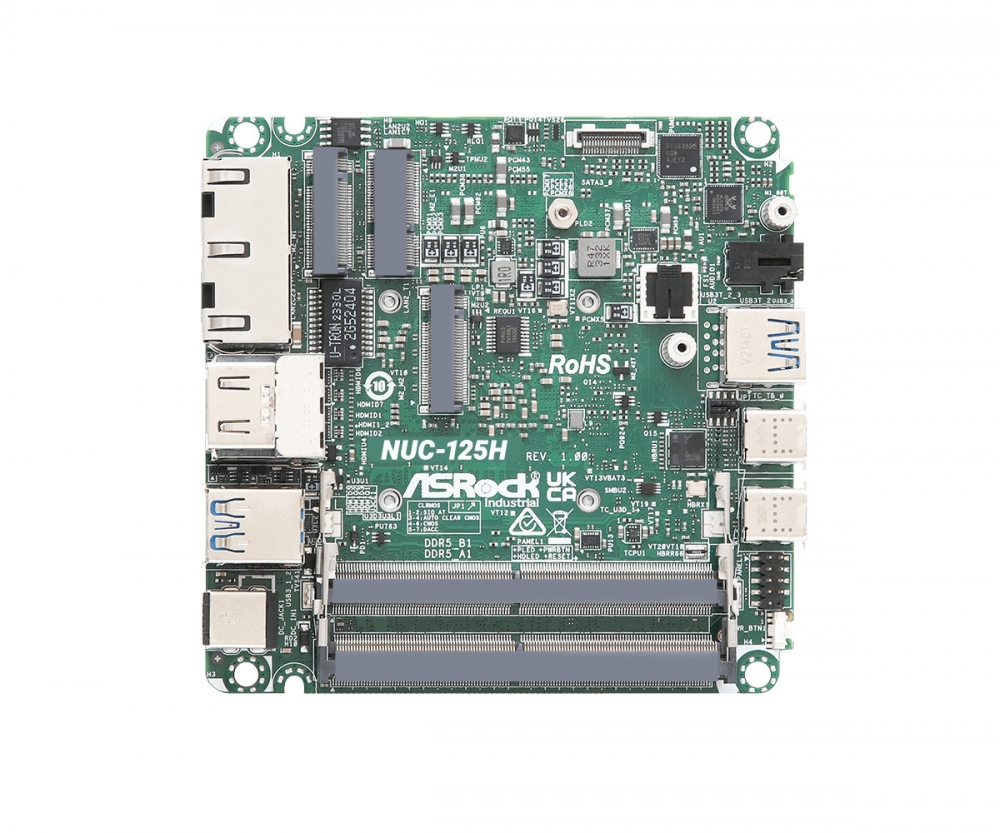

Asrock NUC-125H

NUC Motherboard
  • Intel® Core™ Ultra processors (Meteor Lake-U/H)
  • 2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)
  • 1 x USB4/Thunderbolt™4, 4 x USB3.2 Gen2, 2 x M.2 Key M, 1 x M.2 Key E, 1 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)
  • Intel® PTT
  • Supports Intel® vPro, VMD RAID 0/1
  • 12V~24V DC-in
Industria / Placas
  • DC
    DC
  • Display Port
    Display Port
  • HDMI
    HDMI
  • Intel
    Intel
  • Interfaz
    Interfaz
  • LAN
    LAN
  • SSD
    SSD

Specifications

Processor System

CPU Intel® Core™ Ultra processors (Meteor Lake-H/U)
NUC-155H (6P+8E)
NUC-125H (4P+8E)
Chipset MCP
BIOS AMI SPI 256 Mbit

Form Factor

Dimensions NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm)

Memory

Technology Dual Channel DDR5 5600 MHz
Capacity 96GB (48GB per DIMM)
Socket 2 x 262-pin SO-DIMM

Graphics

Controller Intel® Graphics
HDMI HDMI 2.1 TMDS
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 2.1/ 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Max 4 display (Included 2 outputs from Type-C)

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

Audio

Interface Realtek ALC256, High Definition Audio.

Ethernet

Controller/ Speed LAN1: Intel® I226LM with 10/100/1000/2500 Mbps
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

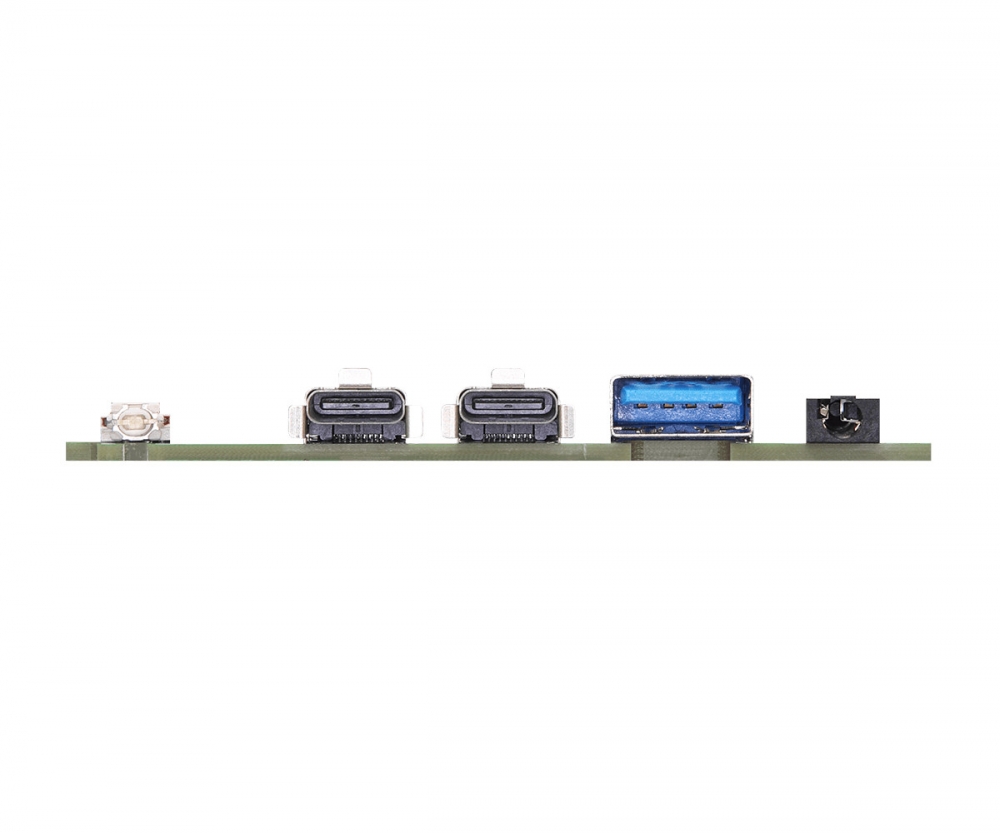

Front I/O

USB 1 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output)
1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4a display output)
*For Thunderbolt support, please refer to support list.
Audio 1 (headphone & microphone jack)

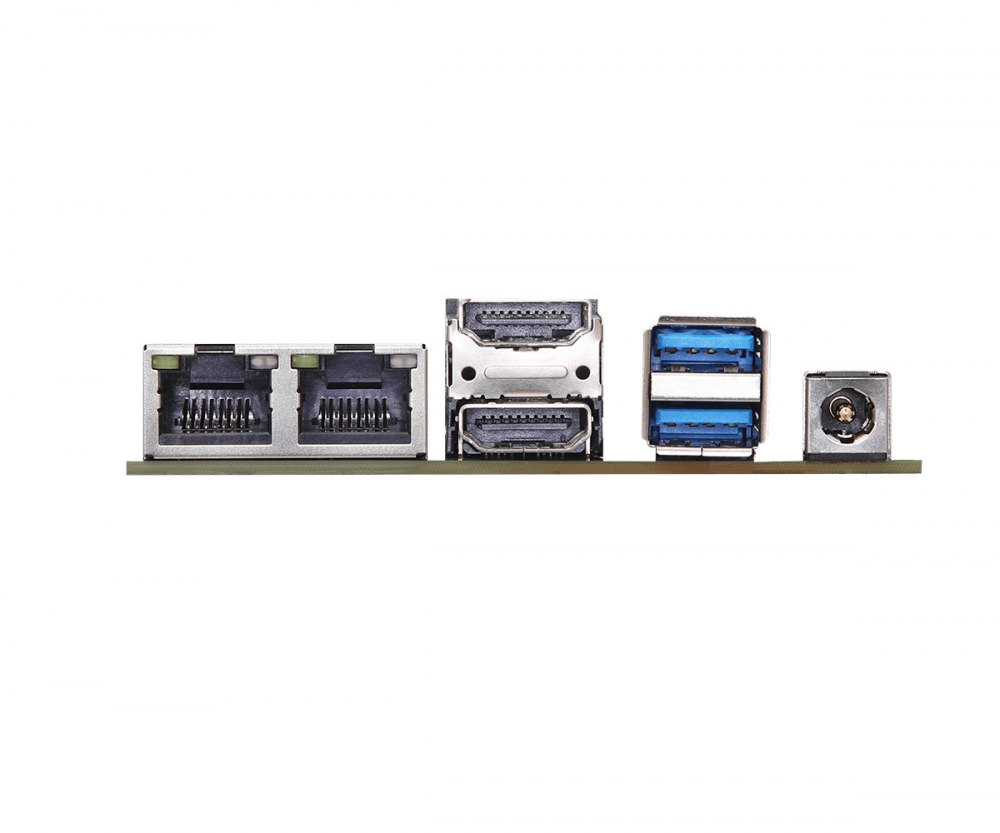

Rear I/O

HDMI 2 x HDMI 2.1 TMDS
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type A)
DC Jack 1

Security

TPM Intel® PTT

Storage

M.2 1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD
1 x M.2 (KEY M, 2242/2280) with PCIe Gen4 x4 for SSD
SATA 1 x SATA3.0 (6.0 Gb/s)
RAID Intel® VMD RAID 0/1
**supported by identical interface (PCIe)
PCIe interface: 2*M.2 Key M

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~24V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp -20ºC ~ 70ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift/Bulk Package
