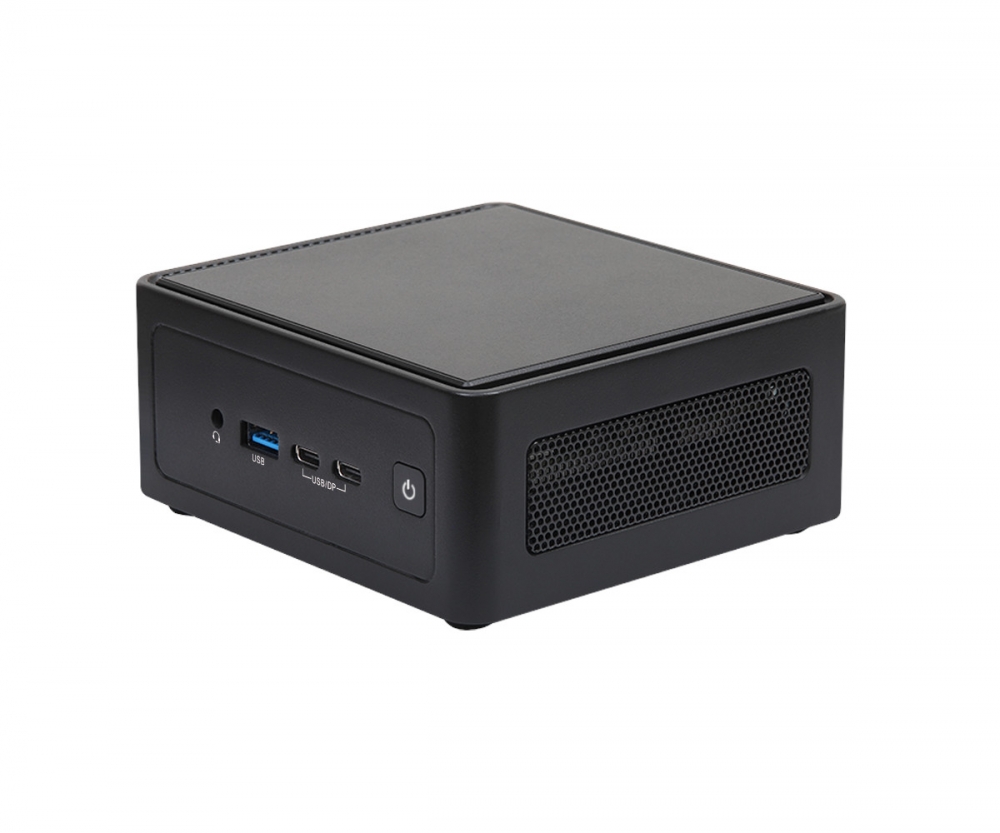

Asrock NUC BOX-125H

Fanned BOX
  • Intel® Core™ Ultra processors (Meteor Lake-H)
  • 2 x 262-pin SO-DIMM DDR5 5600MHz up to 96GB (48GB per DIMM)
  • 1 x USB4/Thunderbolt™4, 4 x USB3.2 Gen2, 2 x M.2 Key M,
  • 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from USB4), 1 x DP 1.4a (from Type-C)
  • Intel® PTT
  • Supports Intel® vPro, VMD RAID 0/1
  • 19V Power Adapter
  • 117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93"), Fanned Barebone
Industria / Ordenadores industriales (IPC)
  • DC
    DC
  • Display Port
    Display Port
  • HDMI
    HDMI
  • Intel
    Intel
  • Interfaz
    Interfaz
  • LAN
    LAN
  • SSD
    SSD
  • USB
    USB
  • Wifi
    Wifi
  • Windows
    Windows

Specifications

Processor System

CPU Intel® Core™ Ultra processors (Meteor Lake-H)
NUC BOX-125H (4P+8E)
Chipset MCP
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR5 5600 MHz
Capacity 96GB (48 GB per DIMM)
Socket 2 x 262-pin SO-DIMM

Graphics

Controller Intel® Iris® Xe Graphics
HDMI HDMI 2.1 TMDS
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 2.1/ 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Quad-Display (Included 2 outputs from Type-C)

Expansion Slot

M.2/WLAN 1 x Wi-Fi 6E 802.11ax + BT 5.3

Audio

Interface Realtek ALC256, High Definition Audio.

Ethernet

Controller/ Speed LAN1: Intel® I226LM with 10/100/1000/2500 Mbps
LAN2: Intel® I226V with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

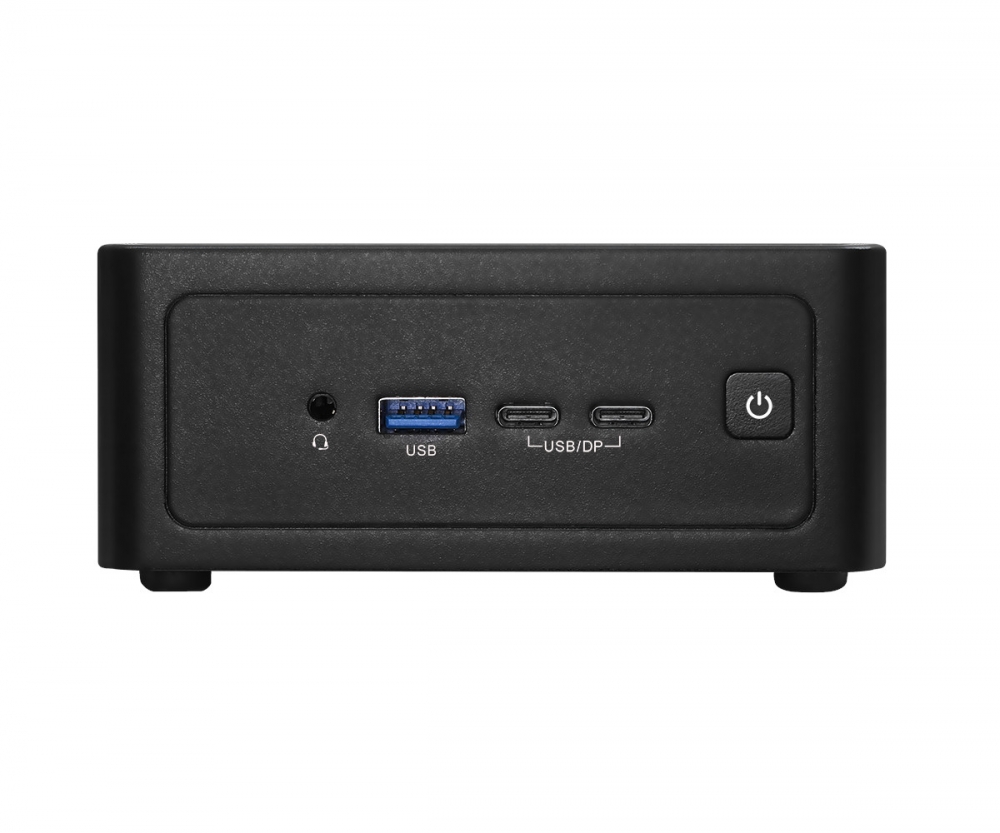

Front I/O

USB 1 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (Supports DP 2.1 display output)
1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
*For Thunderbolt support, please refer to support list.
Audio 1 (headphone & microphone jack)

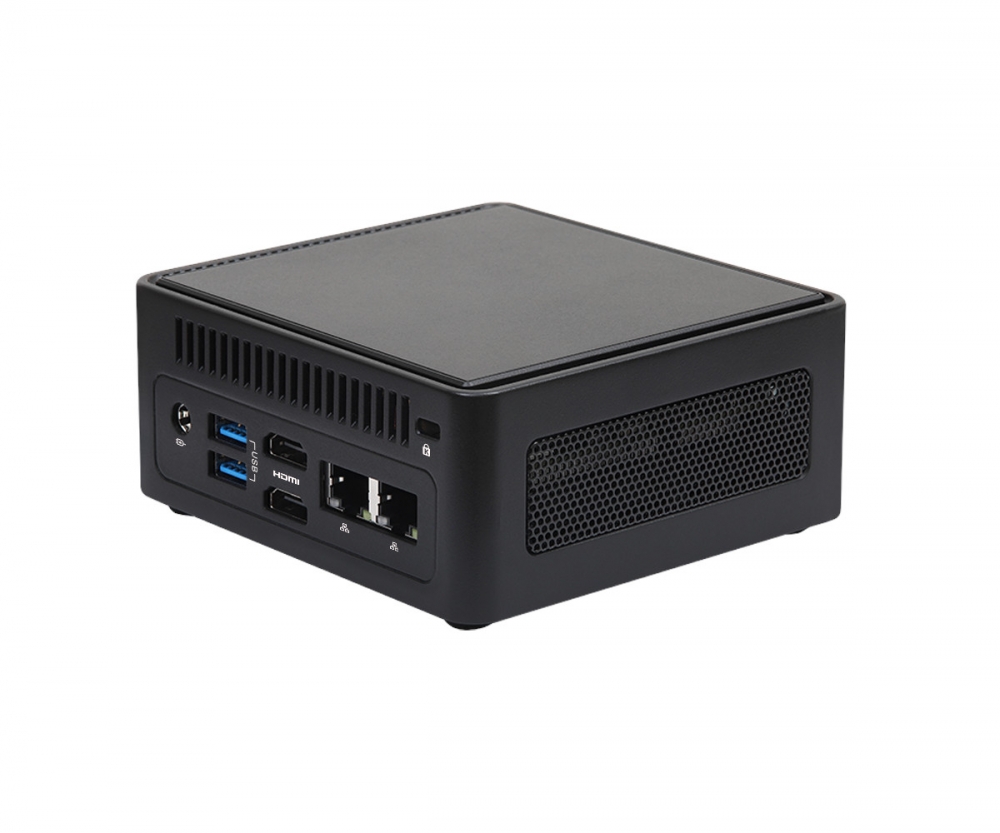

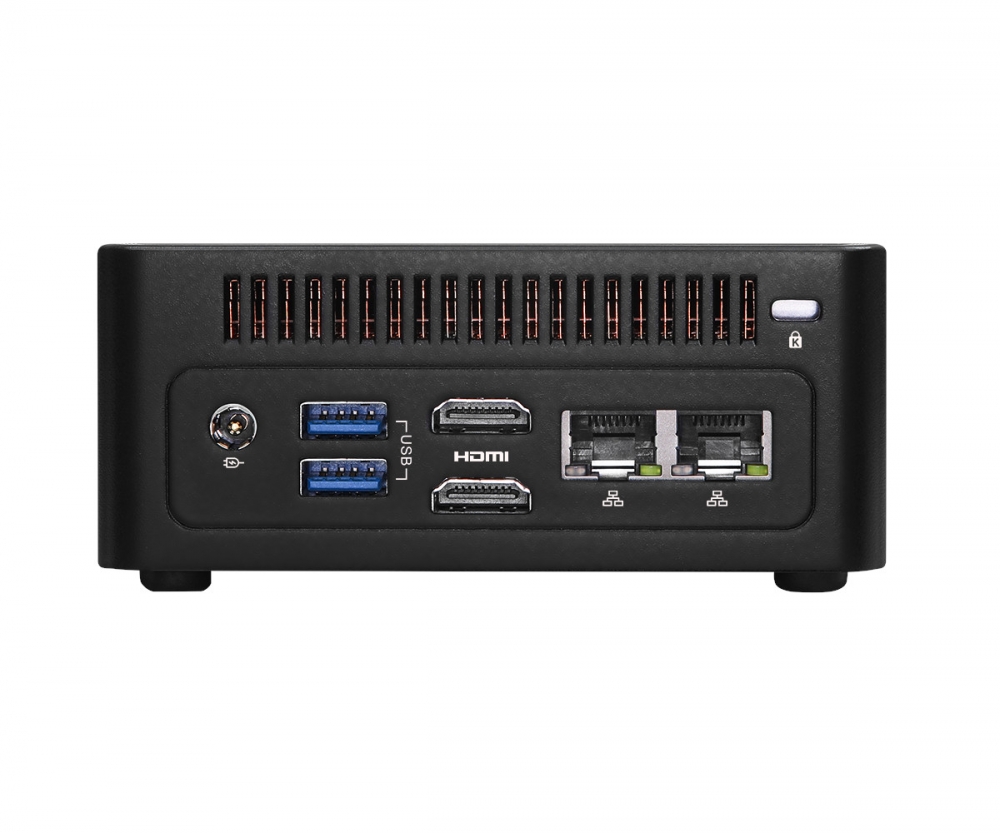

Rear I/O

HDMI 2 x HDMI 2.1 TMDS
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
DC Jack 1

Storage

M.2 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4x4 for SSD
SATA 1 x SATA3.0 (6.0 Gb/s)
RAID Intel® VMD RAID 0/1
**supported by identical interface (PCIe)
PCIe interface: 2*M.2 Key M

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~24V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Mechanical

Mounting VESA mount
Dimensions (L x W x H) 117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93")
Weight Net Weight:1.0Kg

Others

OS Support Windows 10/11
TPM Intel® PTT
Certifications CE, FCC
Packing List 1 x 19V/120W Power Adapter (Core Ultra 7)
1 x 19V/90W Power Adapter (Core Ultra 5)
1 x VESA mount bracket
