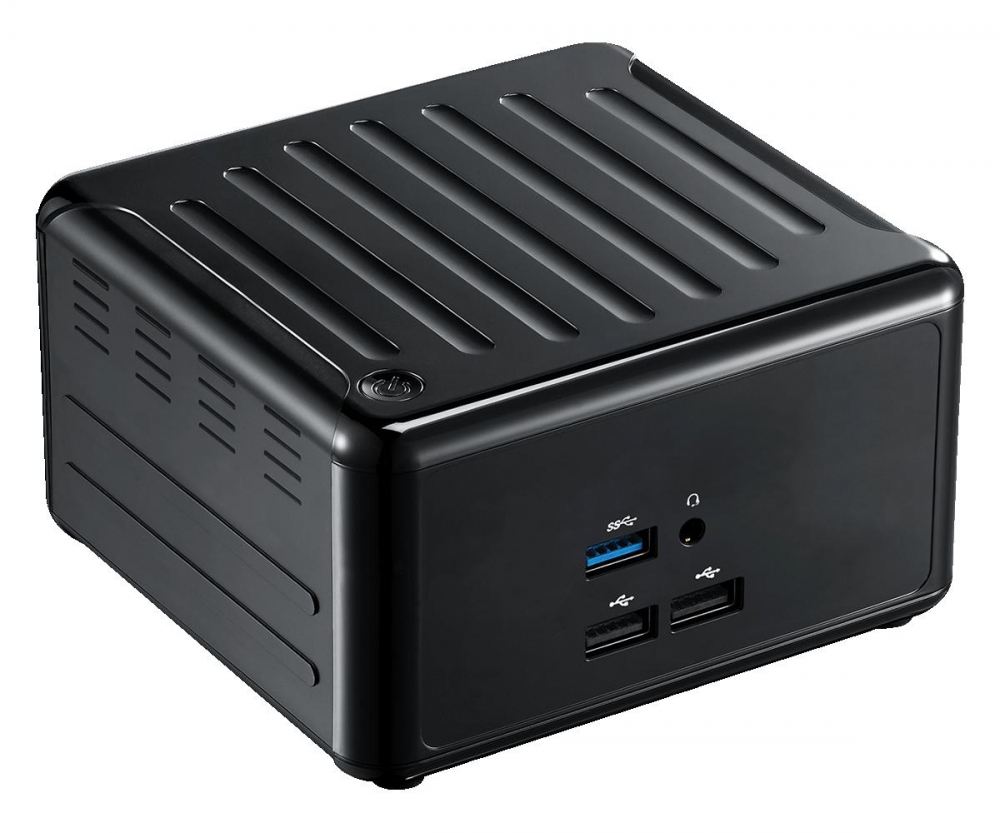

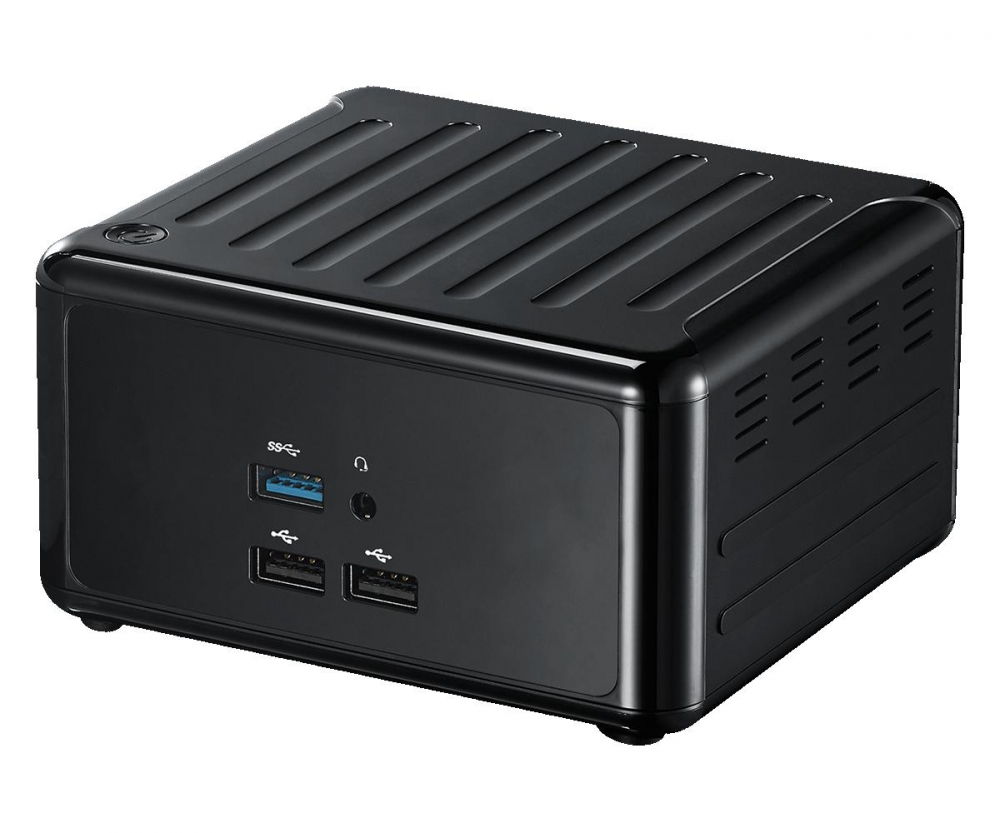

Asrock NUC BOX 8365UE

NUC Motherboard
  • Intel®8th Gen (Whiskey lake-U)Core™ Processors i5-8365UE
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 2400 MHZ (16GB per DIMM)
  • 3 x USB 3.2 Gen2, 2 x USB2.0, 1 x M.2 key M, 1 x M.2 Key E , 1 x COM,1 x SATA3
  • 1 x Intel 1 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
  • Supports triple display, 1 x HDMI1.4, 2 x DP1.2a
  • TPM 2.0 onboard IC
  • Supports Intel® vPro/AMT, RAID 0/1
  • 12V DC-In
Industria / Ordenadores industriales (IPC)
  • DC
    DC
  • Display Port
    Display Port
  • HDMI
    HDMI
  • Intel
    Intel
  • Interfaz
    Interfaz
  • LAN
    LAN
  • SSD
    SSD
  • USB
    USB

Specifications

Processor System

CPU Intel® 8th Gen(Whiskey lake-U)Core™ Processors
NUC-8365UE(i5-8365UE QC, 1.6GHz, 15W)
Chipset MCP
BIOS AMI SPI 128 Mbit

Form Factor

Dimensions NUC (4.09-in x 4.02-in, 10.4 cm x 10.2 cm)

Memory

Technology Dual Channel DDR4 2400 MHz
Capacity 32 GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 12
HDMI HDMI 1.4
Max resolution up to 4096 x 2160@24Hz
DisplayPort DisplayPort 1.2a,
Max resolution up to 4096x2160@60Hz
MultiDisplay Triple Display

Expansion Slot

M.2 1 x Key E(2230) with PCIex1 and USB2.0 for Wireless

Audio

Interface Realtek ALC233, High Definition Audio, Line-out, Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I219LM with 10/100/1000 Mbps, supports AMT/vPro
LAN2: Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector 2 x RJ-45

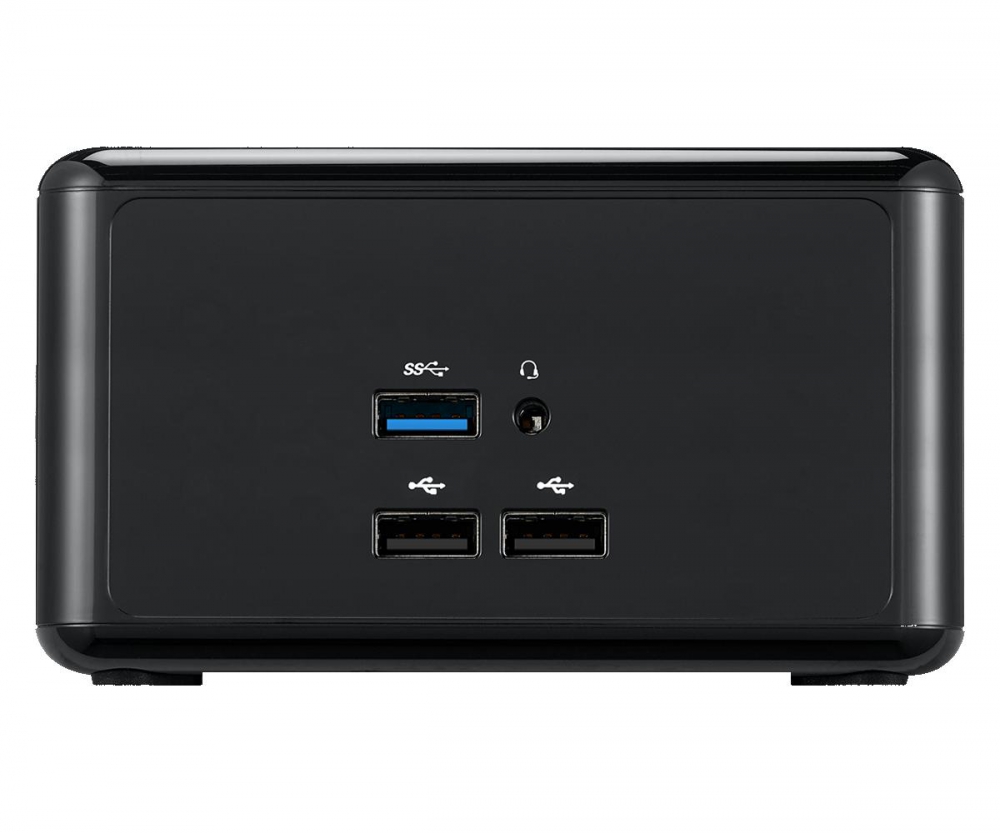

Front I/O

USB 1 x USB3.2 (Gen2)
Audio 1 (Mic-in or Line-out)

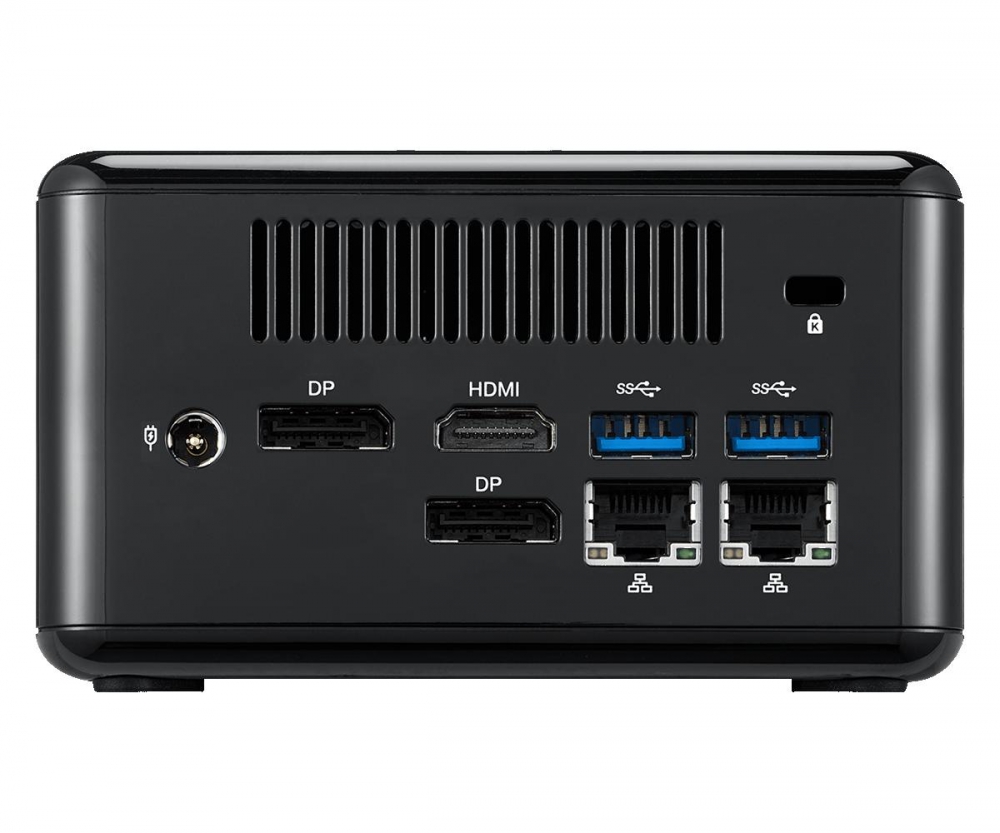

Rear I/O

HDMI 1 x HDMI 1.4
DisplayPort 2 xDP 1.2a
Ethernet 2 x 1 Gigabit LAN
USB 2x USB3.2(Gen2)
DC Jack 1



Internal Connector

USB 2 x USB2.0 (1 x 2.00 pitch header)
COM 1 x COM (RS232/422/485)
TPM TPM2.0 on board IC
SATA PWR Output 1

Storage

M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and SATA3 for SSD
*M.2 Key M 2280(optional support, by bracket)
SATA 1 x SATA3(6Gb/s)
RAID Intel® SATA RAID 0/1

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments 0,1,2....255sec

Power Requirements

Input PWR 12V DC-in(DC Jack)
Power On AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Bulk Package 2 x SCREW M2,D=5 (13G020302031AK)
1 x BRACKET FOR M.2 W/2*SCREW (13G030007000AK)
1 x SATA Data/Power Cable (14G000103111AK)
