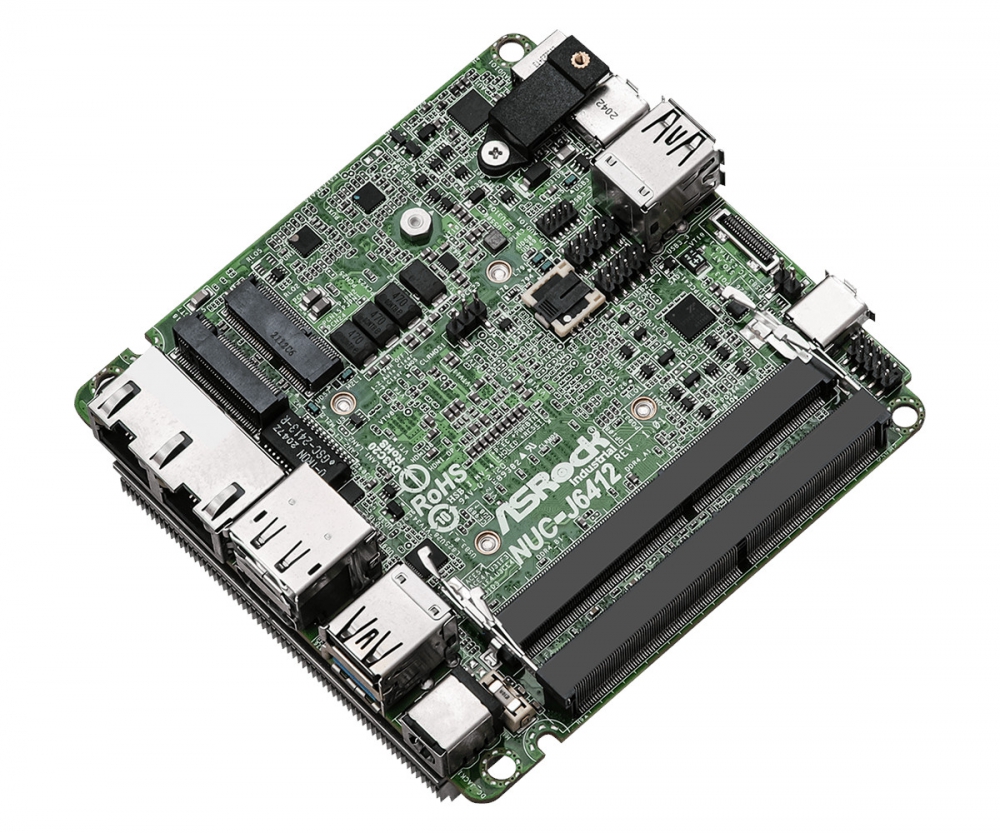

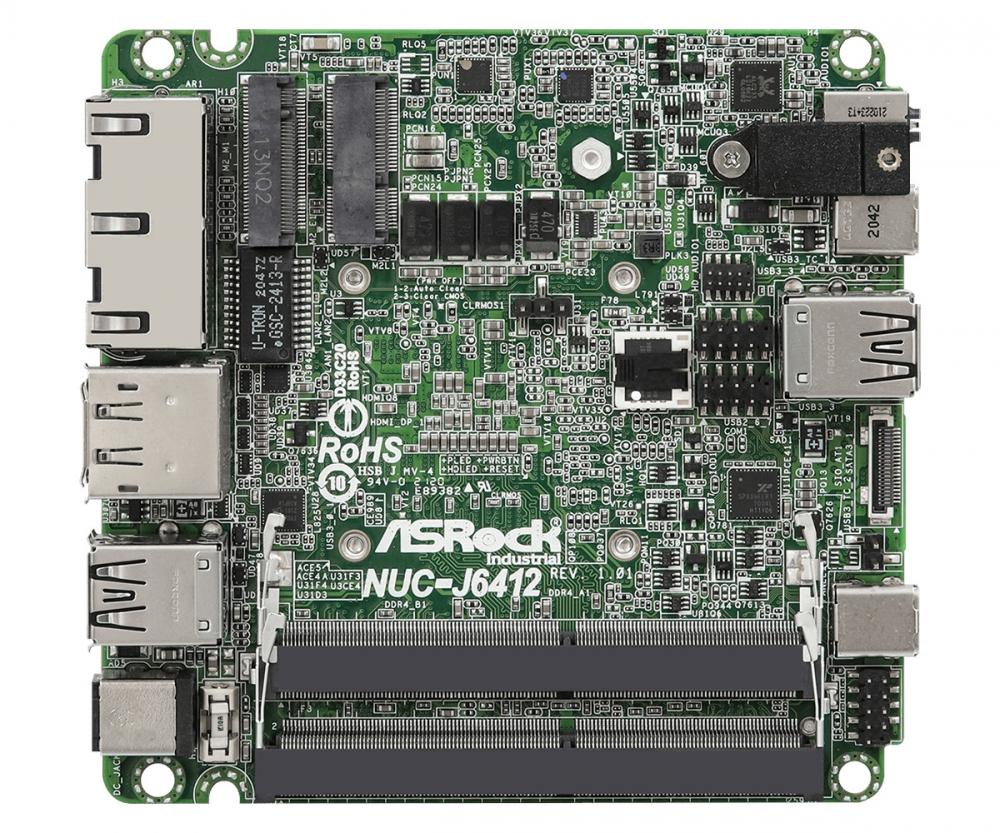

Asrock NUC-J6412

NUC Motherboard
  • Intel® ElkHart Lake Processors J6412
  • 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB (16GB per DIMM)
  • 4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
  • 2 x Realtek 1 Gigabit LAN
  • Supports Dual display, 1 x HDMI 2.0b, 1 x DP 1.2
  • TPM 2.0 onboard IC
  • 12V~19V DC-In
Digital Signage / Placas
Industria
Kiosk
  • DC
    DC
  • Display Port
    Display Port
  • HDD
    HDD
  • HDMI
    HDMI
  • Intel
    Intel
  • Interfaz
    Interfaz
  • LAN
    LAN
  • SSD
    SSD
  • USB
    USB

Specifications

Processor System

CPU Intel® ElkHart Lake Processors
NUC-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W)
Chipset MCP
BIOS AMI SPI 256 Mbit

Form Factor

Dimensions NUC (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm)

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 32GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Gen 11 Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Max 2 display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0

Audio

Interface Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector 2 x RJ-45

Front I/O

USB 1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, 5V/3A)
1 x USB 2.0
Audio 1 (headphone & microphone jack)

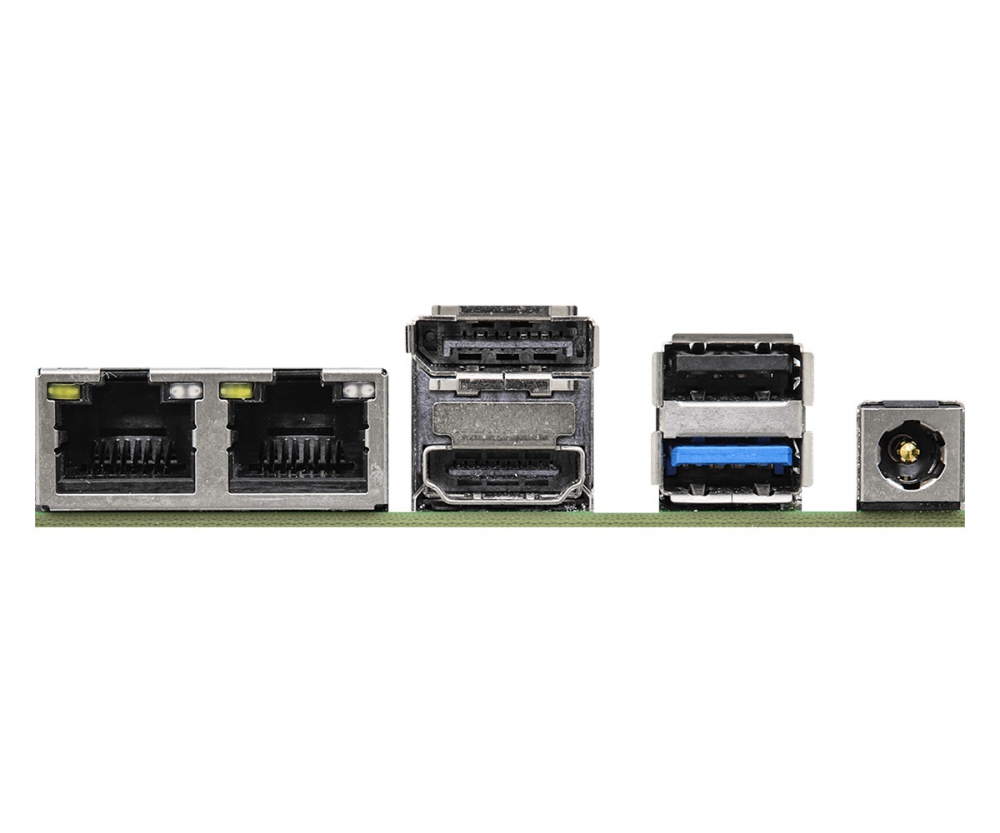

Rear I/O

HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.2
Ethernet 2 x 1 Gigabit LAN
USB 1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
DC Jack 1

Internal Connector

USB 2 x USB 2.0 (1 x 2.00 pitch header)
COM 1 x COM(RS232/422/485)
Audio Header line in /out (share with audio Jack, by BIOS setting)

Security

TPM TPM 2.0 onboard IC

Storage

M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~19V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 70ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Bulk Package 2 x SCREW M2*2,D=5 (13G020302031AK)
1 x NUT M2 H=5.5mm (13G020195070AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x COM Cable (14G000000340AK)
1 x SATA HDD CABLE (14G000104503AK)
