BOE DV215FHM-R10
TFT LCD PRODUCT
DV215FHM-R10 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 21.45 inch diagonally measured active area with FHDresolutions (1920 horizontal by 1080vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.- LVDS Interface with 2 Port 4 Pair
- High-speed response
- 0.5t Glass
- 16.7M (6Bit+FRC) color depth, display 16. 7Mcolors
- Incorporated edge type back-light (Two Light Bar)
- High luminance and contrast ratio, low reflection and wide viewing angle
- DE (Data Enable) only
- RoHS/Halogen Free
- Gamma Correction
- Reverse type
Display
| Parameter | Specification | Unit | Remarks |
| Active area | 478.66(H) ×260.28(V) | mm | |
| Number of pixels | 1920(H) ×1080(V) | pixels | |
| Pixel pitch | 0.2331(H) x 0.2331(V) | mm | |
| Pixel arrangement | RGB Vertical stripe | - | |
| Display colors | 16.7M(6Bit+FRC) | colors | |
| Display mode | Normally Black | - | |

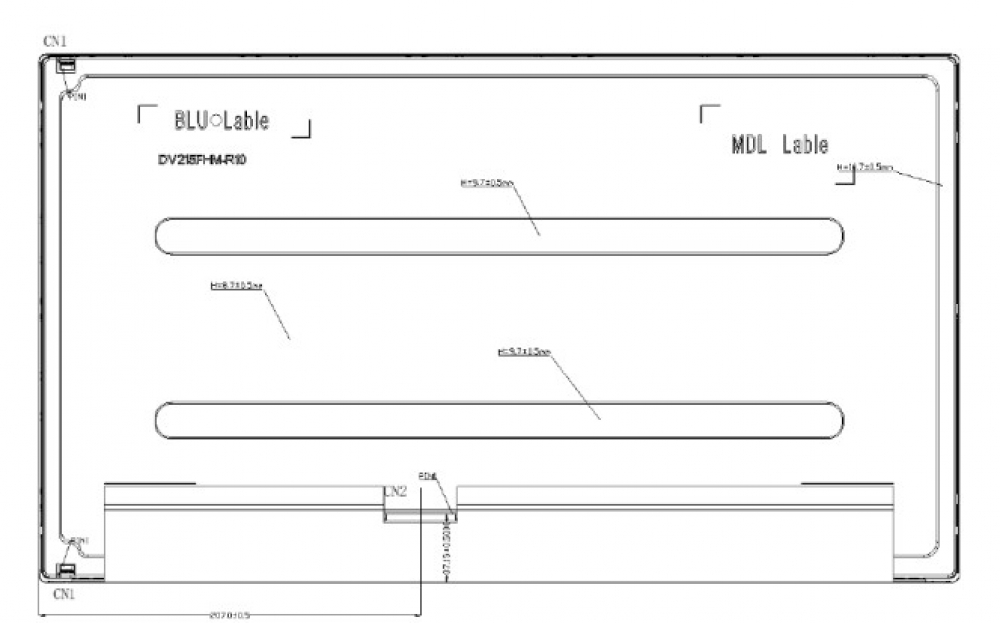

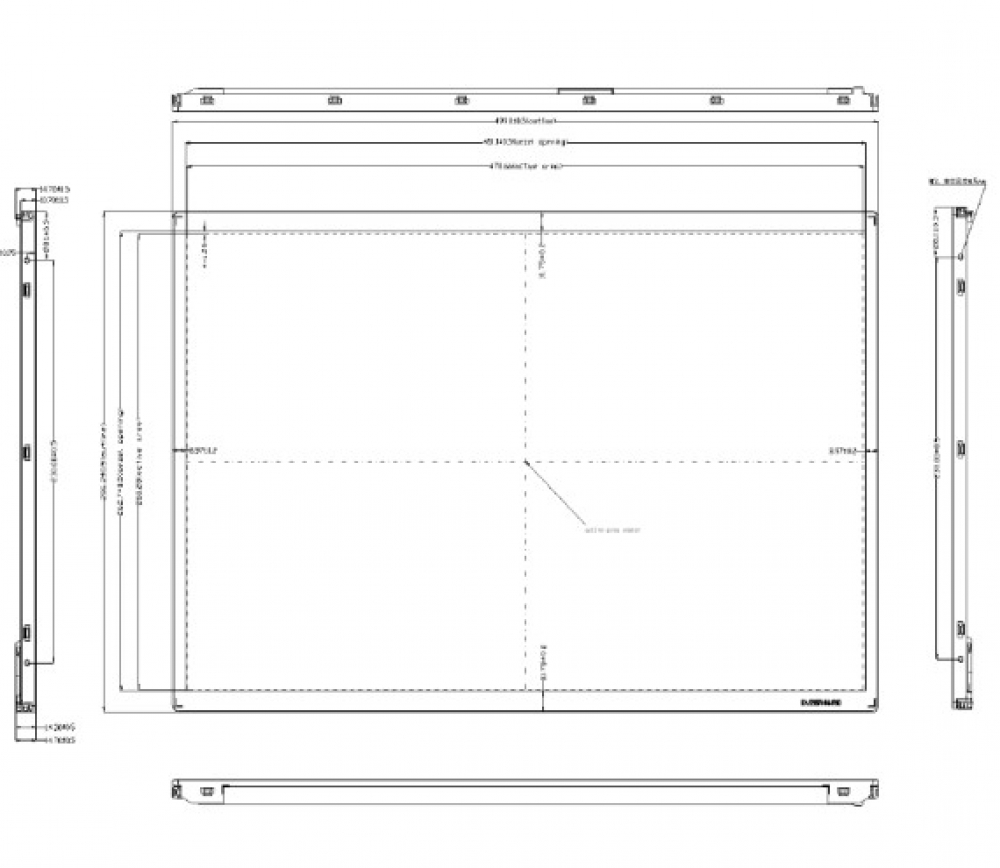

| Dimensional outline | 499(H) x 286.2(V)×10.7(D) typ | mm | Detail refer to drawing |
| Weight | 2.0 | Kg | TYP |
| Surface Treatment | Anti-glare, 3H | - | |
| Back-light | Up & Down edge side 2-LED Light bar Type | - |
| Parameter | Symbol | Min. | Max. | Unit | Remarks |
| Power Supply Voltage | VDD | -0.3 | 5.5 | V | Ta = 25ºC |
| Logic Supply Voltage | VIN | VSS-0.3 | VDD+0.3 | V | |
| Operating Temperature | TOP | -20 | +80 (TSUR) | ºC | 1) |
| Storage Temperature | TST | -30 | +80 | ºC | 1) |
