BOE DV270FHM-R01
TFT-LCD PRODUCT
DV270FHM-R01 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 27.0inch diagonally measured active area with FHD resolutions (1920horizontal by 1080vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.- LVDS Interface with 2 pixel / clock
- High-speed response
- 8-bit color depth, display 16. 7Mcolors
- Incorporated edge type back-light (LED)
- High luminance and contrast ratio, low reflection and wide viewing angle
- DE (Data Enable) only
- RoHS/Halogen Free
- Gamma Correction
Display
| Parameter | Specification | Unit | Remarks |
| Active area | 597.888(H) ×336.312(V) | mm | |
| Number of pixels | 1920(H) ×1080(V) | pixels | |
| Pixel pitch | 0.3114(H) ×0.3114(V) |
mm | |
| Pixel arrangement | RGB Vertical stripe | ||
| Display colors | 16.7M | colors | |
| Display mode | Normally Black | ||

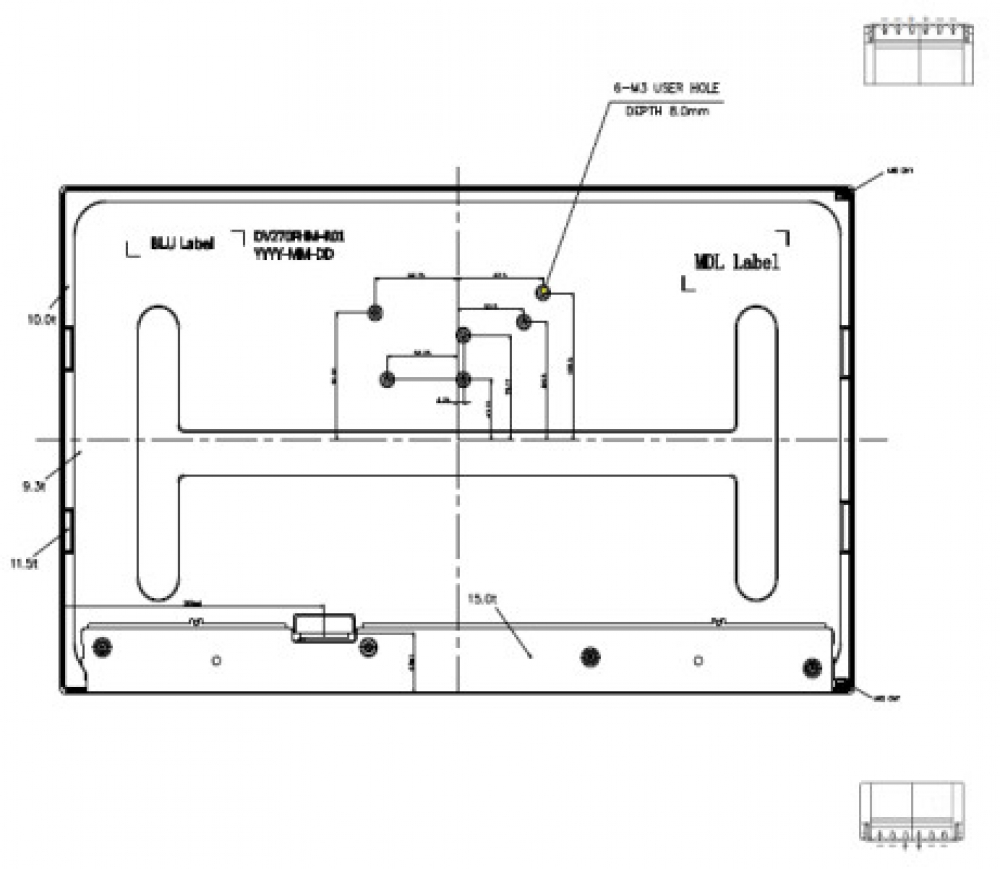

| Dimensional outline | 626.0(H) x363.8(V) x9.3(D) typ. | mm | Detail refer to drawing |
| Weight | 3400(Max.) | g | |
| Bezel width (L/R/U/D) | 12/12/12/12 | mm | |
| Surface Treatment | Haze 25%, 3H | ||
| Back-light | UP&LOWER edge side, 2-LED Lighting Bar type |
Note 1 |
| Parameter | Symbol | Min. | Max. | Unit | Remarks |
| Power Supply Voltage | VDD | -0.3 | 6 | V | Ta = 25ºC |
| Logic Supply Voltage | VID | VSS-0.3 | VDD+0.3 | V | |
| Operating Temperature | TOP | -20 | TSUR +80 | ºC | Note 1 |
| Storage Temperature | TST | -30 | +80 | ºC | Note 1 |
