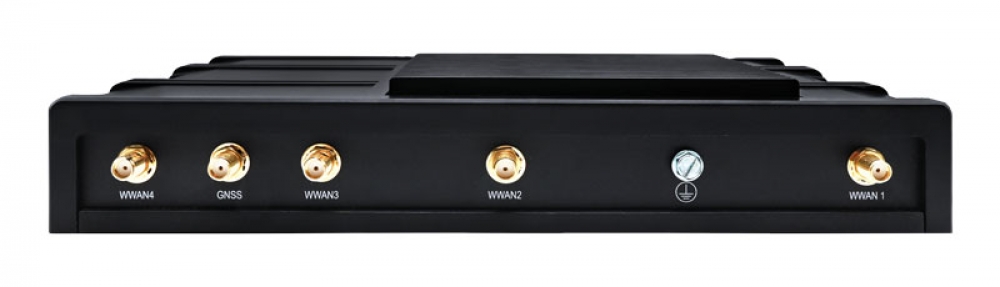

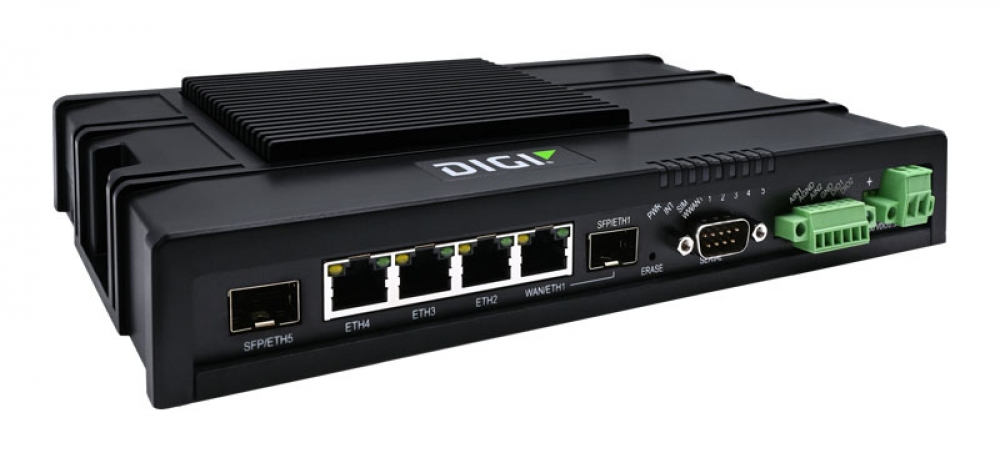

Digi IX40
5G edge computing industrial IoT cellular router solution, purpose-built for Industry 4.0- Global 5G and LTE support and certification on major carriers
- Digi Containers to enable powerful, cost-efficient applications
- Integrated industrial edge computing capabilities for hosting containerized applications and custom solutions
- Support for CBRS and global private 5G networking deployments
- Ethernet, SFP, serial, I/O and Modbus bridging
- Extremely resilient cellular connection through Digi’s patented SureLink®, VRRP+ protocol and dual SIM slots
- GNSS receiver supporting GPS, GLONASS, BeiDou and Galileo
- License-free enterprise software: VPN, firewall, logging and authentication
- Digi Remote Manager platform for easy setup, mass configuration and management
- Rugged enclosure with options for DIN rail or shelf mounting
- Digi WAN Bonding for WAN aggregation and immediate failover
Industria / Ordenadores industriales (IPC)
-
3G
-
4G
-
5G
-
ARM
-
Interfaz
-
LAN
-
Lte
-
Serie
Specifications
| INTERFACES INALÁMBRICAS | |
| CELULAR / WWAN | |
| IX40-05: 5G NSA, 5G SA, 4G LTE-ADVANCED PRO CAT 19 | 5G NR bands: n1, n2, n3, n5, n7, n8, n12, n13, n14 FirstNet®, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79; 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B20, B25, B26, B28, B29, B30, B32, B38, B40, B41, B42, B43, B46, B48, B66, B71; 3G bands: B1, B2, B3, B4, B5, B6, B8, B19 |
| IX40-04: 4G LTE-ADVANCED PRO CAT 12, 3G HSPA+ | 4G LTE-Advanced Pro bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B71; 3G bands: B1, B2, B4, B5, B6, B8, B9, B19 |
| CONNECTORS | (2) or (4) 50 Ω SMA center pin: female |
| SIM SLOTS | (2) SIM Nano-SIM (4FF) holders |
| SIM SECURITY | SIM slot cover plate included |
| GNSS | |
| TECHNOLOGY | GNSS Gen 9 with band L1 LNA for passive antenna use |
| ANTENNA | Upper L-band: GPS L1; Glonass G1; Beidou B1; Galileo E1 IX40-04: supports passive GNSS antennas rated at 1.5 – 3 dBi only IX40-05: supports passive GNSS antennas rated at 1.5 – 3 dBi or active antennas with 7.5 – 26 dB gain |
| PROTOCOL | NMEA 4.11 and TAIP |
| CONECTOR | (1) 50 Ω SMA center pin: female |
| WIRED INTERFACES | |
| ETHERNET | |
| PORTS / CONNECTOR | (4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN |
| I/O | |
| PORTS / CONNECTOR | (2) Digital input/outputs; (2) analog inputs (0 - 10 V; 4 - 20 mA; 12-bit resolution) |
| SFP | |
| PORTS / CONNECTOR | (2) 1 Gb capable SFP sockets |
| SERIAL | |
| PORTS / CONNECTOR | (1) RS-232/422/485; DB-9 male (DTE) |
| SOFTWARE AND MANAGEMENT | |
| REMOTE MANAGEMENT | Digi Remote Manager (cloud based); SNMP v1/v2c/v3 (user installed/managed), SMS |
| LOCAL MANAGEMENT | Web UI (HTTPS); CLI (SSH, serial) |
| MANAGEMENT TOOLS | SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog |
| PROCESSOR | |
| APPLICATION PROCESSOR | 1.6 GHz quad-core i.MX 8M Plus ARM® Cortex® -A53 processor |
| MEMORY | |
| RAM / FLASH | 1 GB / 8 GB |
| PHYSICAL | |
| DIMENSIONS | 234 mm x 154 mm x 41 mm (9,21 in x 6,06 in x 1,61 in) |
| WEIGHT | 1,14 kg (2,51 lb) |
| STATUS LEDS | Power, WWAN, Ethernet (link, activity) |
| ENCLOSURE / RATING | Glass-filled polyphenylene sulphide; IP30 −40 °C to 85 °C (−40 °F to 185 °F) |
| POWER REQUIREMENTS | |
| POWER INPUT | 12 a 30 V CC |
| POWER CONNECTOR | Screw down removable terminal block |
| POWER CONSUMPTION | 4.5 W (light traffic), 8 W (peak data), 3.5 W (idle traffic) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | −30 °C to 70 °C (−22 °F to 158 °F) |
| STORAGE TEMPERATURE | -45 °C a 85 °C (-49 °F a 185 °F) |
| RELATIVE HUMIDITY | 0% to 95% (non-condensing) at 25 °C (77 °F) |
| APPROVALS* | |
| CELLULAR | PTCRB, AT&T, FirstNet Capable™, T-Mobile, Verizon |
| SAFETY | IEC 62368-1, CB scheme |
| EMISSIONS / IMMUNITY | FCC Part 15 Subpart B, ISED, CE, RED, UKCA |
