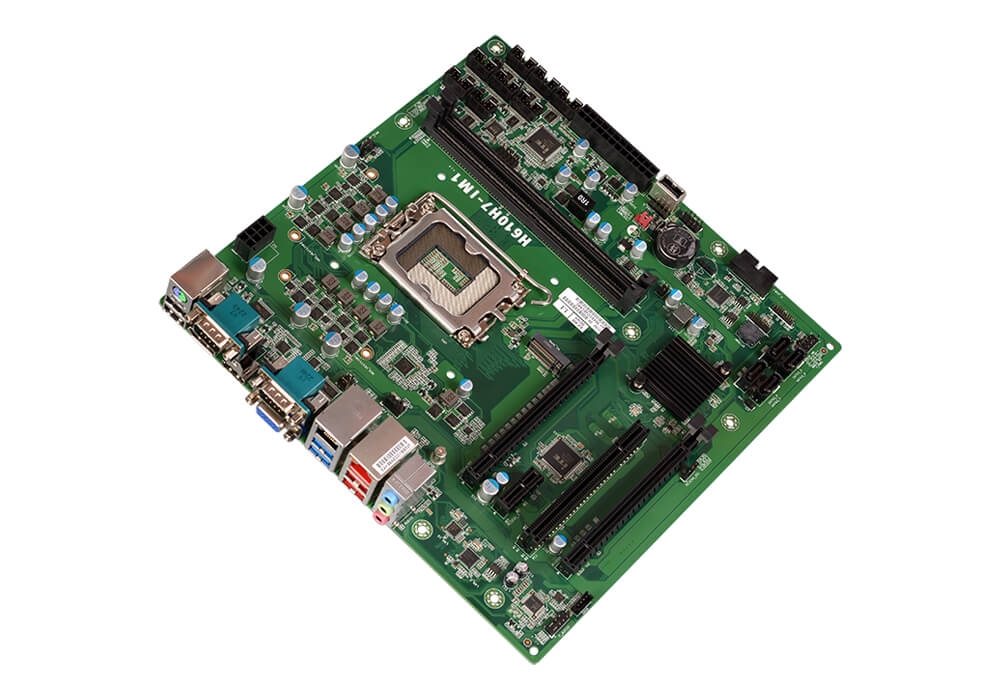

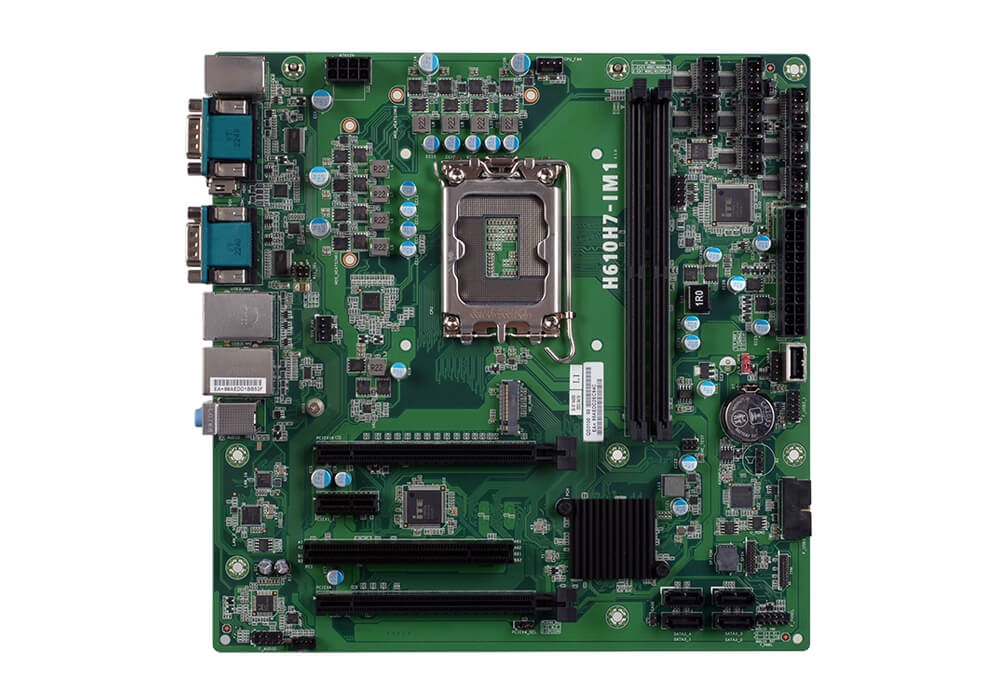

ECS H610H7-IM1

Specifications

• CPU
  Supports 14th Gen Intel® Core™ family/ Pentium series processors for LGA 1700 socket

  Supports 13th Gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1700 socket

  Supports 12th Gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1700 socket

  7+1 Phase Thermal Design Power

  100% Solid capacitor design

  Please refer to CPU support list for details
• CHIPSET
  Intel^® H610 Express Chipset
• GRAPHICS
  Support Intel^® HD Graphics
• MEMORY
  Dual-channel DDR4 Memory architecture

  Supports 3200MHz max. non-ECC, Un-buffered SDRAM Memory

  2 X 288-pin DDR4 DIMM socket

  For more information, please refer QVL memory list on ECS website
• EXPANSION SLOT
  1 X PCI Express X16 Gen 4.0 slot(s)

  1 X PCI Express X4 Gen 3.0 slot(s)

  1 X PCI Express X1 Gen 3.0 slot(s)

  1 X M.2 slot for SSD

  ∟ For 2280 PCI-e x4 Gen3 SSD SSD

  1 X PCI slot(s)
• STORAGE
  Support by Intel H610 Express Chipset

  4 X Serial GRAPHICS 6Gb/s
• AUDIO
  6-Channel HD audio CODEC

  Realtek ALC897 6-channel High Definition audio CODEC
• AND
  Intel i219V Gigabit Fast Ethernet Controller

  Other chip: intel i226V (2.5G) LAN

  Wake-On-LAN
• USB
  Support by H610 Express Chipset

  2 X USB 3.2 Gen 2x1 port(s) up to 10Gb/s

  ---- Back Panel 2 port(s)

  4 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s

  ---- Back Panel 2 port(s)

  ---- Onboard 2 port(s)

  6 X USB2.0 port(s) Up to 480 Mb/s

  ---- Back Panel 2 port(s)

  ---- Onboard 4 port(s)

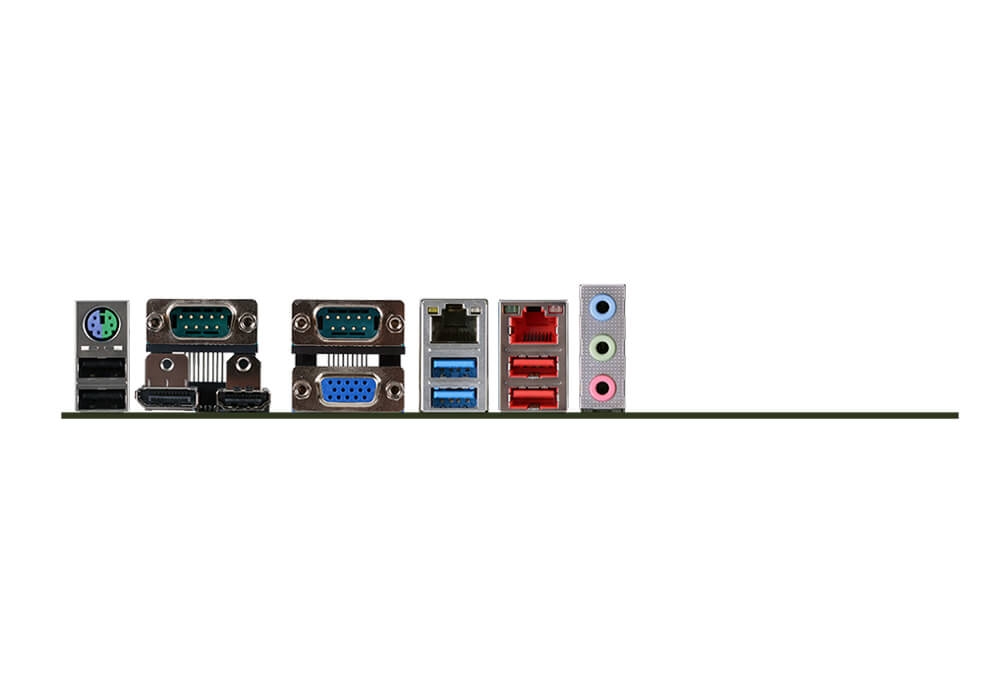

• REAR PANEL I/O
  1 X PS/2 combo connector

  2 x Serial port (COM)

  1 X Audio port (Line Out/Line In/Mic In)

  2 X RJ-45 port

  1 X HDMI 2.0 port(s)

  1 X D-Sub (VGA) port(s)

  1 X Display port

  2 X USB 3.2 Gen 2x1 Type A port(s)

  2 X USB 3.2 Gen 1x1 Type A port(s)

  2 X USB2.0 port(s)
• CONNECTORS & HEADERS
  1 X 24-pin ATX Power Supply connector

  1 X 8-pin ATX 12V Power Connector

  1 X AT/ATX jumper

  1 X 4-pin CPU_FAN connector

  1 X 4-pin SYS_FAN connector

  1 X Front panel audio header

  1 X Front panel header

  1 X Speaker header

  1 X USB 3.2 Gen 1x1 header

  ∟ Support additional 2 USB ports

  2+1 (Vertical ) X USB 2.0 header

  ∟ Support additional 4 USB ports

  4 X SATA III 6Gb/s connector(s)

  1 X CLR_CMOS header

  1 X TPM header

  1x GPIO header

  1 X SPIH /Buzzer header

  1 X COM1 Pin9 function jumpers

  1 X Case open header

  8 X COM headers

  1 X PCIE/ M.2 jumper
• SYSTEM BIOS
  AMI BIOS with 128 MB SPI Flash ROM

  ACPI & DMI

  F7 hot key for boot up devices option

  Support GUI UEFI BIOS

  Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot

  Audio, LAN, can be disabled in BIOS

  Supports PgUp clear CMOS Hotkey
• FORM FACTOR
  mATX Form Factor

  244*244
• OS SUPPORT
  Windows 11 64-bit
