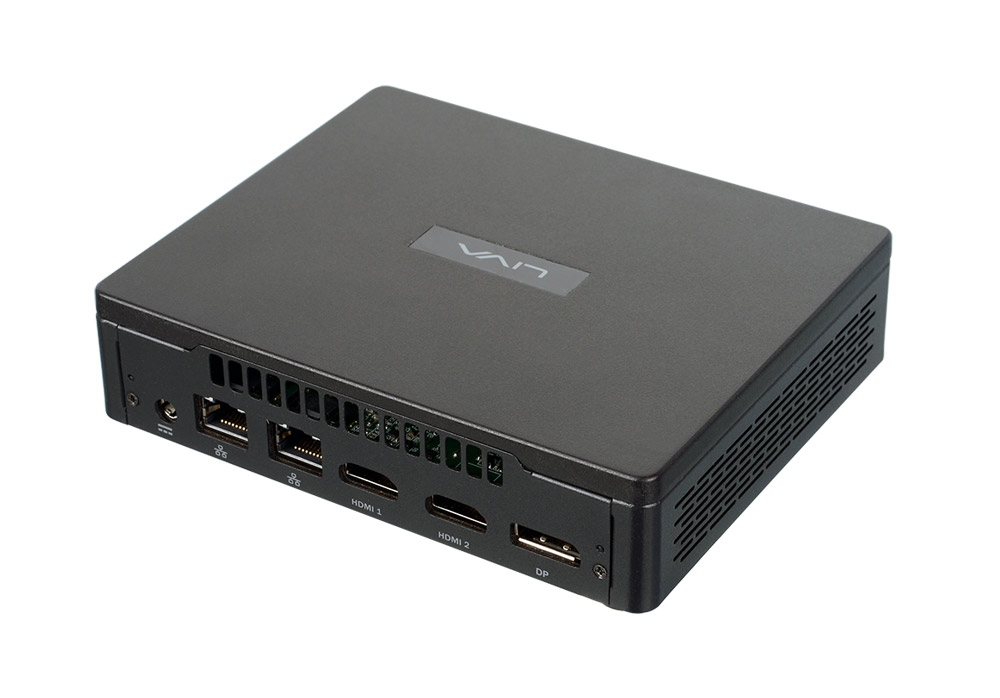

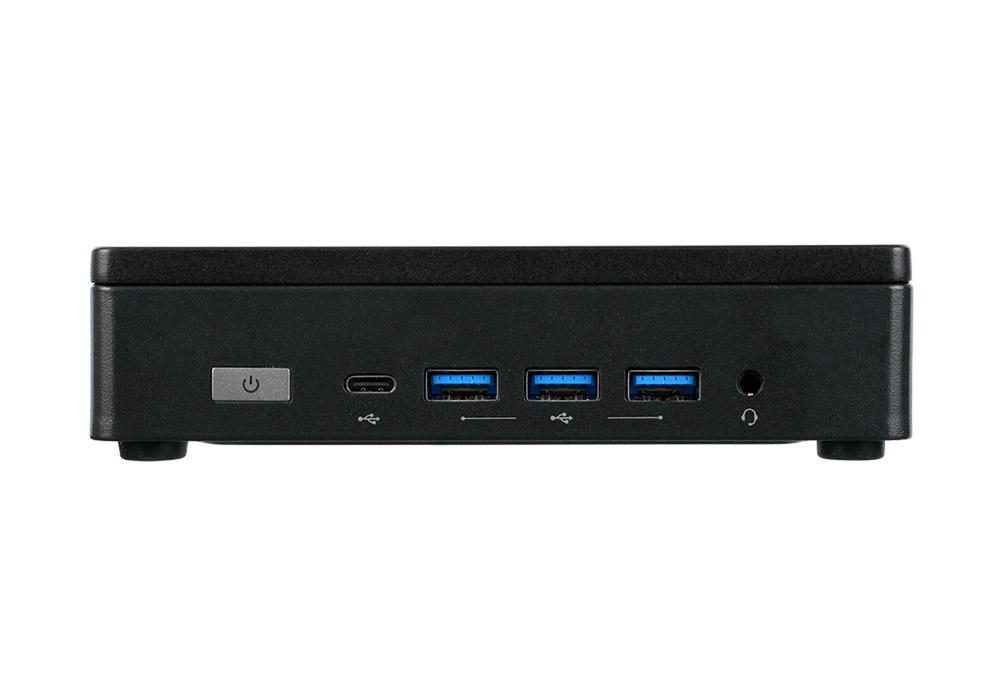

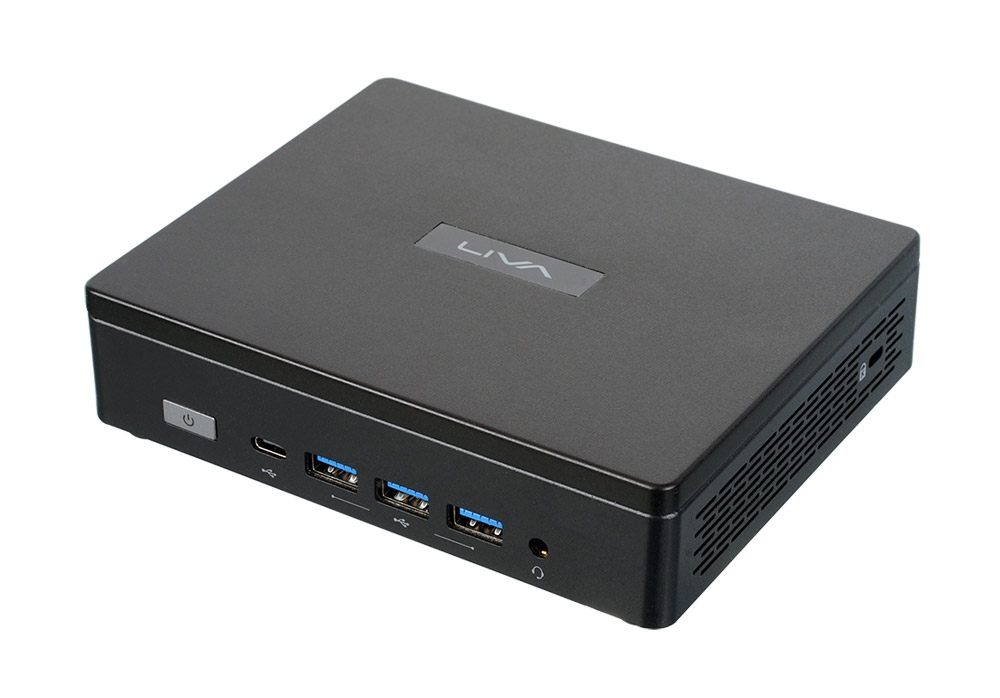

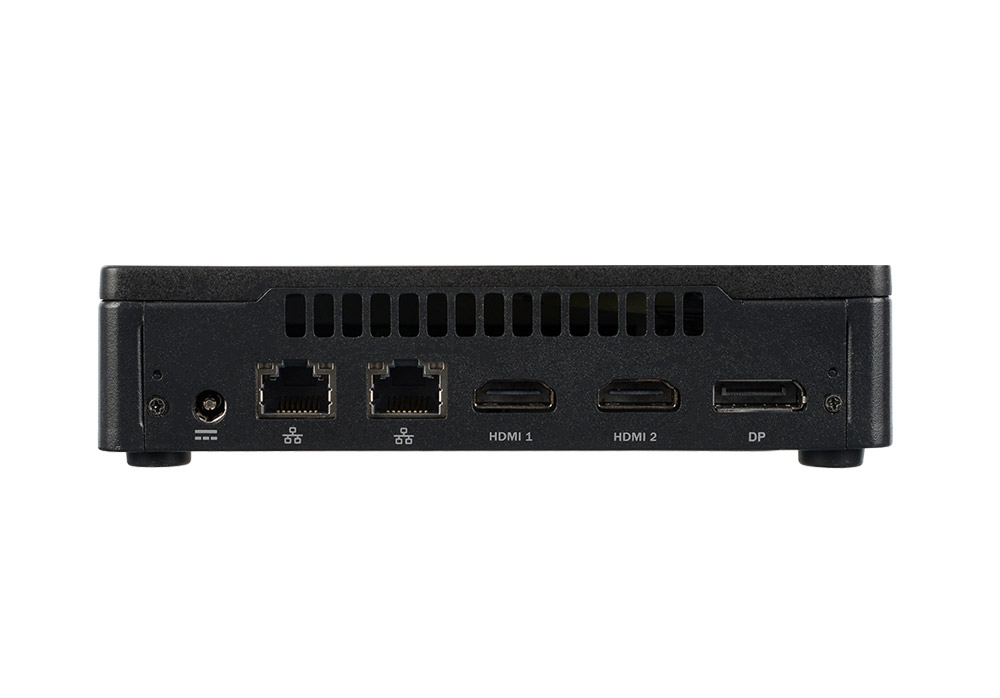

ECS LIVA Z5 PLUS

Business and Industrial use with Flexible Ultracompact Mini PC
  • Intel® 13th Gen Core™ Processors (TDP 15W) Processors
  • Support Four Display Outputs
  • Up to 802.11ax Wireless Connection
  • Dual Gigabit LAN
  • Up to 4K Resolution
Industria / Ordenadores industriales (IPC)
  • Display Port
    Display Port
  • HDMI
    HDMI
  • Intel
    Intel
  • Interfaz
    Interfaz
  • LAN
    LAN
  • Linux
    Linux
  • SSD
    SSD
  • USB
    USB
  • Windows
    Windows

Specifications

  • PLATFORM
    Intel®Raptor Lake-U U300 SoC
    Intel®Raptor Lake-U Core™ i3-1315U SoC
    Intel®Raptor Lake-U Core™ i5-1335U SoC
    Intel®Raptor Lake-U Core™ i5-1345U SoC (vPRO supported)
    Intel®Raptor Lake-U Core™ i7-1355U SoC
    Intel®Raptor Lake-U Core™ i7-1365U SoC (vPRO supported)
  • MEMORY
    Support 2 x SO-DIMM DDR4 3200MHz, up to 64GB
  • STORAGE DEVICES
    1 x M.2 2280 PCIe Gen4x4/NVME SSD
  • AUDIO
    1 x Combo Jack
  • NETWORKING
    2 x 2.5 Gbps LAN (LAN 1: i226 LM & i226V vPRO co-layout)
  • USB
    3x USB 3.2 Gen 2x1 (Front I/O)
    1 x USB 4 Gen 2×2 Type C (Front I/O)
    1 x USB 2.0 (Internal Header 2x5)



  • VIDEO OUTPUT / INPUT
    2 x HDMI (HDMI 1: w/ CEC function; Power on/off only)
    1 x DP1.4 HBR3
    1 x Type C (alt DP)
  • WIRELESS
    1 x M.2 2230 WLAN 802.11ax
  • POWER
    19V/4.74A, 90W
  • VESA MOUNT
    Supports 75mm / 100mm
  • DIMENSIONS (MM)
    148 x 120 x 38.35 (mm)
  • OS SUPPORT
    Windows® 10 IOT
    Windows® 11 Home & Pro
    Linux
  • ACCESSORY
    ADAPTER / SCREW / VESA MOUNT / QUICK GUIDE
  • REMARK
    1 x TPM IC Onboard (Optional)
