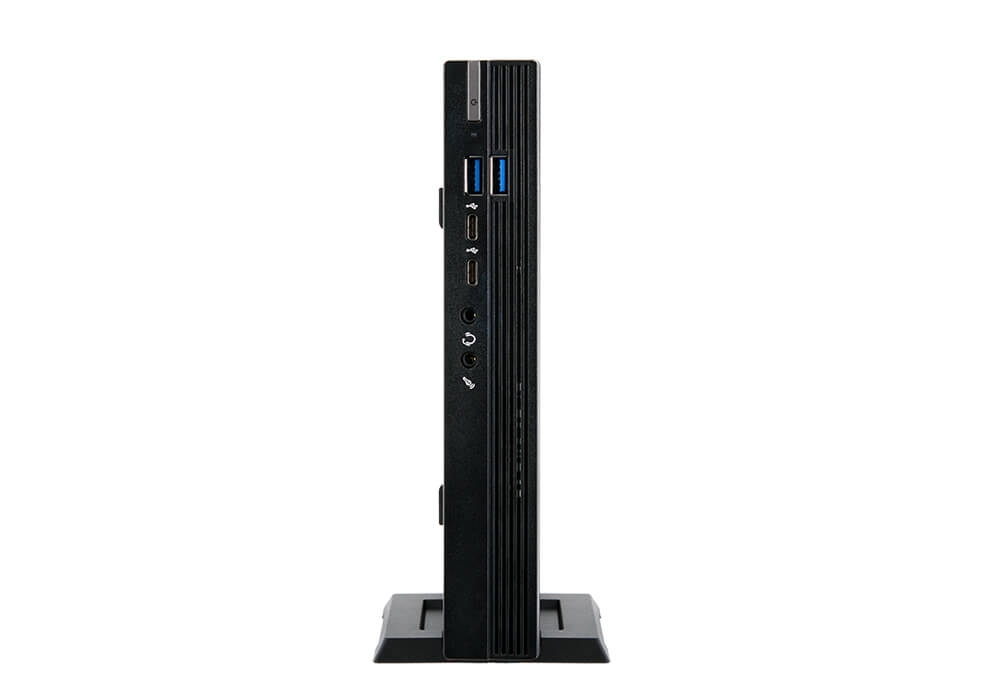

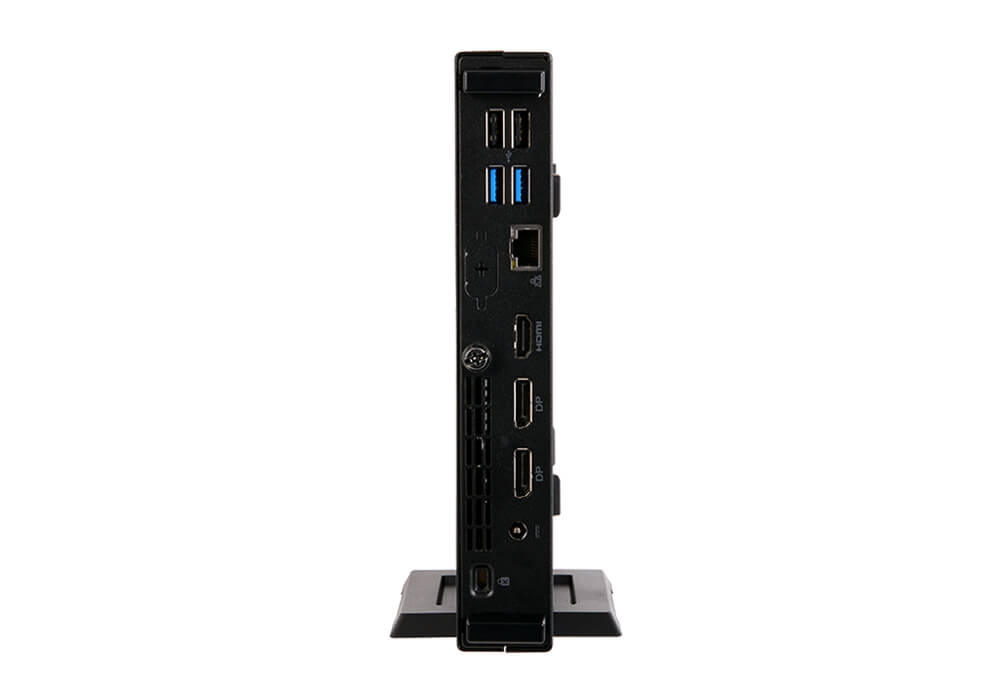

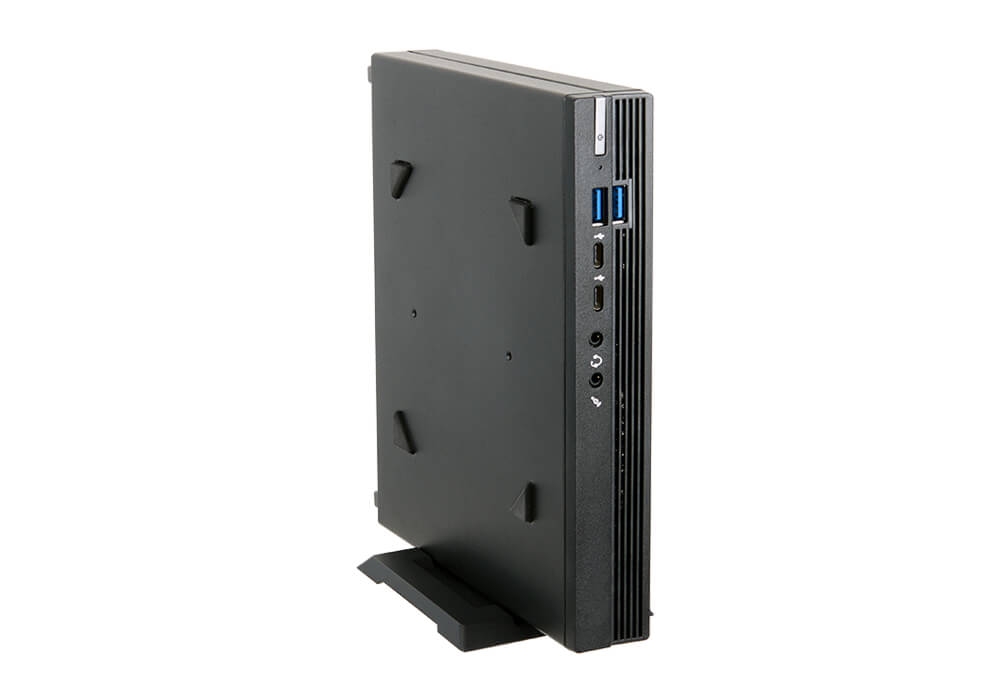

ECS SF110 B660

Intel® 12th, 13th & 14th Gen Processors with LGA1700 Socket
  • Max. 4 Video Outputs, up to 4K resolution
  • Support M.2 2280 (PCIe NVME x4) & SATA SSD
  • 802.11 ax wireless connection
  • Gigabit Ethernet LAN
  • Support DASH
Industria / Ordenadores industriales (IPC)
  • DC
    DC
  • Display Port
    Display Port
  • HDD
    HDD
  • HDMI
    HDMI
  • Intel
    Intel
  • Interfaz
    Interfaz
  • LAN
    LAN
  • SSD
    SSD
  • USB
    USB
  • VGA
    VGA
  • Windows
    Windows

Specifications

  • PLATFORM
    Intel® 12th, 13th & 14th Gen Processors with LGA1700 Socket

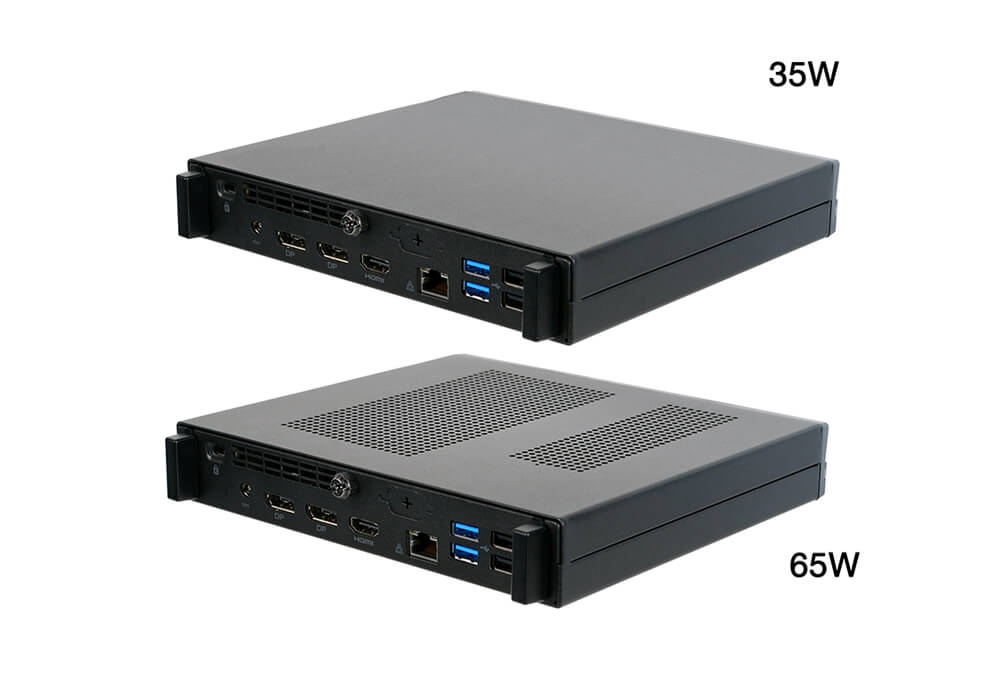

    TDP 35W & 65W
  • MEMORY
    Support 2 x SO-DIMM DDR4 3200MHz, up to 64GB
  • STORAGE DEVICES
    1 x 2.5" SATA3 HDD or SSD
    1 x M.2 2280 SATA3/PCIe NVME Gen4x4 SSD
  • AUDIO
    1 x Combo Jack
    1 x MIC-IN
    1 x Internal Speaker
  • NETWORKING
    1 x Gigabit LAN
  • USB
    2 x USB 3.2 Gen2x1 (FRONT I/O)
    2 x USB 3.2 Gen 2x1 Type C Ports (FRONT I/O)
    2 x USB 2.0(REAR I/O)
    2 x USB 3.2 Gen 1x1(REAR I/O)



  • VIDEO OUTPUT / INPUT
    1 x HDMI Port
    2 x DisplayPort
    1 x VGA Port (D-Sub; Optional)
  • VIDEO OUTPUT
    ∟ * Max. 4 Video Outputs
  • WIRELESS
    1 x M.2 2230 WLAN 802.11ax
  • POWER
    TDP 35W & 65W: 19V/6.32A, 120W
    1 x Power Button
    1 x DC-in
  • OS SUPPORT
    Windows 10 & Windows 11
  • REMARK
    1 x TPM IC Onboard
    1 x RS232/VGA share same I/O port (Optional)
    Support DASH
