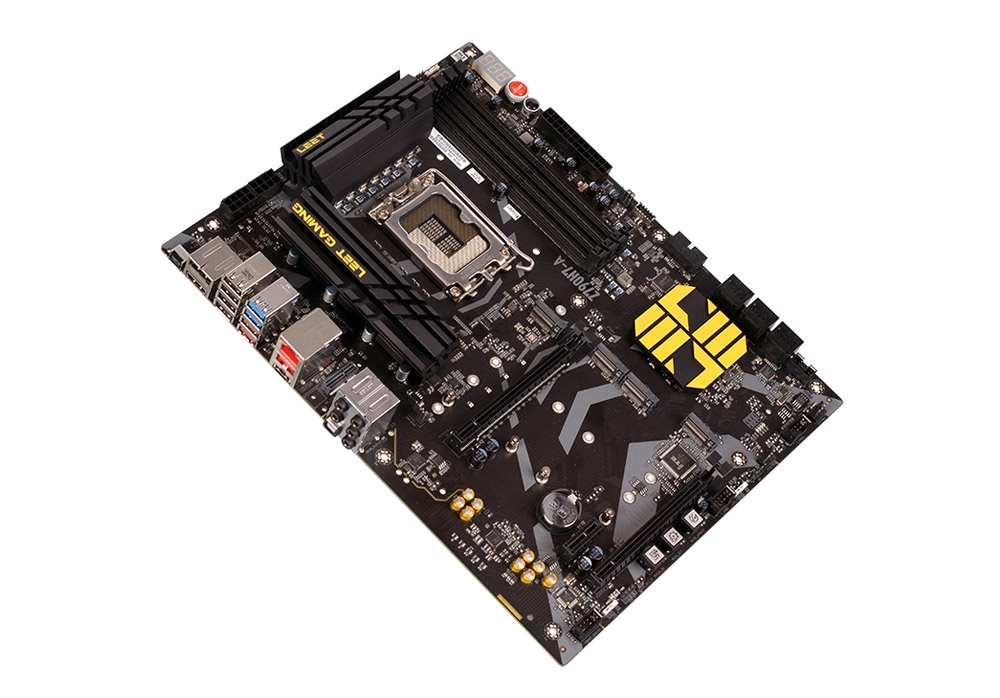

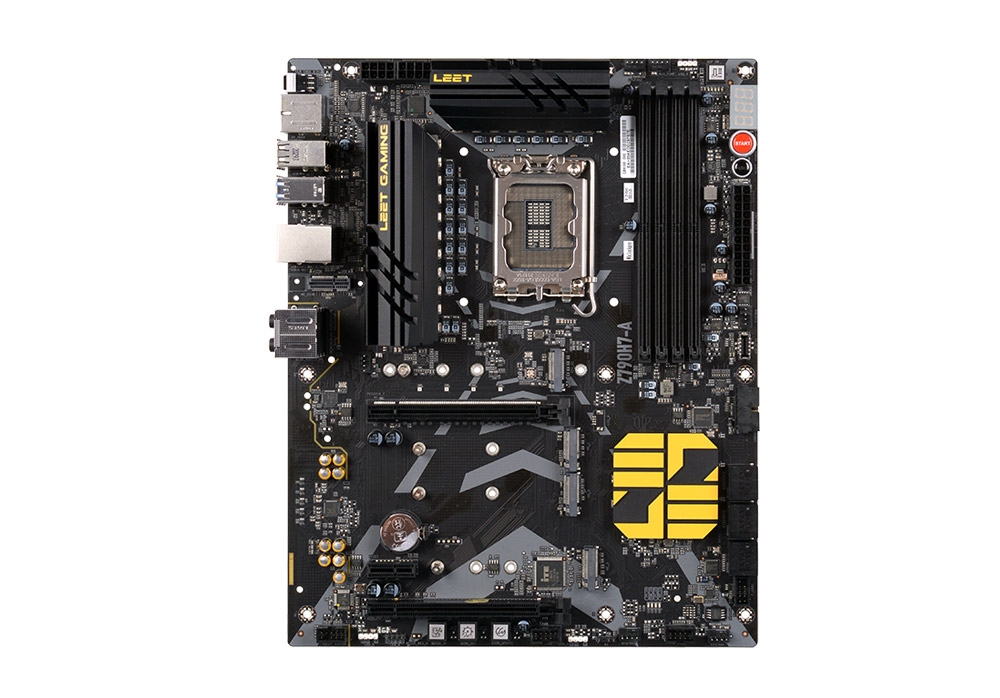

ECS Z790H7-A(v1.0)

Specifications

• CPU
  Supports 14th Gen Intel® Core™ family/ Pentium series processors for LGA 1700 socket

  Supports 13th Gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1700 socket

  Supports 12th Gen Intel® Core™ family/ Pentium / Celeron series processors for LGA 1700 socket

  18 Phase Thermal Design Power

  100% Solid capacitor design

  Intel^® K Series Unlock CPU Support

  ECS Digital Power Design

  Please refer to CPU support list for details
• CHIPSET
  Intel^® Z790 Express Chipset
• GRAPHICS
  Supports HDMI 2.0 Technology ( resolution up to 3840 x 2160 pixels )
• MEMORY
  Dual-channel DDR5 Memory architecture

  Supports DDR5 4800 non-ECC, Un-buffered SDRAM Memory

  Supports up to 6200(OC)

  4 X 288-pin DDR5 DIMM socket

  Intel^® extreme Memory Profile (XMP) 1.3/1.2 Memory Modules

  For more information, please refer QVL memory list on ECS website
• EXPANSION SLOT
  1 X PCI Express X16 Gen 5.0 slot(s)

  1 X PCI Express X1 Gen 3.0 slot(s)

  1 X PCI Express X16 slot(s)

  ∟ *(runs at Gen4 x4)

  4 X M.2 slot for SSD

  ∟ For 2242/2260/2280 PCI-e x4 Gen4 SSD

  ∟ 2242/2280 PCI-e x4 Gen4 SSD Support

  ∟ 2242/2280 PCI-e x4 Gen4 SSD Support

  ∟ 2242/2260/2280 PCI-e x4 Gen4 / SATA SSD Support

  1 X M.2 slot for WiFi
• STORAGE
  Support by Z790 Express Chipset

  4 X Serial GRAPHICS 6Gb/s

  ---- Located in SATA1 Port

  Support by ASMedia ASM1061 Controler

  2 X Serial Graphics 6Gb/s

  RAID0, RAID1,RAID5, RAID 10 configuration

  Supports Intel^® Rapid Storage Technology
• AUDIO
  8-Channel HD audio CODEC

  VIA ALC1220 8-channel High Definition audio CODEC
• AND
  2.5G Gigabit Fast Ethernet Controller
• USB
  Support by Z790 Express Chipset

  1 X USB 3.2 Gen 2x2 port(s) up to 20Gb/s

  4 X USB 3.2 Gen 2x1 port(s) up to 10Gb/s

  ---- Back Panel 3 port(s)

  ---- Onboard 1 port(s)

  4 X USB 3.2 Gen 1x1 port(s) up to 5Gb/s

  ---- Back Panel 2 port(s)

  ---- Onboard 2 port(s)

  8 X USB2.0 port(s) Up to 480 Mb/s

  ---- Back Panel 4 port(s)

  ---- Onboard 4 port(s)

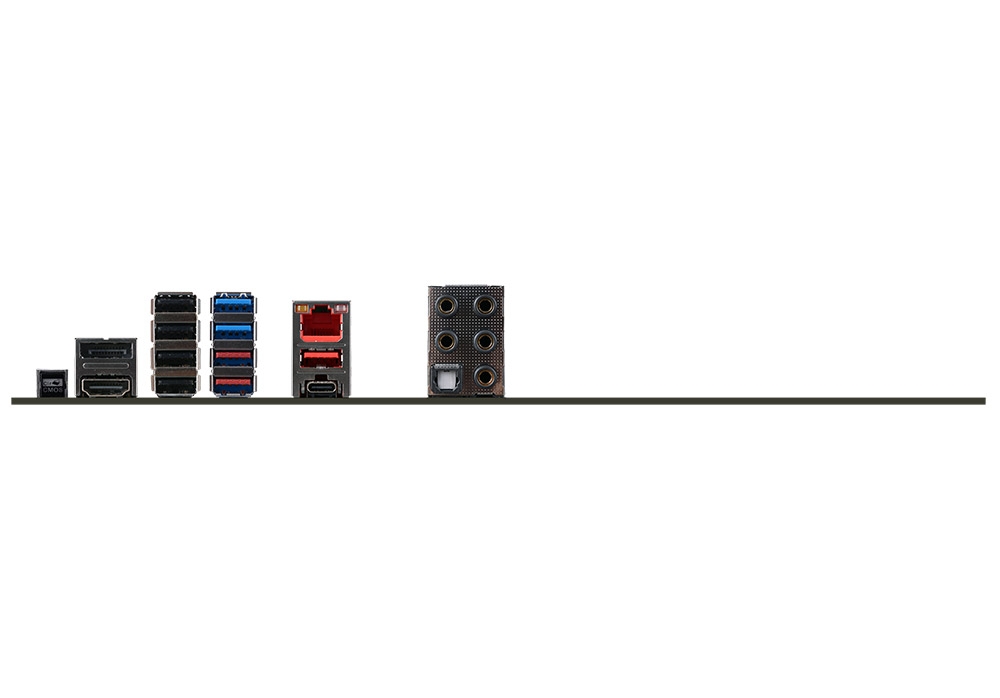

• REAR PANEL I/O
  1 X Audio port (Line-in,4x Line-out, SPDIF out)

  1 X RJ-45 port

  1 X HDMI 2.0 port(s)

  1 X Display port

  1 X USB 3.2 Gen 2x2 Type C port(s)

  3 X USB 3.2 Gen 2x1 Type A port(s)

  2 X USB 3.2 Gen 1x1 Type A port(s)

  4 X USB2.0 port(s)

  1 X Clear_CMOS Button

  1 X Antenna Connector (optional)
• CONNECTORS & HEADERS
  1 X 24-pin ATX Power Supply connector

  1 X 8-pin ATX 12V Power Connector

  2 X 4-pin CPU_FAN connector

  4 X 4-pin SYS_FAN connector

  1 X 4-pin AIO_PUMP FAN connectors

  1 X Power on button

  1 X Reset button

  1 X BIOS_SET

  1 X BIOS_UPDATE

  1 X Quick OC

  1 X Front panel audio header

  1 X Onboard Buzzer

  1 X USB 3.2 Gen 2x1 header

  ∟ Support additional 1 USB ports

  1 X USB 3.2 Gen 1x1 header

  ∟ Support additional 2 USB ports

  2 X USB 2.0 header

  ∟ Support additional 4 USB ports

  6 X SATA III 6Gb/s connector(s)

  1 X 7S-LED Display

  1 X Chassis intrusion header
• SYSTEM BIOS
  Over-Clocking

  Dual Display

  Support ECS EZ BIOS

  Support GUI UEFI BIOS

  Multi-Language BIOS
• FORM FACTOR
  ATX Form Factor

  305 mm(W) X 244 mm(H)
• OS SUPPORT
  Windows 11 64-bit
• CERTIFICATIONS
  CE/FCC Certification
