Elgens LPC-P121S-10

12.1" P-cap Panel PC with Celeron® N3160, IP65 / 66 Bezel-Free and Wide Range Power Input
  • Celeron® N3160 Quad Core 1.6GHz
  • IP65 / 66 Front Panel
  • Bezel-Free Design
  • 12.1" P-cap Flat Bezel
  • Fanless Design
  • 3-Pin Power Input Terminal Block
  • DC 9~36V Wide Range Power Input
  • 1024*768 High Resolution LCD
  • 350 nits LED Backlight
  • Optional 1000 nits LED Backlight
  • Optional to Resistive Touch
Digital Signage / Sistemas
Gaming
Industria
Kiosk
Seguridad
Smart City
  • Alto brillo
    Alto brillo
  • DC
    DC
  • Display Port
    Display Port
  • Sin ventilación
    Sin ventilación
  • HDMI
    HDMI
  • Intel
    Intel
  • Interfaz
    Interfaz
  • IP6X
    IP6X
  • IPX5
    IPX5
  • IPX6
    IPX6
  • LAN
    LAN
  • Táctil
    Táctil
  • USB
    USB
  • Gran angulo de visión
    Gran angulo de visión
  • Windows
    Windows

Specifications

System
Processor Intel® Celeron® N3160 SoC CPU
System Memory DDR3L SO-DIMM,up to 8 GB

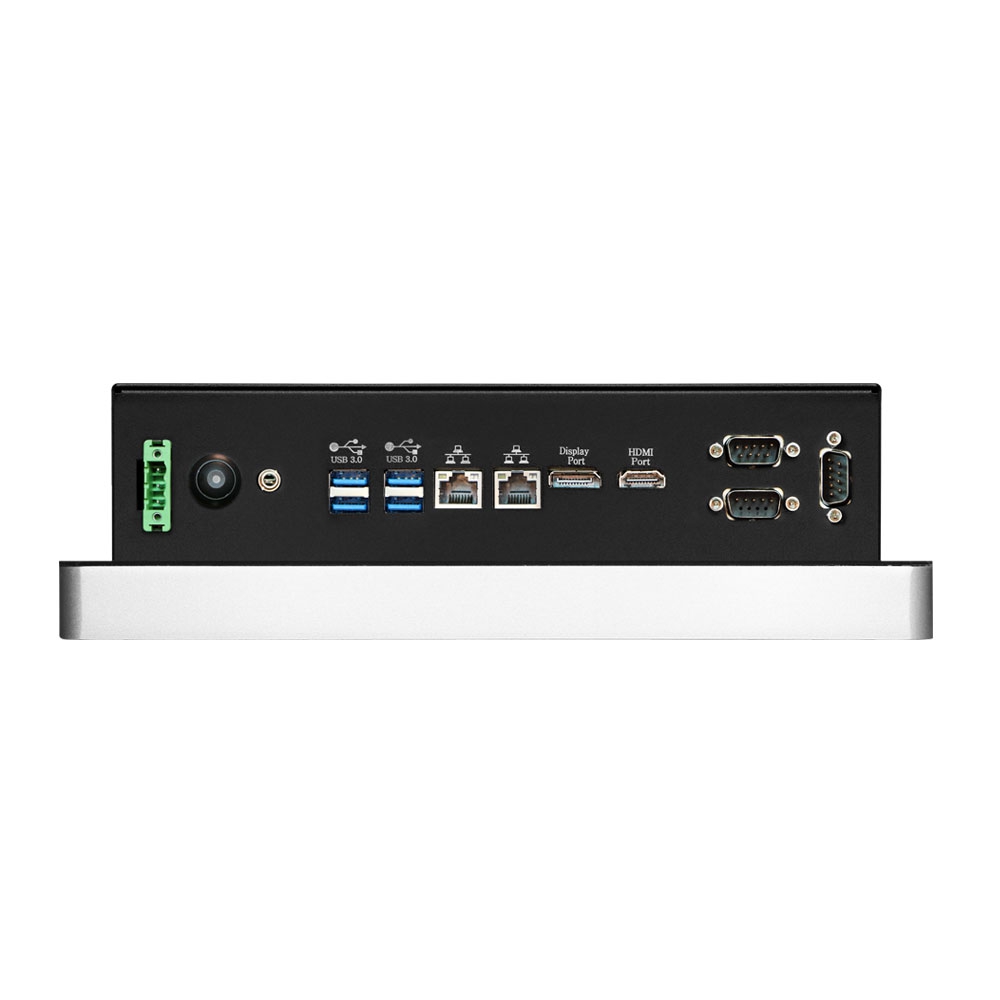

External I/O Port
  • 4 x USB 3.0
  • 2 x GbE LAN (RTL8111G)
  • 1 x Display Port
  • 1 x HDMI
  • 3 x RS-232
  • 1 x RS-232/422/485
  • 1 x Audio
  • 1 x Power press button
  • 1 x 3-Pin Power Input
Solid Storage Disk
  • 1 x CFast Slot
  • 1 x mSATA (full size mini-PCIe)
Expansion Slots 2 x MiniPCIe Slot
OS Support Win 7 Pro/ WES7 / Win 8 / Win 10
LCD
Display Type 12.1″ TFT-LCD
Max. Resolution 1024*768
Max. Color 16.7 M
Luminance (cd/m2) 350nits
View Angle 160 / 160
Backlight Lifetime 30,000hrs



Touch Screen
Type 12.1″ P-cap USB interface
Power Requirement
Power Type
  • 3-Pin Power Input Terminal Block
  • DC 9~36V Wide Range Power Input
Mechanical
Construction
 Aluminum Front Bezel and Metal Case
IP Rating
  • Front Panel IP65
  • Front Panel IP66 Compliant
Mounting
  • Panel Mount
  • VESA Mount
Dimension TBC
Environment
Operating Temp. -20~60 °C ，IEC-60068-2-1/2/14
Storage Temp. -20~60 °C
Humidity 10~90% @40 °C, non-condensing
EMC
  • FCC / CE Class A Certification
  • CE Class B Compliant
Vibration 1.5 Grms @10~500Hz, IEC-60068-2-64
